| Parameter | Specification Value |
|---|---|
| Voltage/Frequency | 220V/50Hz |
| Power | 80+22 W |
| Motor diameter | φ235 mm |
| Rotor (mm) | φ172×19.50 mm |
| Stator (mm) | φ145×19.50 mm |
| Motor speed | ≥240 r/min |
| Max. Temperature arise | ≤75 K |
| Sweep | 1400 mm |
| Blade length | 615 mm |
| Blades width | 123/93 mm |
| Blades thickness | δ2.5-4.0 mm |
| Air flow | ≥250 m³/min |
| Down rod | φ22×200 mm |

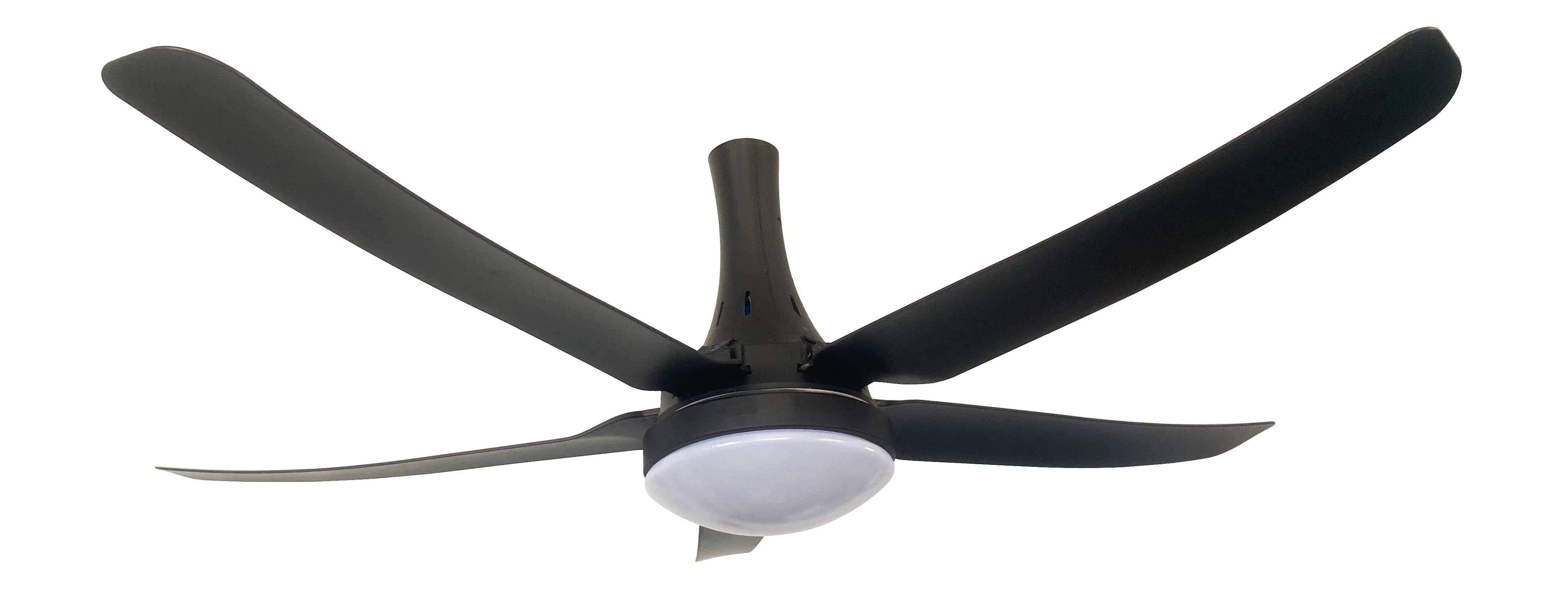

The EF56-A1 ceiling fan operates on a standard voltage and frequency of 220V/50Hz, with a total power configuration of 70W-80W motor power and 20W-22W LED lamp power.
This ceiling fan complies with international safety and environmental regulations, holding GS, CCC, ROHS, CE, and CB certifications.

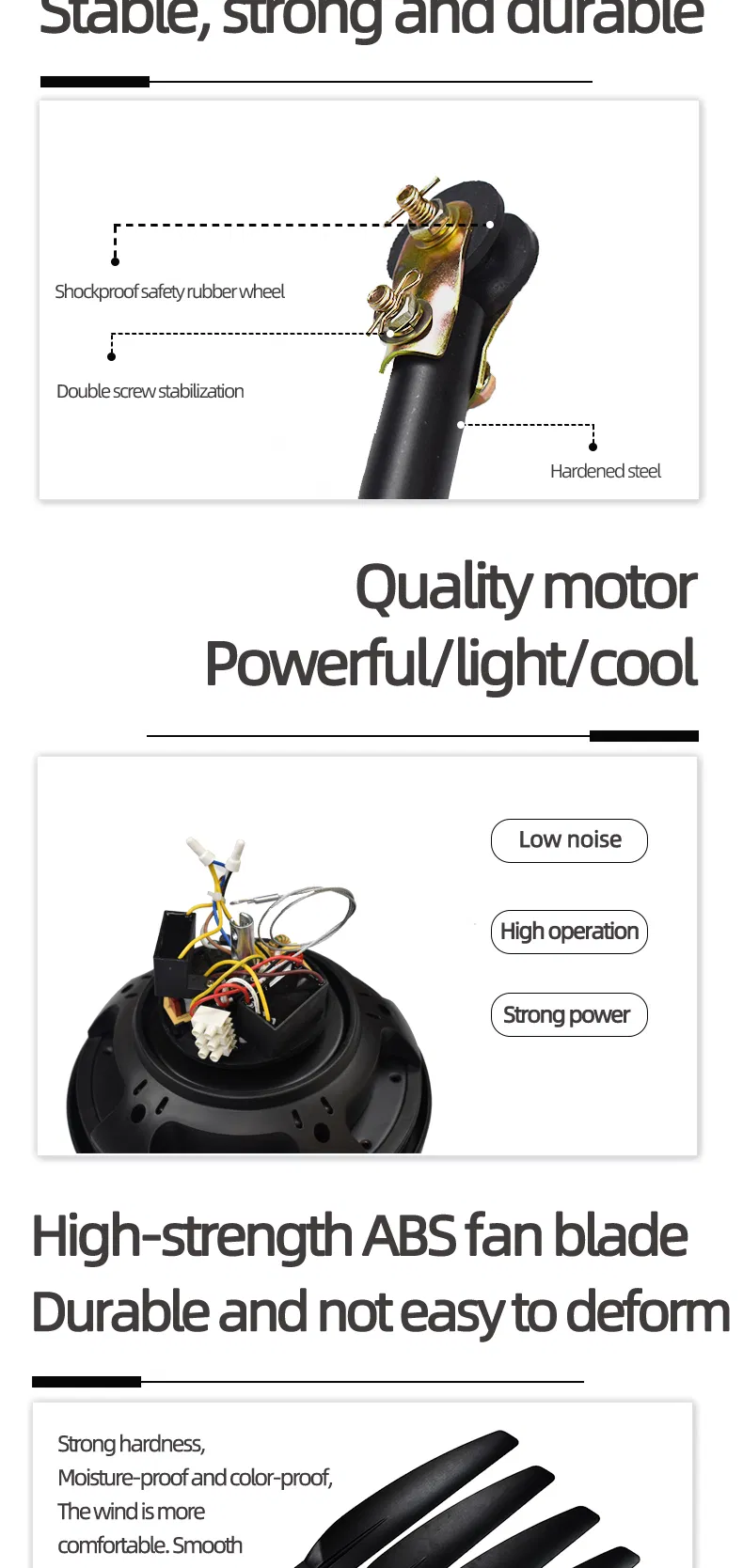

The motor is manufactured using copper. The fan blades feature a thickness range of δ2.5-4.0 mm, a length of 615 mm, and a width of 123/93 mm.

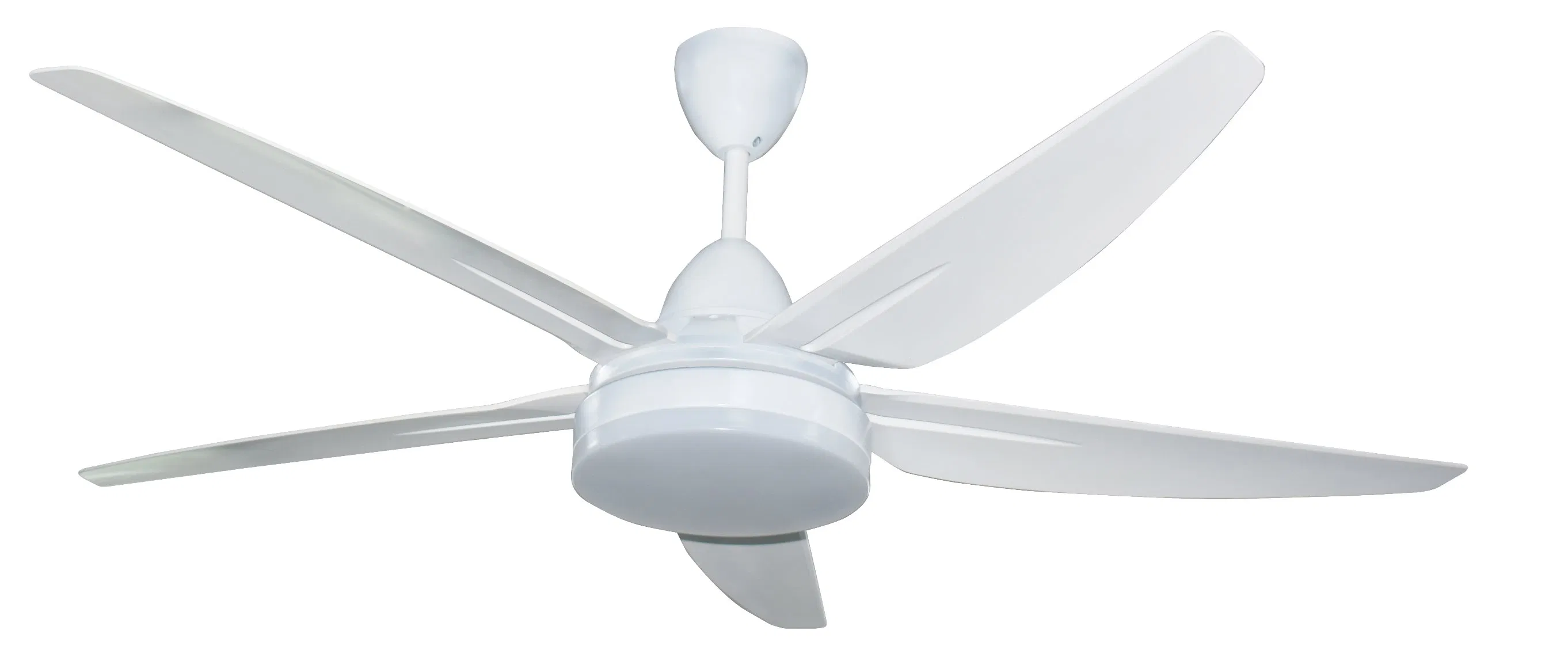

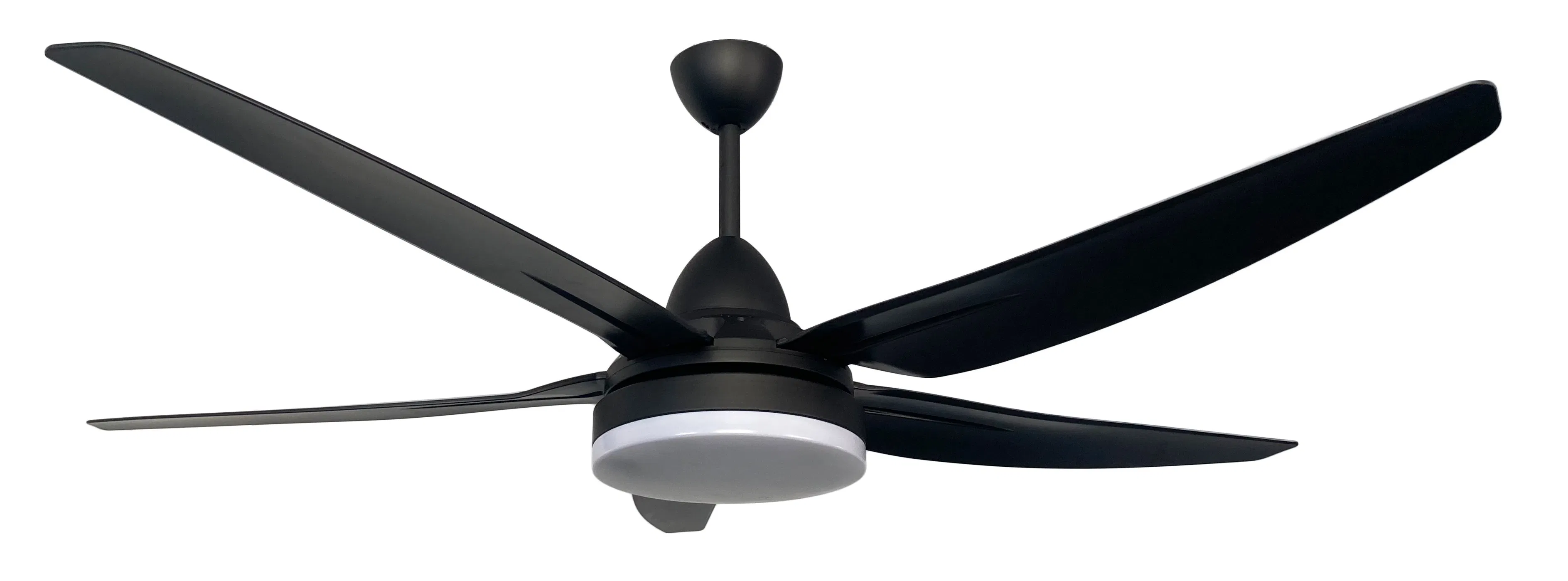

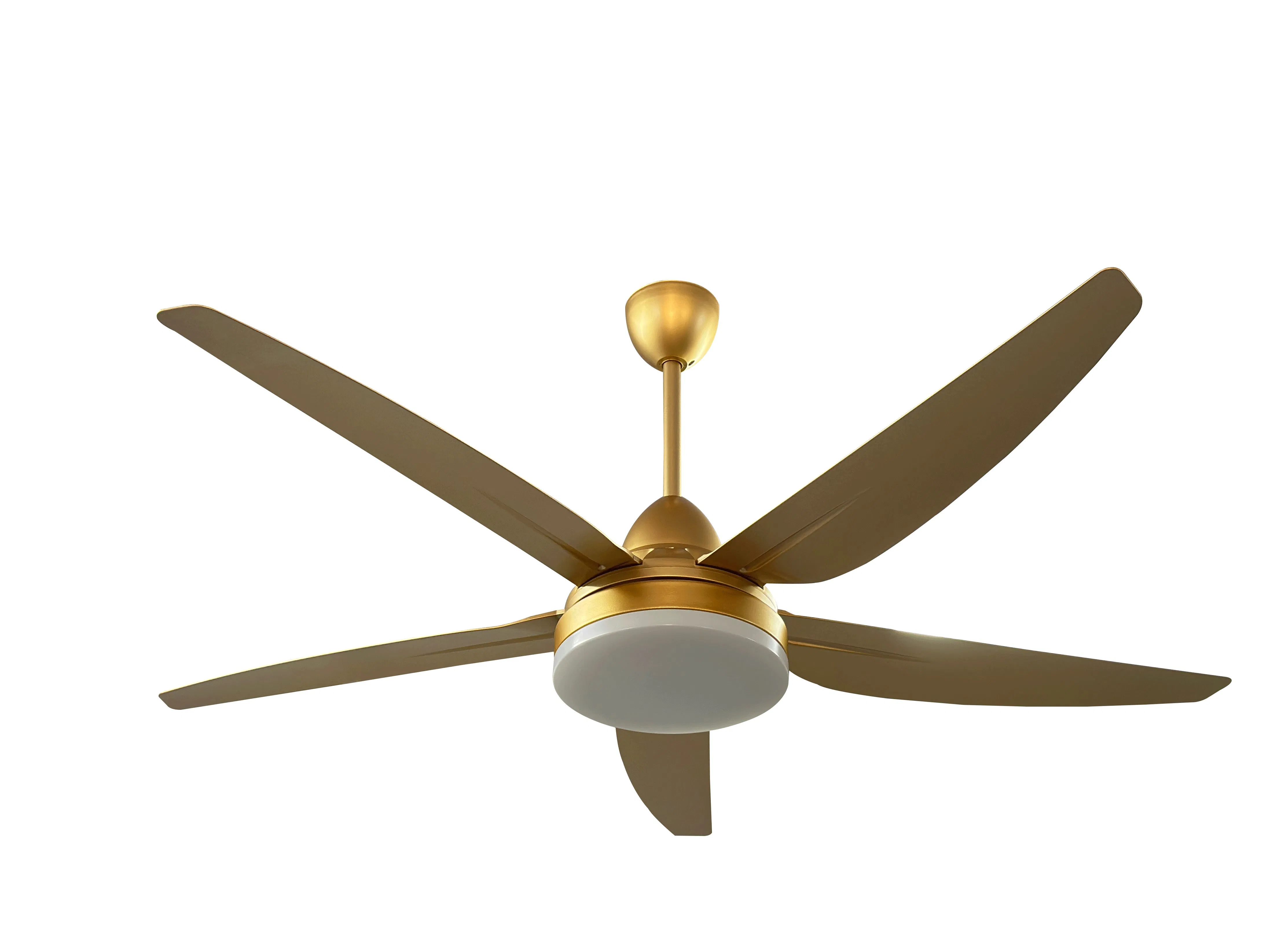

The model supports multiple dimension profiles including 40 inches, 42 inches, 46 inches, and 56 inches. It is available in classic White, Black, and Golden finishes.
The EF56-A1 ceiling fan operates at a motor speed of ≥240 r/min, generating an air flow of ≥250 m³/min.
It has a rotor dimension of φ172×19.50 mm, a stator dimension of φ145×19.50 mm, and is equipped with a down rod measuring φ22×200 mm.
