| Product Series | W.Fans Series | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | W26 | W24 | W22 | W20 | W18 | W16 | W14 | W12 | WS10 |
| Specification/Diameter (m) | 8 | 7.3 | 6.7 | 6.1 | 5.5 | 4.9 | 4.2 | 3.6 | 3.1 |
| Speed (rpm) | 10-45 | 10-55 | 10-60 | 10-60 | 10-70 | 10-75 | 10-80 | 10-90 | 10-100 |
| Full-load Air Volume (m³/min) | 17676 | 16130 | 14804 | 13800 | 12152 | 10826 | 9280 | 7954 | 6849 |
| Coverage Area (m²) | 2462 | 2123 | 1809 | 1520 | 1256 | 1017 | 804 | 615 | 452 |
| Rated Power (kw) | 1.5 | 1.5 | 1.5 | 1.1 | 1.1 | 1.1 | 0.75 | 0.4 | 0.4 |
| Average Consumption (kwh) | ≤1.2 | ≤1.0 | ≤1.0 | ≤0.7 | ≤0.7 | ≤0.7 | 0.75 | 0.55 | ≤0.4 |
| Noise (dB) | ≤38 | ||||||||
| Power Supply (V) | 380V/220V | ||||||||
| Full-load Current (A) | 2.8 (380V) / 4.6 (220V) | 2.8 (380V) / 4.6 (220V) | 2.8 (380V) / 4.6 (220V) | 2.6 (380V) / 3.0 (220V) | 2.6 (380V) / 3.0 (220V) | 2.6 (380V) / 3.0 (220V) | 2.5 | 2.0 | 2.0 |
| Weight (kg) | 106 | 101 | 99 | 96 | 95 | 90 | 88 | 86 | 82 |

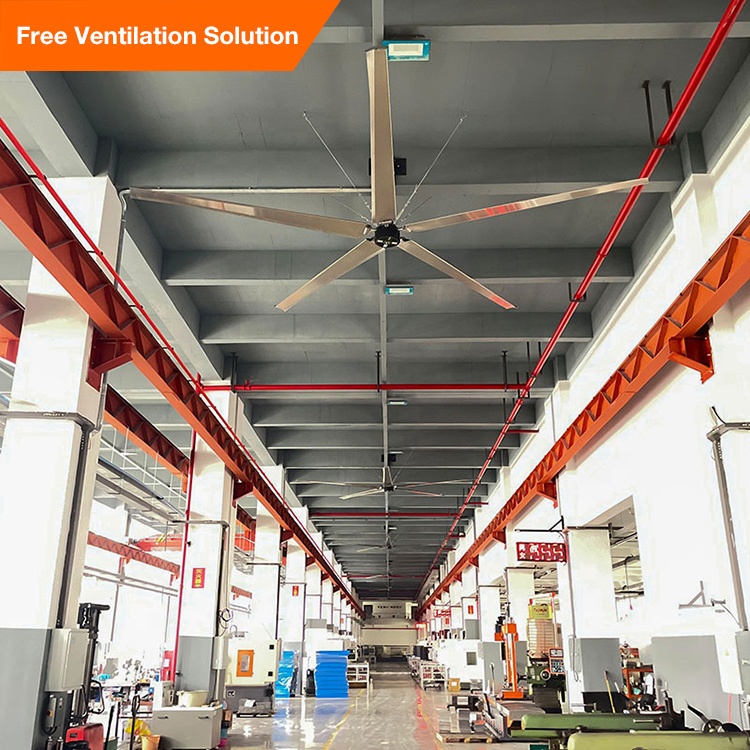

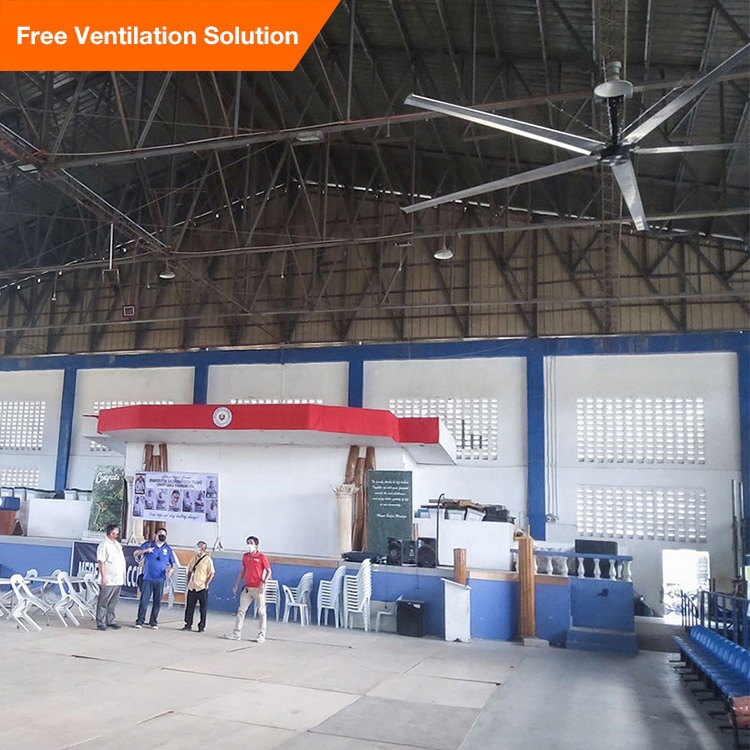

An HVLS (High Volume Low Speed) fan is a large industrial ceiling fan designed to circulate a significant volume of air at a low rotational speed. This movement creates a gentle, cooling natural breeze over a massive coverage area, ensuring uniform temperature distribution and continuous fresh air circulation.

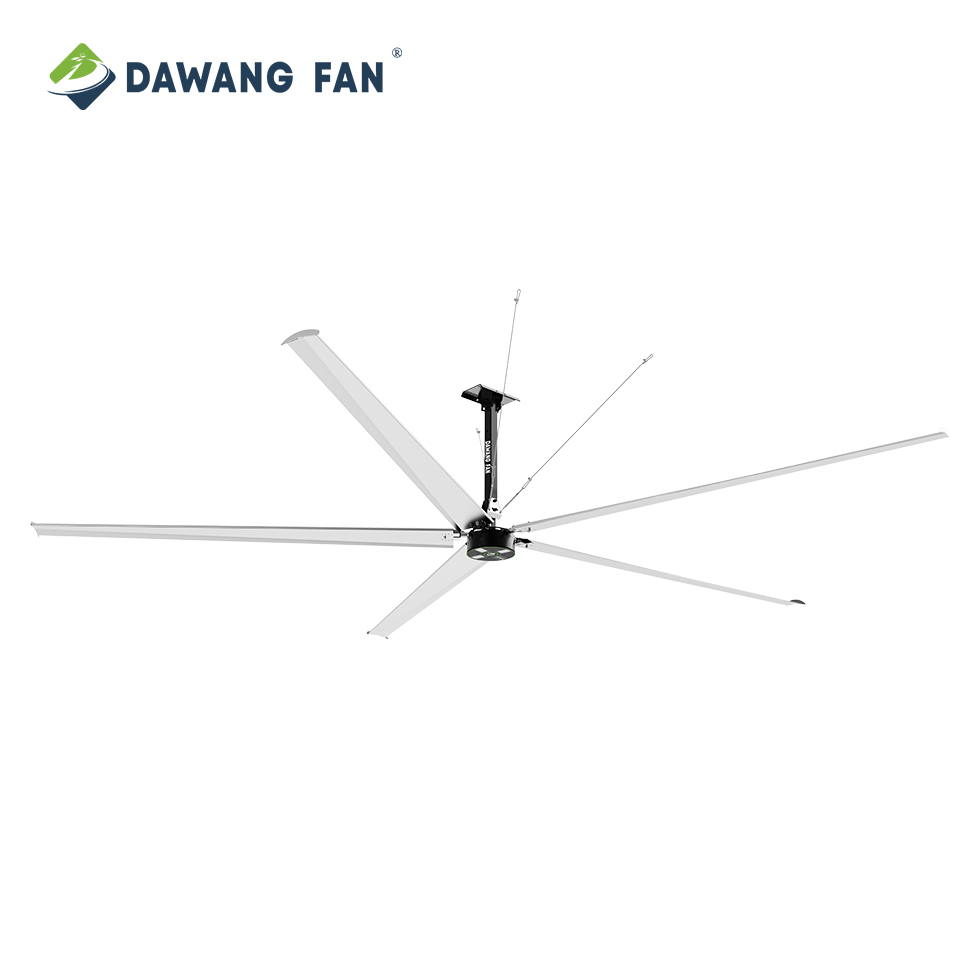

The W.Fans series is available in multiple specifications with blade diameters ranging from 3.1 meters up to 8.0 meters. The largest model (W26) can efficiently cover a massive floor area of up to 2,462 square meters with a full-load air volume of 17,676 m³/min.
The W.Fans series is highly energy-efficient. Rated power consumption ranges from 0.4 kw to 1.5 kw. The average operational consumption stays between ≤0.4 kwh (for the WS10 model) and ≤1.2 kwh (for the W26 model), delivering exceptional ventilation while keeping operating costs extremely low.
No. Due to their aerodynamic blade design and low-speed gearless/planetary motors, the entire W.Fans series operates at an ultra-low noise level of ≤38 dB. This ensures a quiet and comfortable working environment in warehouses, gyms, and commercial spaces.
The system supports standard industrial power configurations. It can be powered by either three-phase 380V or single-phase 220V power systems, allowing for seamless integration into a wide variety of factory layouts and power grids.
The fans are systematically packed using protective shock-absorbing materials. The package structure is designed for ease of transport via container or truck, ensuring all critical mechanical components, blades, and control boxes arrive undamaged.
