Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT
Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT
Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT
Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT
Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT
1 / 5
Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT
Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT
Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT
Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT
Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT

Universal Beam Industrial Air Cooling Ceiling Hvls High Volume, Low Speed Fans in Philippines Dawangfans 1.5KW/1.1KW 8FT-24FT

Send Inquiry

Product Description

Products Description

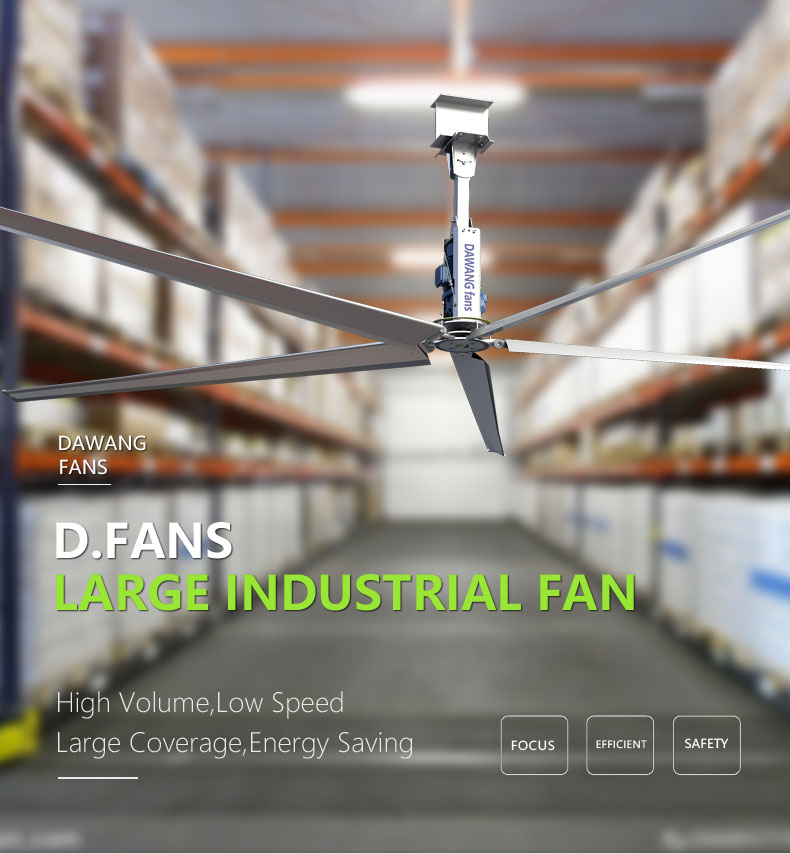

Products Description Image
Product Parameters
HVLS Industrial Fans Specifications
Models 24ft 20ft 16ft 12ft 10ft 08ft
Diameter 7.3m 6.1m 4.9m 3.6m 3.1m 2.5m
Blade Nos 5 5 5 5 5 5
Max Speed 60rpm 70rpm 80rpm 95rpm 117rpm 127rpm
Noise 55dBA 55dBA 55dBA 50dBA 48dBA 45dBA
Coverage radius 82ft 72ft 65ft 36ft 31ft 26ft
Effected area 21000ft² 16000ft² 13500ft² 4100ft² 3050ft² 2100ft²
Air volume 8300ft³/s 7040ft³/s 5320ft³/s 2700ft³/s 1600ft³/s 850ft³/s
Blade weight 17.0lbs 14.3lbs 11.7lbs 8.8lbs 7.7lbs 6.6lbs
Total weight 222.2lbs 208.9lbs 196.2lbs 186.2lbs 181.6lbs 175.0lbs
Motor Power 2.0HP 2.0HP 2.0HP 2.0HP 2.0HP 2.0HP
Power Supply 380V/3Ph/50Hz 220V/3Ph/50Hz 220V/1Ph/50Hz
Why Choose Us

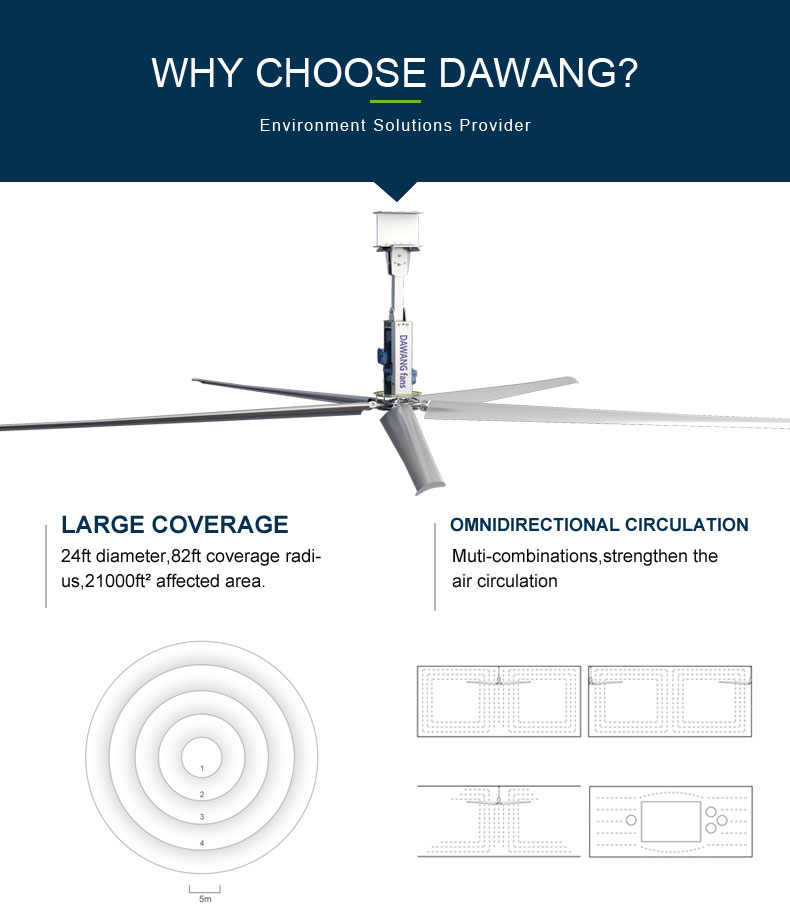

Why Choose Us Features 1

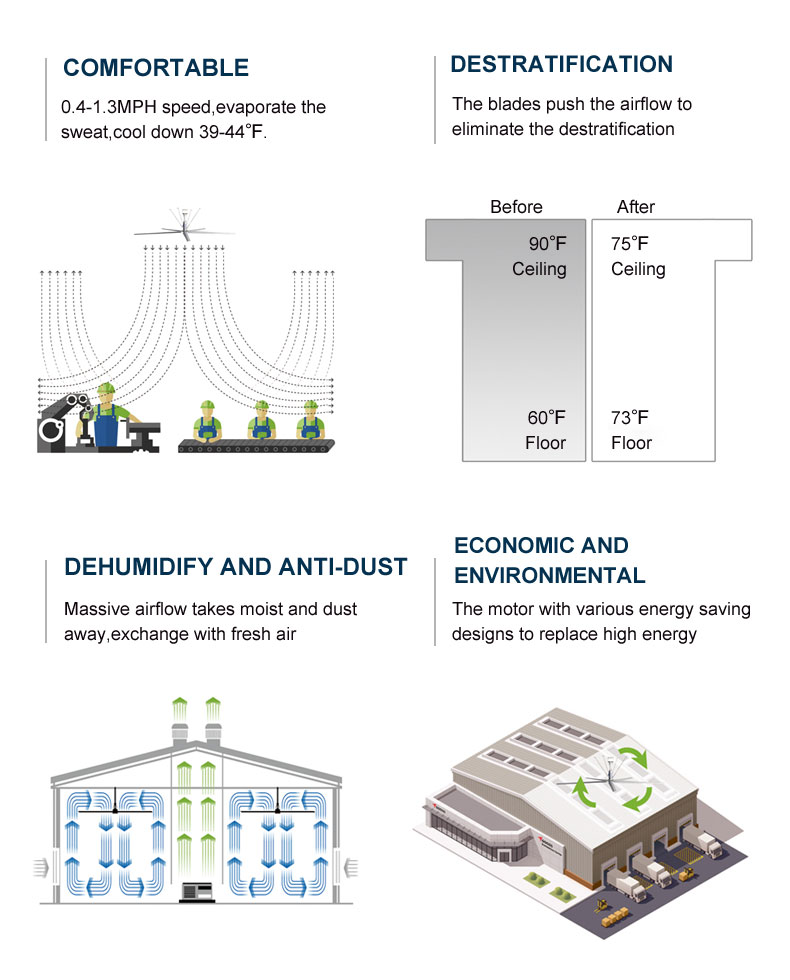

Why Choose Us Features 2
Our Advantages

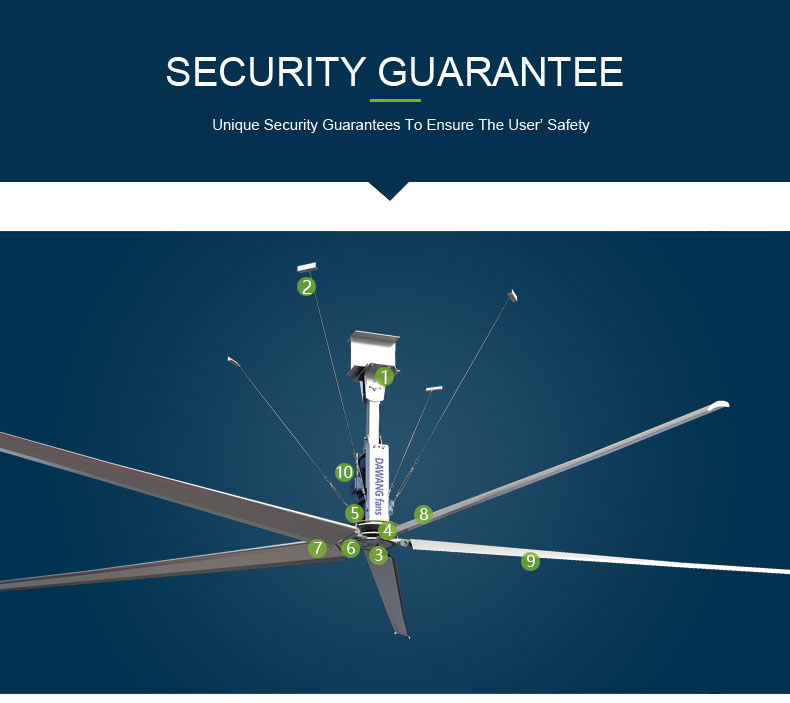

Our Advantages Specification 1

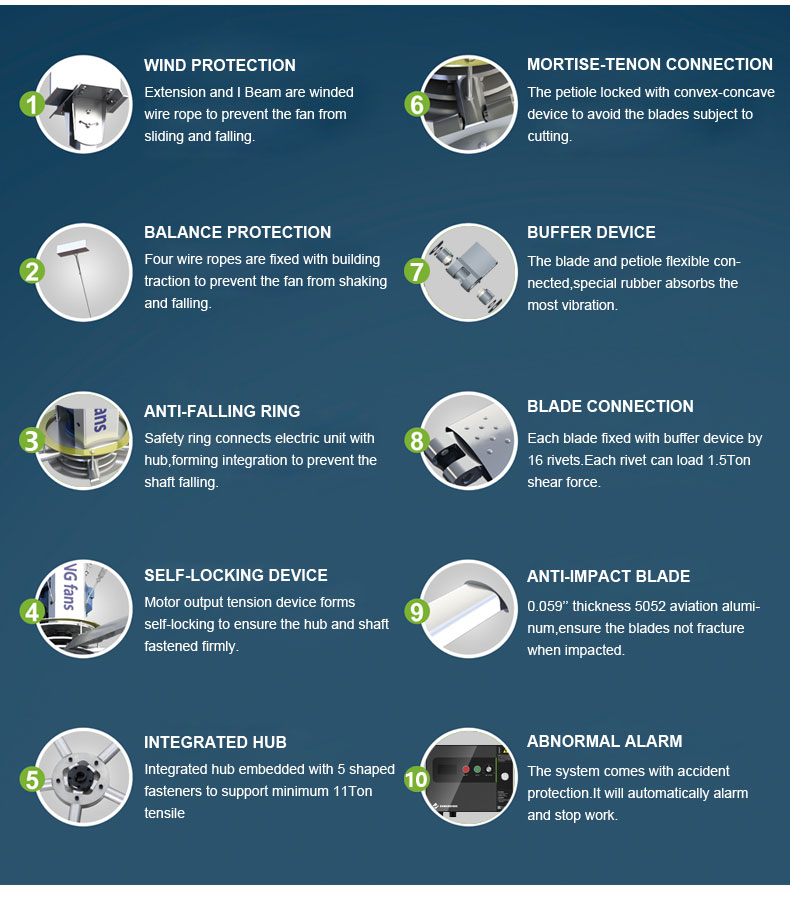

Our Advantages Specification 2
Customer Photos

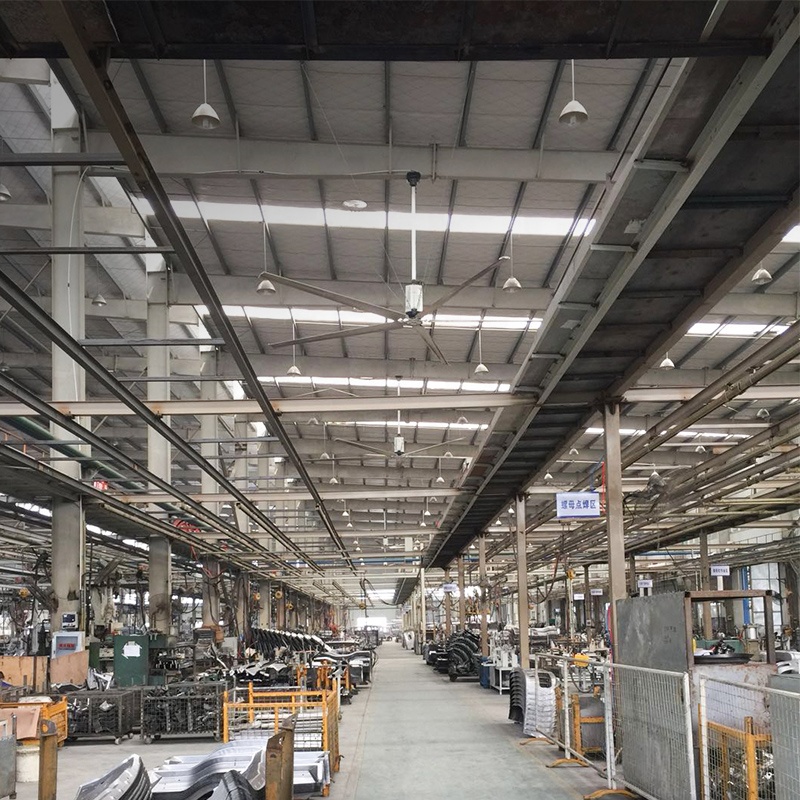

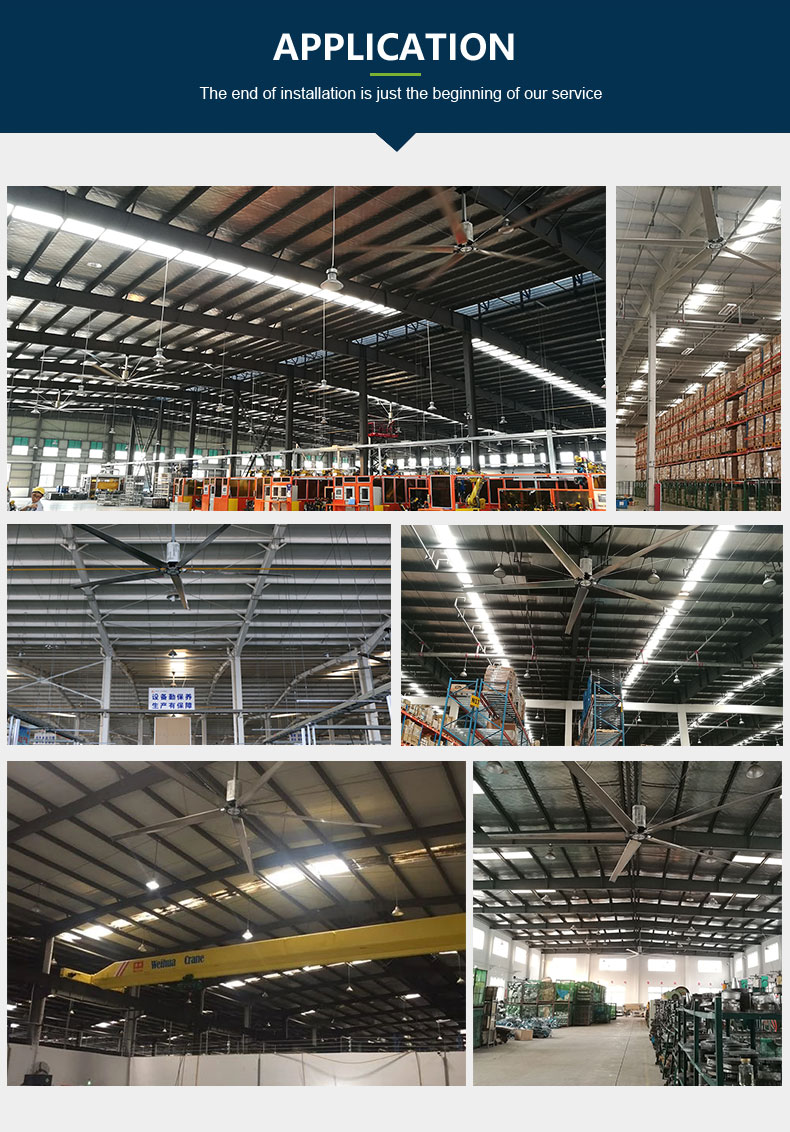

Customer Photos Case Study
Profile
Profile Section Overview
Frequently Asked Questions (FAQ)
Q1: What are the main benefits of installing HVLS industrial ceiling fans?
A1: High-Volume Low-Speed (HVLS) fans move massive volumes of air at low speeds over wide areas. They create a natural cooling effect, help control humidity, improve indoor air quality, and can reduce heating bills during winter through destratification.
Q2: How do I select the right fan size for my facility?
A2: Fan size selection depends primarily on your facility's square footage and ceiling height. For instance, our larger 24ft (7.3m) models can cover up to 21,000 ft², whereas our 8ft to 12ft models are perfect for smaller commercial workshops or localized workstations.
Q3: Are these large industrial fans energy efficient?
A3: Yes. Despite their large dimensions, our fans utilize an optimized 2.0 HP motor which delivers high air volume with minimum power consumption. They run highly efficiently compared to using multiple standard-sized wall fans.
Q4: What are the installation requirements and recommendations?
A4: For optimal safety and maximum airflow distribution, the recommended installation height requires blades to be at least 10 feet (3.05 meters) above the ground and at least 3 to 5 feet below the ceiling structural supports.
Q5: What are the available power supply configurations?
A5: To accommodate varying industrial and commercial electrical grids globally, we support multiple configurations including 380V/3Phase/50Hz, 220V/3Phase/50Hz, and 220V/1Phase/50Hz options.
Q6: Do these fans generate significant noise in operation?
A6: No. Operating speeds range between 60 to 127 rpm depending on the model, maintaining a noise level of only 45 to 55 dBA. This keeps operational sound comparable to a quiet office environment.
