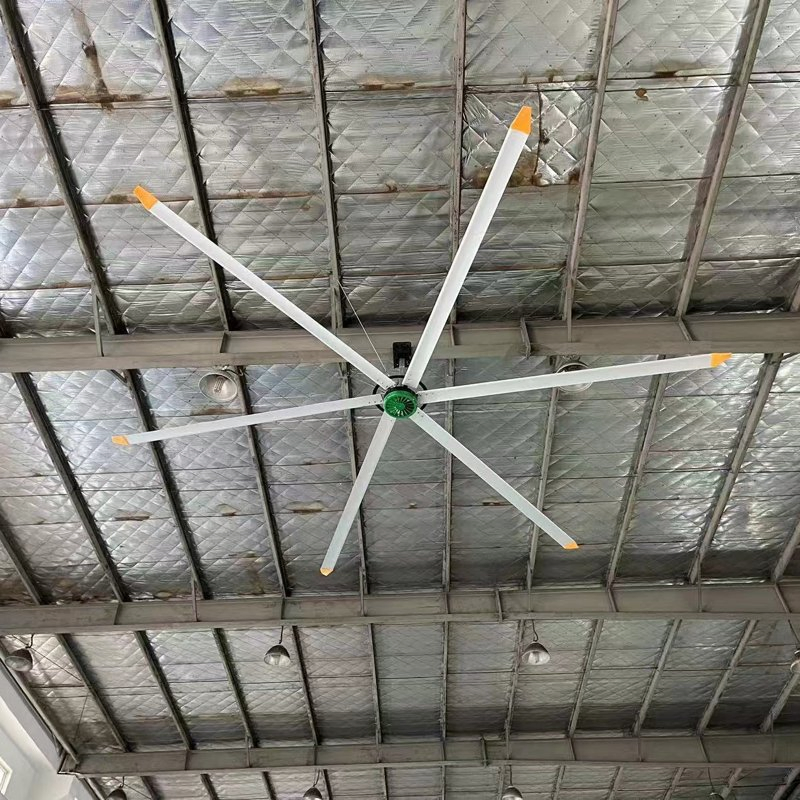

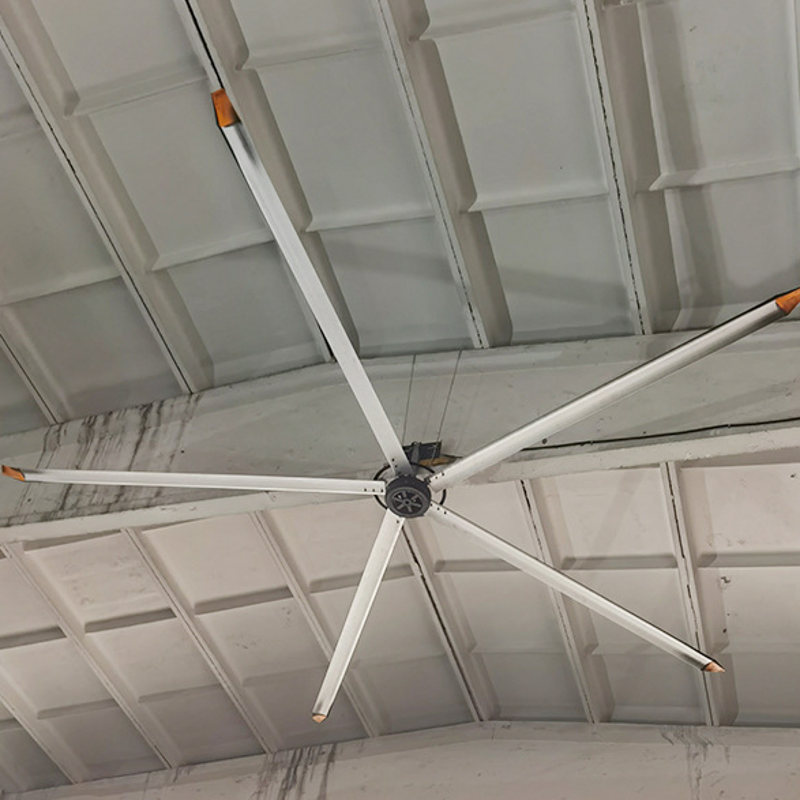

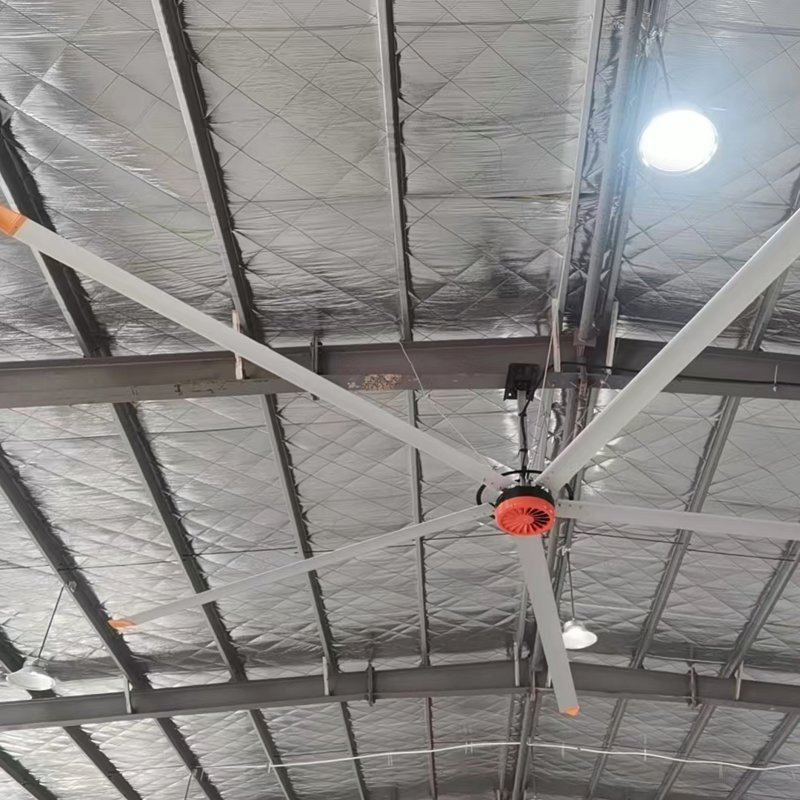

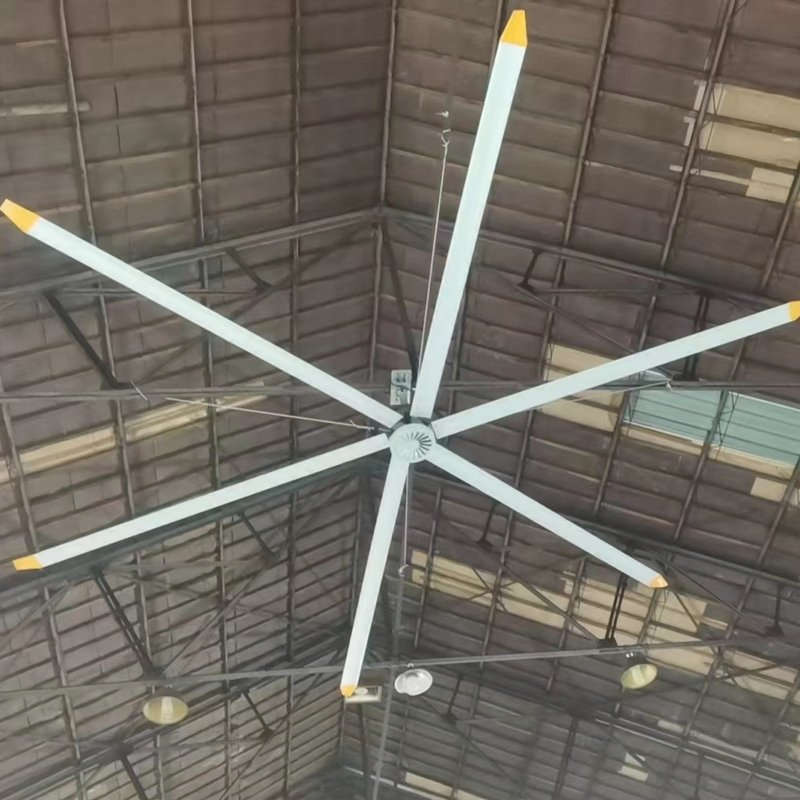

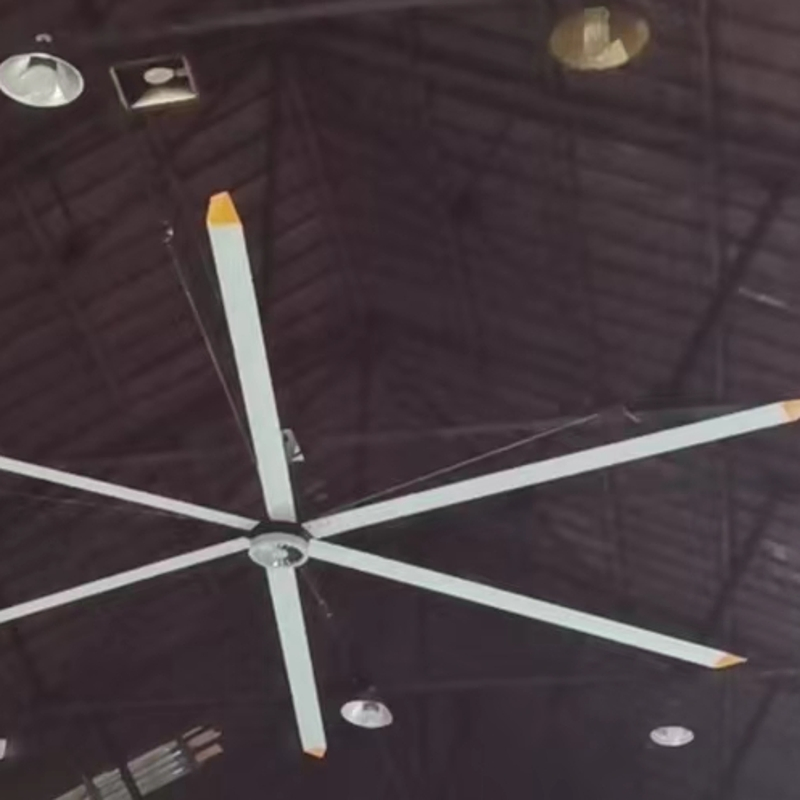

Industrial ceiling fan can bring a large area of gentle breeze blows, achieving a natural three-dimensional airflow.
Industrial ceiling fan can achieve environmental dust removal effect combined with ventilation equipment.
Keeping the indoor environment dry and reducing the growth of bacteria.
Low power consumption, saving about 90% energy compared to common small fans.
Five layers of safety protection measures can ensure that the fan will not fall.
Adopting permanent magnet synchronous high-temperature resistant outer rotor motor, energy-saving and efficient.

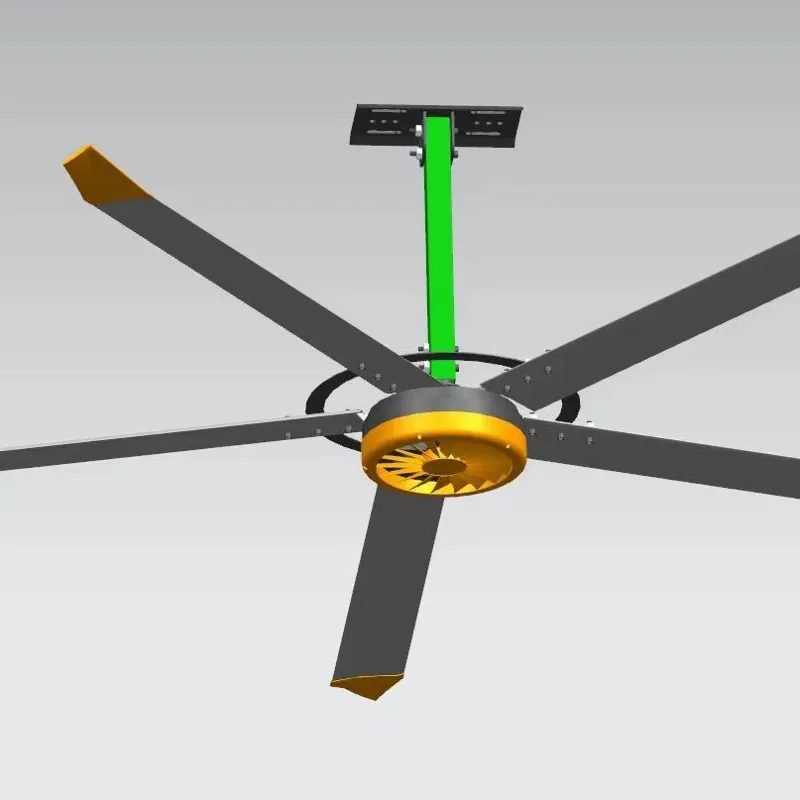

Small size, lightweight structure, and leading technology for smaller installation space.
Low noise operation with controllable temperature rise to eliminate operational hazards.
Simple structure design ensuring lifetime maintenance-free operation.
Source manufacturer with over ten years of brand reputation and affordable pricing.

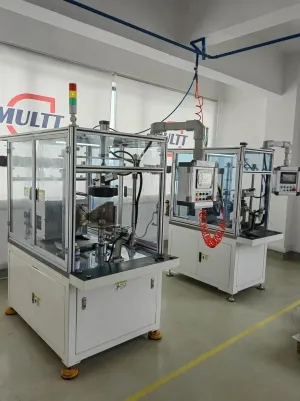

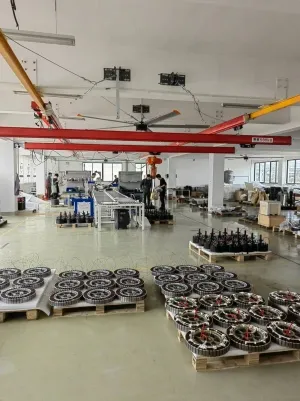

Independent production line with the entire process managed in-house for supreme reliability.
• High quality lightweight, thickness 2mm
• High rigidity, strength, and toughness
• Corrosion and fatigue resistance
• Overload, voltage surge, and phase loss protection
• High rigidity, low loss, and high efficiency
• Effectively suppresses noise and vibration
• IP54 certified energy-saving design
• Natural cooling with fast heat dissipation
• Gearless design with high transmission efficiency
• Lubrication-free, lifetime maintenance-free
• IP55 certified efficient and energy-saving
| Parameter | SYP-37 | SYP-48 | SYP-55 | SYP-61 | SYP-73 |
|---|---|---|---|---|---|
| Diameter | 3.7m (12FT) | 4.8m (16FT) | 5.5m (18FT) | 6.1m (20FT) | 7.3m (24FT) |
| Power | 0.50KW | 0.75KW | 0.90KW | 1.2KW | 1.5KW |
| Speed | 90RPM | 80RPM | 75RPM | 70RPM | 70RPM |
| Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Current | 2.3A/1.3A | 3.4A/1.9A | 4.1A/2.4A | 5.5A/3.2A | 6.8A/3.9A |
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Weight | 55KG | 70KG | 80KG | 105KG | 120KG |
| Coverage Area | 400m² | 600m² | 800m² | 1000m² | 1200m² |
| Air Volume | 6800m³/m | 8800m³/m | 10800m³/m | 11800m³/m | 13800m³/m |
