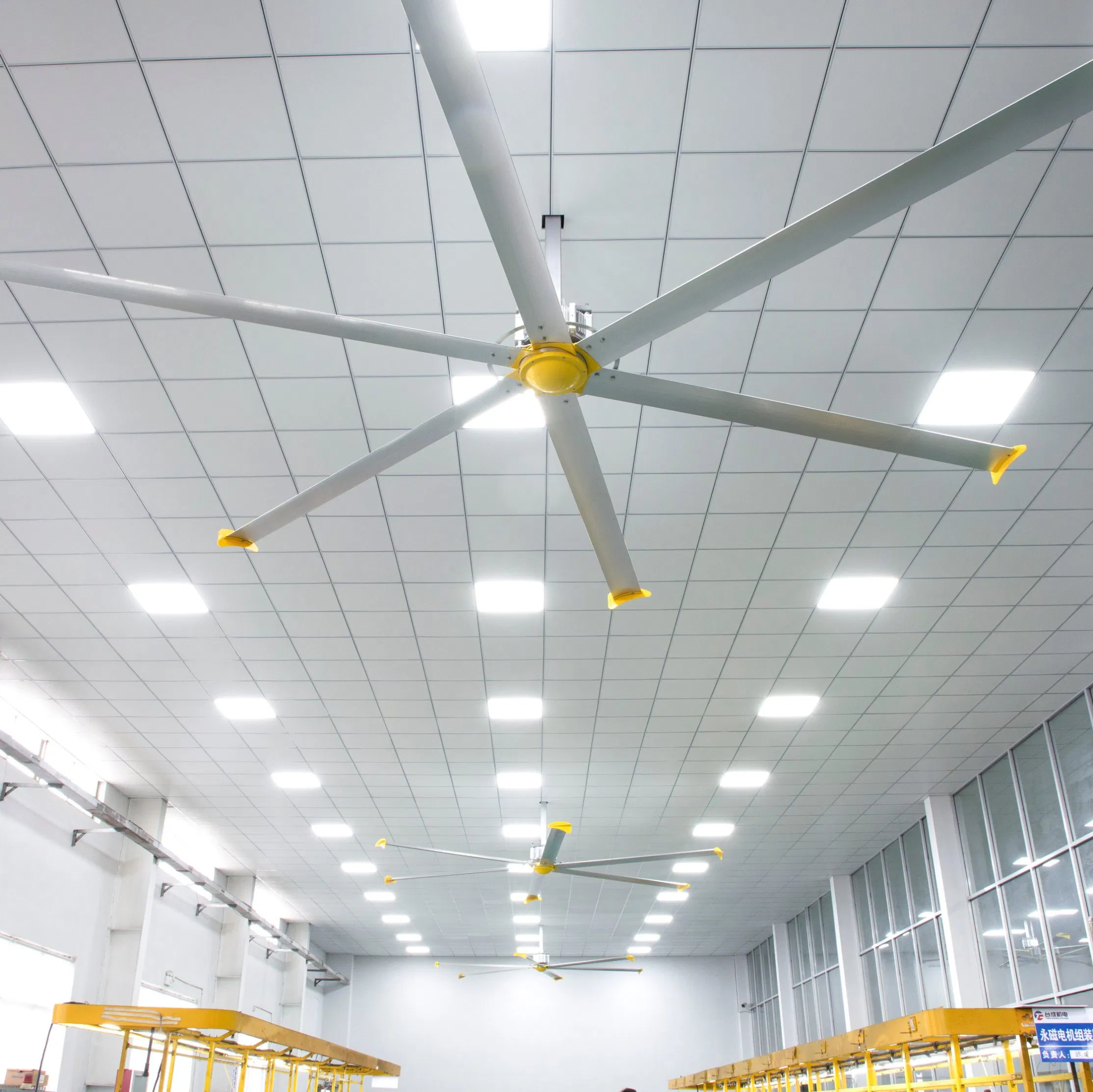

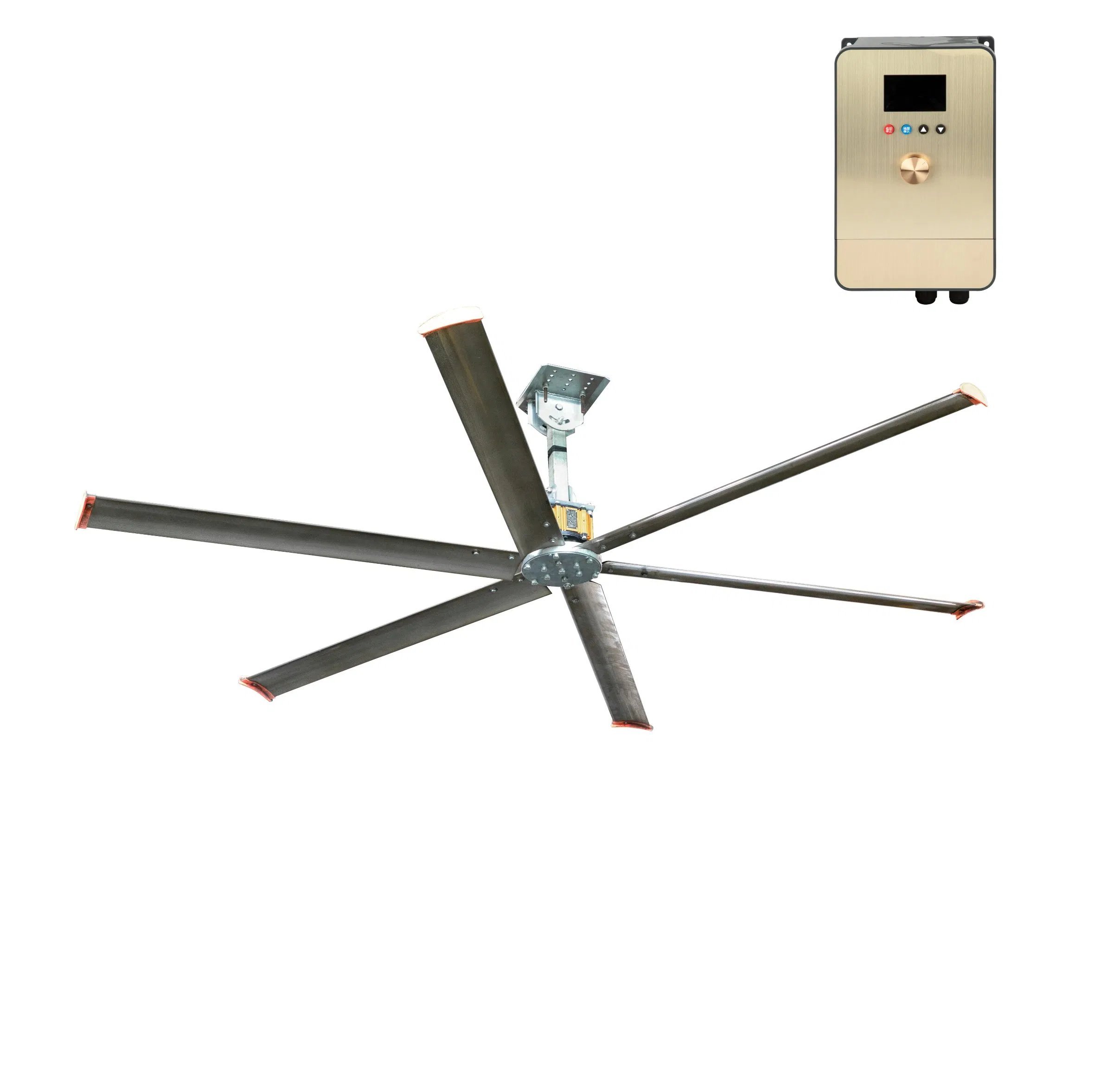

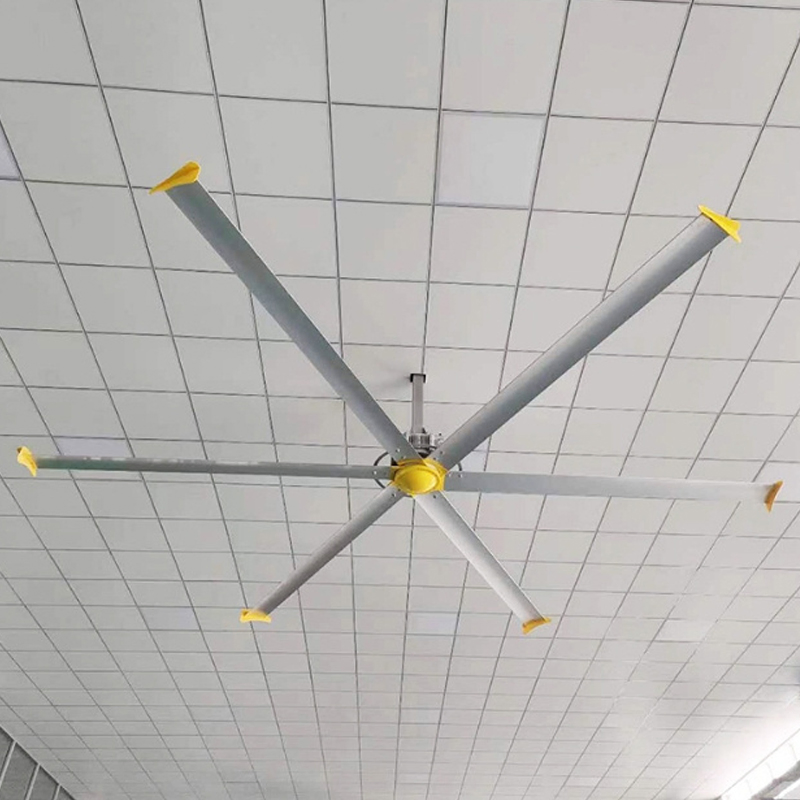

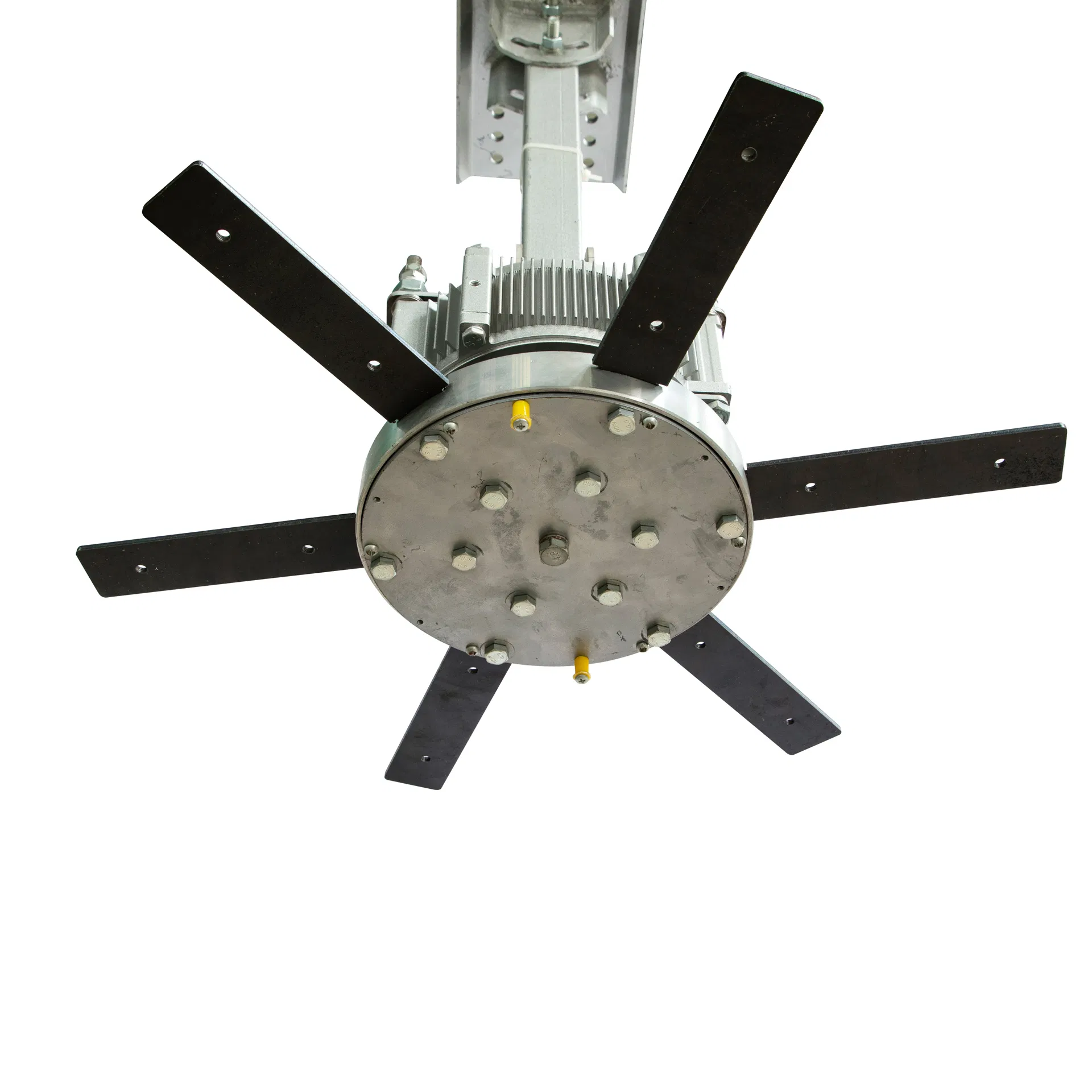

24FT Energy-Efficient 220V Industrial Ceiling Fan with Remote Control

Basic Info

Model NO. BCF-210-40-7.3M

Type Hvls Fan

Electric Current Type AC

Mounting Ceiling Fan

Certification CE, CCC

Power 1.5 Kw

Voltage 220V/380V

Speed 65 Rpm

Diameter 6.2 M

Wind Blade 6 PCS

Airflow (M3/H) 12000

Active Area (M2) 630

Coverage Ares (M2) 1100

Weight (Kg) 135

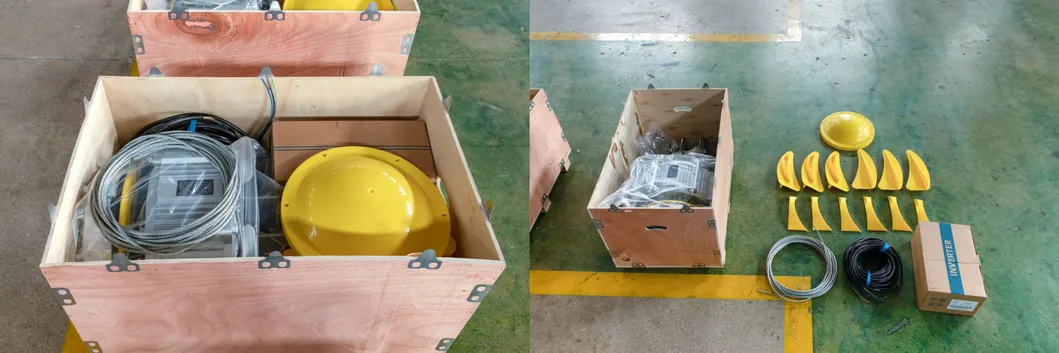

Transport Package Woodbox

Specification PMSM Motor

HS Code 8414591000

Production Capacity 10000 Unit/Year

Product Description

Model	Dia (m)	Power (kw)	Voltage (v)	Air volume (m³/min)	dB	Covered area (m³)
BCF-327-60-8M	8	1.5	220/380	15000	45	1600
BCF-327-60-7.3M	7.3	1.5	220/380	13500	45	1500
BCF-327-60-6.2M	6.2	1.5	220/380	12000	45	1100
BCF-327-60-5.2M	5.2	1.1	220/380	11000	45	850
BCF-210-40-4M	4	0.75	220	9200	45	800
BCF-210-40-3.5M	3.5	0.75	220	3750	40	750
BCF-210-40-3M	3	0.55	220	2800	40	700
BCF-175-40-2.5M	2.5	0.55	220	2200	40	650

Gearless direct drive HVLS Industrial Ceiling Fans specially dedicated for large scale space. The streamlined fan blade adopts aerodynamics principles and advanced process, the diameter is from 2.5-8 meters, with coverage 2200-15000 m³/min. Only using the efficient servo direct drive motor, can create plenty of comfortable natural wind.

Main Feature:

Excellent electromagnetic scheme, brushless, hall free, direct drive, high torque, permanent magnet brushless DC motor.
Power saving and first-class energy efficiency.
The noise is low (the highest standard in China), and the cinema can be installed.
Reasonable structure, simplest and safest installation.
The product performance is 100% stable, without vibration and noise.
The fan blade designed under the guidance of American Bess wind tunnel laboratory is made of aviation material and does not break when bent at 90 degrees.
Installation of 3 bearings, imported brand.

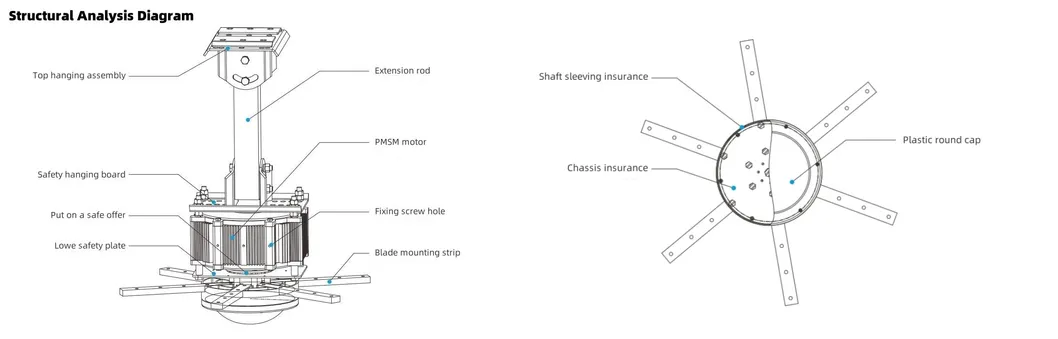

FIVE KINDS OF INSURANCE:

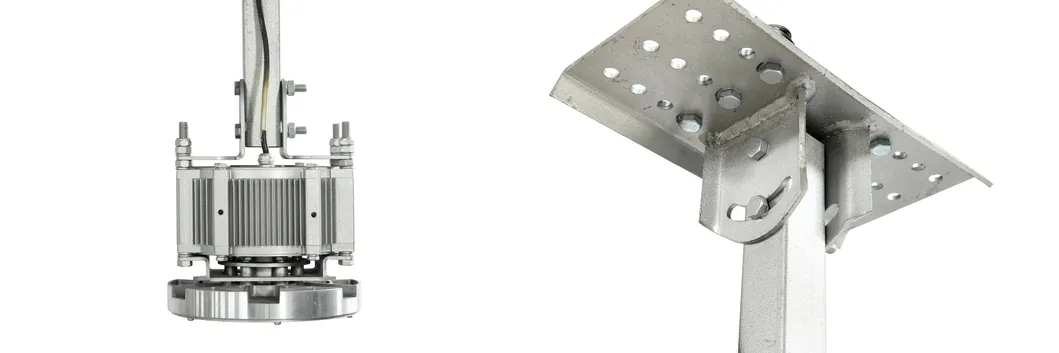

1. Dynamic Sway Detection & Automatic Shut-off

Uncertain factors such as collision and typhoon during use cause the motor to sway with an angle of ≥8°, which immediately triggers the insurance and automatic alarm and immediately cuts off the power supply to prevent accidents.

2. Dual Security Coupling & Fall Prevention

The upper and lower safety pieces connect the fan blade and the chassis as a whole, interconnecting and mutual protection. Coupling interference prevention device, even if the chassis screw is accidentally broken, the entire chassis cannot fall down on the fall prevention plate to ensure safety.

3. High-Strength Monolithic Blisk & Balancing

The high-strength monolithic blisk made of 40Cr steel material and laser cutting technology can effectively avoid the potential cracks, stress, fatigue, and other problems of low-pressure casting. It is supplemented by accurate and strict dynamic balance testing to improve equipment safety performance.

4. Main Shaft Tension Sleeve Design

The main shaft increases the tension sleeve design to increase the connection and stability of the aluminum wheel and the motor.

5. High-Tensile Steel Wire Locks

The tensile strength of each steel wire lock can reach 1000KG, which can ensure the safety of the fan and increase the service life.

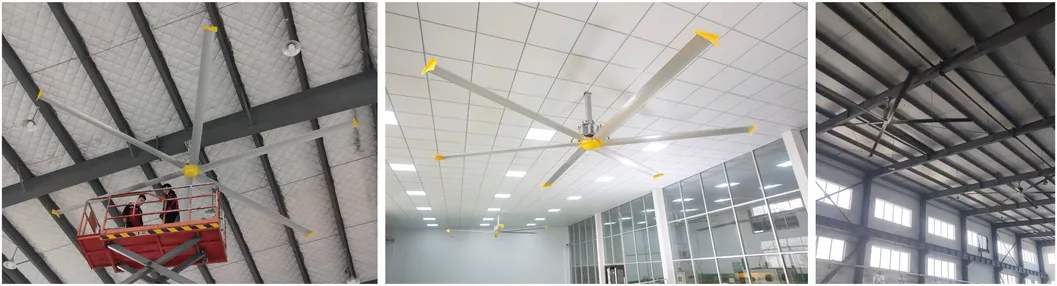

Applications

Industrial Use

Application to factory buildings, warehouses, distribution centers, aircraft hangars, airports, large production areas, factory workspaces, Logistics and Warehouse Centers, welding, machining and extrusion work areas.

General Use

Places of worship, mosques, churches, malls, halls, sports areas, shopping centers, atriums, hockey arenas, indoor swimming pools, gymnasiums, big-box stores (department stores, hypermarkets), and car dealers are common.

FAQ

How is product quality guaranteed?

We always provide a pre-production sample before starting mass production, followed by a final inspection before shipment.

What types of fans are available in this catalog?

You can source HVLS ceiling fans, PMSM HVLS fans, industrial fans, and overall large HVLS ceiling fans.

Why should I choose these HVLS fans over other suppliers?

These HVLS ceiling fans feature an inner rotor permanent magnet direct drive design. This configuration produces a greater volume of air, provides wider coverage, and ensures highly efficient energy saving.

What safety mechanisms are built into the fans?

The safety system is comprised of five distinct mechanisms: automatic power cutoff if swaying exceeds 8°, coupled blade-to-chassis safety structural plates, a laser-cut monolithic 40Cr steel blisk, a main shaft tension sleeve, and heavy-duty steel wire locks rated up to 1000KG tensile strength.

Where can these industrial ceiling fans be installed?

They are highly versatile and ideal for both industrial spaces (factories, warehouses, distribution centers, hangars, production areas) and commercial or general public facilities (places of worship, shopping malls, gymnasiums, sports halls, atriums).
