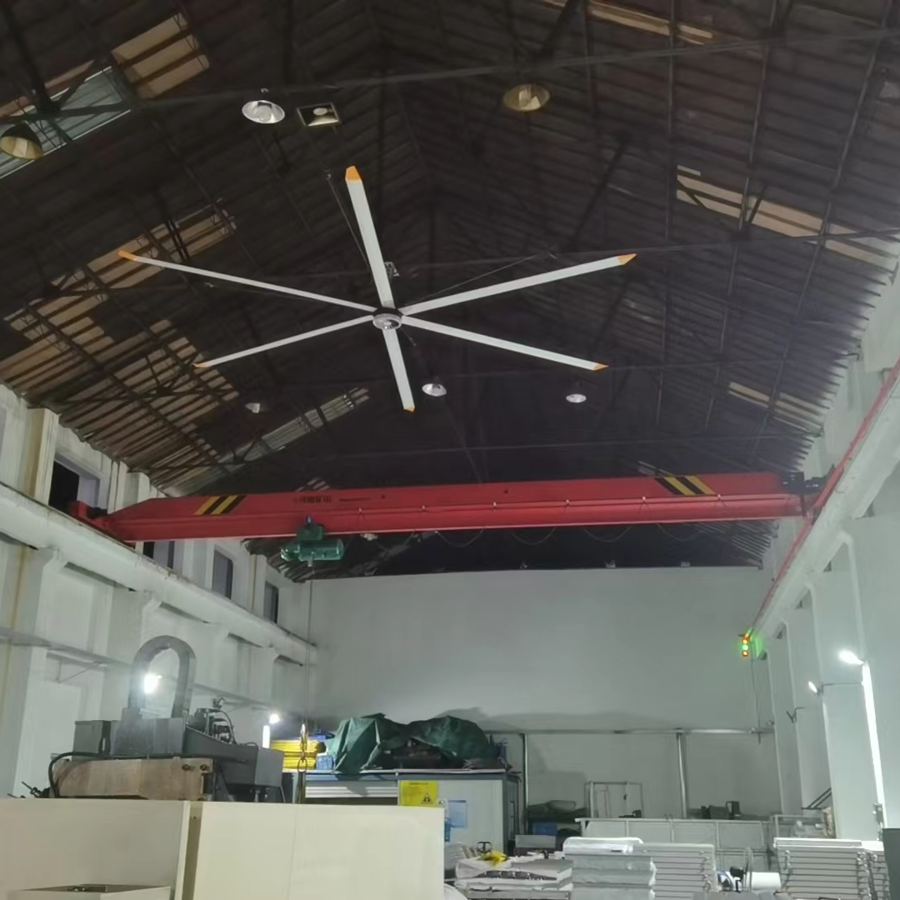

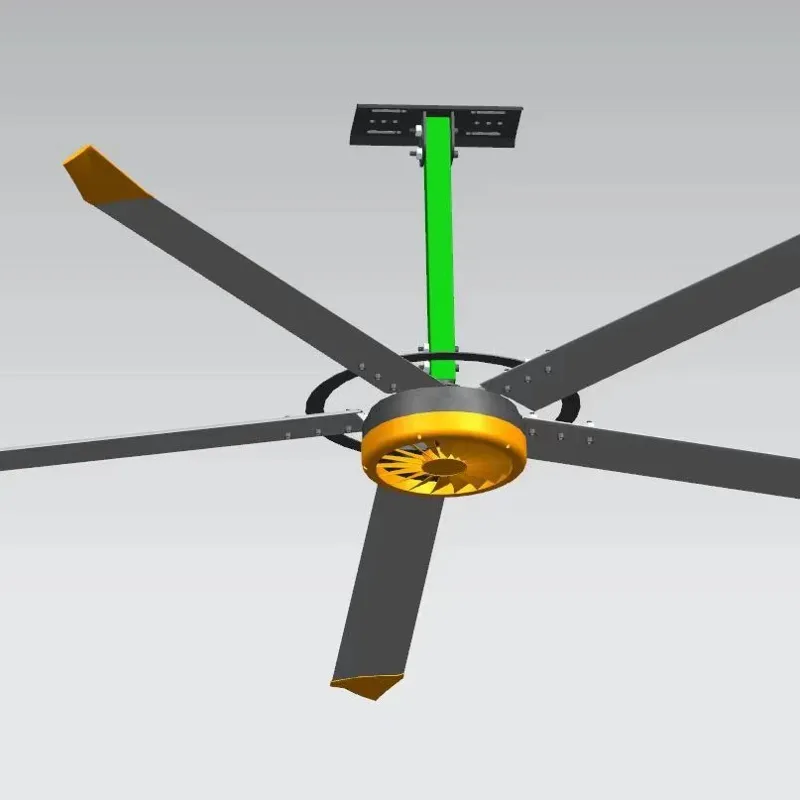

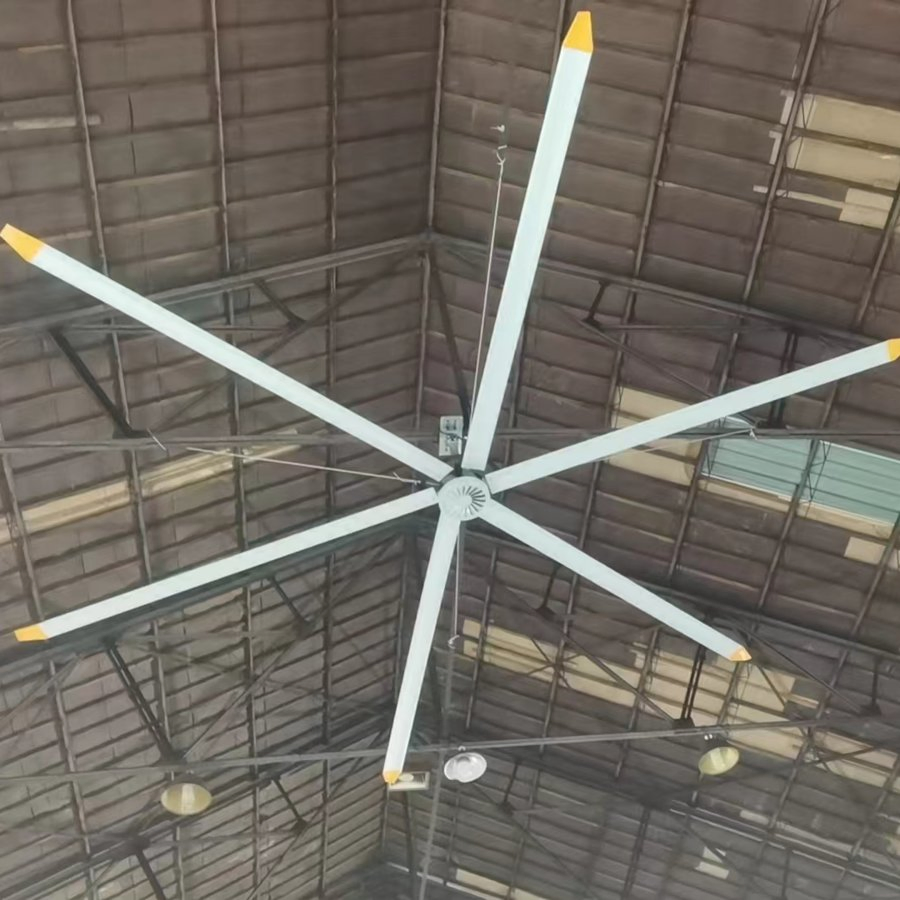

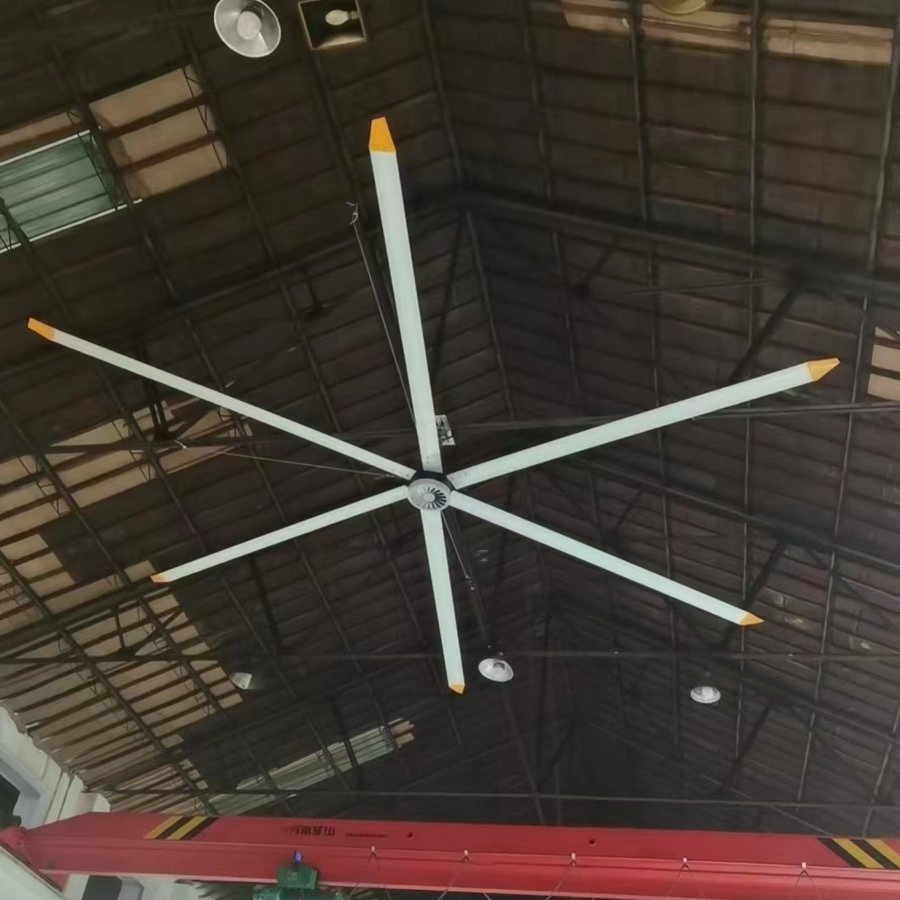

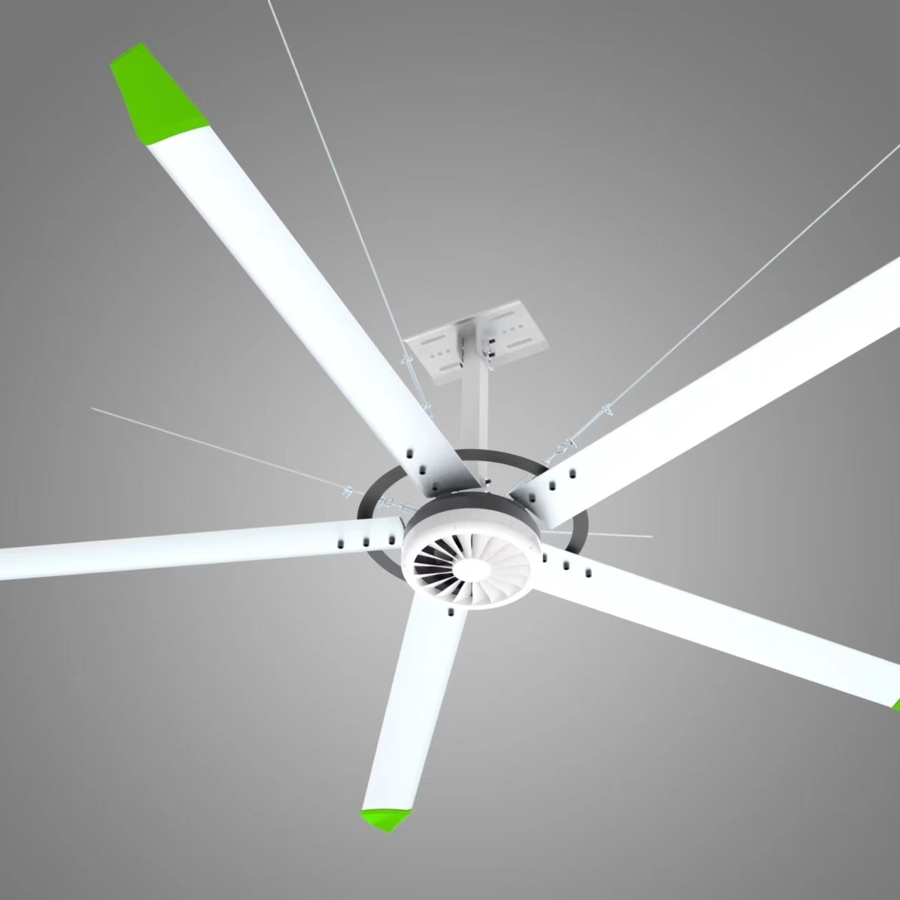

Energy-Efficient 16feet Industrial Ceiling Fan with Pmsm Motor

Basic Info.

Model NO. SYP48

Type Cooling Fan

Electric Current Type AC

Mounting Ceiling Fan

Certification ISO, CE, CCC

Power 0.75kw

Voltage 220/380/415V

Frequency 50/60Hz

Diameter 16FT

Speed 80rpm

Weight 70kg

Coverage 600m2

Air Volume 8800m3/M

Transport Package Non Fumigation Wooden Box

Specification 1CBM

HS Code 8414599099

Production Capacity 10000PCS/Year

Packaging & Delivery

Package Size 50.00cm * 50.00cm * 50.00cm

Package Gross Weight 100.000kg

Performance

1 Accelerated Airflow

Industrial ceiling fan can bring a large area of gentle breeze blows, achieving a natural three-dimensional airflow.

2 Dust Removal

Industrial ceiling fan can achieve environmental dust removal effect combined with ventilation equipment.

3 Dehumidifying & Cooling

Keeping the indoor environment dry and reducing the growth of bacteria.

4 Efficient & Energy-saving

Low power consumption, saving about 90% energy compared to common small fans.

5 Safe & Reliable

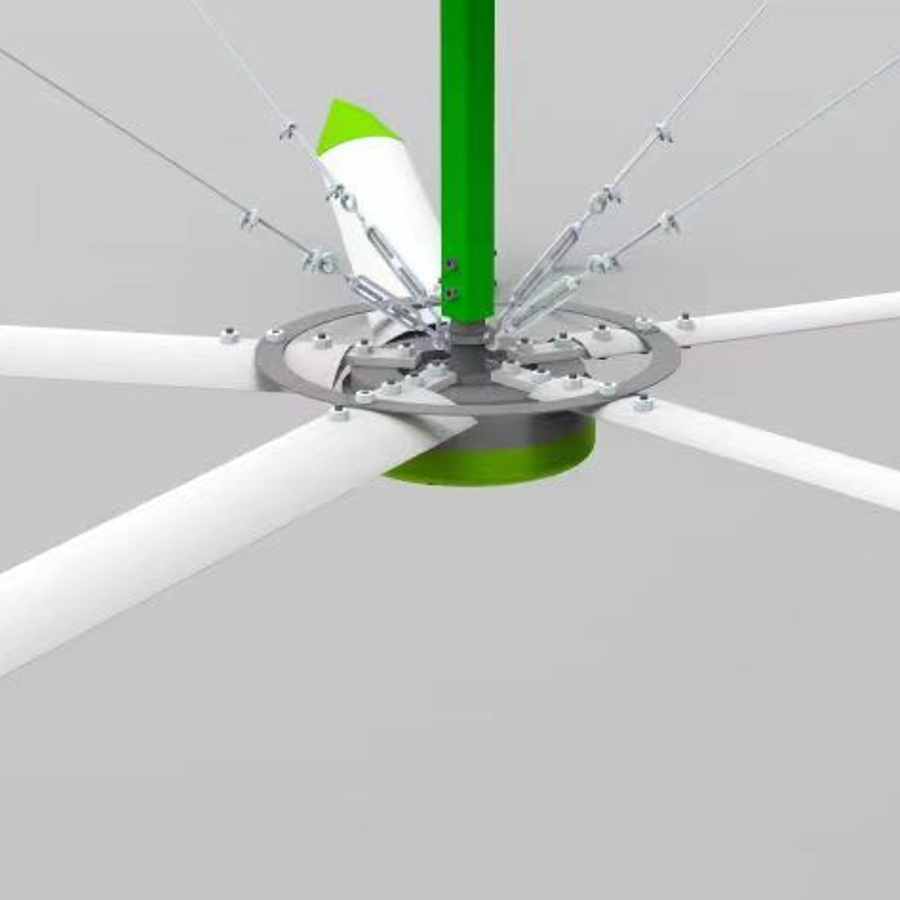

Five layers of safety protection measures can ensure that the fan will not fall.

Advantage

A. Adopting permanent magnet synchronous high-temperature resistant outer rotor motor, energy-saving and efficient.

B. Small size and light weight.

C. Low noise.

D. Simple structure.

E. Lifetime maintenance free.

F. Temperature rise is controllable, no operational hazards.

G. Source manufacturer, over ten years of brand, affordable price.

H. Leading technology, lightweight motor, and smaller installation space.

I. Having an independent production line and producing the entire process in-house makes it more reliable.

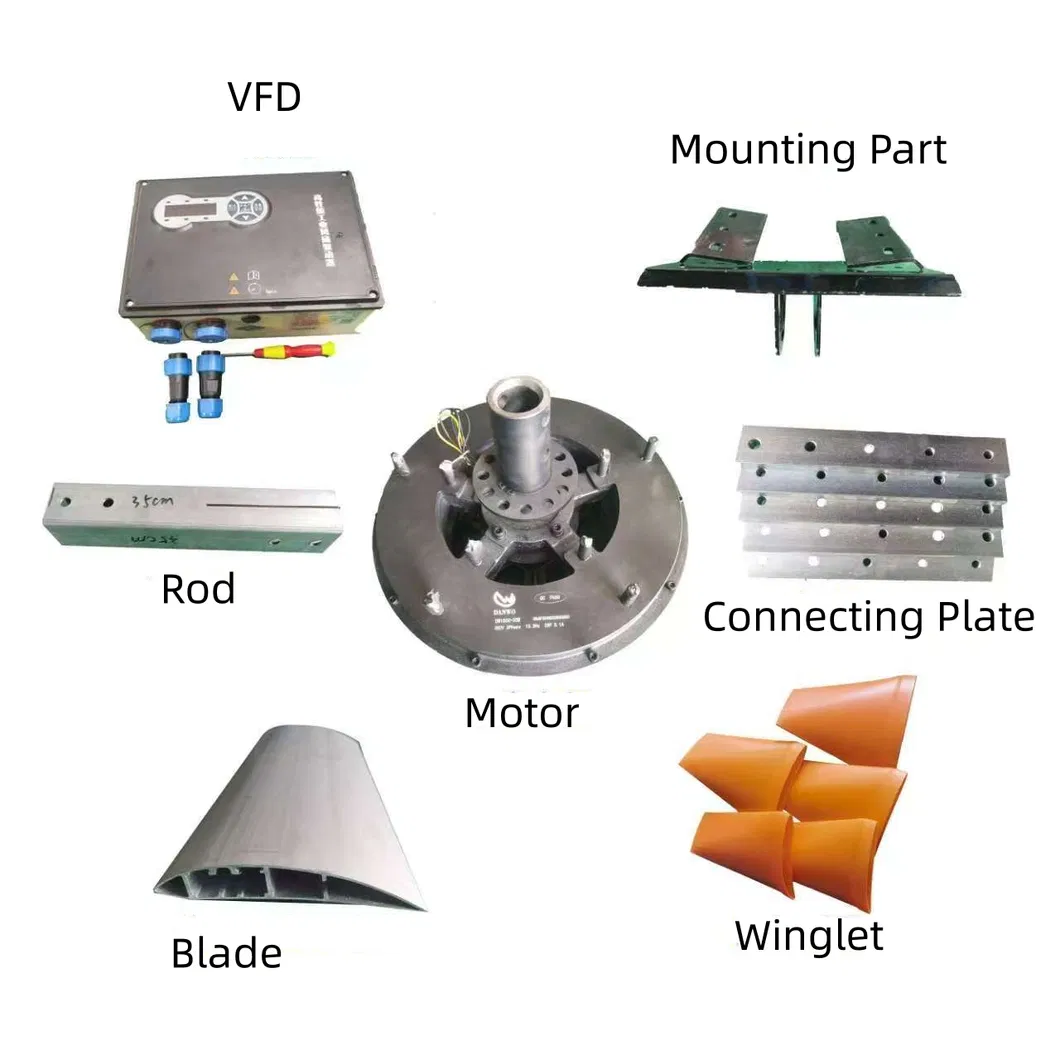

Fan Details

Aluminum alloy blade

High quality lightweight, thickness 2mm;

High rigidity, strength and toughness;

Corrosion and fatigue resistance.

VFD

Overload, voltage surge, phase loss protection;

High rigidity, low loss, high efficiency;

Effectively suppressing noise and vibration;

IP54, efficient and energy-saving.

PMSM motor

Natural cooling, fast heat dissipation;

No gears, high transmission efficiency;

No lubricating oil, maintenance free;

IP55, efficient and energy-saving.

Motor Production Line

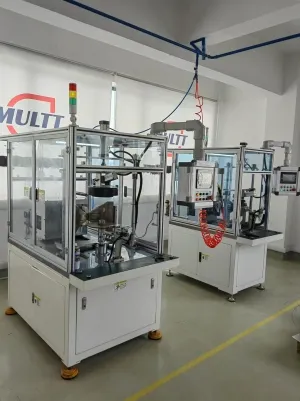

Coil Winding

Coordinate Test

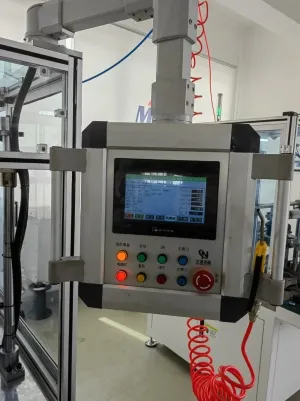

Motor Tester

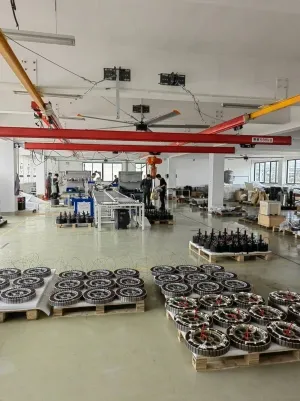

Motor Assembly

Packing

Technical Specification

Parameter	Model
Parameter	SYP-37	SYP-48	SYP-55	SYP-61	SYP-73
Diameter	3.7m(12FT)	4.8m(16FT)	5.5m(18FT)	6.1m(20FT)	7.3m(24FT)
Power	0.50KW	0.75KW	0.90KW	1.2KW	1.5KW
Speed	90RPM	80RPM	75RPM	70RPM	70RPM
Voltage	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V
Current	2.3A/1.3A	3.4A/1.9A	4.1A/2.4A	5.5A/3.2A	6.8A/3.9A
Frequency	50/60HZ	50/60HZ	50/60HZ	50/60HZ	50/60HZ
Weight	55KG	70KG	80KG	105KG	120KG
Coverage Area	400m2	600m2	800m2	1000m2	1200m2
Air Volume	6800m3/m	8800m3/m	10800m3/m	11800m3/m	13800m3/m
