Product Description
What is this fan?

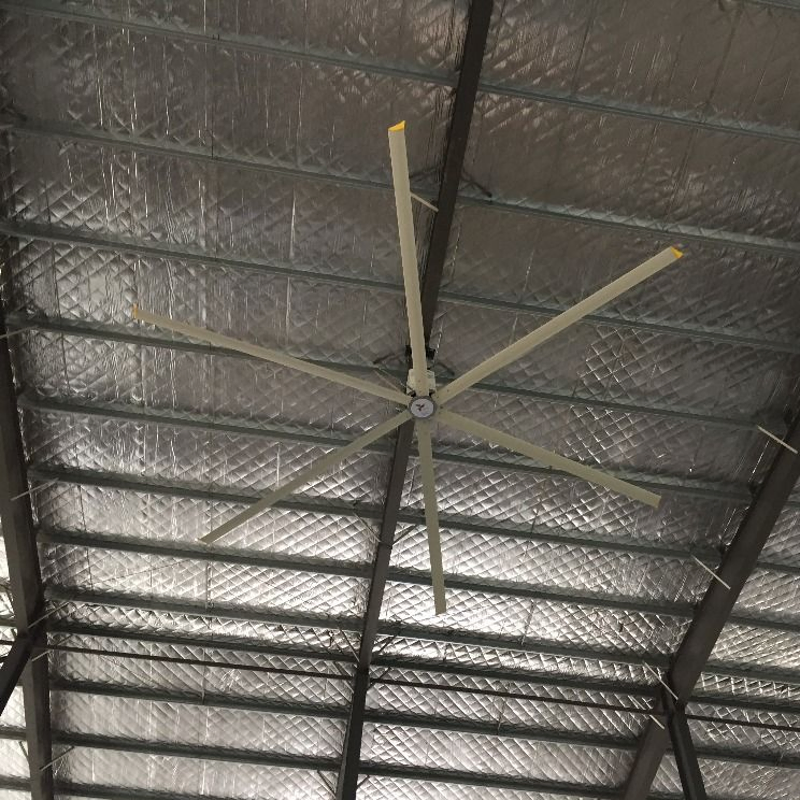

This is a type of mechanical fan used in commercial and industrial settings. Unlike residential ceiling fans that are typically 36 to 52 inches in diameter, these fans have very large diameters that start at 12 feet and go up to 24 feet. These fans move very slowly unlike standard fans which operate at high speed. With large diameters and low rotating speed, they can move large amounts of air, which is why they are named "high volume, low speed" (HVLS) fans.

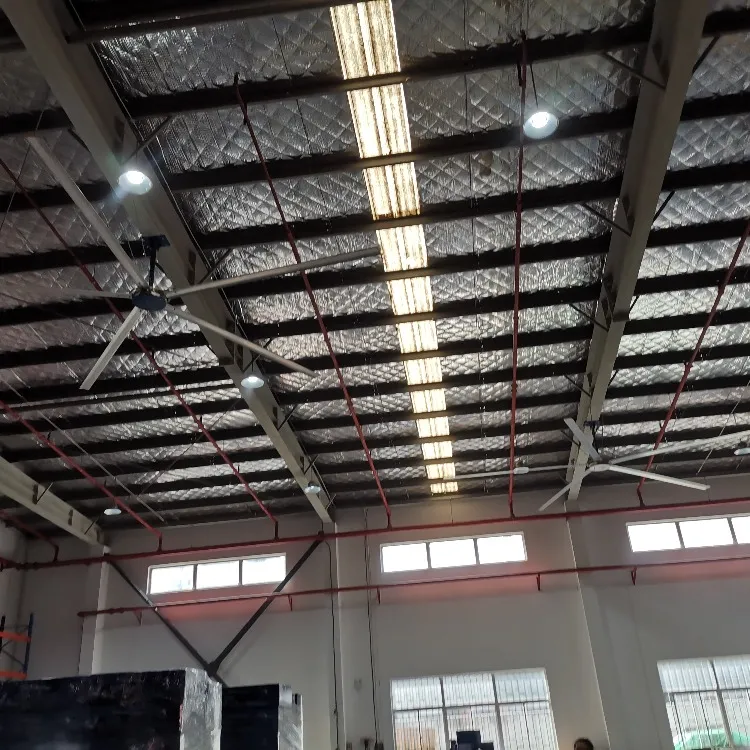

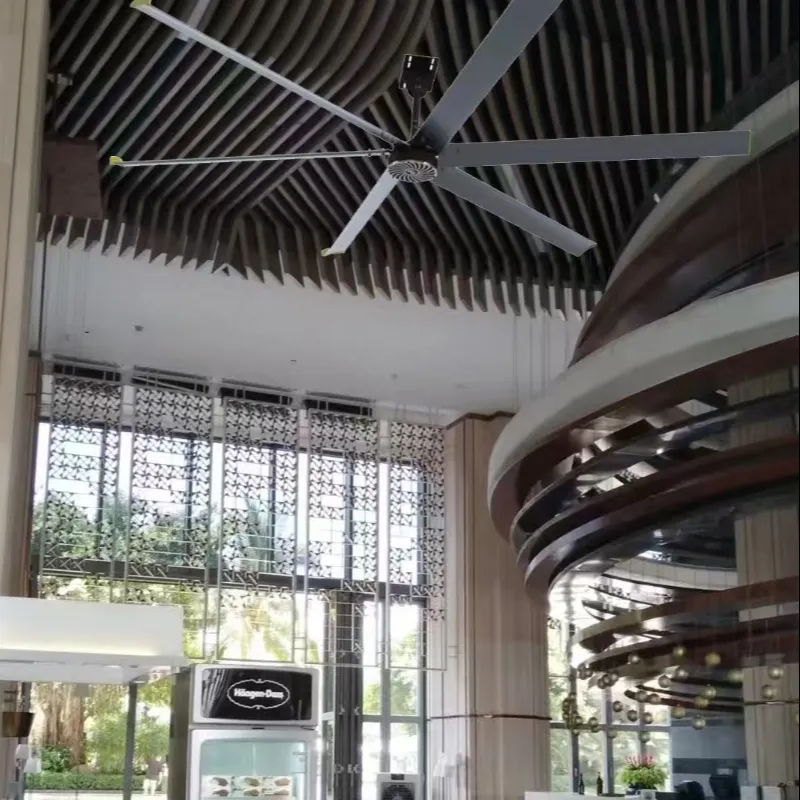

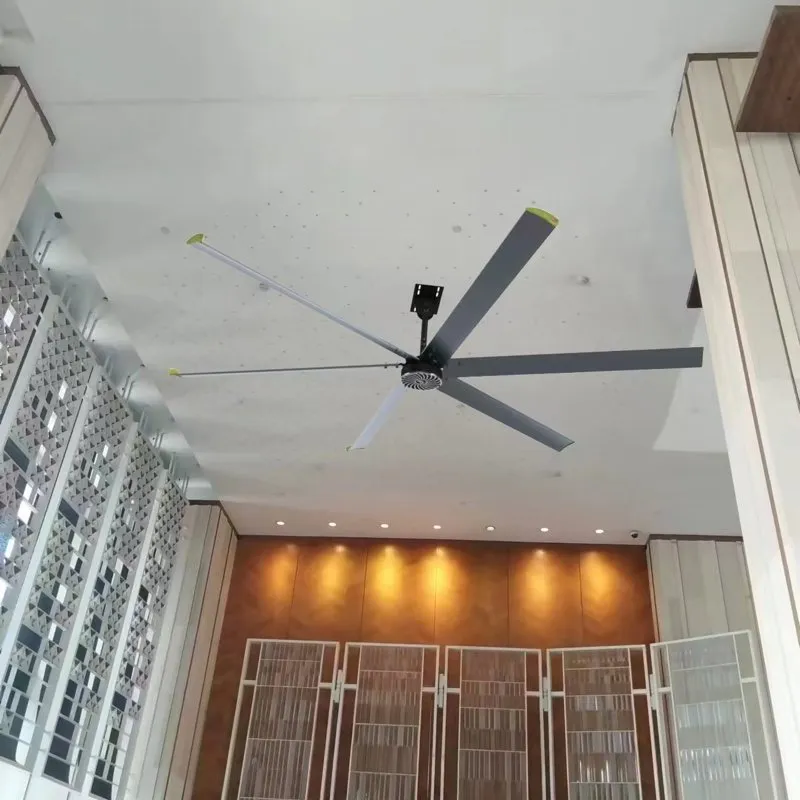

HVLS fans are widely applied in livestock barns, warehouses, distribution centers, shopping malls, skating rinks, health clubs, and more. Due to the rising costs of energy, HVLS fans are often used to supplement HVAC systems as they provide a stronger cooling effect while helping to maintain a constant temperature and humidity.
How does it work?
The unique airfoil blades produce a massive, cylindrical column of air that flows down to the floor and outward in all directions. This horizontal floor jet pushes air a greater distance before it begins to move vertically and is drawn back through the fan. The greater the down flow, the greater the air circulation will be.
IN SUMMER: HVLS fans work on the principle that a breeze moving across your skin on a very hot day feels good. The cool moving air breaks up the moisture-saturated boundary layer (also known as sweat) surrounding the body and accelerates evaporation to produce a cooling effect.
IN WINTER: In a closed space, heated air always gathers in the higher spaces. That is why in large commercial spaces, even if the air conditioner is set to its highest point, people on the ground still feel cold. HVLS fans can eliminate the separation of the cold and hot air layers, allowing the heated air to circulate efficiently.
Performance
1
Accelerated Airflow:
Provides a large area of gentle breeze, achieving a natural three-dimensional airflow.
2
Dust Removal:
Achieves environmental dust removal effects when combined with ventilation equipment.
3
Dehumidifying & Cooling:
Keeps the indoor environment dry and reduces the growth of bacteria.
4
Efficient & Energy-saving:
Low power consumption, saving about 90% energy compared to common small fans.
5
Safe & Reliable:
Five layers of safety protection measures ensure that the fan remains securely installed.
Advantage
✓Adopting Germany brand NORD motor, energy-saving and efficient.
✓High volume.
✓Low noise.
✓Simple structure.
✓Long life span.
✓Source manufacturer with affordable pricing.

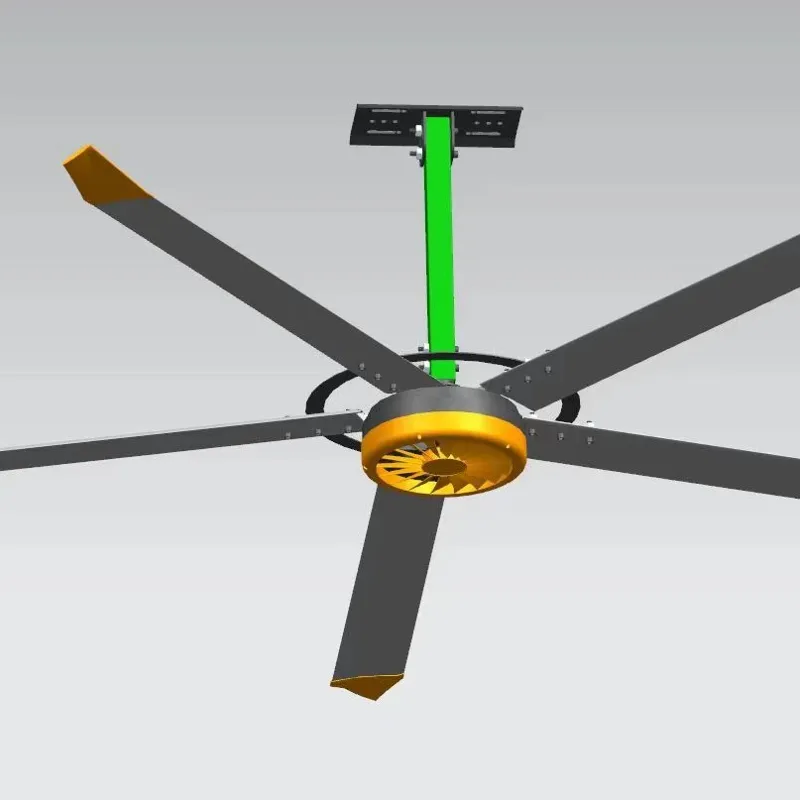

Fan Details

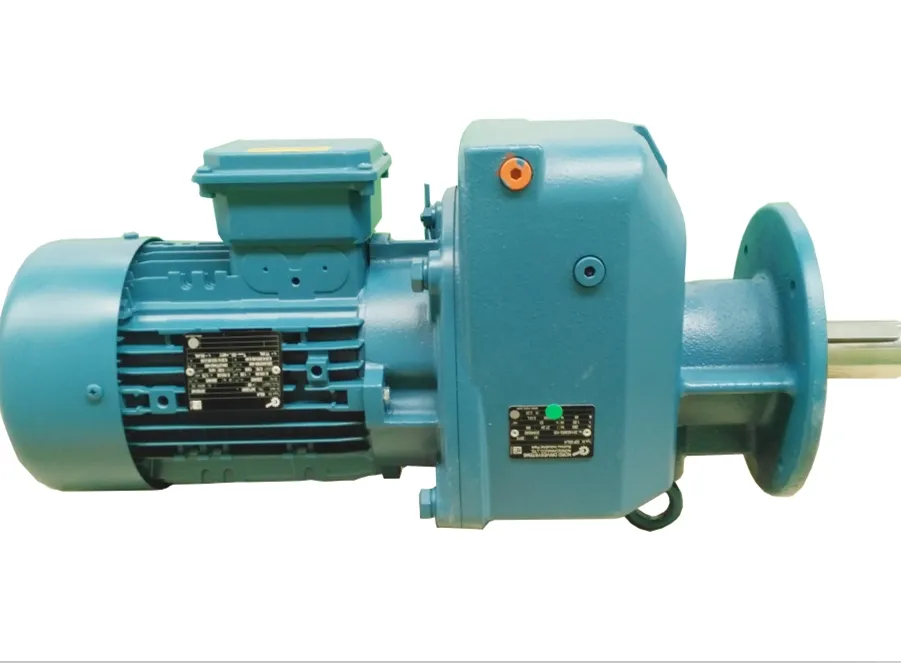

Germany NORD motor
After repeated testing, we adopt the Germany NORD motor to ensure low noise, efficient, reliable, and durable operation. The motor features lifetime lubrication, and any potential oil leakage is prevented by double lip seals.

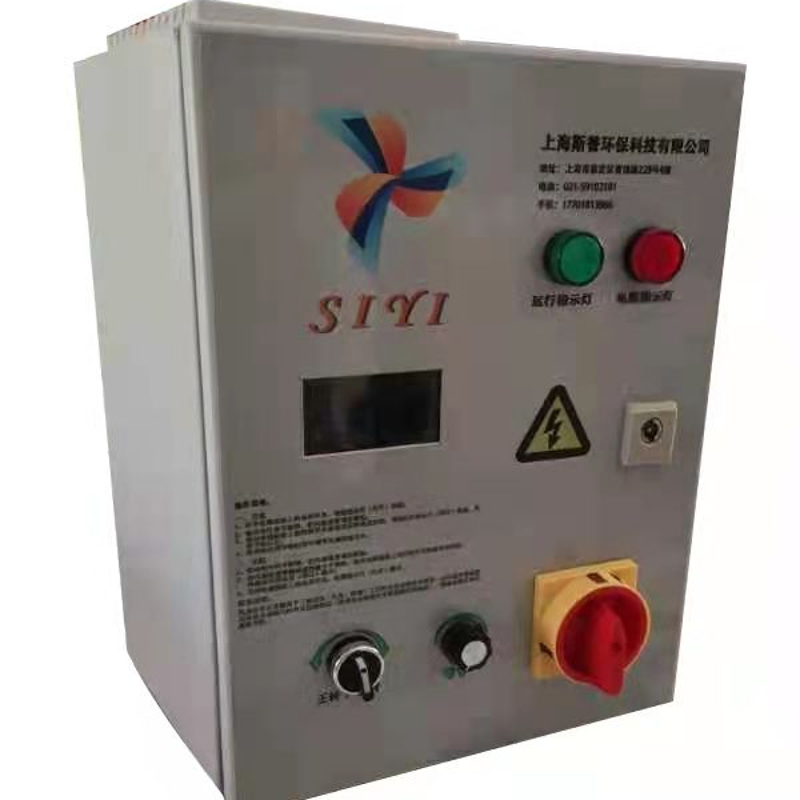

Danfoss Controller
The overload protective device in the controller box automatically disconnects the power supply if an accident occurs, assuring user safety. You can regulate the wind speed at will using the rotary switch.
Magnesium aluminum alloy blade
Aerodynamically designed magnesium-aluminum alloy blades maximize airflow delivery while maintaining structural integrity and minimal weight.
Technical Specification
| Parameter |
Model |
| SYD-38 |
SYD-48 |
SYD-55 |
SYD-61 |
SYD-73 |
| Diameter |
3.8m(12FT) |
4.8m(16FT) |
5.5m(18FT) |
6.1m(20FT) |
7.3m(24FT) |
| Power |
0.75KW |
0.75KW |
1.5KW |
1.5KW |
1.5KW |
| Speed |
90RPM |
80RPM |
55RPM |
55RPM |
55RPM |
| Voltage |
220V/380V |
220V/380V |
220V/380V |
220V/380V |
220V/380V |
| Current |
2.3A/1.3A |
3.4A/1.9A |
4.1A/2.4A |
5.5A/3.2A |
6.8A/3.9A |
| Frequency |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
| Weight |
98KG |
108KG |
120KG |
135KG |
150KG |
| Coverage Area |
400m² |
600m² |
800m² |
1000m² |
1200m² |
| Air Volume |
6800m³/min |
8800m³/min |
10800m³/min |
11800m³/min |
13800m³/min |
Related Products

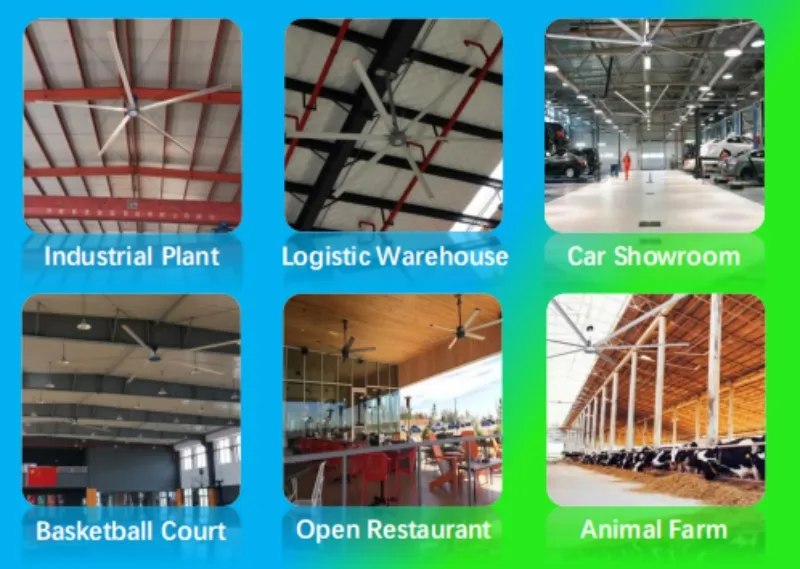

Application
Our Customer
Frequently Asked Questions (FAQ)
Q
Are you a manufacturer or a trading company?
We are a professional manufacturer focusing on HVLS fans.
Q
Can you customize the fans?
Yes, we support OEM customization options according to specific MOQ requirements.
Q
How do you guarantee product quality?
All fans are thoroughly tested before delivery, and we provide a 3-year warranty for the complete fan structure.
Q
What is your quality control process?
Every product undergoes a comprehensive 4-stage inspection by our QC staff to ensure conformity with CE, ISO, and RoHS standards.
Q
What is the minimum order quantity (MOQ)?
Our minimum order quantity is 1 unit.
Q
What is the standard lead time for delivery?
Generally, the lead time is within 10 days after order confirmation.
