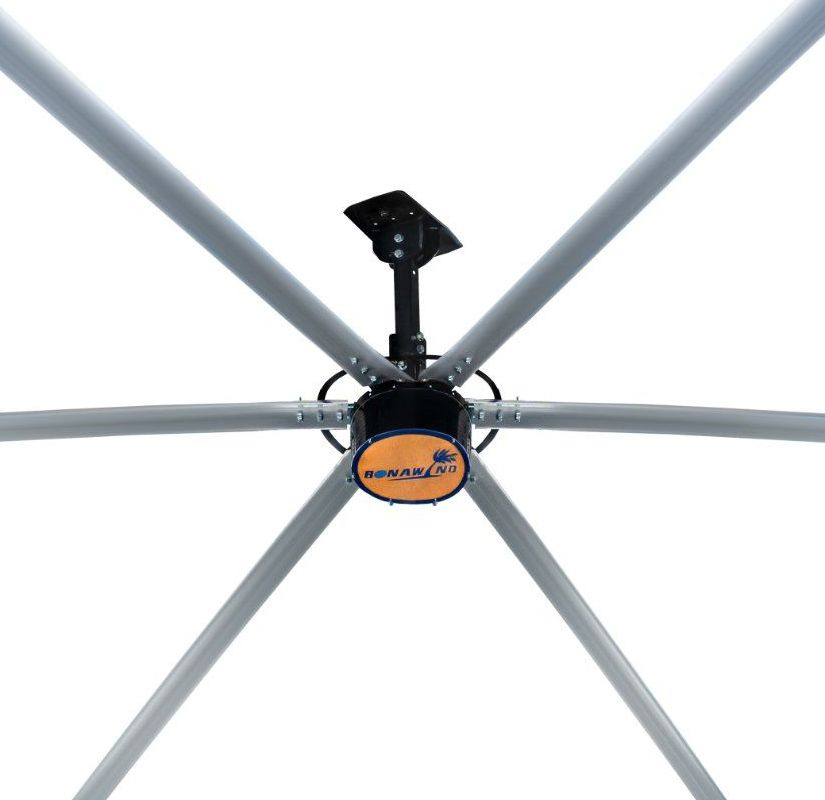

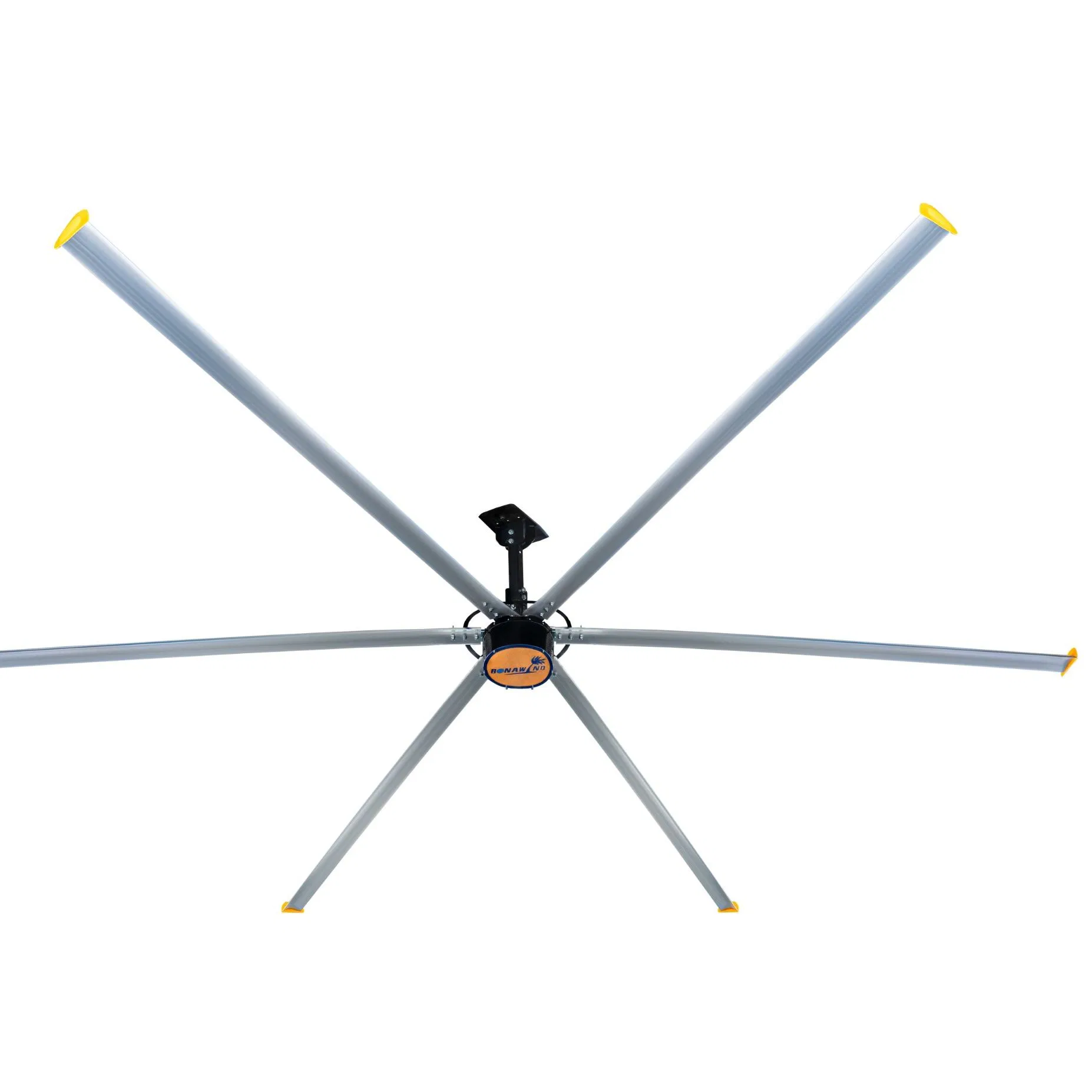

Hvls Ceiling Fan with Remote Control Option Large Energy-Efficient Industrial Ceiling Fan

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview

Basic Info.

Model NO. YBA06106EC6460BWWMA5
Flow Direction Axial Flow
Pressure Low Pressure

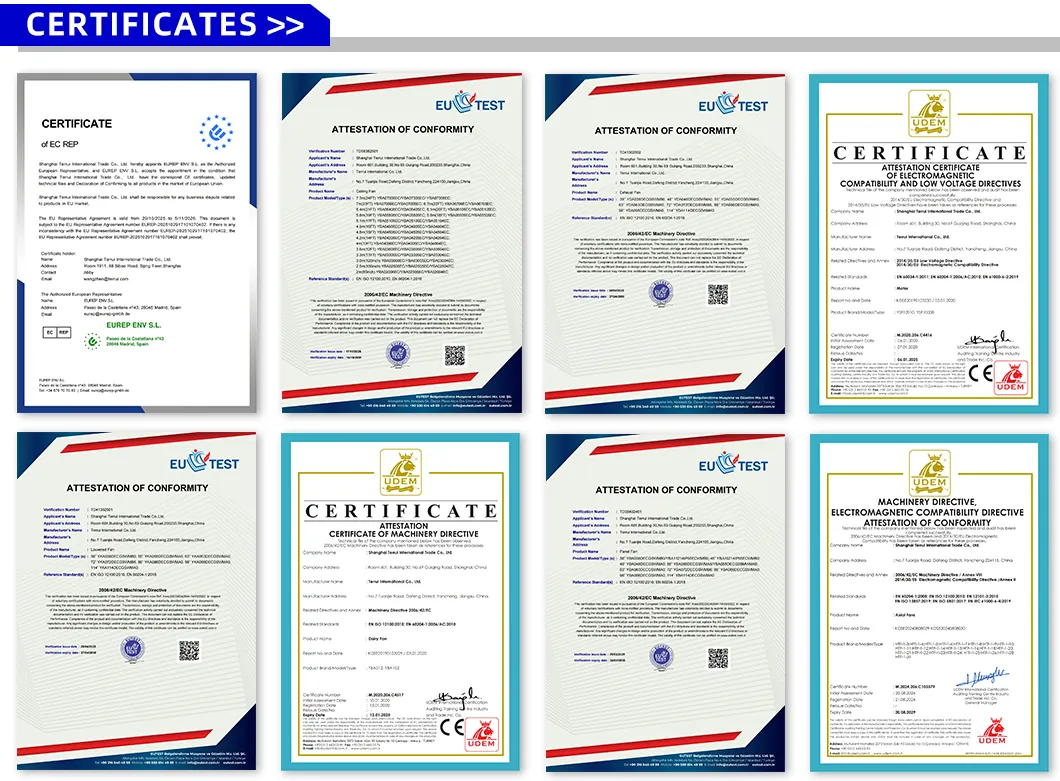

Certification ISO, CE
Product Model Yba06106ec6460bwwma5
Max Airflow 14000m³/Min,494100cfm
Power 3pH/380-480V/50-60Hz
Motor Outer Rotor Permanent Magnet Brushless DC Motor
Blade Material 6PCS Alloy
Rotation Speed 65r/Min
Current 2.5A
Input Power 1200W
Protection Level IP55
Noise ≤36dB
Transport Package Wooden Crate
Specification 6pcs blade
Origin China

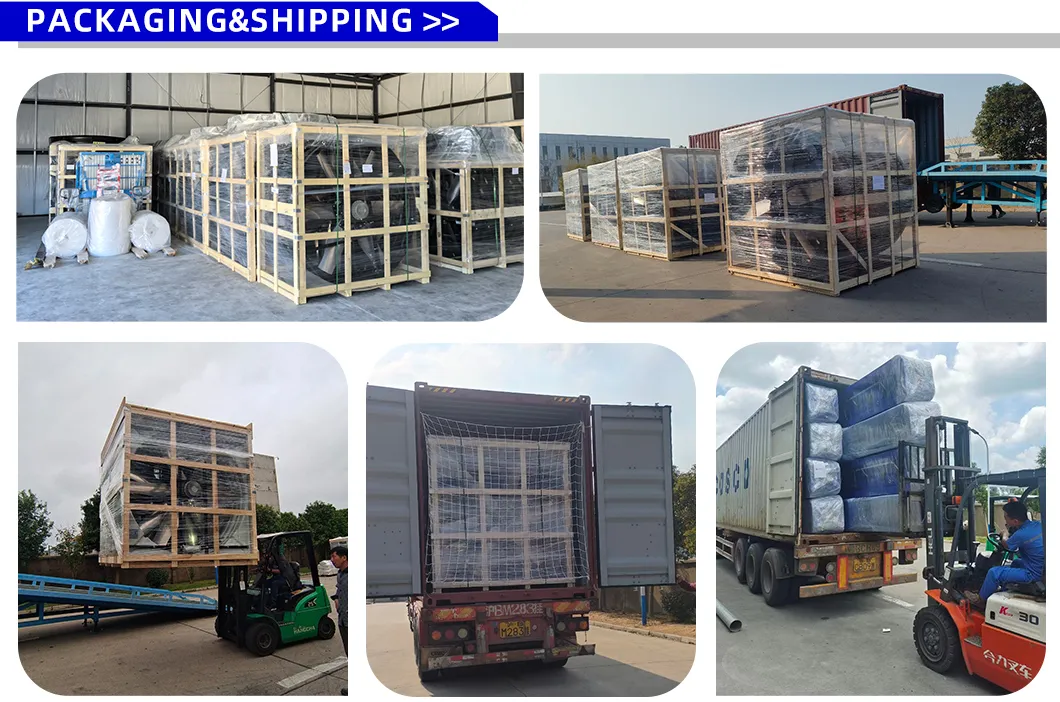

Packaging & Delivery

Package Size 307.00cm * 43.00cm * 86.20cm
Package Gross Weight 240.500kg
Lead Time 5 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
Product Description

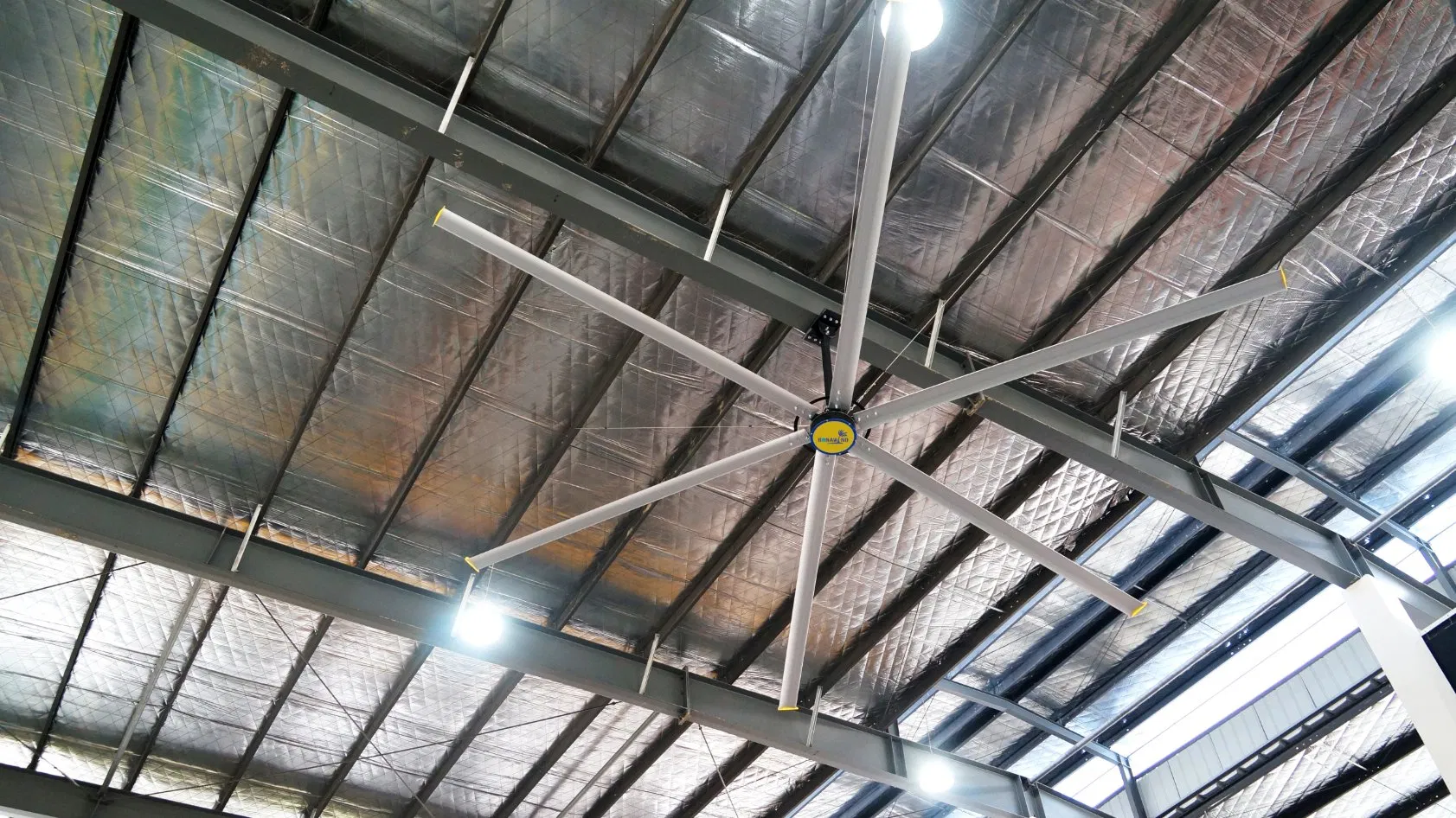

Hvls Ceiling Fan with Remote Control Option Large Energy-Efficient Industrial Ceiling Fan
Product Features:
Can be equipped with the Internet of Things APP system
Insulated and Rust-Free Housing
Outer rotor permanent magnet brushless DC motor
Full alloy fan blades ensure the strength of the blades while providing strong and uniform airflow
To quickly expel indoor stale air and enable fresh air to circulate inside, creating a continuous indoor airflow
Motor Highlights:
Outer rotor permanent magnet brushless DC motor
Low temperature rise
Higher efficiency (efficiency can be 86%, AC asynchronous motor is less than 60% only)
Stable and reliable
Long service life
High torque
Large-scale fluid mechanics simulation design of the blade surface, increased wall thickness, 4 stiffeners in the inner cavity, high-performance aluminum alloy, electrostatic spray treatment on the surface, wear-resistant and easy to clean. Cooperate with the control system to make the fan control more intelligent.
Product Parameter
Product Name Power Air Flow @ 0″ SP Rotation Speed CFM/Watt
24FT/7.3M Ceilling fan 1500W / 2.0HP@3PH 460V 530000 CFM 55 RPM 353
20FT/6.1M Ceilling fan 1200W / 1.6HP@3PH 460V 494000 CFM 65 RPM 412
18FT/5.5M Ceilling fan 1000W / 1.4HP@3PH 460V 44100 CFM 72 RPM 441
16FT/4.9M Ceilling fan 1000W / 1.4HP@3PH 460V 406000 CFM 79 RPM 406
14FT/4.2M Ceilling fan 600W / 0.8HP@3PH 460V 212000 CFM 79 RPM 353
12FT/3.6M Ceilling fan 600W / 0.8HP@3PH 460V 198000 CFM 110 RPM 330
Company Profile
Our unwavering commitment to quality, technological advancement, and customer-centric solutions has not only earned us an impeccable reputation but also positioned us at the forefront of shaping the future of intelligent animal husbandry.
At the core of our offerings lies an extensive and meticulously crafted product portfolio, designed to cater to every critical aspect of modern livestock farming operations. This comprehensive range includes essential equipment such as high-efficiency drinking waterers that ensure optimal hydration for animals while minimizing water waste, energy-saving circulation fans and powerful exhaust fans that maintain a fresh and comfortable air environment within barns, robust industrial ceiling fans engineered for large-scale ventilation needs, and high-performance EC Motors that deliver superior energy efficiency and long-lasting operation—all designed to enhance the well-being of livestock and the operational efficiency of farms.
Livestock Farming Equipment Showcase
Livestock Infrastructure Solutions
Going beyond basic infrastructure, our product lineup also features specialized solutions tailored to the unique needs of different livestock stages and species. These include durable calf hutches and pens that provide a safe, warm, and hygienic environment for young calves to thrive, a full suite of professional veterinary accessories that support routine health checks and timely medical care, ergonomically designed plastic free stalls that offer optimal comfort and support for dairy cows, sturdy and secure feeding fences that streamline feeding processes and prevent feed contamination, as well as advanced electric fencing solutions that ensure reliable animal containment while prioritizing safety.

Our Advantages

1. 24-hour product service for professional business personnel
2. Free ODM & OEM sample service
3. Provide one-stop purchasing service for related products free of charge
4. One-stop customs clearance service to support all trade terms
5. Free visit to the factory reception service
6. Full order tracking data visualization service and free after-sales technical service.
7. International product sales consultant market analysis, planning, marketing and other services

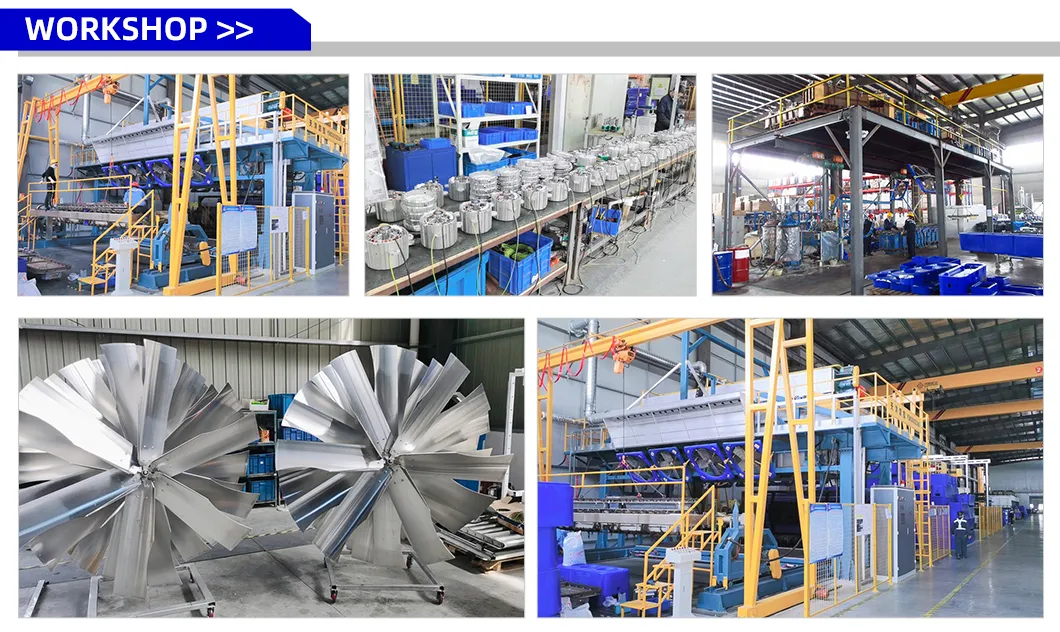

Production Process Optimization

What truly sets us apart from traditional livestock equipment suppliers, however, is our groundbreaking integration of cutting-edge digital technology into our product ecosystem—highlighted by the proprietary IoT (Internet of Things) System. This revolutionary intelligent management platform represents a paradigm shift in livestock farming, seamlessly connecting our entire range of equipment into a unified, smart network that empowers farmers to take full control of their operations with unprecedented convenience and precision, all through a user-friendly mobile application.

Backed by global service and a drive for improvement, we stand ready to empower farms of all sizes. For us, innovation continues: we'll keep refining solutions to remain your trusted partner in intelligent animal husbandry.

Smart IoT Management Network

Frequently Asked Questions

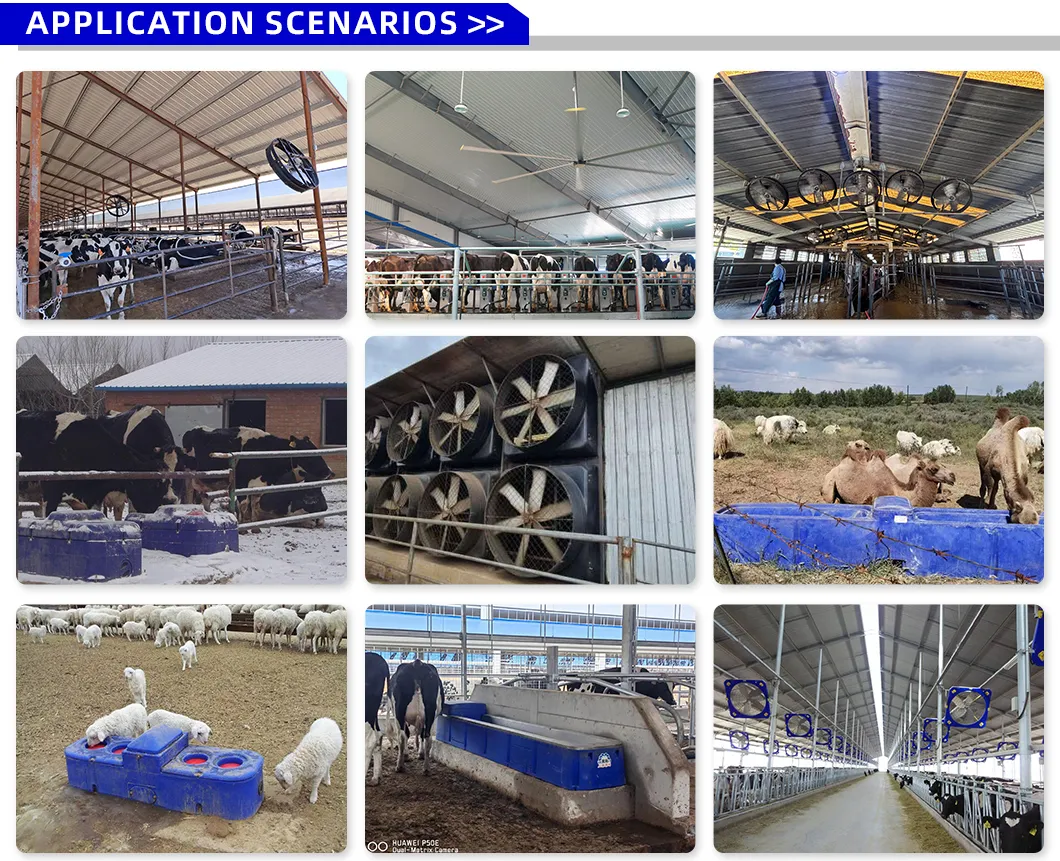

Q1: What scenarios are your products suitable for? Are they suitable for small-scale family farms?
A: Our products fit small family farms to large ranches. Economical options (basic drinkers) and IoT-integrated solutions are available. Share your livestock type, farm size, and needs for tailored recommendations.
Q2: What payment methods do you support? What is the payment term?
A: Supported payments: L/C (large orders), T/T (30% advance, 70% before shipment). Custom orders require 50% advance. Payment terms are negotiable based on order value and cooperation history.
Q3: What transportation methods do you use? What is the usual delivery time?
A: Shipping: Sea (cost-effective for bulk), air/courier (urgent/samples), land (neighboring countries). Lead time: 7-15 workdays (standard), 15-30 workdays (custom). We'll confirm the schedule upfront.
Q4: Do your products come with a warranty? What is the warranty period?
A: Standard warranty: 12 months (from receipt). Free parts/remote support for non-human faults. IoT system/EC motors can extend to 18 months. Consult us for details.
Q5: Is technical support available if problems arise during product installation and use?
A: We offer manuals, remote video guidance, and on-site support (large projects). Our team responds to technical issues within 24 hours.
Q6: Do you accept OEM/ODM cooperation?
A: We support OEM/ODM (LOGO, packaging, parameters). Our R&D team manages the whole process (design to mass production), ensuring alignment with your brand.
