A high-volume low-speed fan is a type of mechanical fan greater than 7 feet in diameter. HVLS fans are generally ceiling fans although some are pole mounted. HVLS fans move slowly and distribute large amounts of air at low rotational speed - hence the name "high volume, low speed."

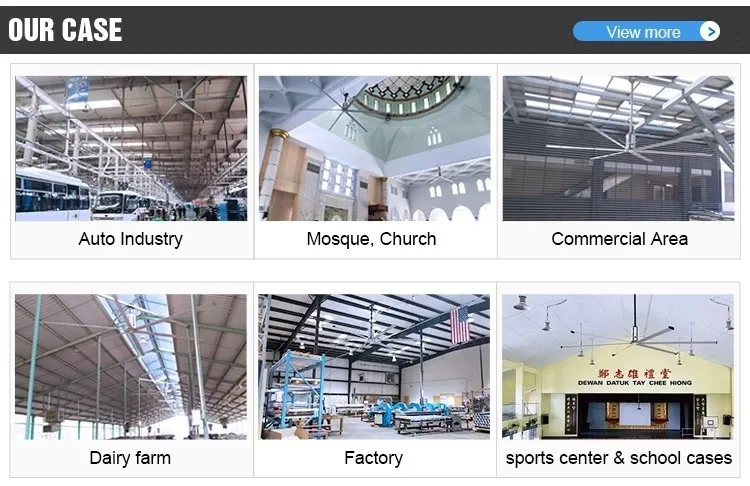

Widely used in industrial plants, logistics and warehousing, public places and other high spaces. It is a perfect solution for high space ventilation and cooling.
| Diameter (m) ft | Motor Power (KW) hp | Speed (rpm) | Air Volume m³/min | Current (A) 380v | Weight (kg) | Noise (dBA) |
|---|---|---|---|---|---|---|
| 7.3 (24') | 1.5 / 2.0 | 20-53 | 13000 | 3.23 | 128 | 45 |
| 6.1 (20') | 1.5 / 2.0 | 20-53 | 11000 | 2.52 | 125 | 45 |
| 5.5 (18') | 1.5 / 2.0 | 20-64 | 9000 | 2.32 | 116 | 45 |
Special design German NORD motor with original NORD reducer.
High quality aluminum magnesium alloy, 5 pcs blades to ensure Max airflow and efficiency, Fluorocarbon coating surface treatment.
High quality aluminum magnesium alloy, Double length of Plug-in model, avoids blade fall off after long-term operation.
7075 Superhard alloy + 1600T High pressure forging + T6 heat treatment.
Danfoss Brand bearing high carrier frequency to reduce motor zing, improve the control pulse signal quality. IP55 rated.
DIN933 Bolt standards (Grade 12.9), DIN125A Locknut, 6mm hot-dip galvanized safety rope, Anti-off shaft & hub locking.
For standard orders, the delivery timeframe is only 7 days.
We offer a comprehensive 12-month warranty covering all equipment and associated accessories.
Yes, products can be customized and built according to the specific size requirements of our clients.
Yes, full OEM (Original Equipment Manufacturer) services are available.
We accept trial orders starting from a minimum of 1 set.
HVLS fans move massive volumes of air at low speeds, ensuring effective environmental ventilation, significant energy savings, and cooling coverage for large high-ceiling spaces.
