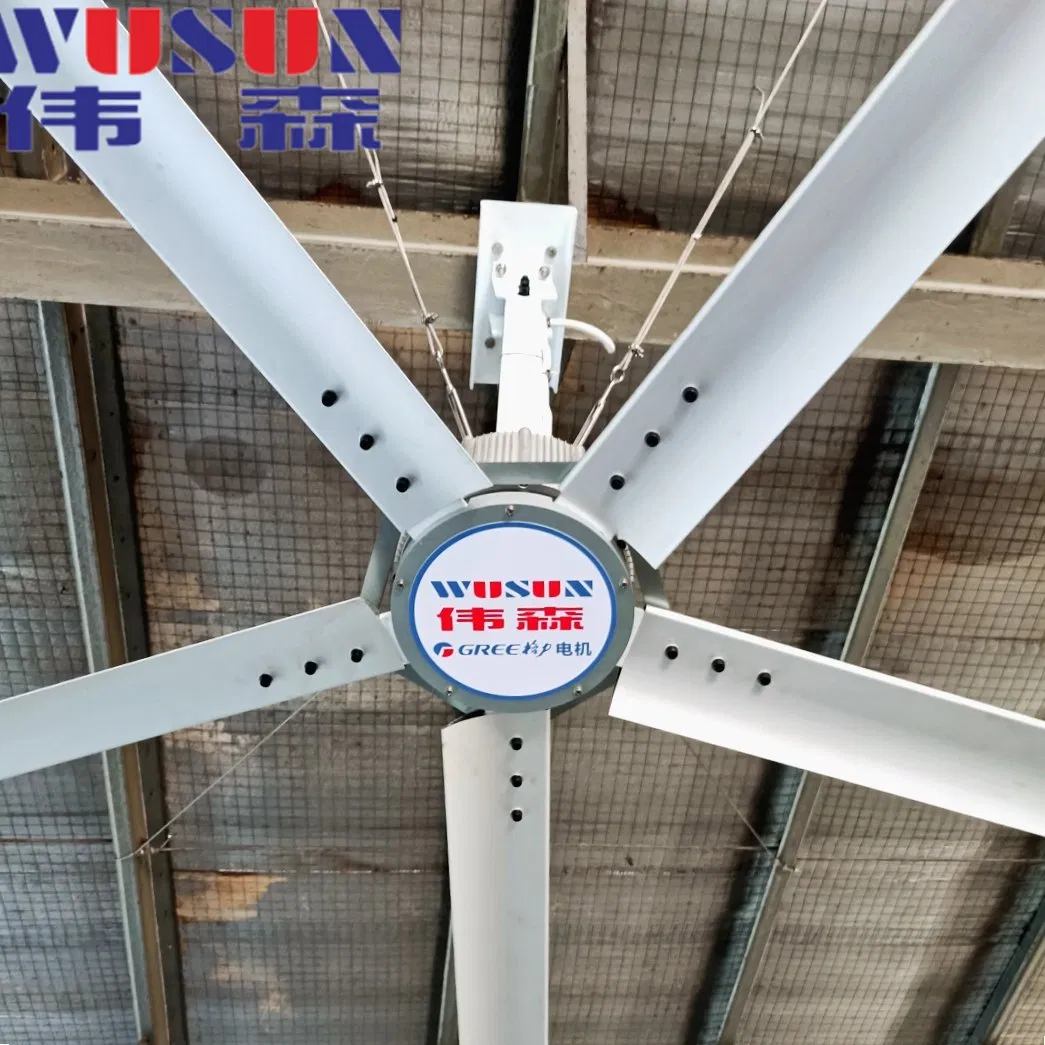

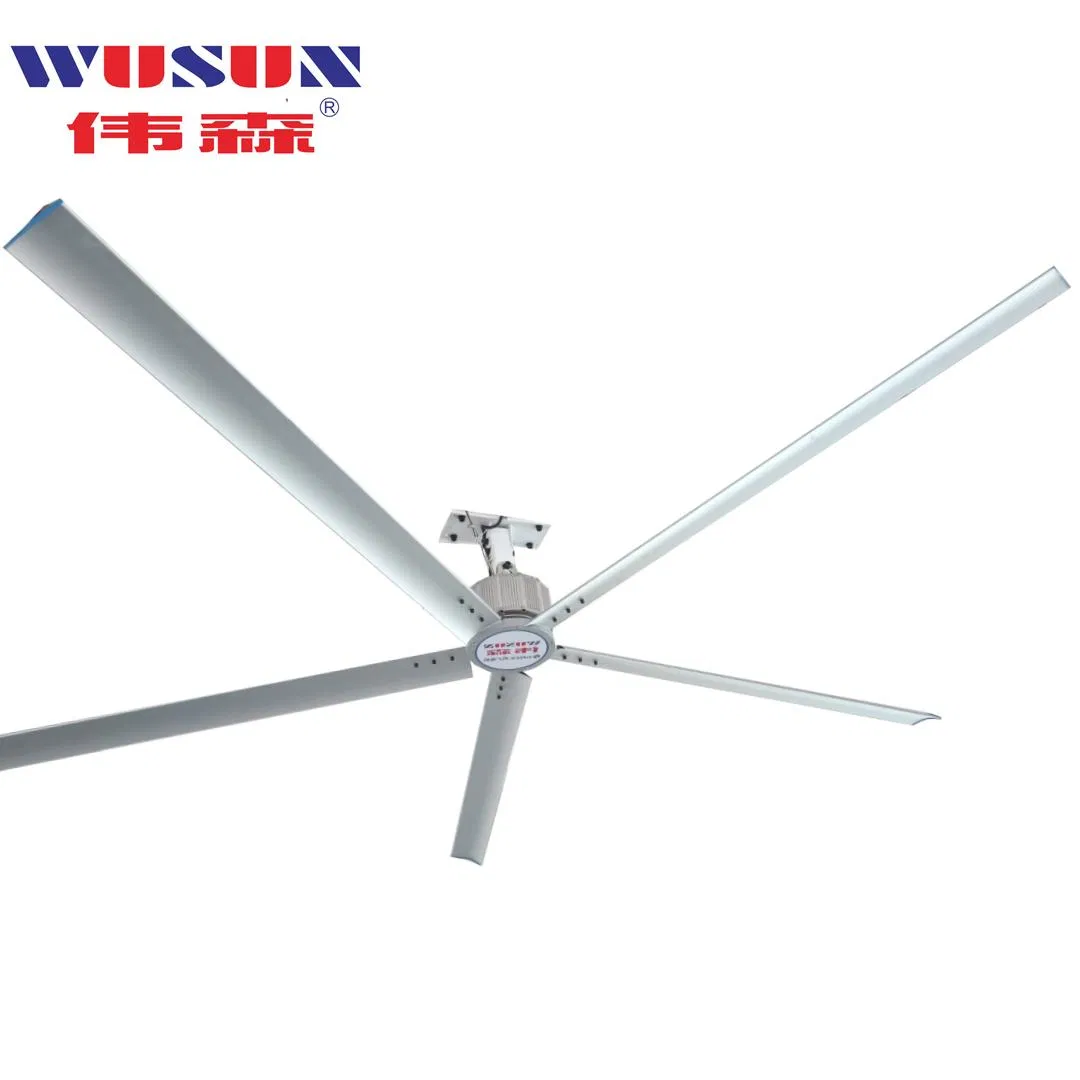

20FT Heavy Duty Large Industrial Ceiling Fan 6300mm - Factory Price Big Commercial Fans for Indoor/Outdoor Use

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
Heavy Duty Large Industrial Ceiling Fan - Big Commercial Fans for Indoor/Outdoor Use
Model NO. WS-A-D6300
Type Ventilation Fan
Electric Current Type AC
Mounting Ceiling Fan
Certification ISO, CE
Blade Qty 5 PCS
Voltage 380V 50Hz
Power 1.2 Kw
Rated Current 2.9 a
Max Speed Rpm 64 Rpm
Max Air Volume 14582 m³/Min
Area Covered 1500 m²
Area Effectived 700 m²
Transport Package Wooden Package
Specification 6300mm (20ft) diameter
HS Code 8414591000
Production Capacity 5000
Packaging & Delivery
Package Size 1460.00cm * 1400.00cm * 1320.00cm
Package Gross Weight 130.000kg
Product Parameters
Model No. WS-D7300 WS-D6300A WS-D6300B WS-D5300 WS-D4300 WS-D3300
Diameter 7300mm (24ft) 6300mm (20ft) 6300mm (20ft) 5300mm (17ft) 4300mm (14ft) 3300mm (11ft)
Blade QTY 5 5 5 5 5 5
Power 1.2KW 1.2KW 0.88KW 0.88KW 0.66KW 0.66KW
Max Speed RPM 52 64 58 76 80 90
Max air volume (m³/min) 15857 14582 11953 10895 7385 6152
Voltage (V) 380 380 380 380 380 380
Rated current (A) 2.9 2.9 2.6 2.6 1.6 1.6
Noise level (db) <39db <39db <39db <39db <38db <38db
Area covered (m²) 1600 1500 1300 1100 900 650
Area effectived (m²) 750 700 650 550 480 350
Weight 105 kgs 99 kgs 92 kgs 86 kgs 66 kgs 60 kgs
Product Description
Industrial Fan Details 1

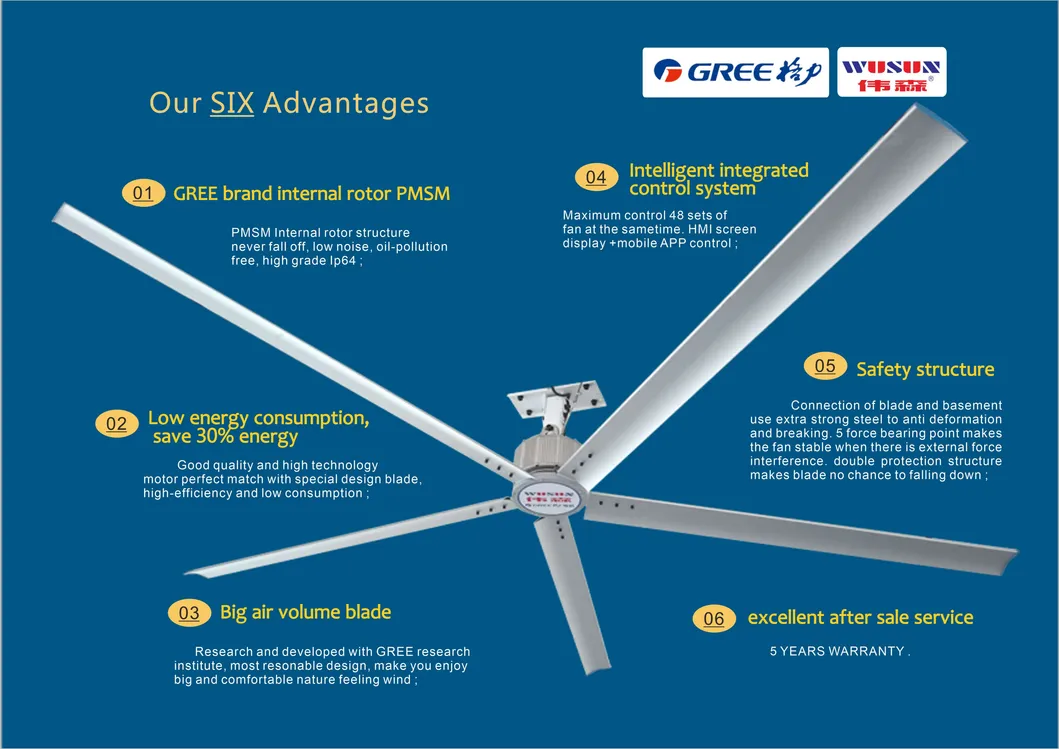

Industrial Fan Details 2

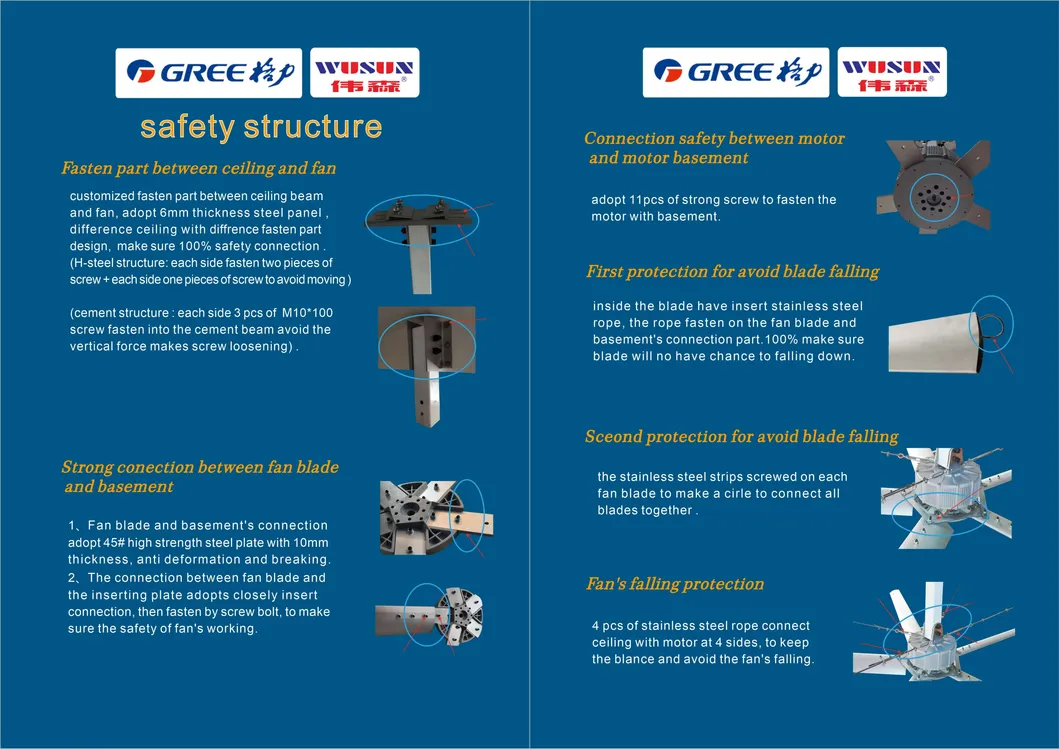

Industrial Fan Details 3

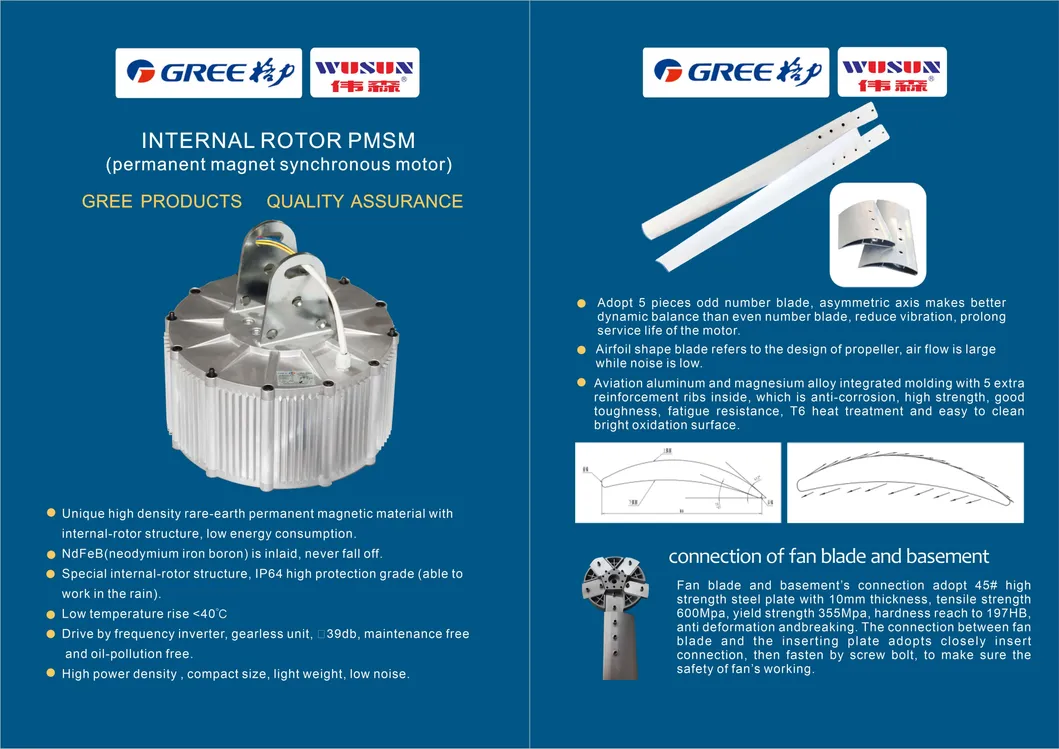

Industrial Fan Details 4

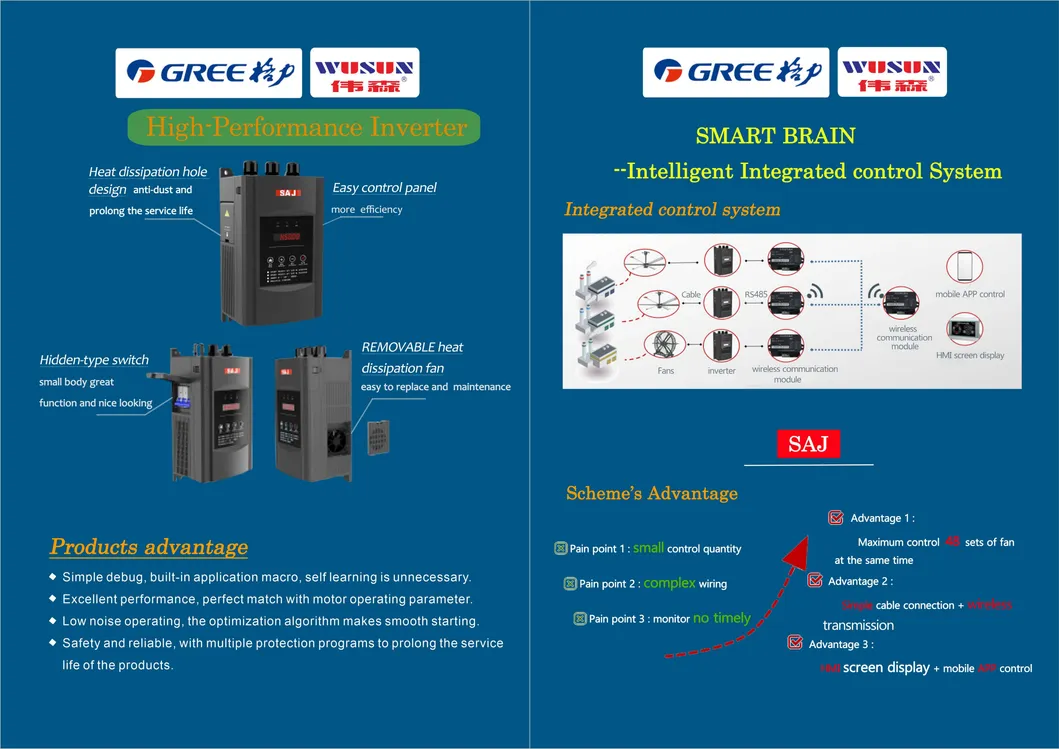

Industrial Fan Details 5

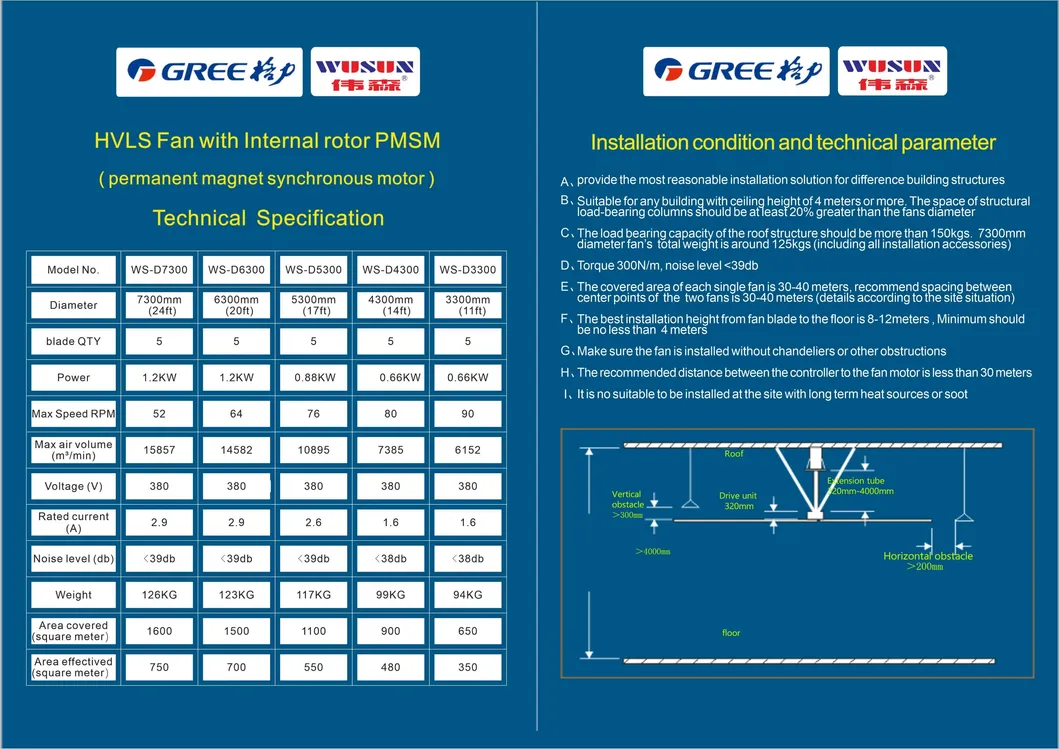

Industrial Fan Details 6
Company Profile

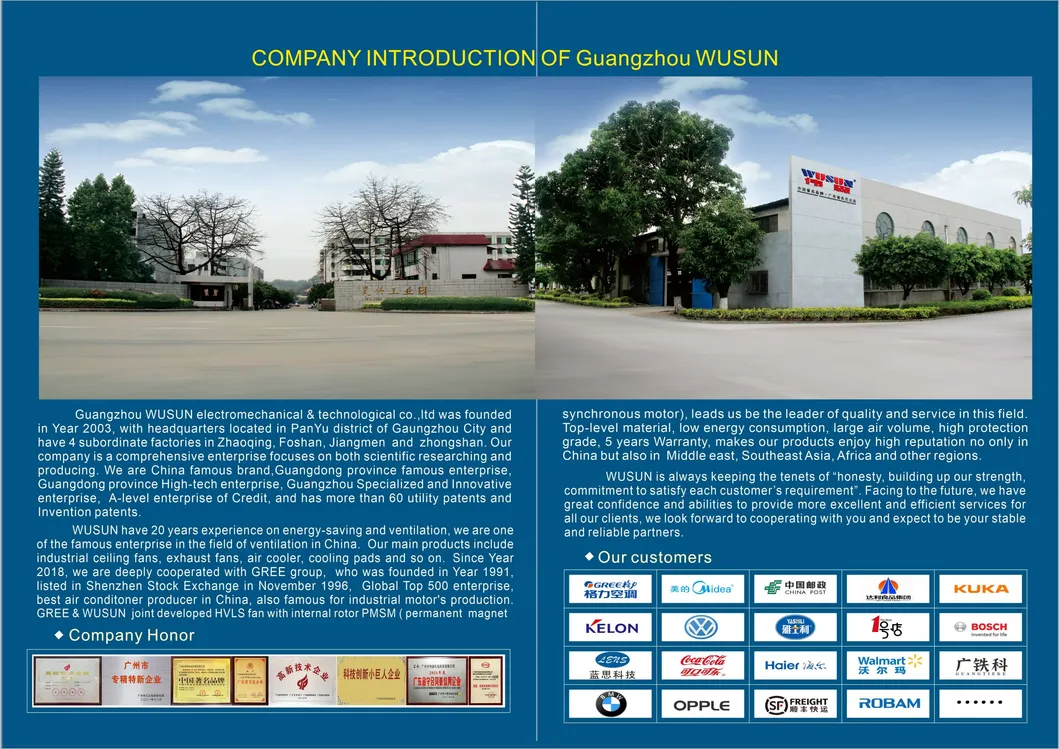

Factory Overview 1

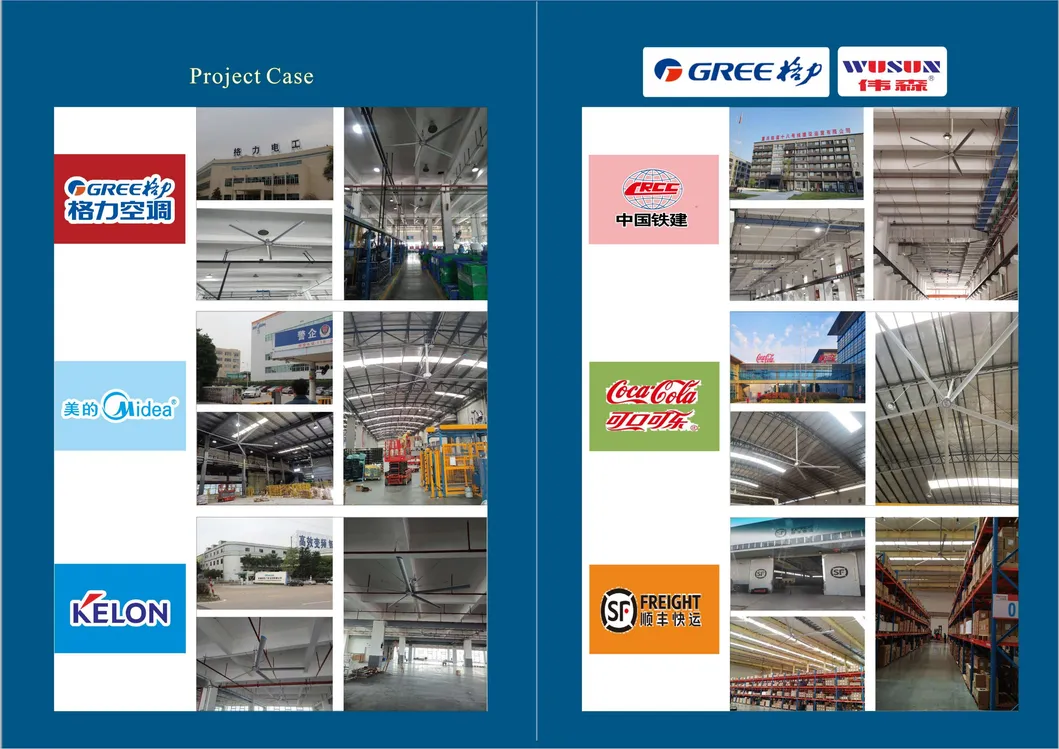

Factory Overview 2

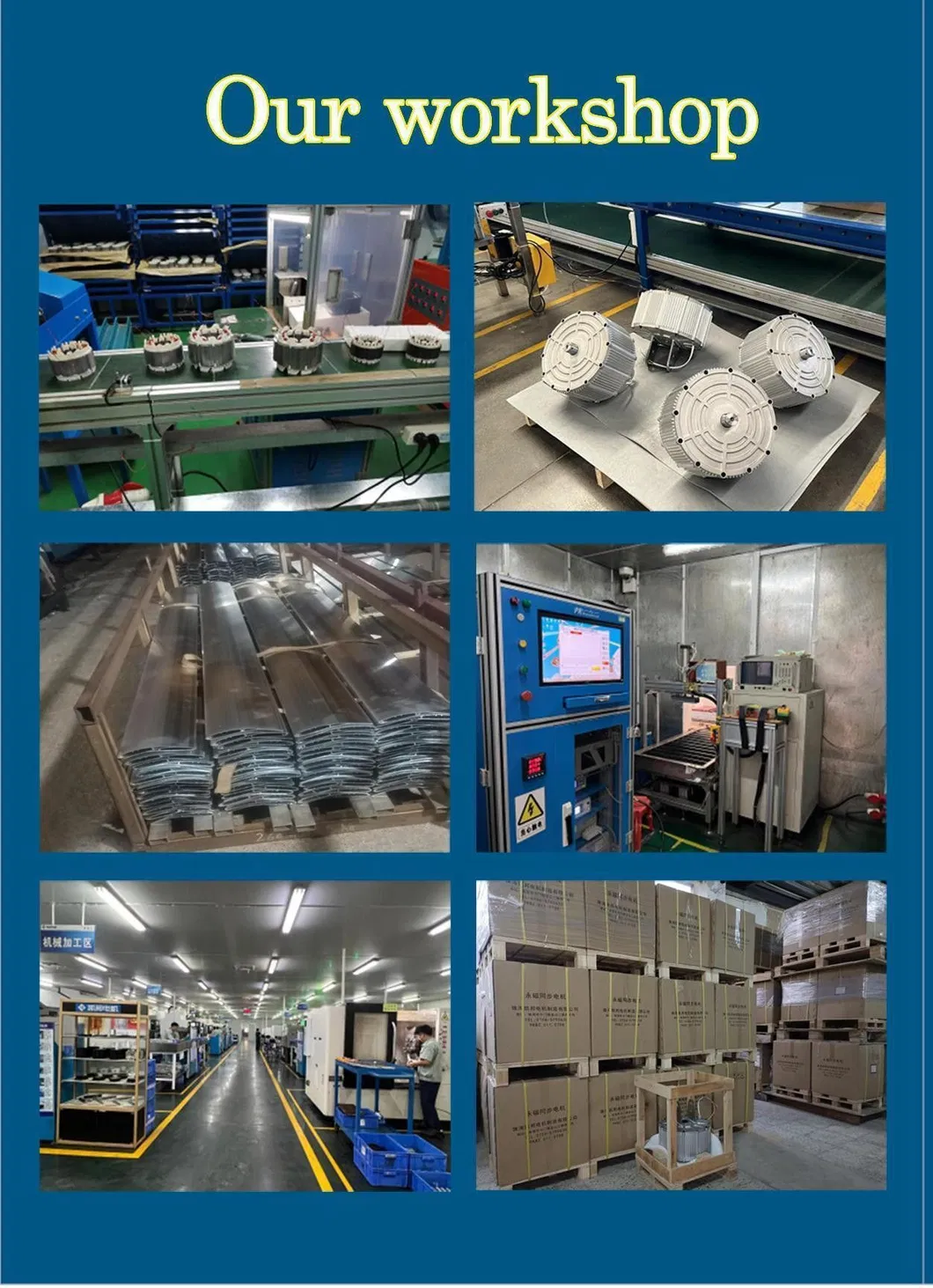

Factory Overview 3
FAQ
Q1: Are you a foreign trade company or a manufacturer?

A: We are a manufacturer. Our factory was established in 2003, specializing in HVLS Industrial Ceiling Fans, cooling fans, Exhaust Industrial Fans, and related ventilation equipment.

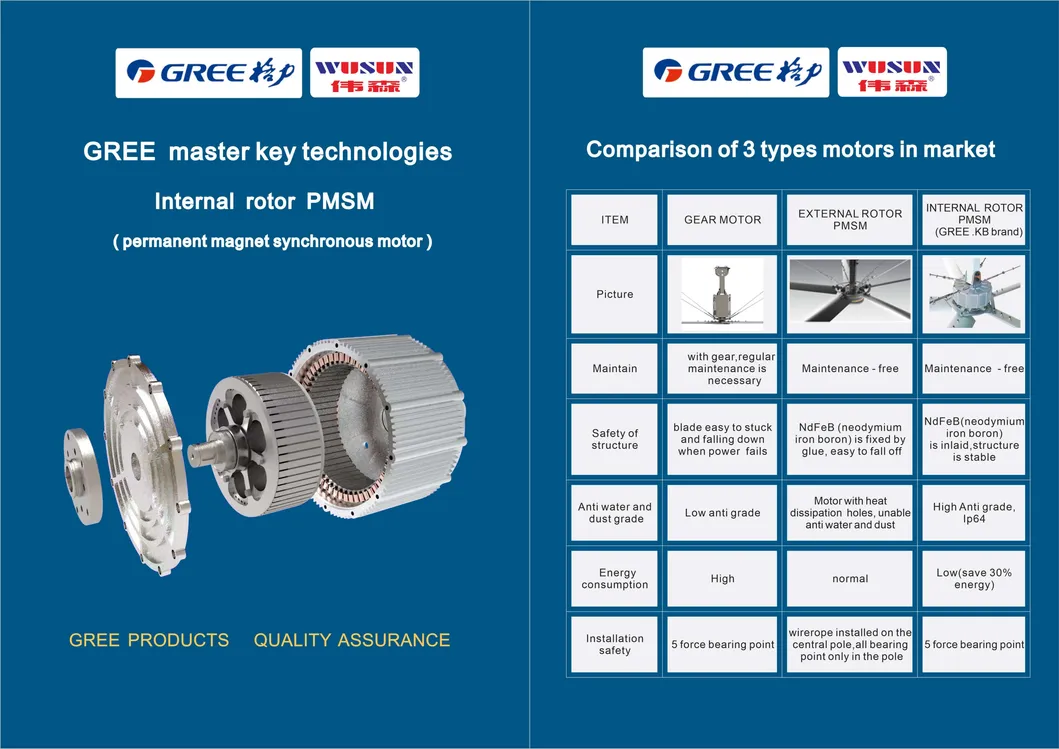

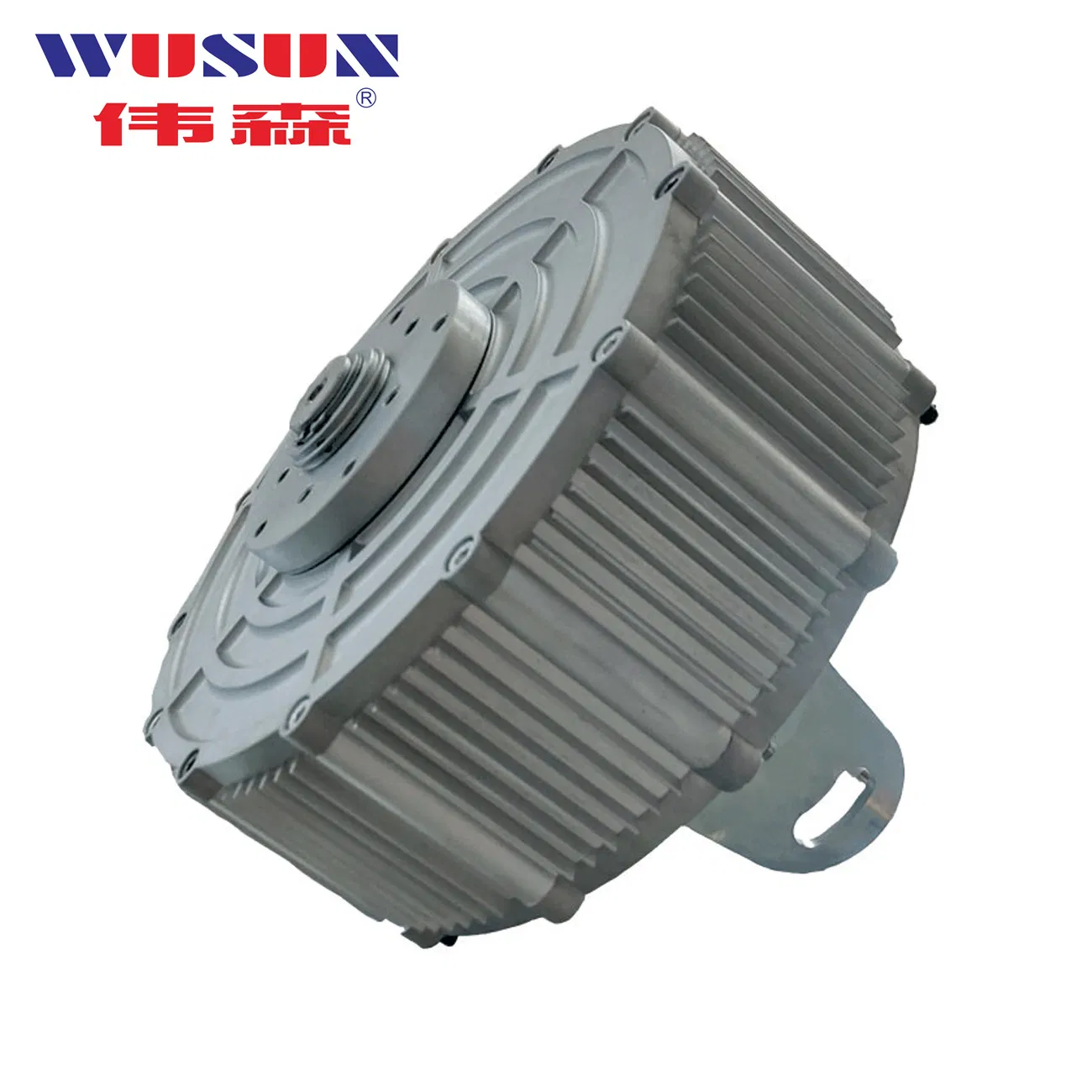

Q2: Why use an internal rotor PMSM? What's the difference compared to an external rotor PMSM?

Internal PMSM offers a safer structure:

(1) NdFeB (neodymium iron boron) is inlaid, providing a stable structure.
(2) High Protection Grade, IP64.
(3) The installation has 5 force-bearing points, keeping the fan stable during external force interference.

External PMSM has a less safe structure:

(1) NdFeB (neodymium iron boron) is fixed by glue, which can easily fall off.
(2) Motor contains heat dissipation holes, making it unable to prevent water and dust ingress.
(3) Wire rope is installed on the central pole, with all bearing points situated solely on the pole.

Q3: What's the advantage of your HVLS industrial ceiling fan?

(1) Brand internal rotor PMSM ensures reliable quality control.
(2) High-quality motor matches perfectly with our special design blade, delivering high efficiency with low energy consumption.
(3) Blade research and development done with a professional research institute, producing a comfortable, natural wind feeling.
(4) Intelligent integrated control system supports controlling up to 48 sets of fans simultaneously.
(5) Multi-tiered safety structure.
(6) Excellent after-sales service including a 5-year warranty.

Q4: How do you handle after-sale service?

A: We will send you free spare parts for replacement under the terms of the warranty.

Q5: What is the delivery time?

A: It depends on the order quantity. Standard delivery time is within 7 days after receiving payment by TT.

Q6: How long is the warranty?

A: We offer a comprehensive 5-year warranty on our HVLS fans.
