Big Size Air Cooling BLDC Hvsl Industrial Ceiling Fans for Outdoor Warehouses

Basic Specifications

Model NO.	BF6000
Type	Hvls Fan
Electric Current Type	AC
Mounting	Ceiling Fan
Certification	CE, CCC
Power	1.5 Kw
Voltage	220V/380V
Speed	65 Rpm
Diameter	6.0 M
Wind Blade	6 PCS

Airflow (M3/H)	12000
Active Area (M2)	630
Coverage Ares (M2)	1100
Weight (Kg)	135

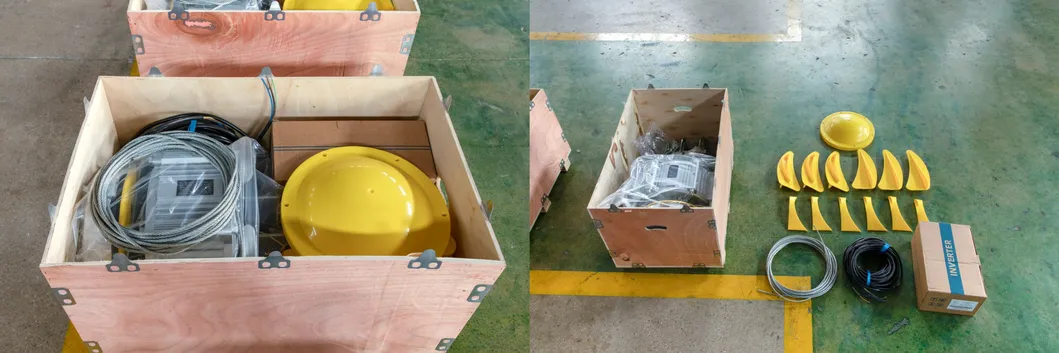

Transport Package	Woodbox
Specification	PMSM Motor
HS Code	8414591000
Production Capacity	10000 Unit/Year

Product Description

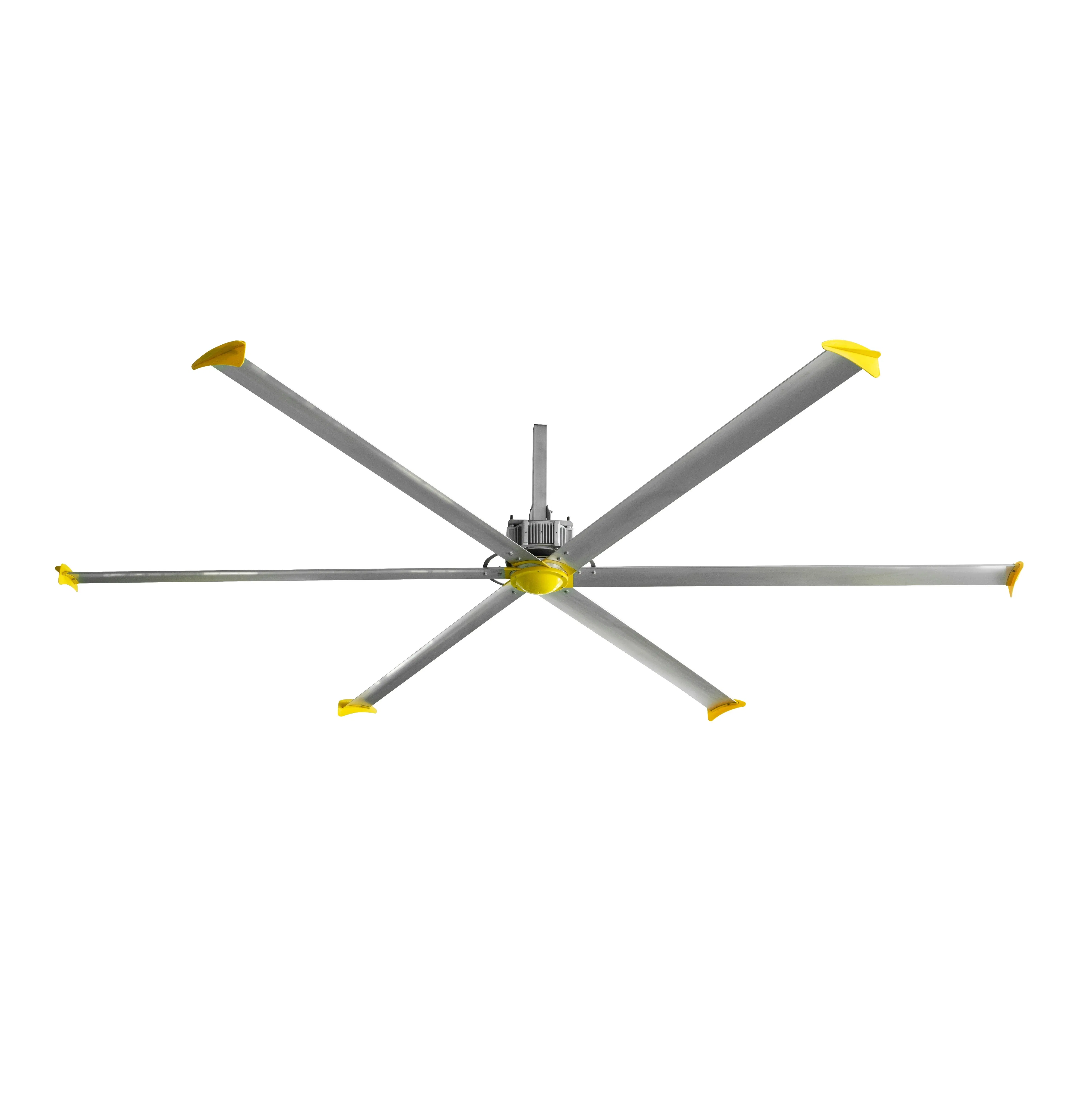

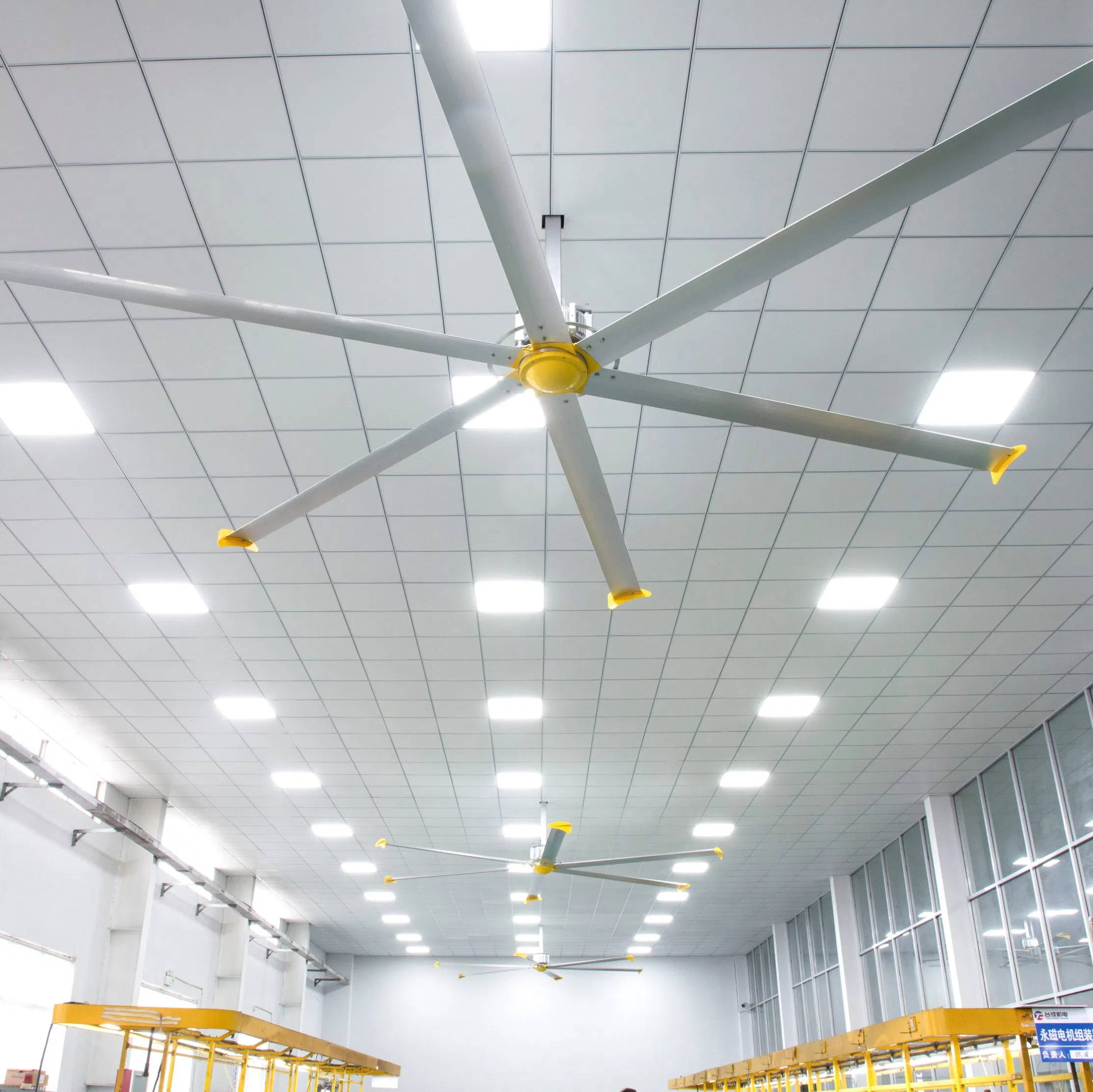

Big Size Air Cooling BLDC Hvsl Industrial Ceiling Fans for Outdoor Warehouses

Gearless direct drive HVLS Industrial Ceiling Fans specially dedicated for large scale space. The streamlined fan blade adopts aerodynamics principles and advanced process, the diameter is from 2.5-8 meters, with coverage 2200-15000 m³/min. Only using the efficient servo direct drive motor, can create plenty of comfortable natural wind.

Model	Dia (m)	Power (kw)	Voltage (v)	Air volume (m³/min)	dB	Covered area (m³)
BCF-327-60-8M	8	1.5	220/380	15000	45	1600
BCF-327-60-7.3M	7.3	1.5	220/380	13500	45	1500
BCF-327-60-6.2M	6.2	1.5	220/380	12000	45	1100
BCF-327-60-5.2M	5.2	1.1	220/380	11000	45	850
BCF-210-40-4M	4	0.75	220	9200	45	800
BCF-210-40-3.5M	3.5	0.75	220	3750	40	750
BCF-210-40-3M	3	0.55	220	2800	40	700
BCF-175-40-2.5M	2.5	0.55	220	2200	40	650

Main Features

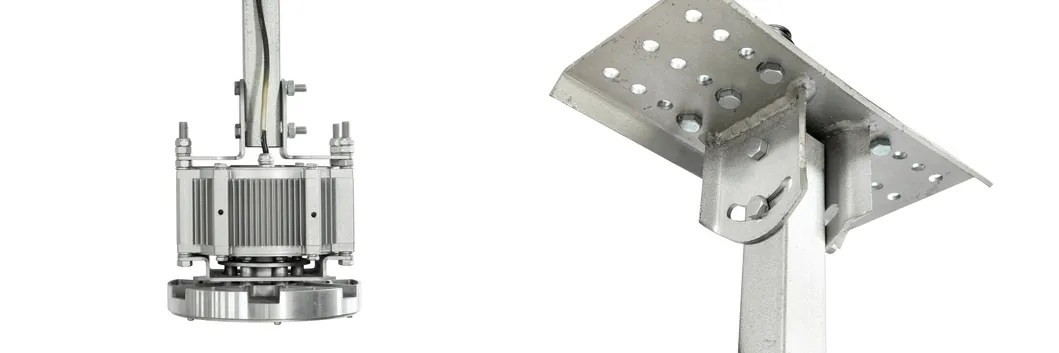

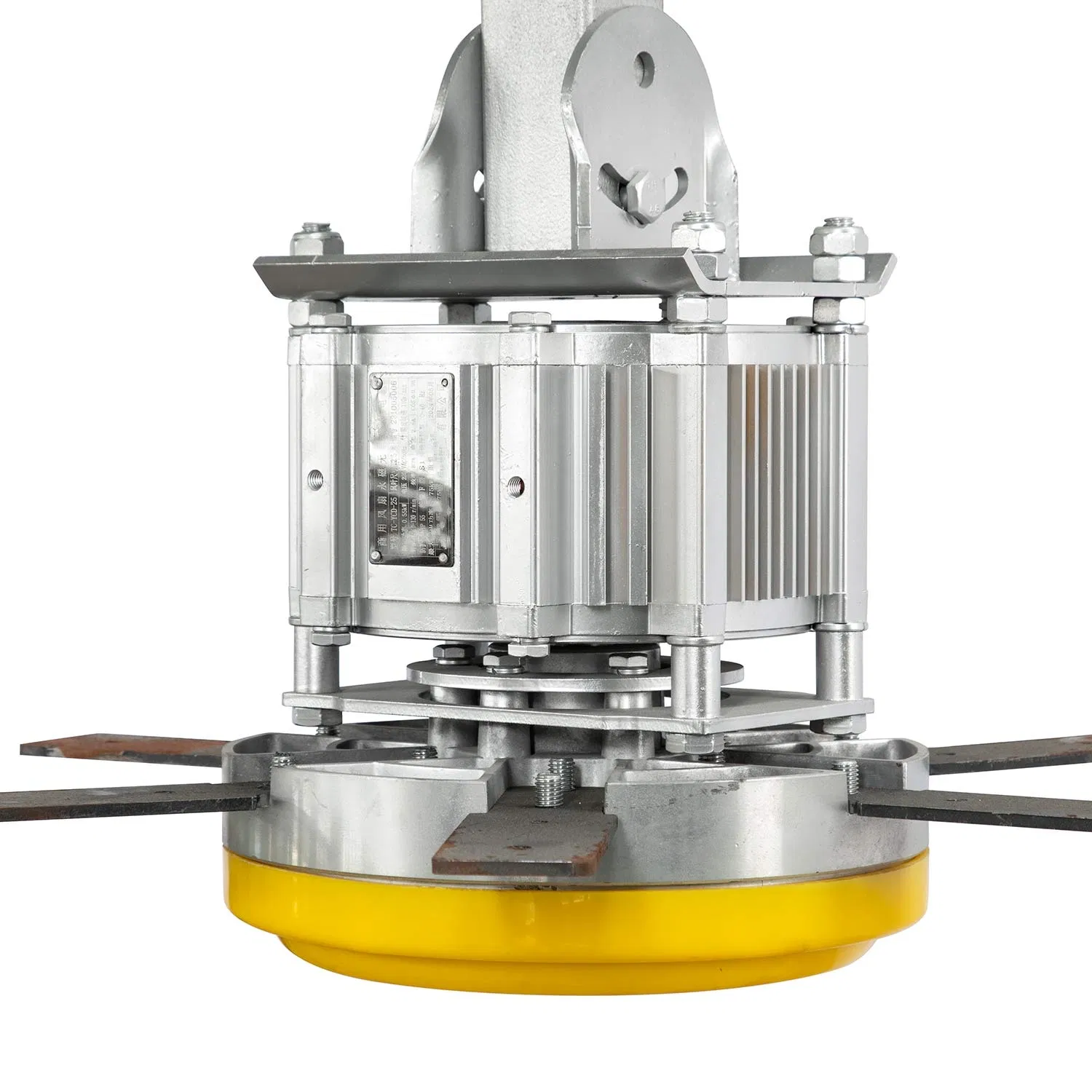

Excellent electromagnetic scheme, brushless, hall free, direct drive, high torque, permanent magnet brushless DC motor.
Power saving and first-class energy efficiency.
The noise is low (the highest standard in China), and the cinema can be installed.
Reasonable structure, simplest and safest installation.
The product performance is 100% stable, without vibration and noise.
The fan blade designed under the guidance of American Bess wind tunnel laboratory is made of aviation material and does not break when bent at 90 degrees.
Installation of 3 bearings, imported brand.

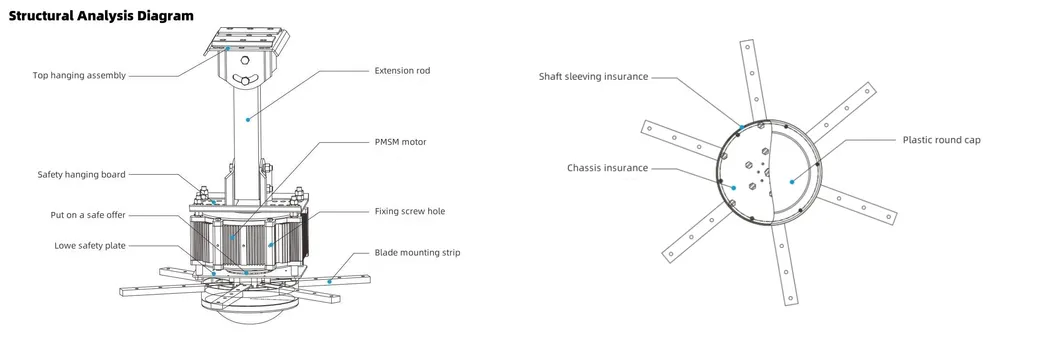

Five Kinds of Safety Insurance

1. Uncertain factors such as collision and typhoon during use cause the motor to sway with an angle of ≥8°, which immediately triggers the insurance and automatic alarm and immediately cuts off the power supply to prevent accidents.

2. The upper and lower safety pieces connect the fan blade and the chassis as a whole, interconnecting and mutual protection. Coupling interference prevention device, even if the chassis screw is accidentally broken, the entire chassis can not fall down on the fall prevention plate to ensure safety.

3. The high-strength monolithic blisk made of 40Cr steel material and laser cutting technology can effectively avoid the potential cracks, stress, fatigue and other problems of low-pressure casting. It is supplemented by accurate and strict dynamic balance testing to ensure high equipment balance stability and improve safety performance.

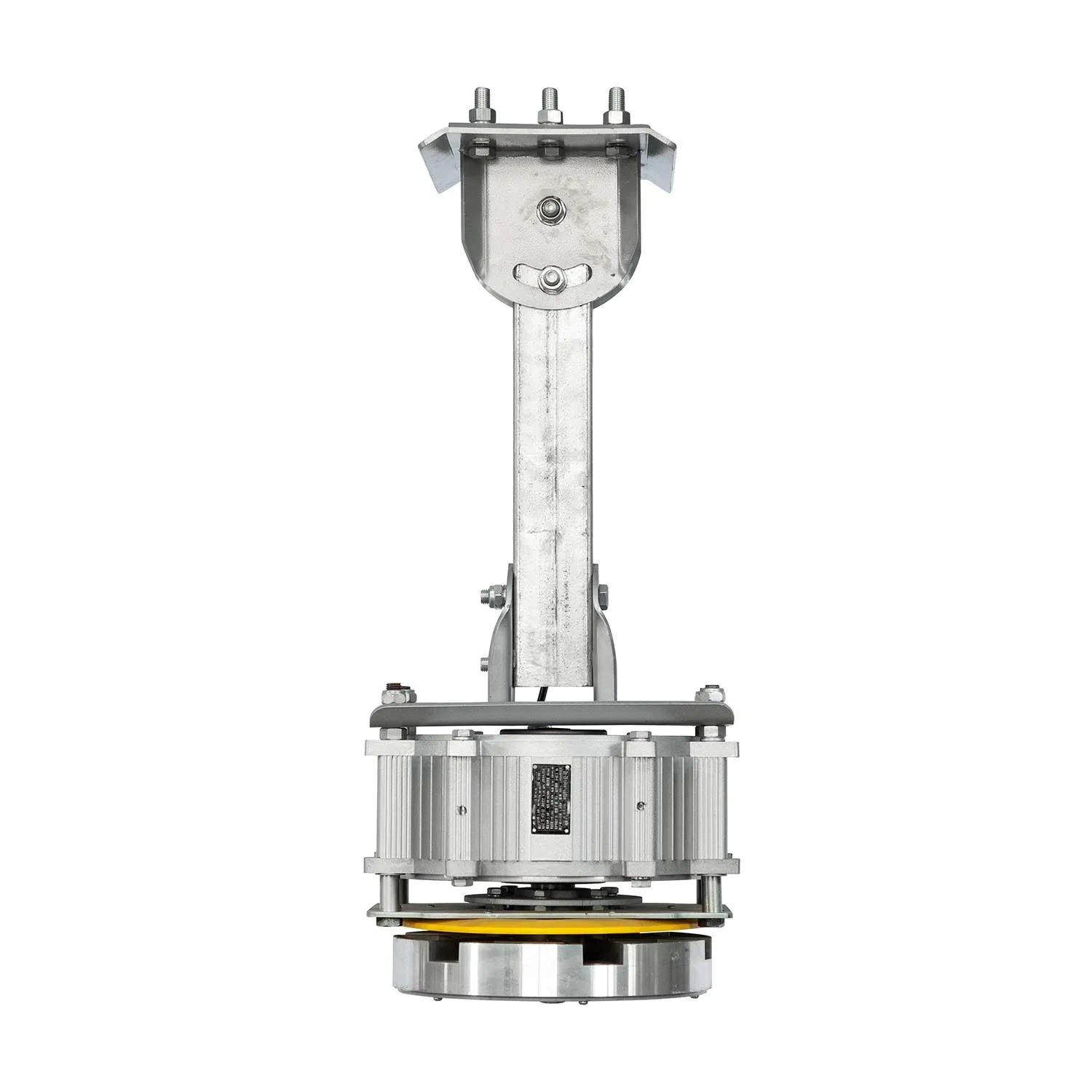

4. The main shaft increases the tension sleeve design to increase the connection and stability of the aluminum wheel and the motor.

5. The tensile strength of each steel wire lock can reach 1000KG, which can ensure the safety of the fan and increase the service life.

Applications

Industrial Use

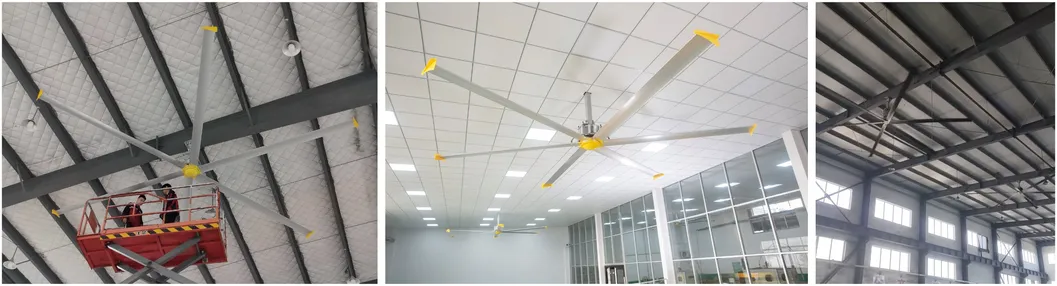

Application to factory buildings, warehouses, distribution centers, aircraft hangars, airports, large production areas, factory workspaces, Logistics and Warehouse Centers, welding, machining and extrusion work areas.

General Use

Places of worship, mosques, churches, malls, halls, sports areas, shopping centers, atriums, hockey arenas, indoor swimming pools, gymnasiums, big-box stores (department stores, hypermarkets), and car dealers.

Company Profile

Frequently Asked Questions

1. Who are we?

We are a professional manufacturer of industrial ventilation solutions, established in 2007. We distribute our products globally: North America (45.00%), Europe (30.00%), South America (12.00%), Asia (10.00%), Oceania (2.00%), and Africa (1.00%). A dedicated team of engineers provides highly professional and customized solutions for our clients.

2. How can we guarantee quality?

We maintain strict quality control standards, ensuring a pre-production sample is approved before mass production and conducting a final 100% inspection before shipment.

3. What can you buy from us?

We offer a comprehensive range of ventilation systems, including HVLS ceiling fans, PMSM HVLS Fans, industrial fans, and large-scale overhead fans.

4. Why should you buy from us instead of other suppliers?

Our HVLS ceiling fans feature an advanced inner rotor permanent magnet direct drive design. This configuration provides significantly greater air volume, wider coverage areas, and exceptionally efficient energy savings.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Types: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.

6. How do HVLS fans save energy in large facilities?

HVLS fans move massive quantities of air at low speeds, creating a natural cooling breeze that makes occupants feel up to 5°C cooler. When used in combination with HVAC systems, they distribute air more efficiently, allowing you to raise thermostat settings and significantly reduce overall heating and cooling costs.
