Large Industrial Ventilation Big Ass Outdoor Big Ceiling Fans

Send Inquiry

Product Description

Description

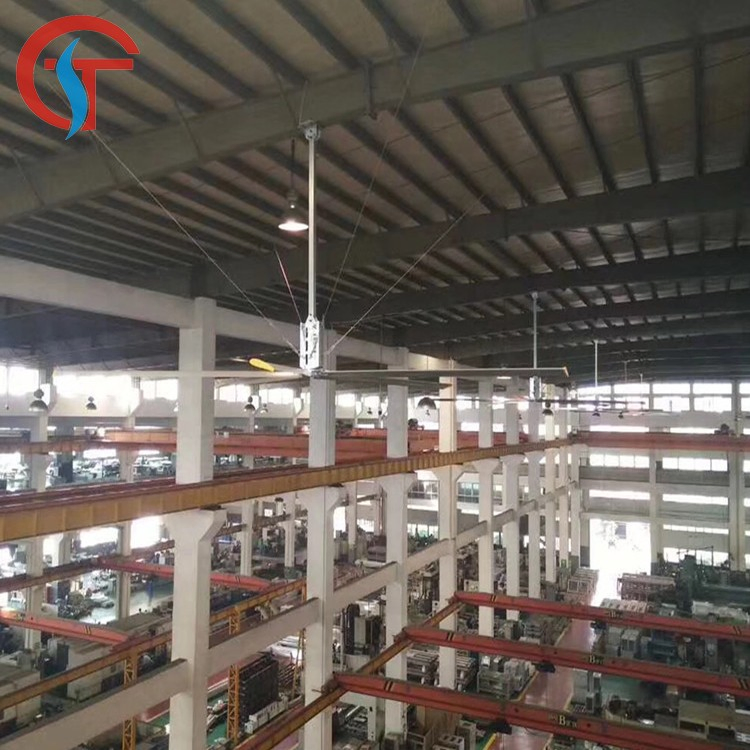

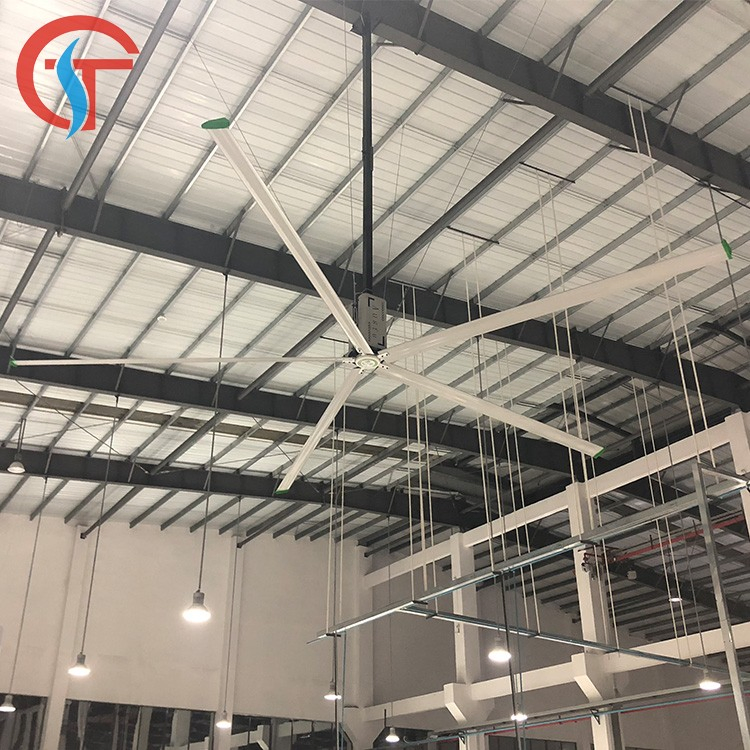

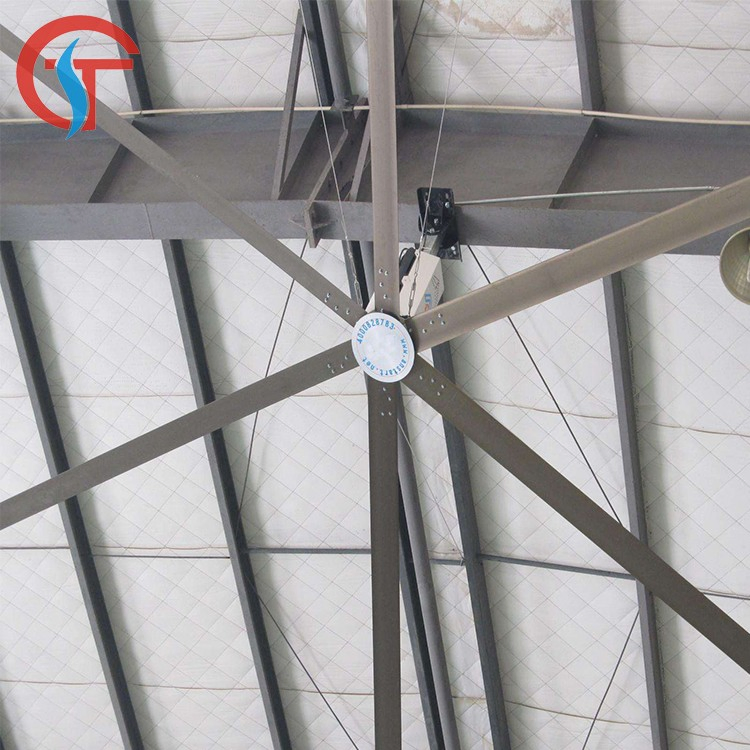

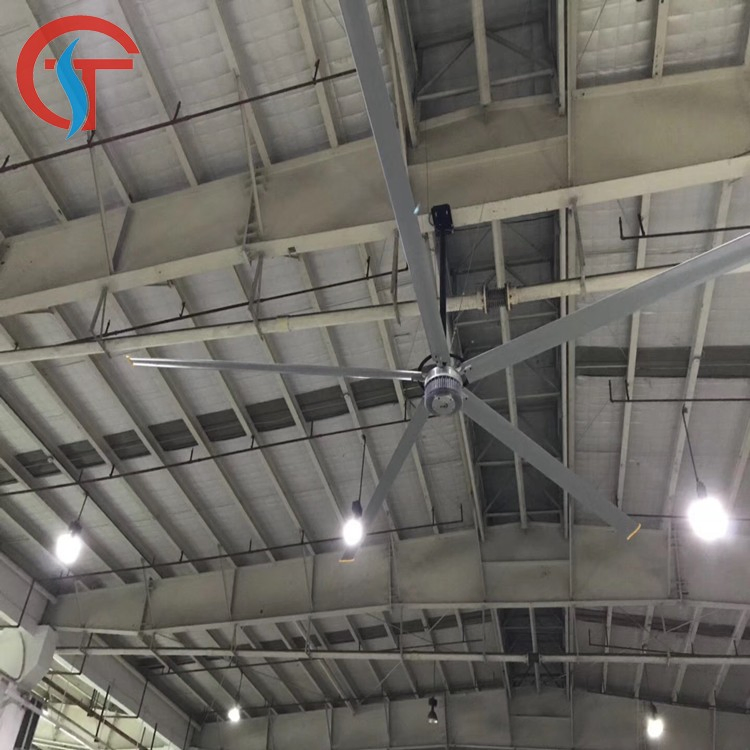

HVLS Fans are designed to be some of the most efficient and durable fans in the industry. High-volume low-speed ceiling fans help reduce energy consumption and are ideal for large commercial buildings, manufacturing facilities, processing and assembly plants, warehouses, or any other large indoor or outdoor facility.

Key Advantages:

✓ High efficient air flow
✓ Low cost and free maintenance
✓ Large application area
✓ 5-Blade design produces more CFM at a Lower RPM
✓ Provides a cool breeze in summer and brings down heat in the winter

Data Sheet

Diameter (m) Ft	Motor Power (KW) Ph	Speed (rpm)	Air Volume (m³/Min)	Current (A) 380V	Weight (Kg)	Noise (dBA)
7.3 (24')	1.5 / 2.0	20 - 53	13200	3.23	128	45
6.1 (20')	1.5 / 2.0	20 - 53	11200	2.52	125	45
5.5 (18')	1.5 / 2.0	20 - 64	9200	2.32	116	45

Detail Specification

Motor

Special design German NORD motor with original NORD reducer.

Blade

High quality aluminum magnesium alloy, 5 pcs blades to ensure Max airflow and efficiency. Fluorocarbon coating surface treatment.

Blade Clips

High quality aluminum magnesium alloy, Double length of Plug-in model. Avoids blade falling off after long periods of operation.

Chassis

7075 Superhard alloy + 1600T High pressure forging + T6 heat treatment.

Control Box

Danfoss Brand bearing high carrier frequency to reduce motor noise, and improve the control pulse signal quality. IP55.

Safety Device

DIN933 Bolt standards (Grade 12.9), DIN125A Locknut, 6mm hot-dip galvanized safety rope, and anti-off shaft & hub locking.

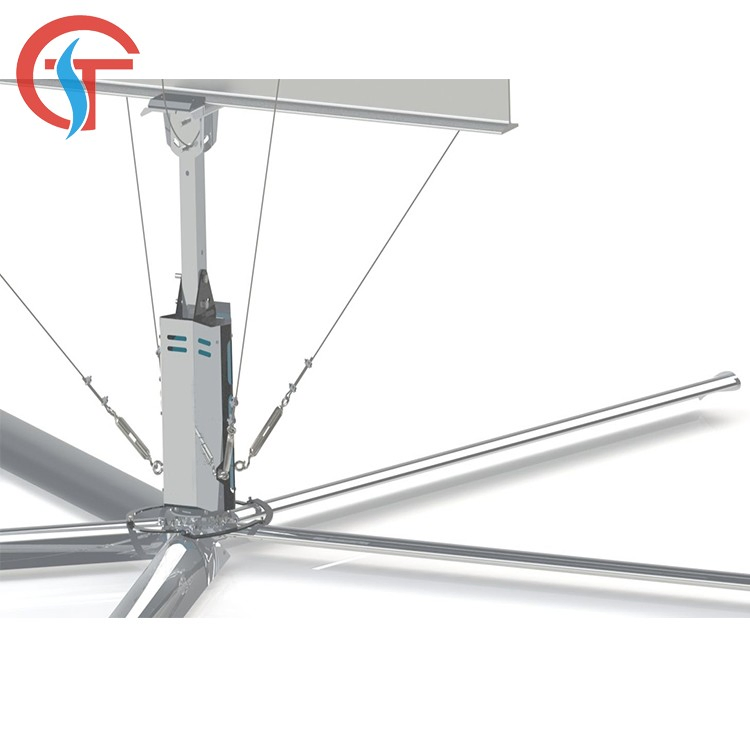

Installation Condition

Safety Protection

1 Safety Ring: Avoids any components from falling in the event that the fan is damaged.
2 Anti-falling loop-shaped device: Securely connects all the fan blades with the fan hub tightly.
3 12.9 level fasteners: All assemblies utilize high-strength industrial bolts.
4 Stainless wire protection: The strength intensity of EACH stainless wire reaches up to 1000KGS.
5 Automatic Alarm & Stop: The fan will alarm and stop working automatically in emergency situations, controlled by the Danfoss Control Unit.

Frequently Asked Questions

Q:What are the main advantages of using these HVLS ceiling fans?

HVLS (High-Volume Low-Speed) ceiling fans provide highly efficient airflow over large application areas with low maintenance costs. The 5-blade design produces higher CFM (Cubic Feet per Minute) at a lower RPM, keeping spaces cool in the summer and distributing heat in the winter.

Q:What size options are available for the fans, and what are their weights?

The fans are available in three main diameters: 7.3 meters (24 feet) weighing 128 Kg, 6.1 meters (20 feet) weighing 125 Kg, and 5.5 meters (18 feet) weighing 116 Kg.

Q:What type of motor and control systems are used?

These fans feature a specially designed German NORD motor with an original NORD reducer. The control system uses a premium Danfoss brand unit that handles high carrier frequencies to reduce motor noise and optimize the control pulse signal quality with an IP55 protection rating.

Q:How are the fan blades secured to prevent them from falling?

Safety is ensured through high-quality aluminum magnesium alloy blade clips with a double-length plug-in design. Additionally, an anti-falling loop-shaped device connects all the blades tightly to the hub, and a safety ring prevents components from falling if any breakage occurs.

Q:What electrical specifications and noise levels can I expect?

The fans operate on a 380V current ranging from 2.32A to 3.23A depending on the model, with a motor power of 1.5/2.0 KW. The noise level for all models is kept low at a comfortable 45 dBA.

Q:What emergency safety protection systems are included?

The safety mechanism features Grade 12.9 high-strength industrial bolts, a 6mm hot-dip galvanized safety rope capable of holding up to 1000KGS, and an automatic alarm & shutdown mechanism controlled by the Danfoss Control Unit in case of emergency.
