Main FeaturesEnergy Saving Commercial Hvls Ceiling Fan
Customized SupportOEM
MOQ1set
Applicable IndustriesFactories, Gyms, Farms
Motor TypePMSM/Gear Motor
Model Volume14800m³/Min
Power1.5kw
Transport PackageWooden Cartons
Specification16ft/18ft/20ft/24ft
OriginChongqing, China
HS Code8414591000
Production Capacity1000 Set/Month
Packaging & Delivery
Package Size365.00cm * 35.00cm * 42.00cm
Package Gross Weight209.000kg
Lead Time7 days (1 - 2 sets) To be negotiated ( > 2 sets)
Product Description

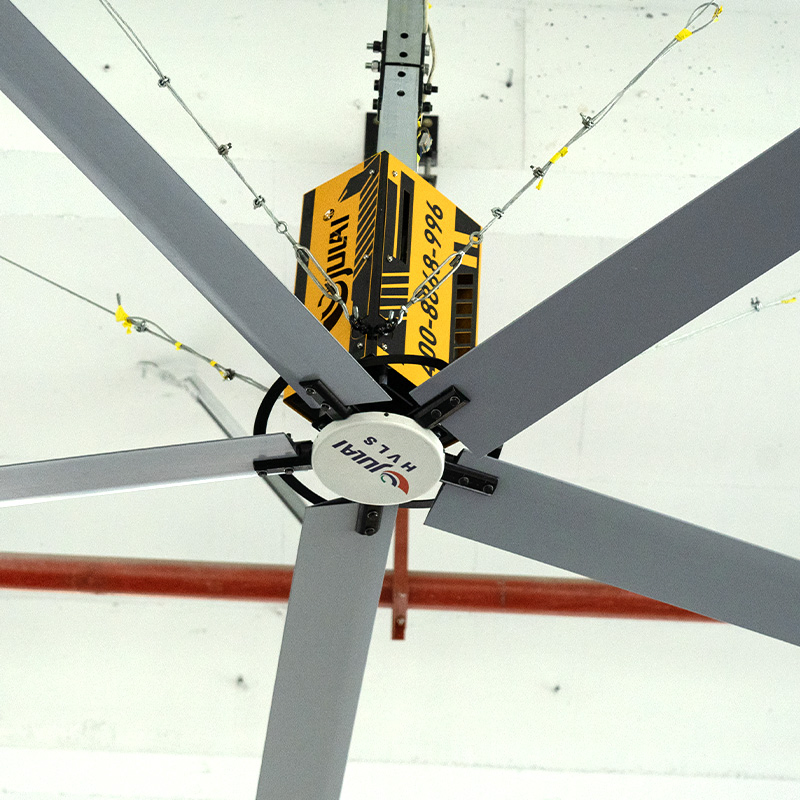

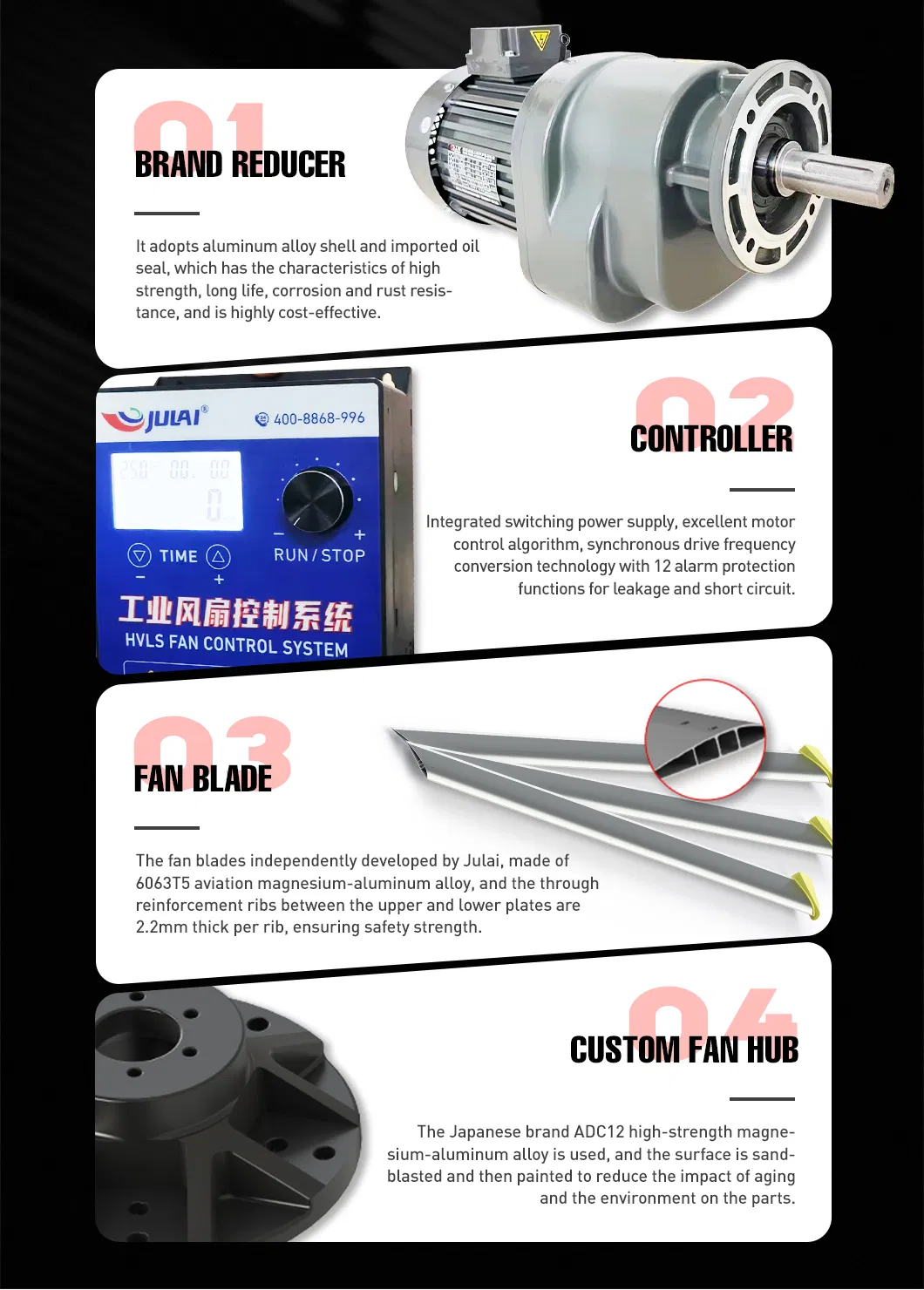

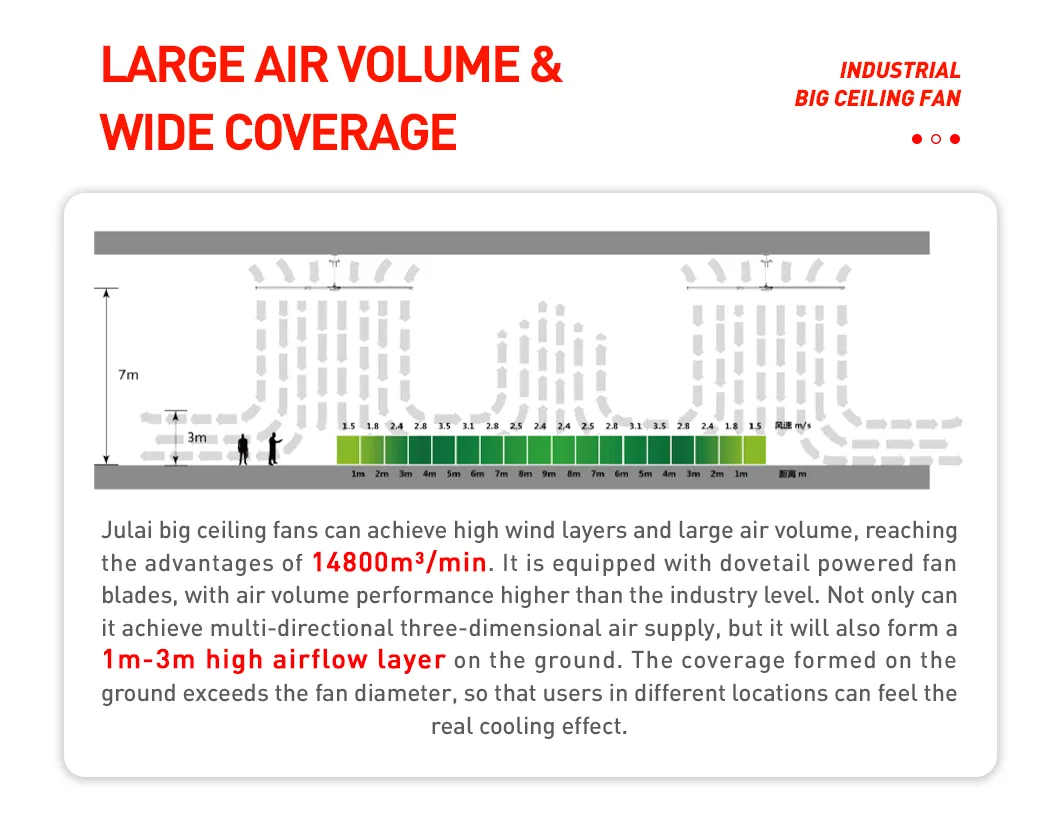

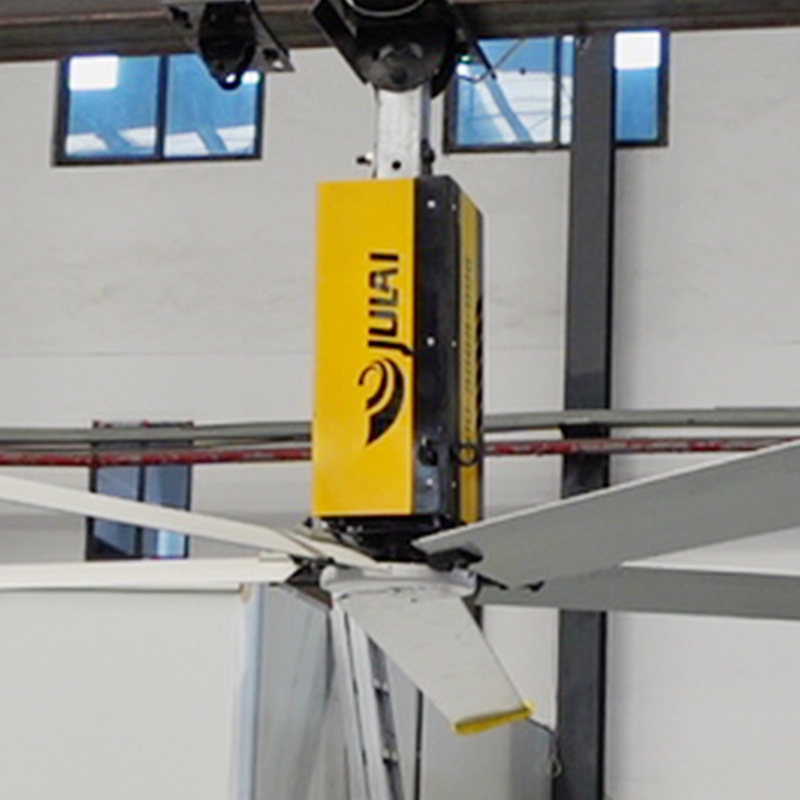

"KF Series" is a cost-effective big industrial ceiling fan, equipped with a domestic first-line brand reduction motor. The whole machine is precision-made and incorporates 29 comprehensive safety measures. It complies with the principles of aerodynamics, applies fluid mechanics to the fan blades, and softly delivers air over a large area, forming air circulation, driving indoor air circulation, and effectively enhancing physical comfort.

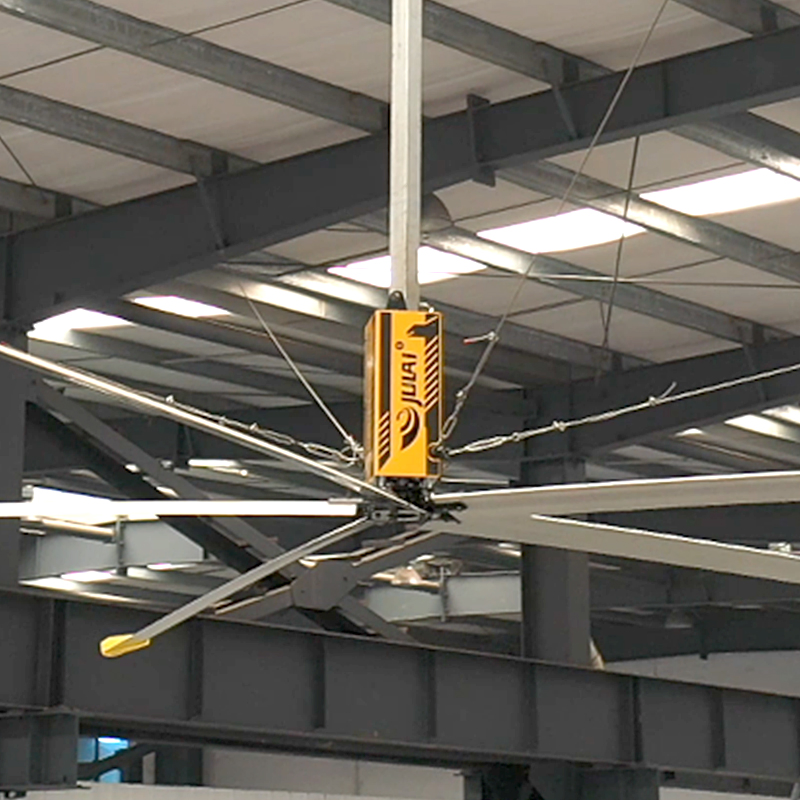

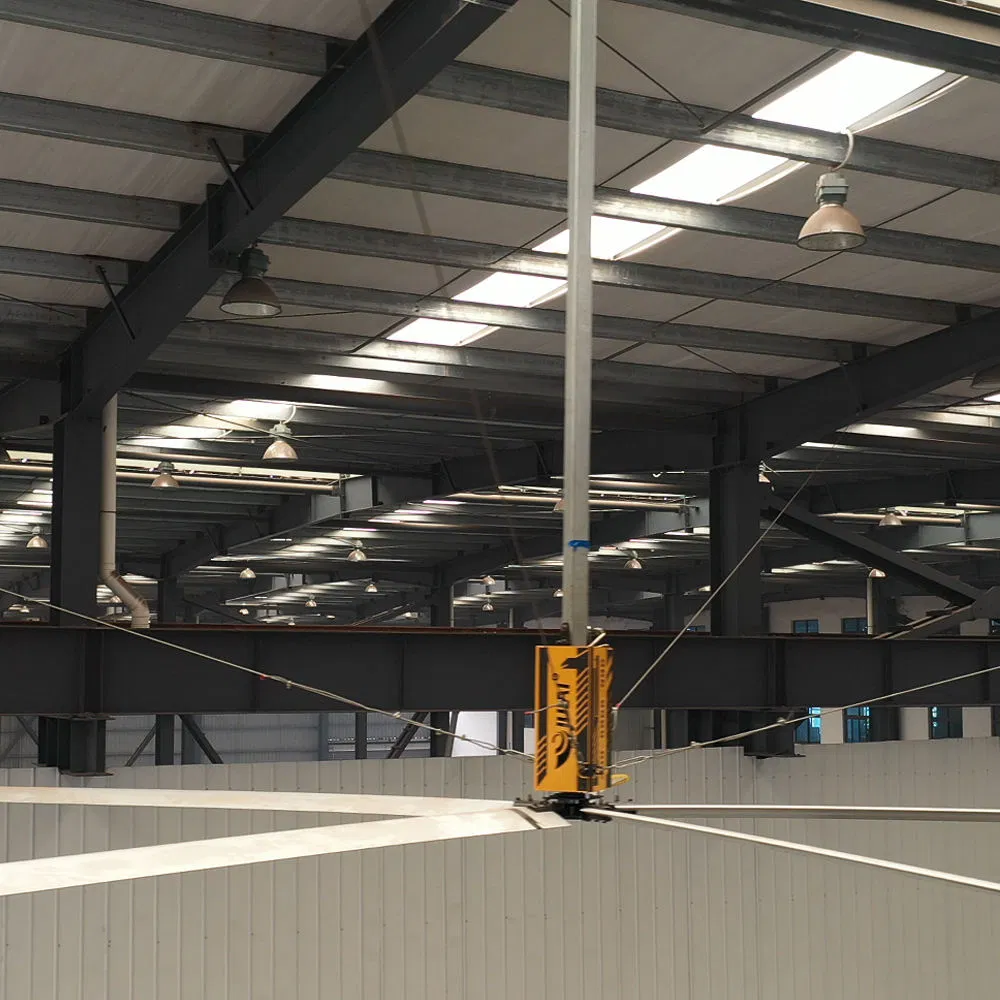

This series of products has dimensions ranging from 16 to 24FT. The appropriate size can be selected according to the project scenario. It is mainly suitable for various large-scale factory production workshops, large-scale storage and logistics centers, and installation environments with relatively harsh working conditions, meeting customer needs from multiple angles.
Model
Diameter
Power
Speed
Volume
Weight
Noise
HVLS-DT2573
24' (7.3m)
1.5kw
30-57rpm
14800m³/m
124.5kg
55dba
HVLS-DT2561
20' (6.1m)
1.5kw
30-65rpm
13500m³/m
117.2kg
55dba
HVLS-DT2555
18' (5.5m)
1.5kw
30-75rpm
12000m³/m
114kg
55dba
HVLS-DT2549
16' (4.9m)
1.5kw
30-80rpm
11000m³/m
110.8kg
55dba
With 10 years of industry accumulation, we already have partners from 85 countries around the world, including Malaysia, Thailand, the United Kingdom, Singapore, South Africa, India, Sudan, Yemen, Guam, Ghana, the Philippines, and Canada. We are deeply grateful for the trust and support from our partners worldwide.
Rigorousness, Safety, and Quality are our traditional virtues. Whether it is an order from Southeast Asia, Europe, Africa, or other regions, we adhere to the principle of service first. Packing, filling, and wooden box reinforcement are carried out in accordance with strict procedures at every step.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are the largest manufacturer of HVLS fans in Southwest China. Our main products include industrial ceiling fans, portable fans, wall-mounted fans, and upright fans. The diameters of the products range from 5 to 24 feet, and multiple specifications are available for selection.
What are the main applications of HVLS fans?
HVLS fans are widely used in large spaces such as factory workshops, warehouses, logistics centers, shopping malls, and subway stations to improve air circulation and physical comfort.
Do you accept OEM orders?
Yes, we accept OEM requests, but we have specific Minimum Order Quantity (MOQ) requirements.
What is your estimated delivery time?
Delivery time depends on order scale, but small standard orders usually take 3 to 7 working days.
How about your warranty policy and service life?
We provide a 3-year warranty for our global partners. Under standard conditions, the service life of our fans can reach 12 to 15 years.
