Fanpro Light
1 / 5

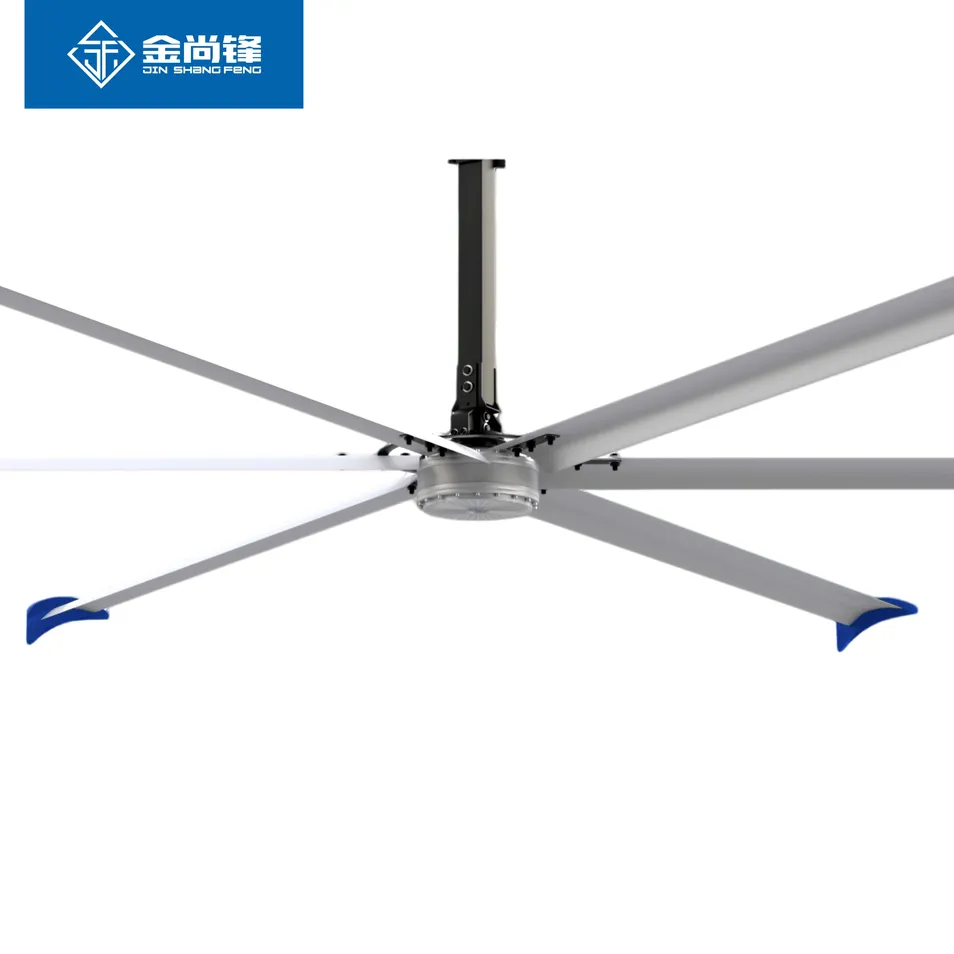

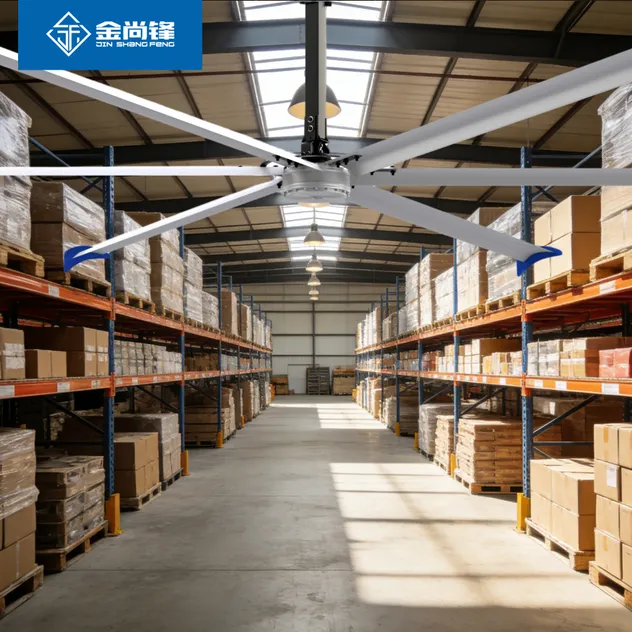

Industrial Ceiling Fan engineered for HVLS performance to deliver powerful, uniform airflow and energy-efficient cooling in warehouses, factories, workshops, and gymnasiums.
Equipped with an optional permanent magnet (PMSM) motor, variable-speed control, quiet operation, and corrosion-resistant construction, this electric ventilation and cooling fan reduces HVAC load while improving occupant comfort and air circulation.
| TECHNICAL PARAMETERS | |
|---|---|
| Product Name | Industrial Ceiling Fan (HVLS) |
| Keywords | Ceiling Fan |
| Type | High-Volume Low-Speed |
| Blade Diameter | 3.0–7.3 m (Custom Options) |
| Motor Type | PMSM (Permanent Magnet) |
| Power Range | 300-1500W |
| Airflow | 6800-16500M³/Min |
| Noise Level | <39 DB(A) |
| Protection Rating | IP54 Standard, IP65 Optional |
| Bearings | Sealed-For-Life / Maintenance-Free Bearings |
| Controls | VFD, Remote, PLC, Smart/Cloud Integration |
| Installation | Modular Knock-Down Design, Quick-Lock Blades |
| Certifications | CE / UL / CCC |

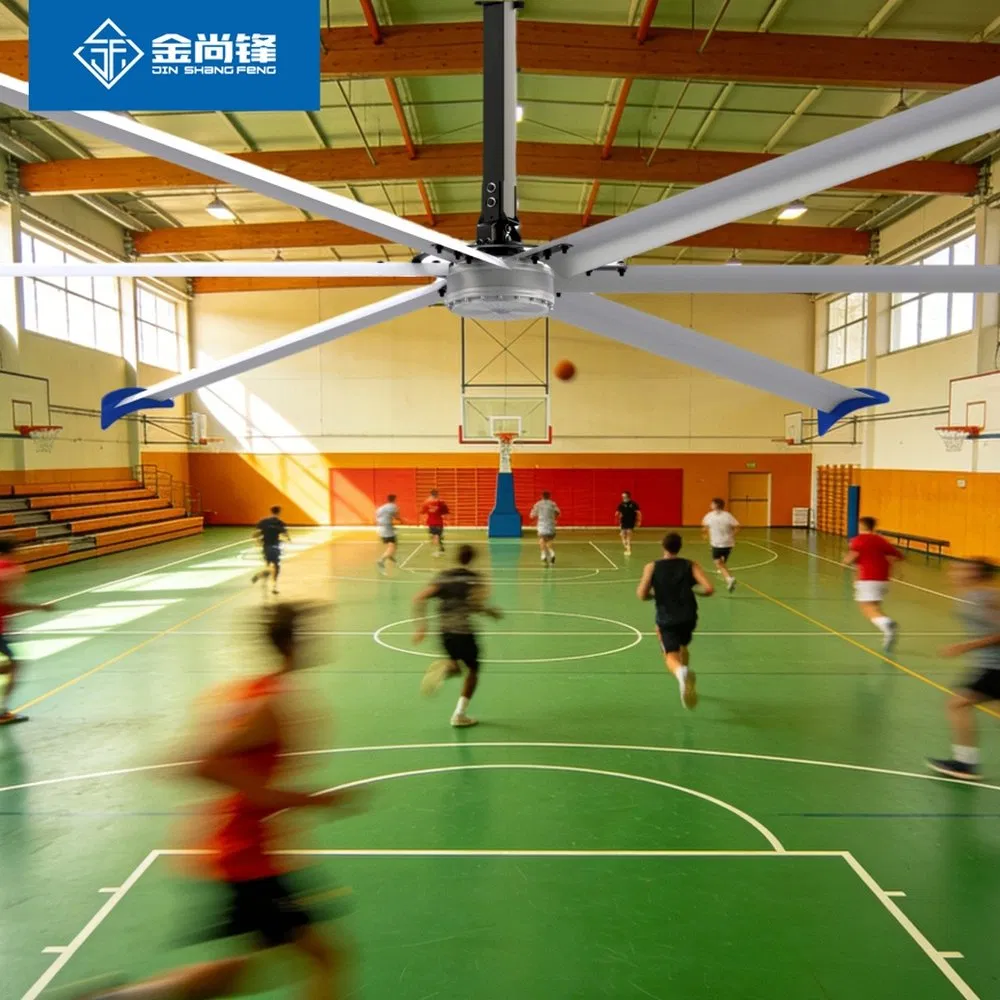

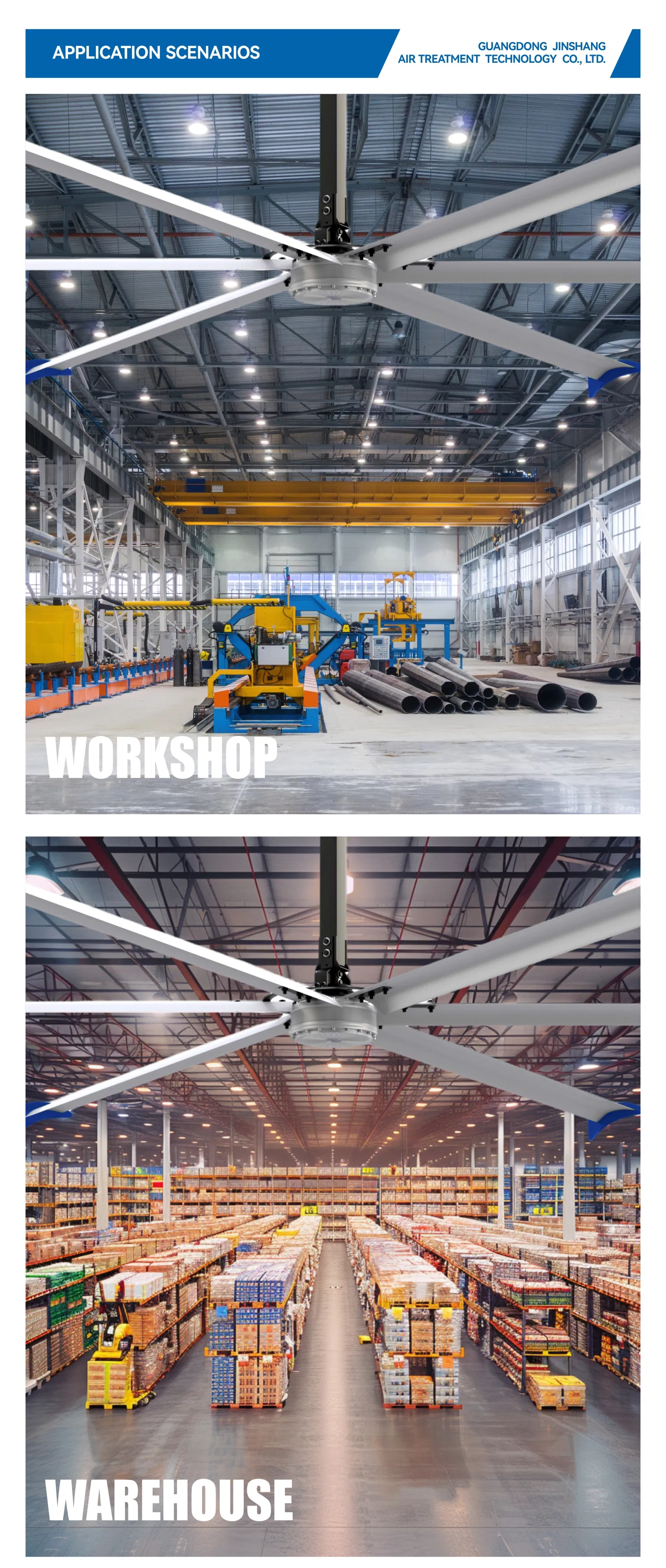

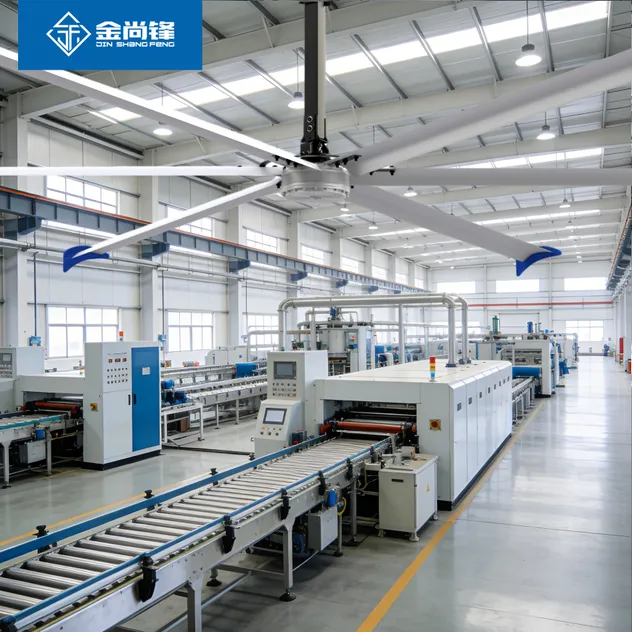

| Typical Applications | Warehouse, Factory, Workshop, Gym, Greenhouse |
| Product Specifications | 7.3m | 6.1m | 5m | 4.3m | 3.5m | 3m |
|---|---|---|---|---|---|---|
| Product Model | JS-730 | JS-610 | JS-500 | JS-430 | JS-350 | JS-300 |

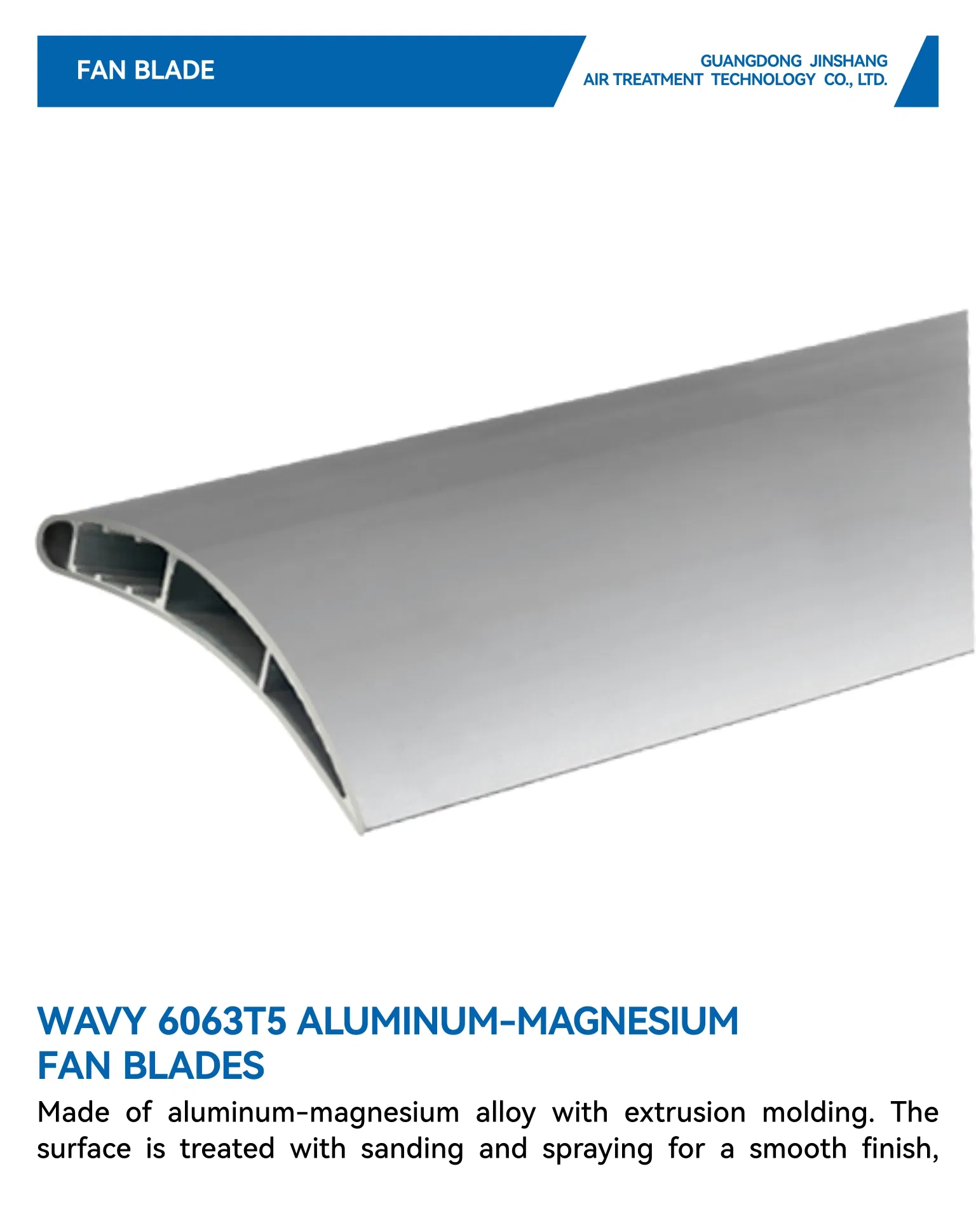

| Fan Blade Material | 6063T5 International Aerospace-Grade Aluminum-Magnesium Alloy | |||||
| Power Cord | National Standard 4*1.5 Square Meters | National Standard 4*1 Square Meters | ||||
| Input Power | 380V | 220V | ||||
| Fan Blade Angle | Large arc 30° drag angle | Moderate arc 25° drag angle | ||||
| Maximum Power | 1500W | 1000W | 750W | 650W | 350W | 300W |
| Speed | 0-55 | 0-65 | 0-80 | 0-85 | 0-90 | 0-100 |
| Full Load Airflow | 16500m³/min | 14800m³/min | 13000m³/min | 11000m³/min | 9000m³/min | 6800m³/min |

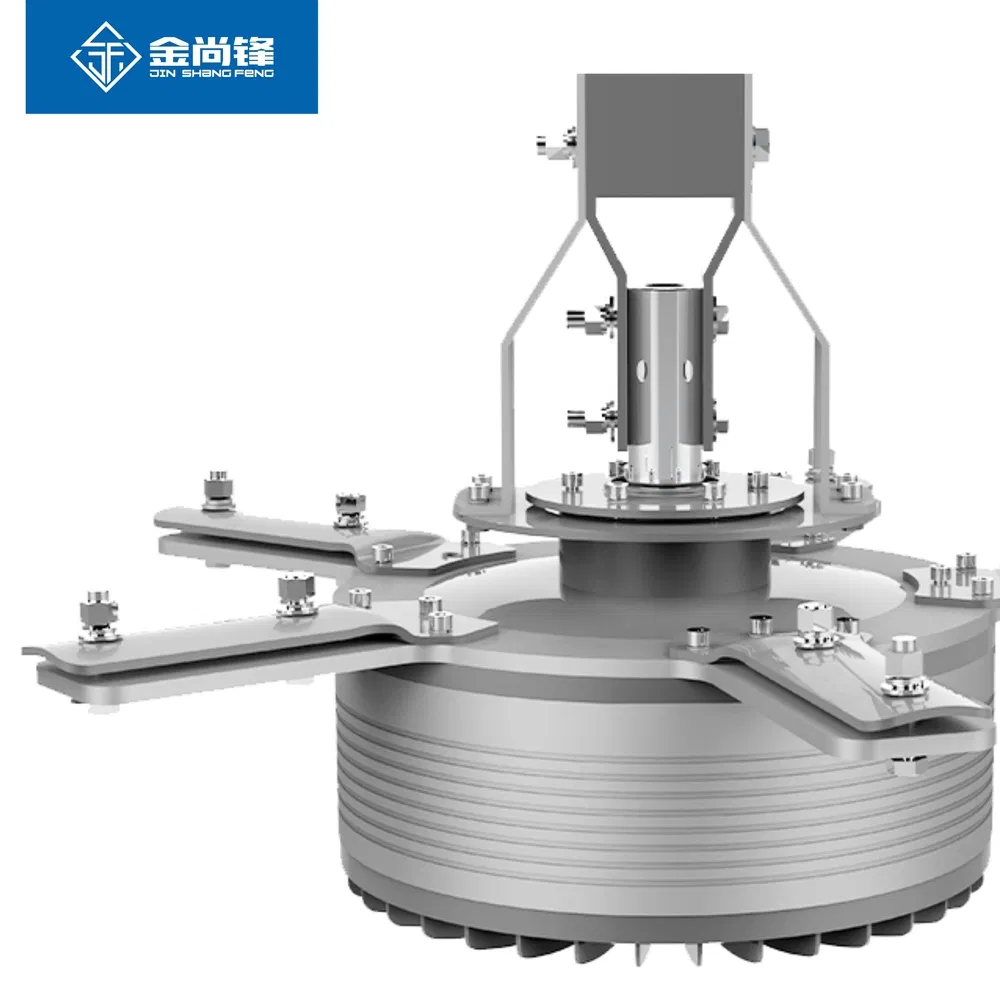

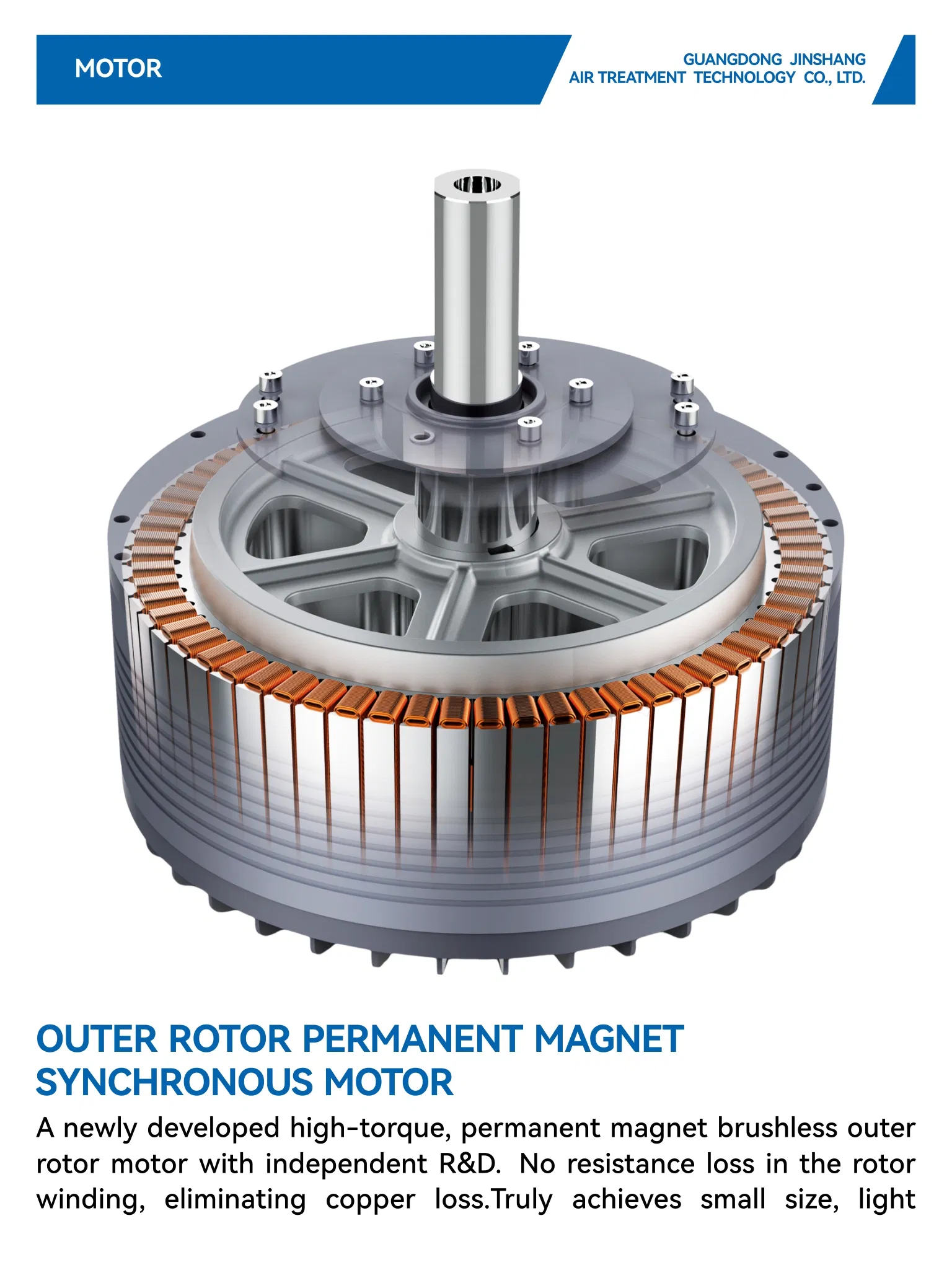

| Drive Power | Third-Generation Permanent Magnet Synchronous Motor | |||||
| Noise | ≤39dB | ≤38dB | ≤36dB | ≤35dB | ||
| Overall Weight | 110KG | 95KG | 65KG | 60KG | 45KG | 40KG |
| Protection Rating | IP55 | |||||
| Installation Height | 8-20m | 6-10m | 5-7m | 4-6m | 3-5m | 3-4m |
| Coverage Area | 400-1600m² | 350-600m² | 200-450m² | 150-300m² | 150-250m² | 80-200m² |

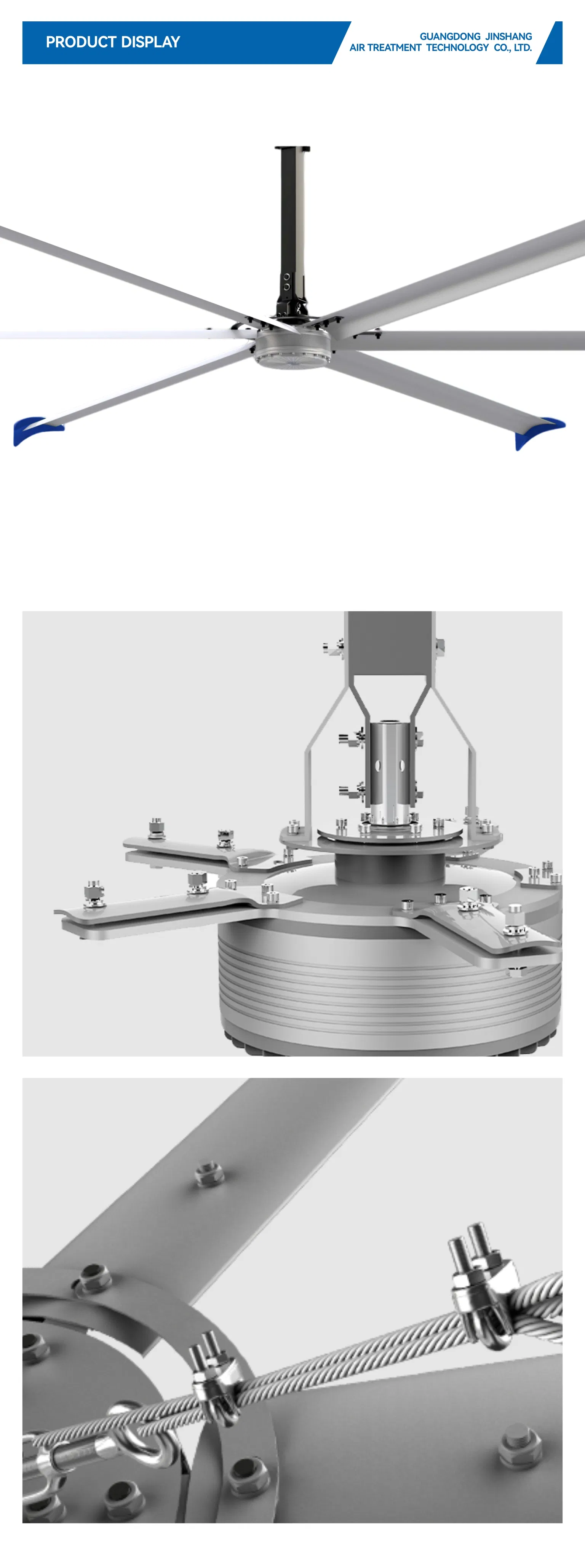

Knock-down modular design minimizes on-site assembly and heavy lifting, enabling rapid retrofits without structural modification.
Quick-lock blade joints, factory-balanced rotors, and adjustable mounting adapt to common roof profiles, reducing labor hours and production interruption. Facilities can upgrade ventilation quickly with lower upfront installation expenses and improved safety.

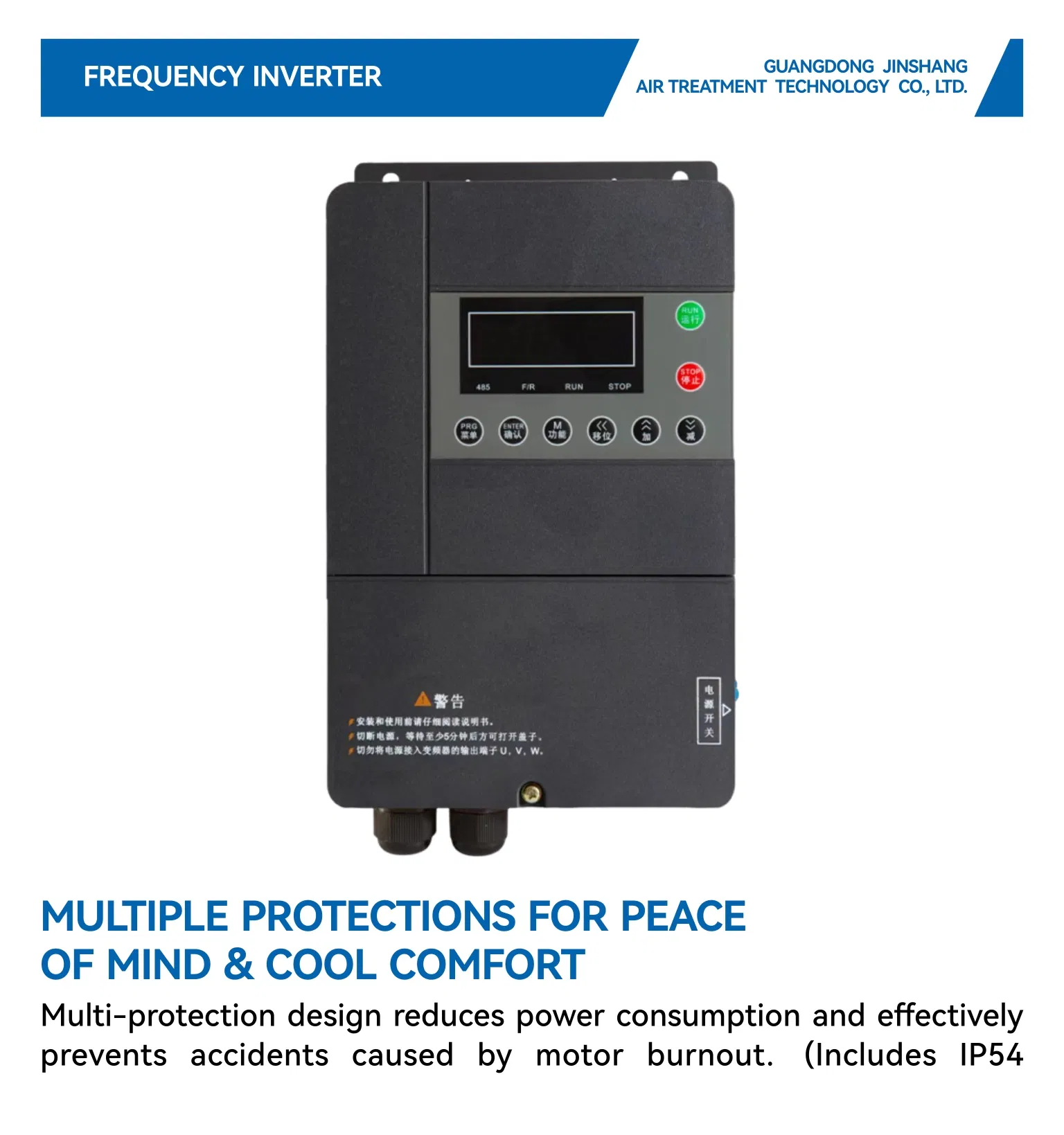

An integrated variable-frequency drive housed in an IP54-rated enclosure delivers precise motor speed control and multi-layer protection, including over-voltage, under-voltage, phase-loss, over-current, overload, collision detection, over-temperature, lightning surge suppression, and fault isolation, enhancing stability and extending service life.

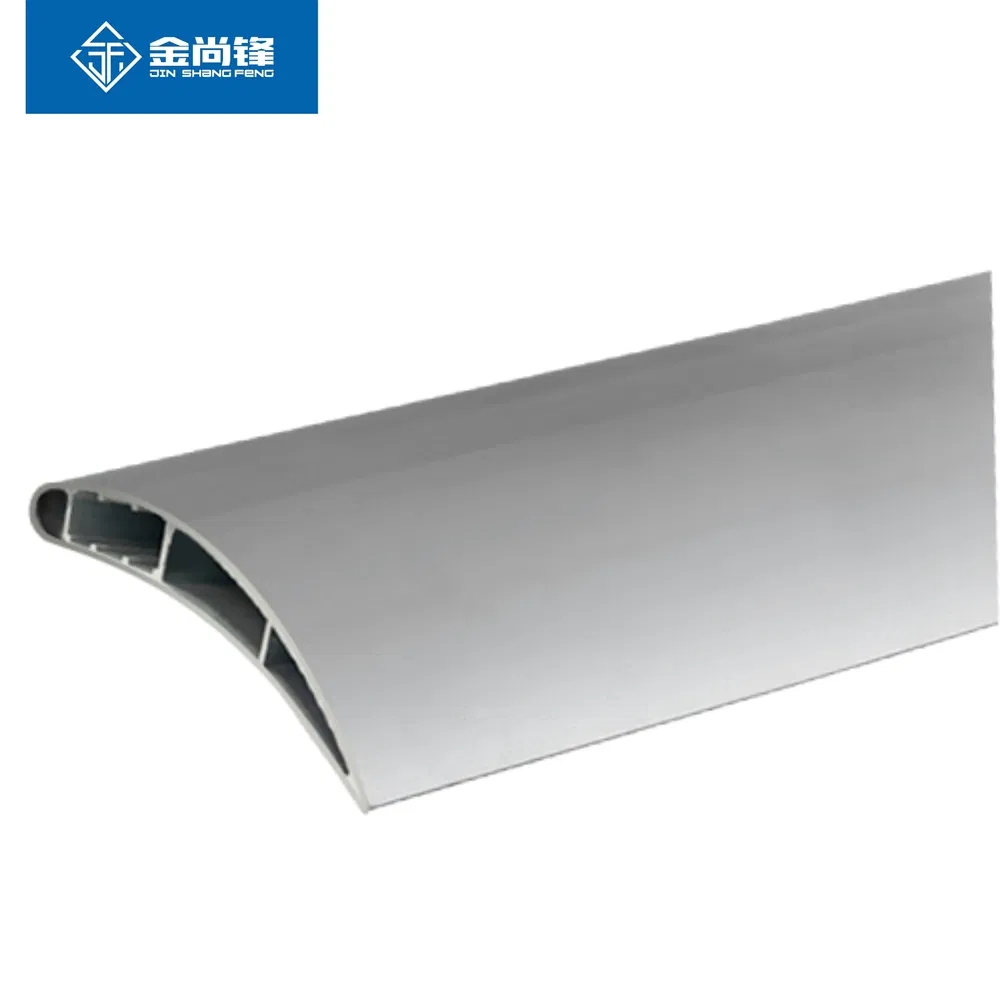

Aerofoil blade geometry and low-speed flow shaping produce gentle, consistent airflow without noticeable drafts.
Sound-dampening housings and vibration isolation maintain low decibel levels, improving worker concentration and reducing fatigue. Verified acoustic performance and ergonomic airflow distribution help facilities meet comfort standards and boost employee productivity and retention.
Q1: Are you a factory or a trader?
A: We are a manufacturer integrating industry and trade.
Q2: Can I add my LOGO to the product?
A: We support on-demand customization, including LOGO customization, color customization, appearance size customization, etc.
Q3: What payment methods do you support?
A: We support T/T, Western Union, PayPal, cash, etc. The details can be negotiated.
Q4: What are your modes of transportation?

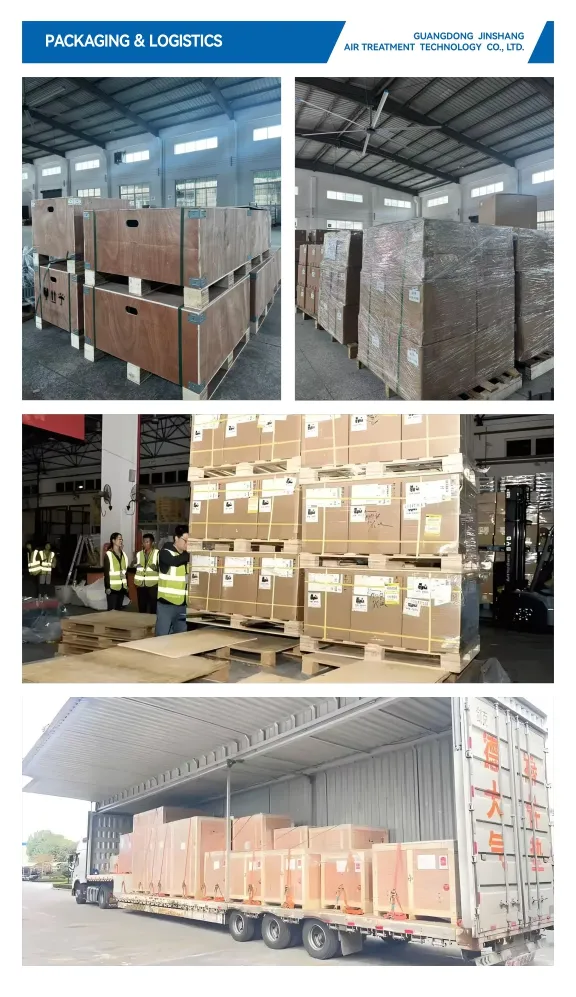

A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or we can choose the mode of transportation according to your requirements.
Q5: How can I get an accurate quotation?
A: You can first send your specific demand information and product pictures, and we will customize a solution for you according to your needs and inform you of the specific price.
Q6: What certifications do these industrial ceiling fans carry?
A: These products are certified under CE, UL, and CCC standards to ensure high safety and performance criteria.
