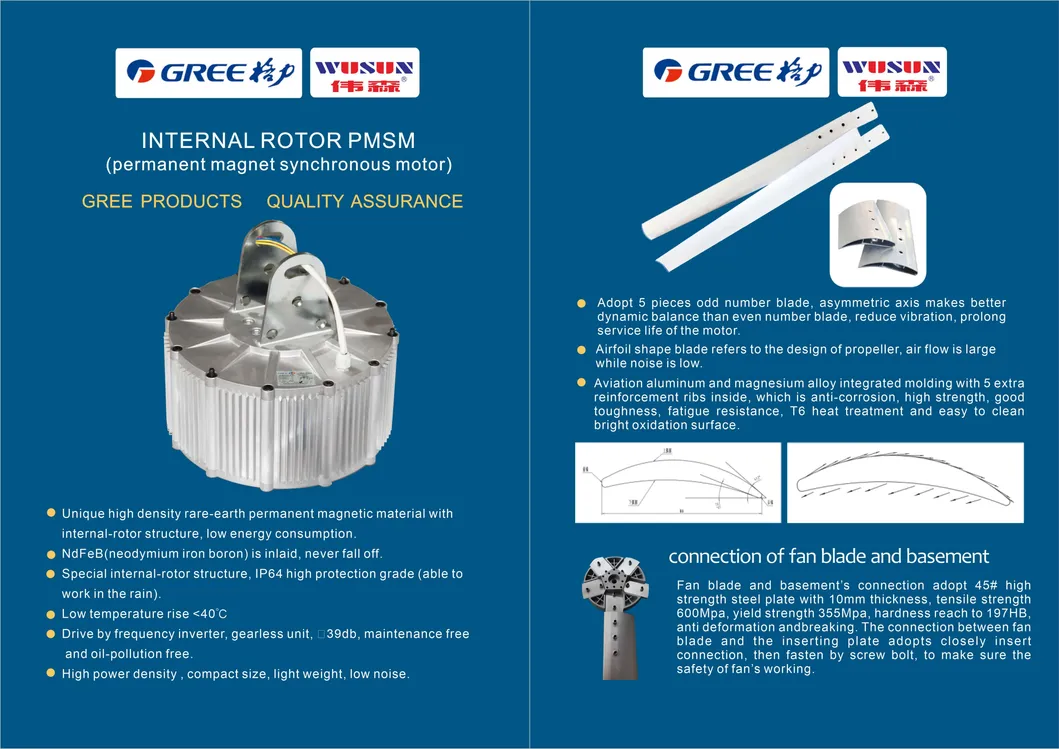

1. Gree · KB brand internal rotor servo PMSM 2. Natural heat dissipation 3. ≤39db noise level 4. Maintenance-free and oil-pollution free 5. IP64 high protection grade

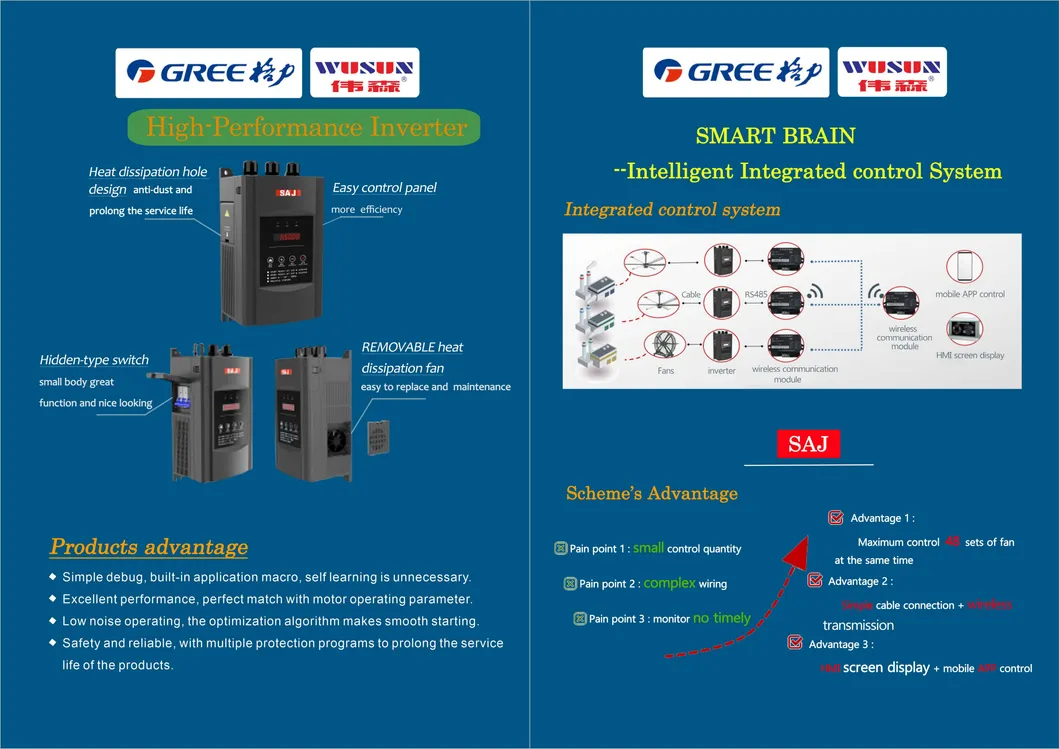

1. SAJ brand integrated inverter 2. With phase-lacking and overload protection 3. Easy control panel, more efficiency 4. Heat dissipation hole design, anti-dust and prolongs service life 5. Hidden-type switch, small body great function and nice looking 7. Removable heat dissipation fan, easy to replace and maintenance
1. Adopt 6061 aluminum and magnesium alloy integrated molding, T6 heat treatment. Anti-corrosion, high strength, good toughness, fatigue resistance. 2. Blade single layer thickness no less than 2.0mm, with 5 extra reinforcement ribs inside to ensure safe operation.
1. Fan blade and basement's connection adopt 45# high strength steel plate with 10mm thickness, anti-deformation and breaking. 2. The connection between fan blade and the inserting plate adopts closely insert connection, then fasten by screw bolt, to make sure the safety of fan's working.

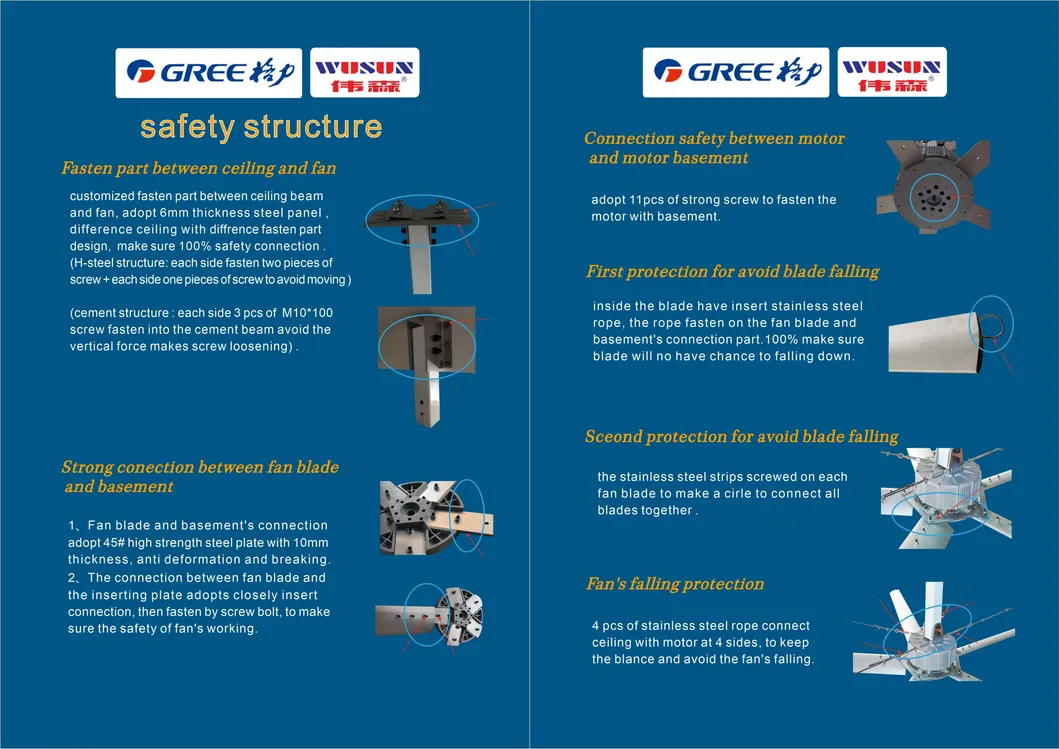

Customized fasten part between ceiling beam and fan, adopt 6mm thickness steel panel. Different ceiling with different fasten part design to make sure 100% safety connection. - T-steel structure: each side fasten two pieces of screw + each side one piece of screw to avoid moving. - Cement structure: each side 3 pcs of M10*100 screw fasten into the cement beam, avoiding vertical force making screw loosening.
Adopt 11pcs of strong screw to fasten the motor with the basement.
Inside the blade is an insert stainless steel rope. The rope will be fastened on the fan blade and basement's connection part. In case the blade falls, it remains hanging by the rope instead of falling down directly.
Stainless steel strips screwed on each fan blade to make a circle connecting all blades together.

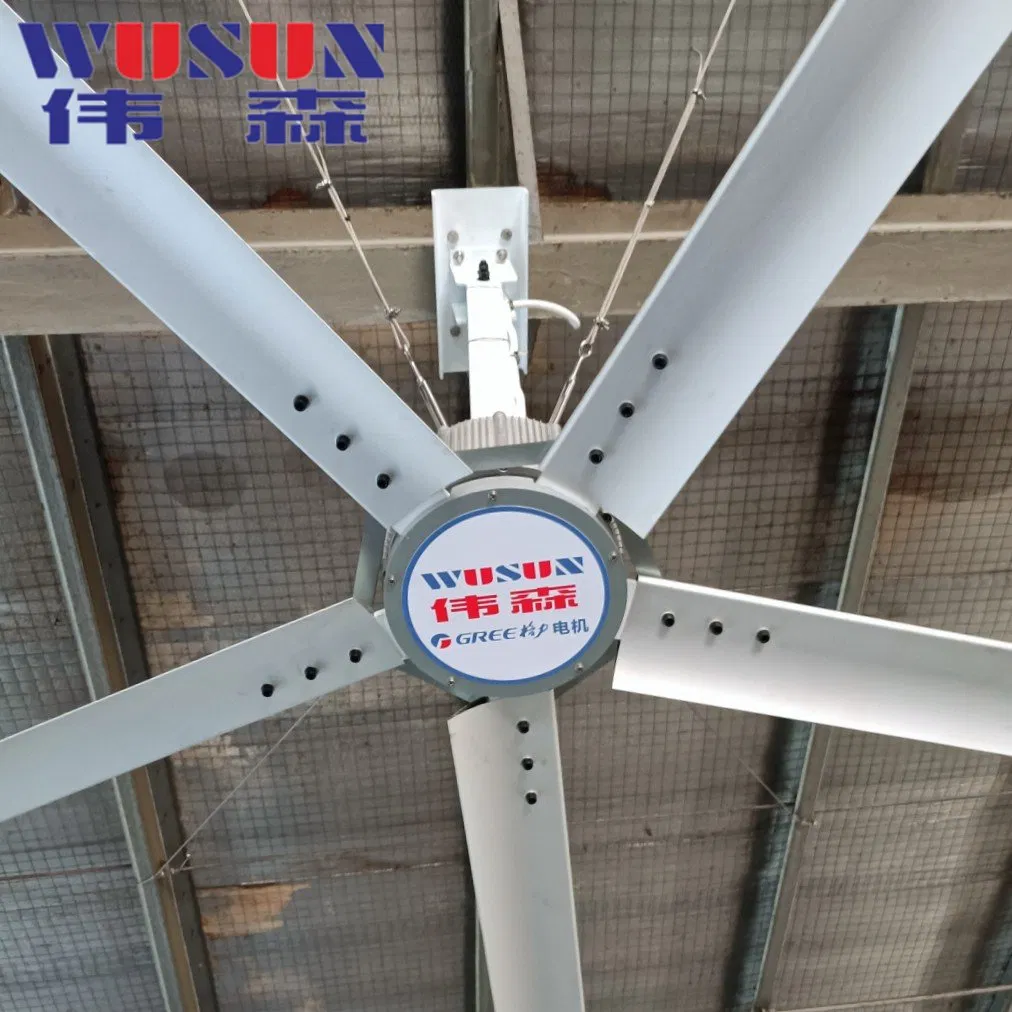

4 pcs of stainless steel rope connect the ceiling with the motor at 4 sides, maintaining balance and preventing the fan from falling.
1. Customized fasten part between ceiling and fan (6mm thickness steel panel) 2. Full consideration of connection safety between blade and motor basement 3. Full consideration of basement's connection safety to avoid falling risk 4. High strength fasten screws with load level reaching 12.9 5. 4 pcs of stainless steel rope connecting ceiling and motor at 4 sides to keep balance 6. Internal stainless steel rope inserted in blades to keep blade hanging in case of detachment
1. Fan blade in odd numbers is optimal for balance. 2. In terms of working efficiency, fewer blades yield better efficiency and lower operating load.
| Model No. | WS-D7300 | WS-D6300A | WS-D6300B | WS-D5300 | WS-D4300 | WS-D3300 |
|---|---|---|---|---|---|---|
| Diameter | 7300mm (24ft) | 6300mm (20ft) | 6300mm (20ft) | 5300mm (17ft) | 4300mm (14ft) | 3300mm (11ft) |
| Blade QTY | 5 | 5 | 5 | 5 | 5 | 5 |
| Power | 1.2KW | 1.2KW | 0.88KW | 0.88KW | 0.66KW | 0.66KW |
| Max Speed RPM | 52 | 64 | 58 | 76 | 80 | 90 |
| Max Air Volume (m³/min) | 15857 | 14582 | 11953 | 10895 | 7385 | 6152 |
| Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 |
| Rated Current (A) | 2.9 | 2.9 | 2.6 | 2.6 | 1.6 | 1.6 |
| Noise Level (db) | <39db | <39db | <39db | <39db | <38db | <38db |
| Area Covered (㎡) | 1600 | 1500 | 1300 | 1100 | 900 | 650 |
| Area Effectived (㎡) | 750 | 700 | 650 | 550 | 480 | 350 |
| Weight | 105 kgs | 99 kgs | 92 kgs | 86 kgs | 66 kgs | 60 kgs |

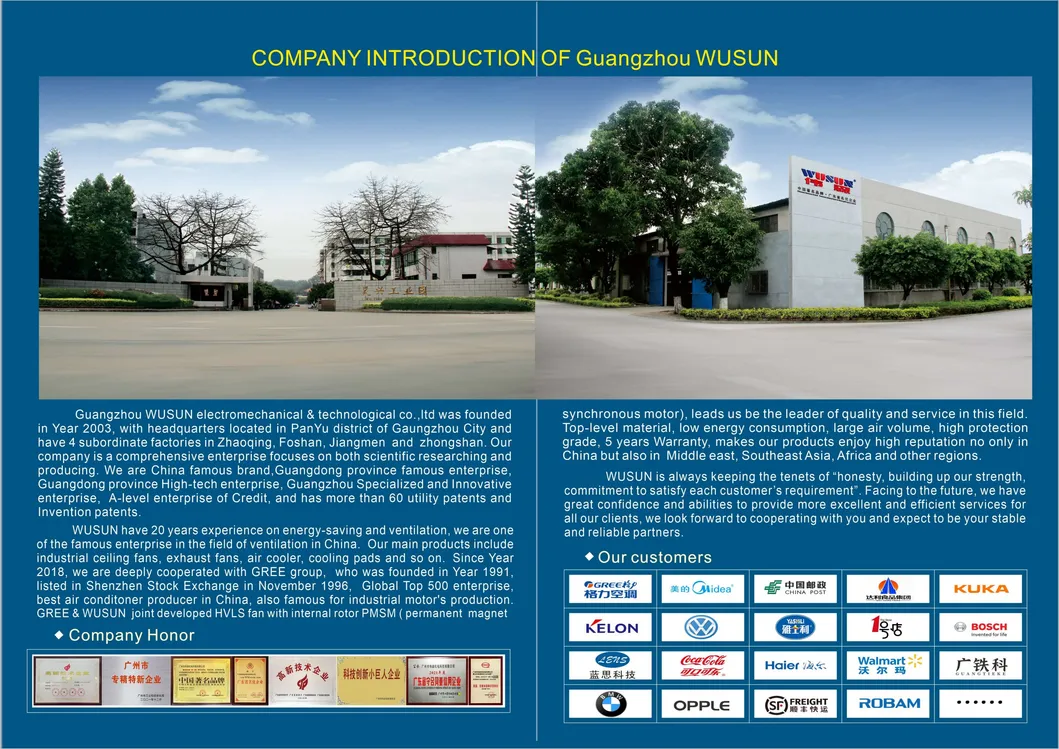

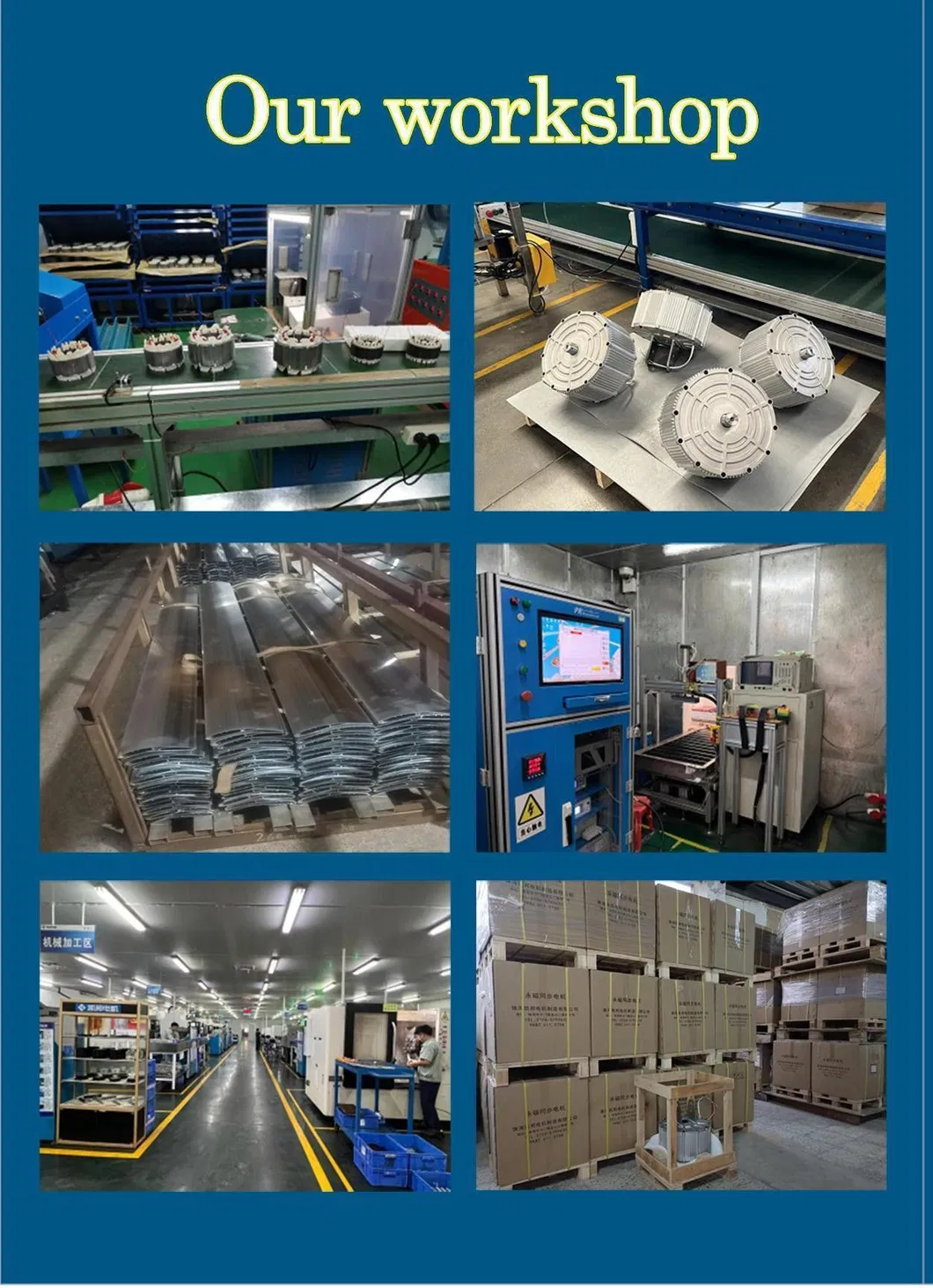

A: We are a manufacturer. Our factory was established in 2003, and we specialize in HVLS Industrial Ceiling Fans, cooling fans, and Industrial Exhaust Fans.

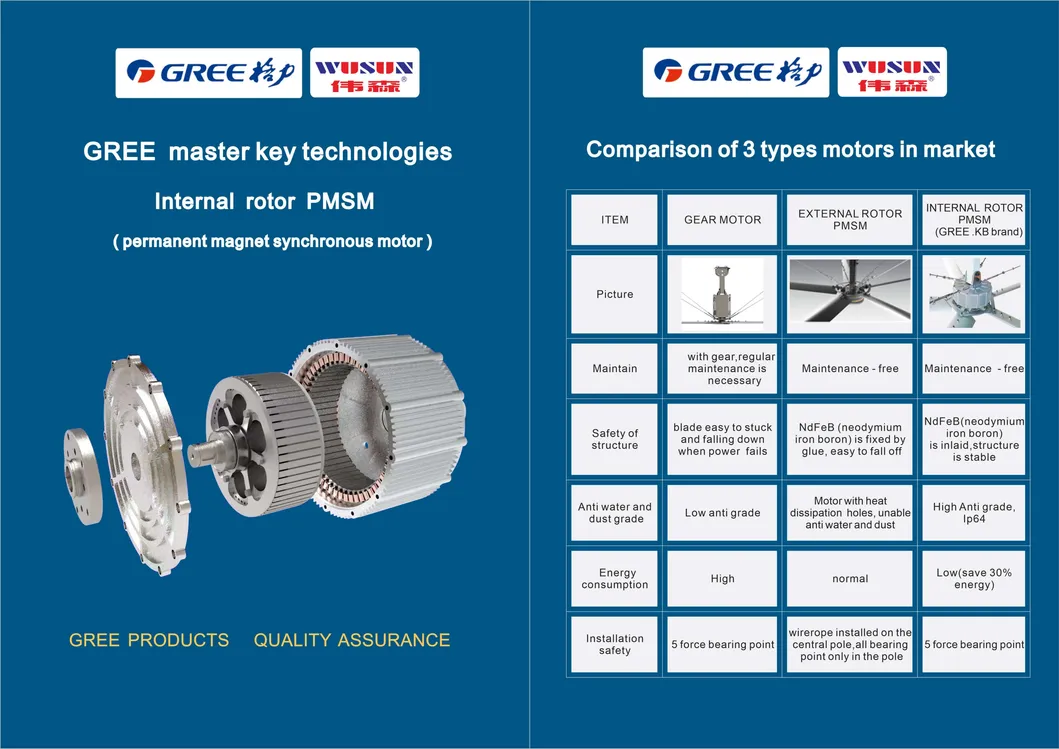

A: Internal PMSM offers a safer structure: (1) NdFeB (neodymium iron boron) is inlaid, stabilizing the structure. (2) High protection grade (IP64). (3) The installation has 5 force-bearing points, maintaining fan stability against external interference.
External PMSM has a less secure structure: (1) NdFeB is fixed with glue, which easily falls off. (2) The motor features heat dissipation holes, making it susceptible to water and dust. (3) The wire rope is installed on the center pole only, placing all bearing points on the pole.

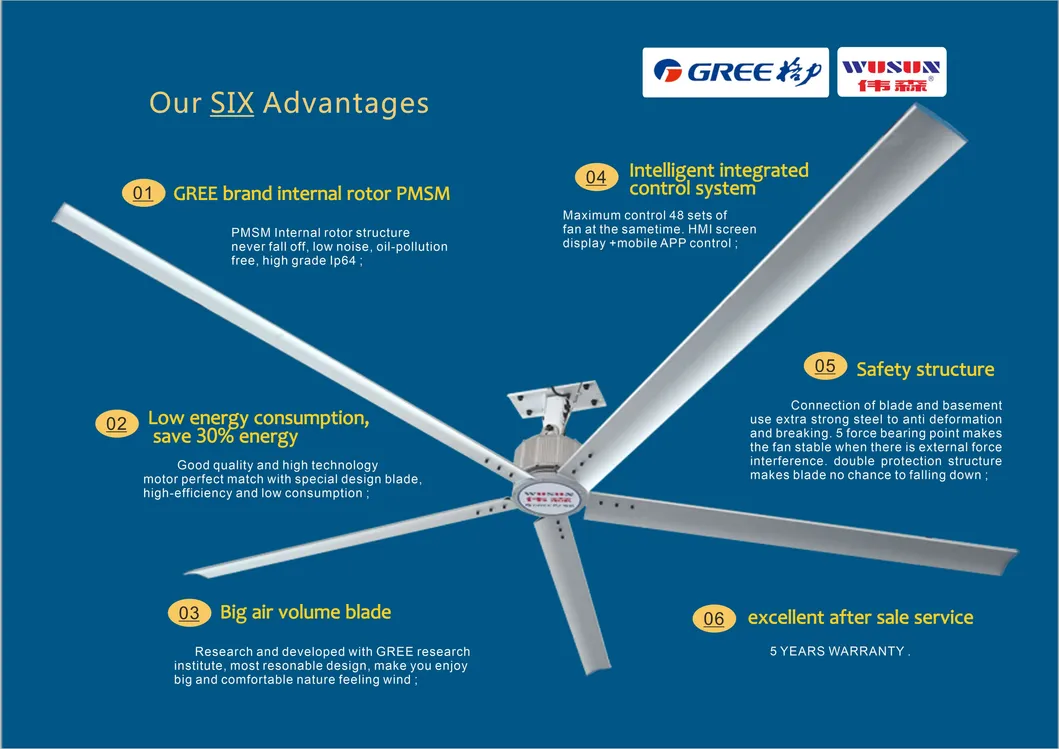

A: Key advantages include: (1) Gree brand internal rotor PMSM quality assurance. (2) Highly efficient motor paired with specially designed blades, delivering high performance with low energy consumption. (3) Blades researched in collaboration with GREE Research Institute to create comfortable, natural wind flow. (4) Intelligent integrated control system managing up to 48 fans simultaneously. (5) Multilayer safety structures. (6) Reliable after-sales support with a 5-year warranty.
A: We will send you free spare parts for replacement under the terms of the warranty.
A: It depends on the order quantity. Typically, delivery is made within 7 days after receiving payment.
A: We provide a 5-year warranty on our products.
