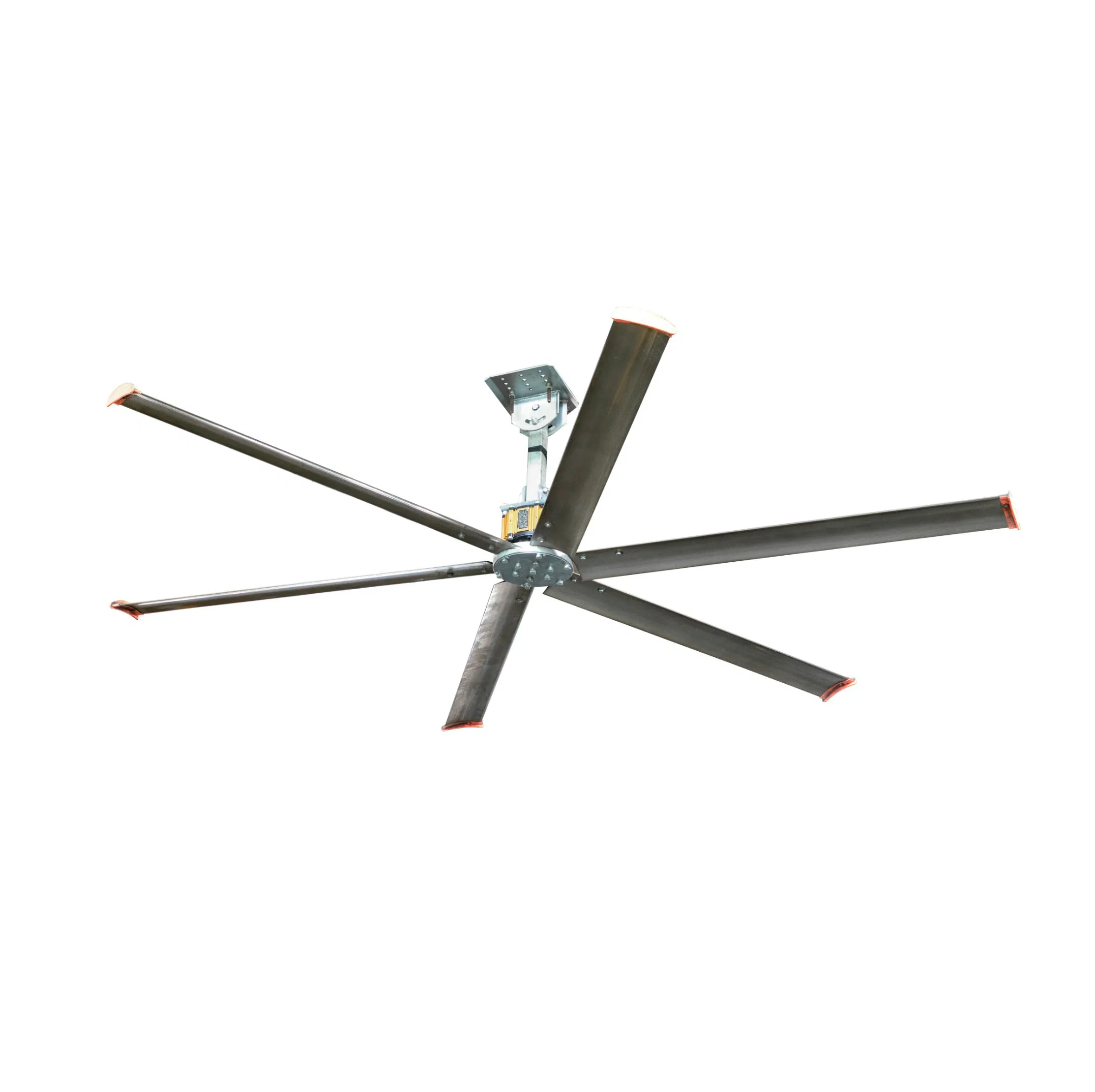

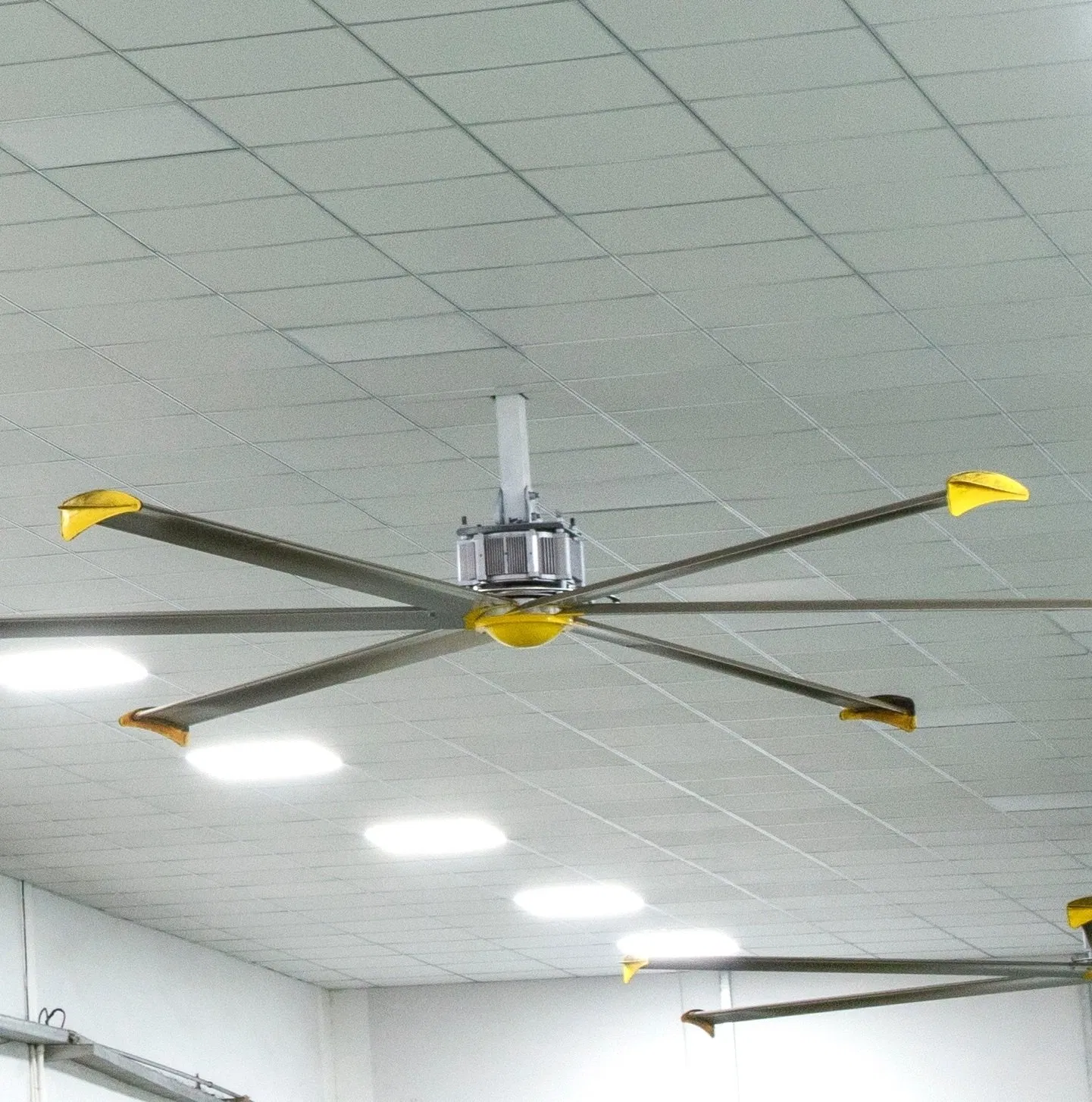

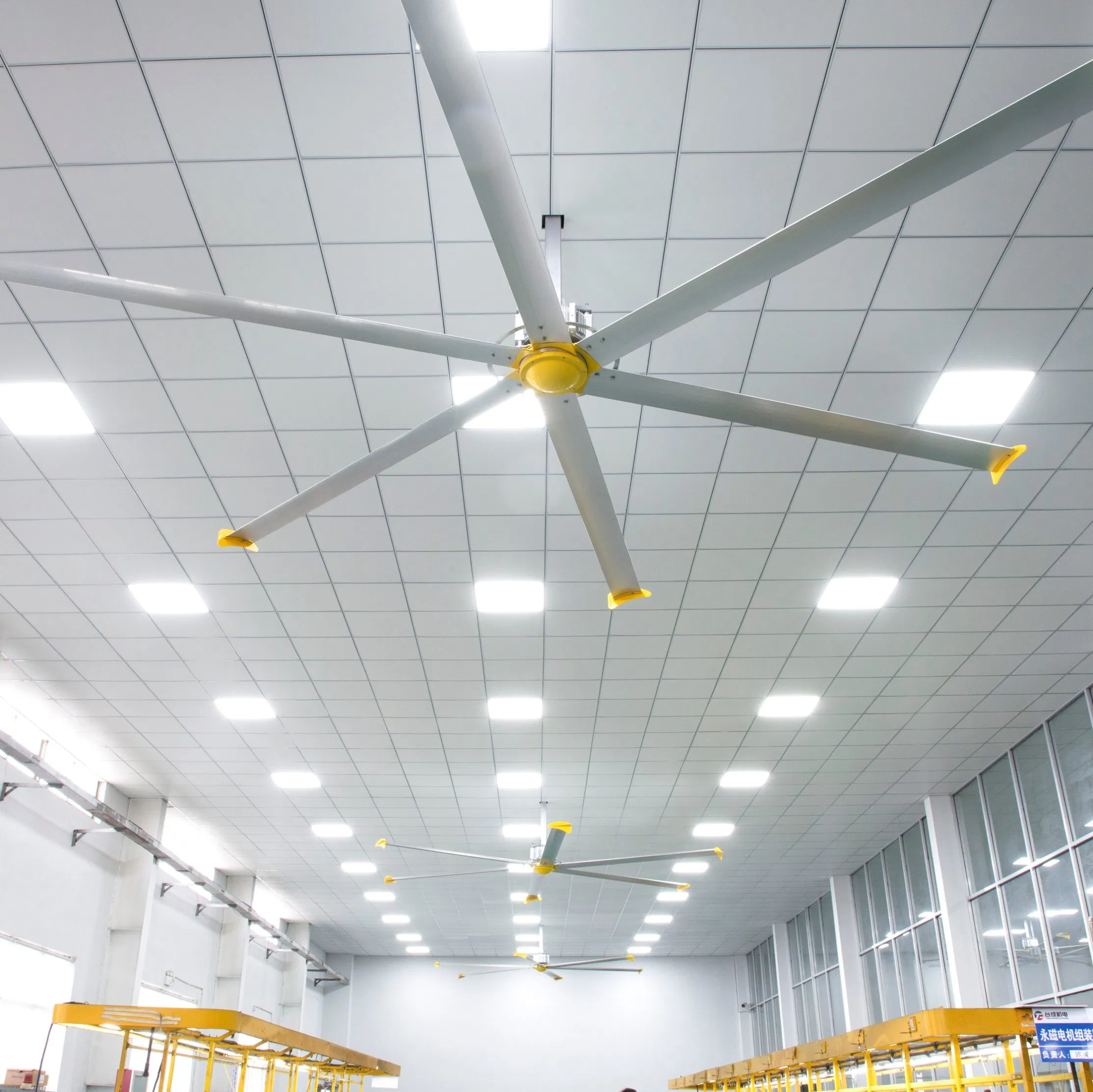

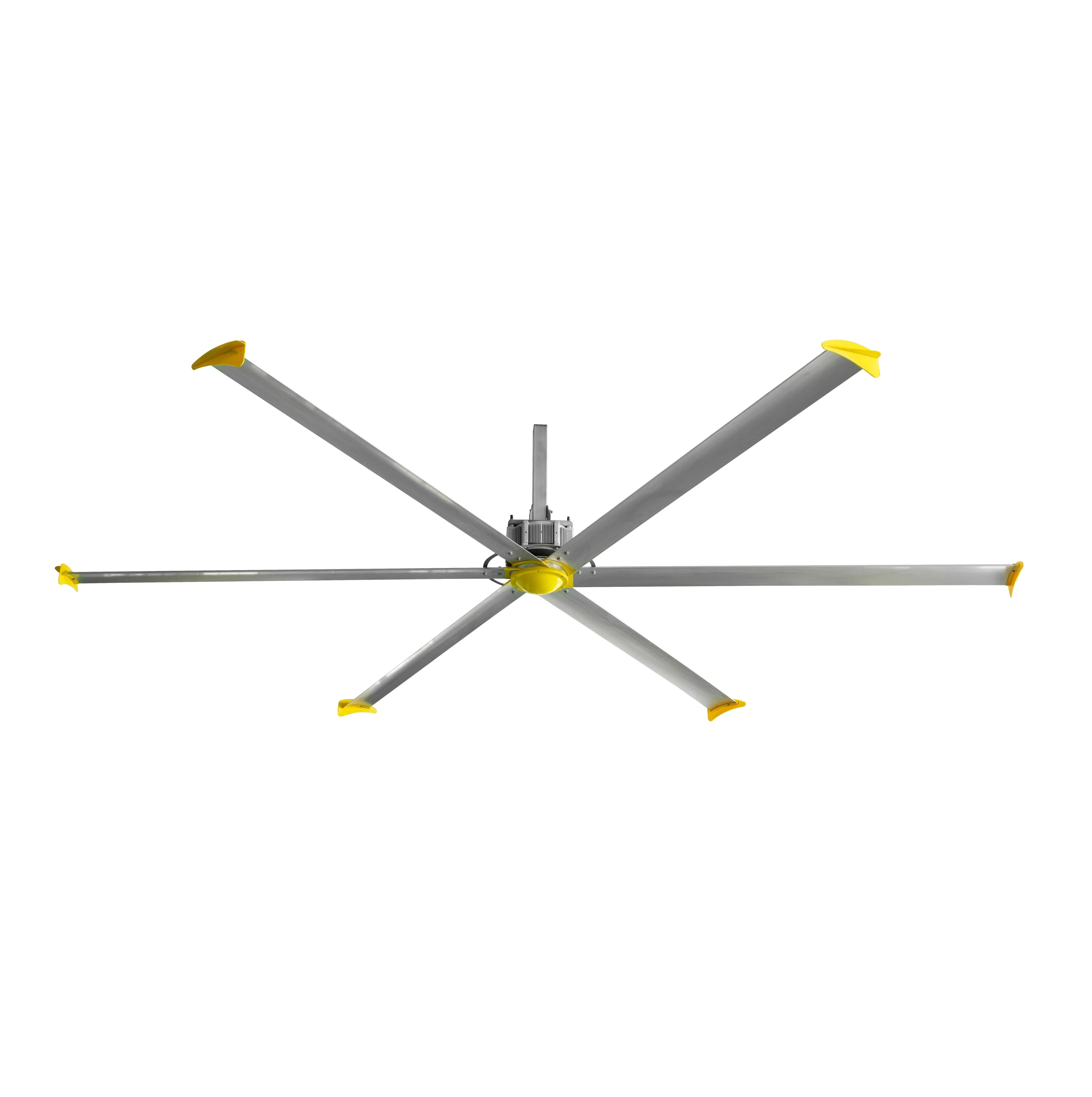

3m to 8m Largespace Ventilation Cooling Industrial Ceiling Fans with Ie5 Pmsm Motor

📊

Basic Specifications

Model No.

BCF-210-40-3M

Type

HVLS Fan

Mounting

Ceiling Fan

Power

0.55 Kw

Voltage

110V/220V/380V

Speed

105 Rpm

Diameter

3 M

Airflow

2800 M3/H

Coverage Area

700 M2

Specification

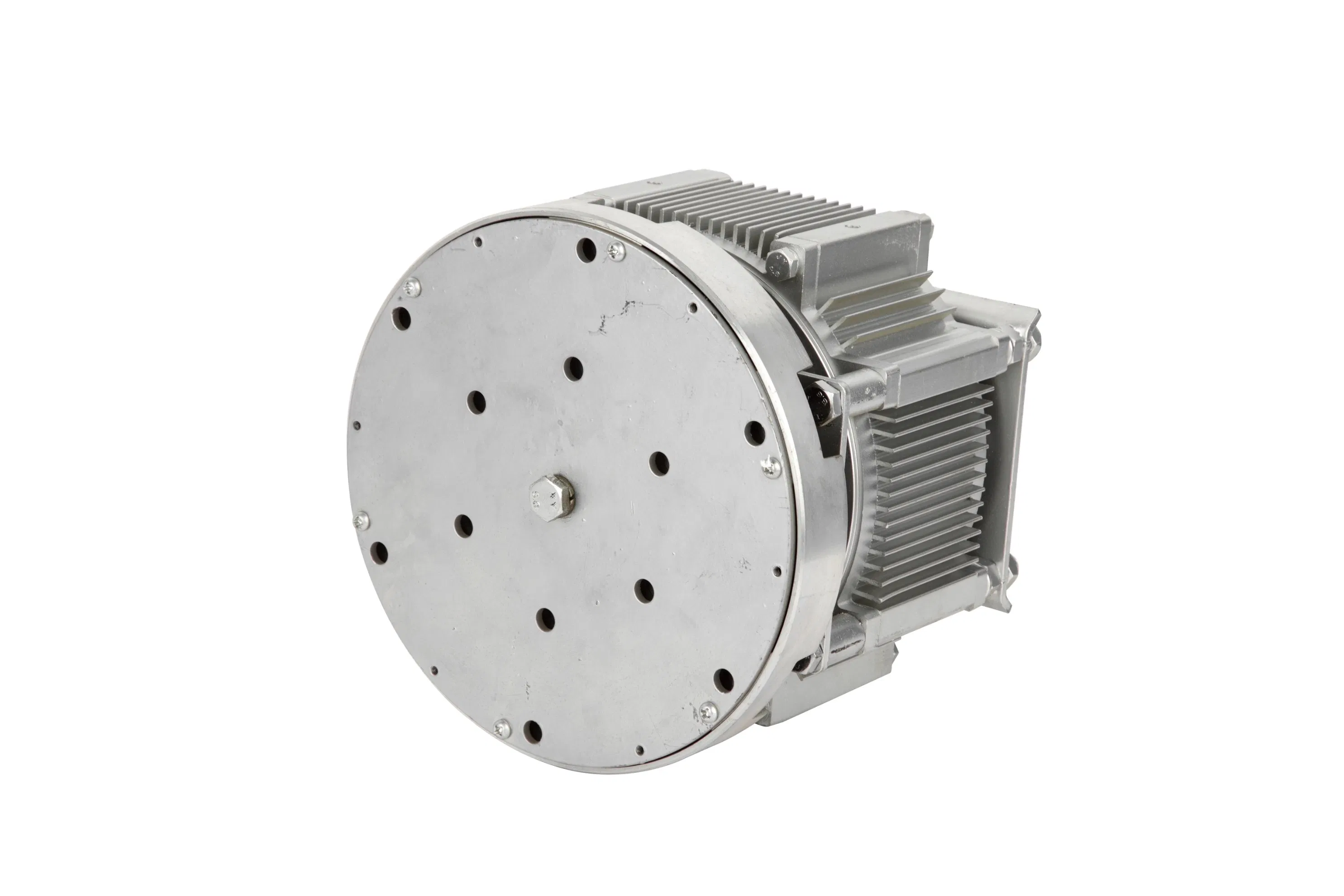

PMSM Motor

⚙️

Product Description

Gearless direct drive HVLS Industrial Ceiling Fans specially dedicated for large scale space. The streamlined fan blade adopts aerodynamics principles and advanced process, the diameter is from 2.5-8 meters, with coverage 2200-15000 m³/min. Utilizing an efficient servo direct drive motor to create plenty of comfortable natural wind.

Model	Dia (m)	Power (kw)	Voltage (v)	Air volume (m³/min)	dB	Area (m²)
BCF-327-60-8M	8	1.5	220/380	15000	45	1600
BCF-327-60-7.3M	7.3	1.5	220/380	13500	45	1500
BCF-327-60-6.2M	6.2	1.5	220/380	12000	45	1100
BCF-327-60-5.2M	5.2	1.1	220/380	11000	45	850
BCF-210-40-4M	4	0.75	220	9200	45	800
BCF-210-40-3.5M	3.5	0.75	220	3750	40	750
BCF-210-40-3M	3	0.55	220	2800	40	700
BCF-175-40-2.5M	2.5	0.55	220	2200	40	650

💎

Main Features

🔹

Excellent electromagnetic scheme, brushless direct drive, high torque permanent magnet DC motor.

🔹

Power saving and first-class energy efficiency.

🔹

Low noise operation suitable for theaters and large halls.

🔹

Simplified and safest structure for easy installation.

🔹

Aviation-grade material blades: won't break even when bent at 90 degrees.

🛡️

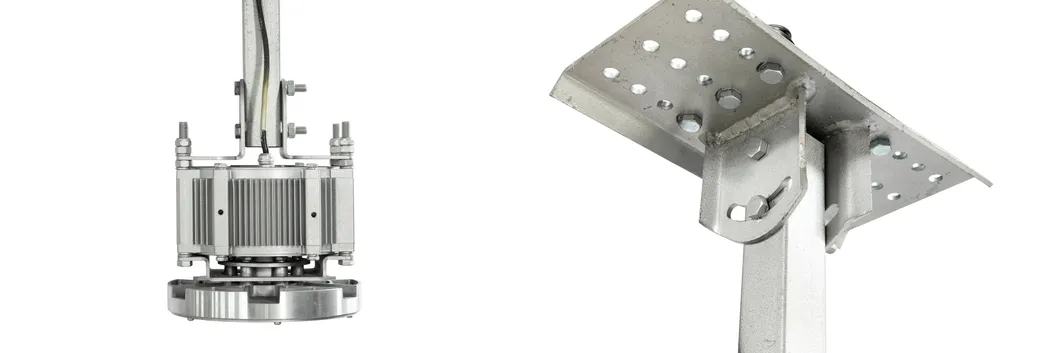

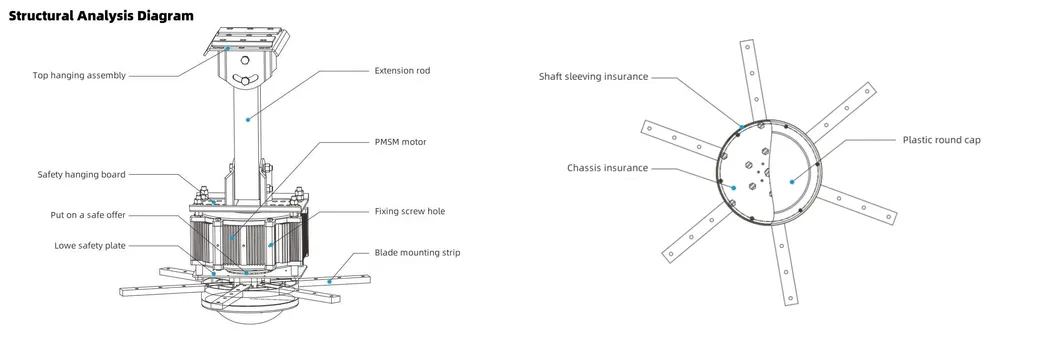

Five Kinds of Safety Insurance

✅

Automatic alarm and power cut-off if the motor sways ≥8° due to external factors.

✅

Interconnecting safety pieces to prevent any component from falling.

✅

High-strength monolithic blisk made of 40Cr steel for maximum stability.

🚀

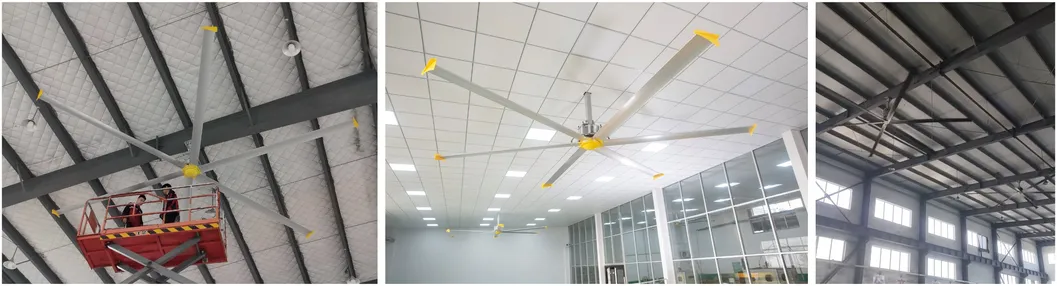

Applications

Industrial Use

Factory buildings, warehouses, distribution centers, aircraft hangars, logistics centers, and machining work areas.

General Use

Places of worship, mosques, malls, sports arenas, shopping centers, gymnasiums, and car dealerships.

❓

FAQ

What products are available?

We provide a wide range of cooling solutions including HVLS ceiling fans, PMSM HVLS fans, and industrial-grade big fans for large spaces.

How is the quality guaranteed?

Quality is managed through mandatory pre-production samples before mass manufacturing and a rigorous final inspection before every shipment.

Why choose PMSM direct drive fans over others?

Our fans adopt an inner rotor permanent magnet direct drive design. This ensures greater air volume, wider coverage, and significantly more efficient energy saving compared to traditional gearbox fans.

What are the noise levels of these fans?

Our fans meet the highest industry standards for low noise, making them suitable for quiet environments such as cinemas, churches, and libraries.

What safety features are included?

The fans include five layers of insurance: automatic sway sensors, interlocking safety pieces, high-strength monolithic blisks, tension sleeve designs, and high-tensile steel wire locks.
