Large 24FT 7.3m Industrial Hvls Ceiling Fan for Worshops and Logistics Warehouses

Basic Info.

Model NO.

HDS-3 HDS-4 HDS-5 HDS-5.5 HDS-6.3 HDS-7.3

Type

Hds Large Ceiling Fans

Electric Current Type

AC

Mounting

Ceiling Fan

Certification

ISO, CE, CCC, Kc

Motor

Permanent Magnet

Blades

Aluminum 5/6PCS

Coverage Area

up to 1500 Square Meters

Effective Area

up to 850 Square Meters

Power

0.37kw 0.75kw 1.1kw 1.5kw

Voltage

220/380V

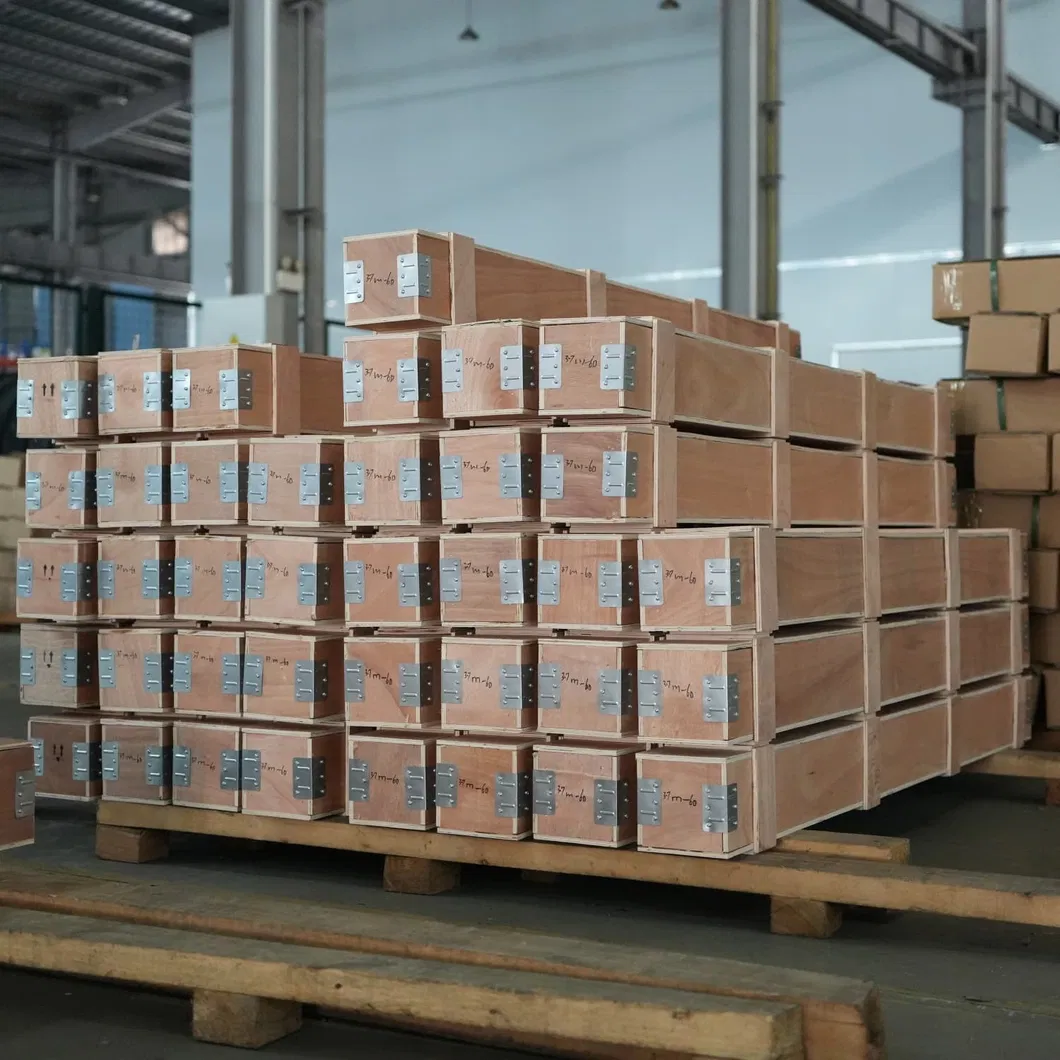

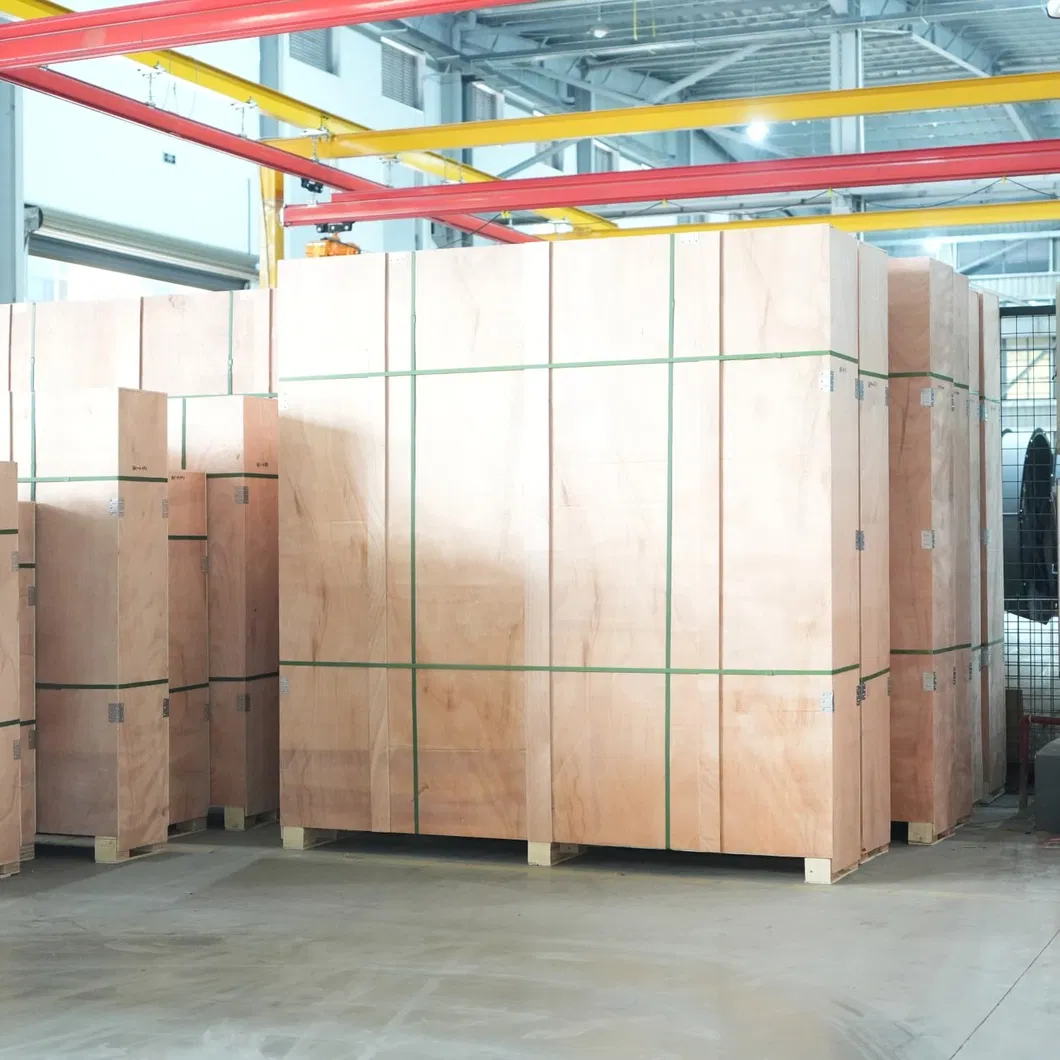

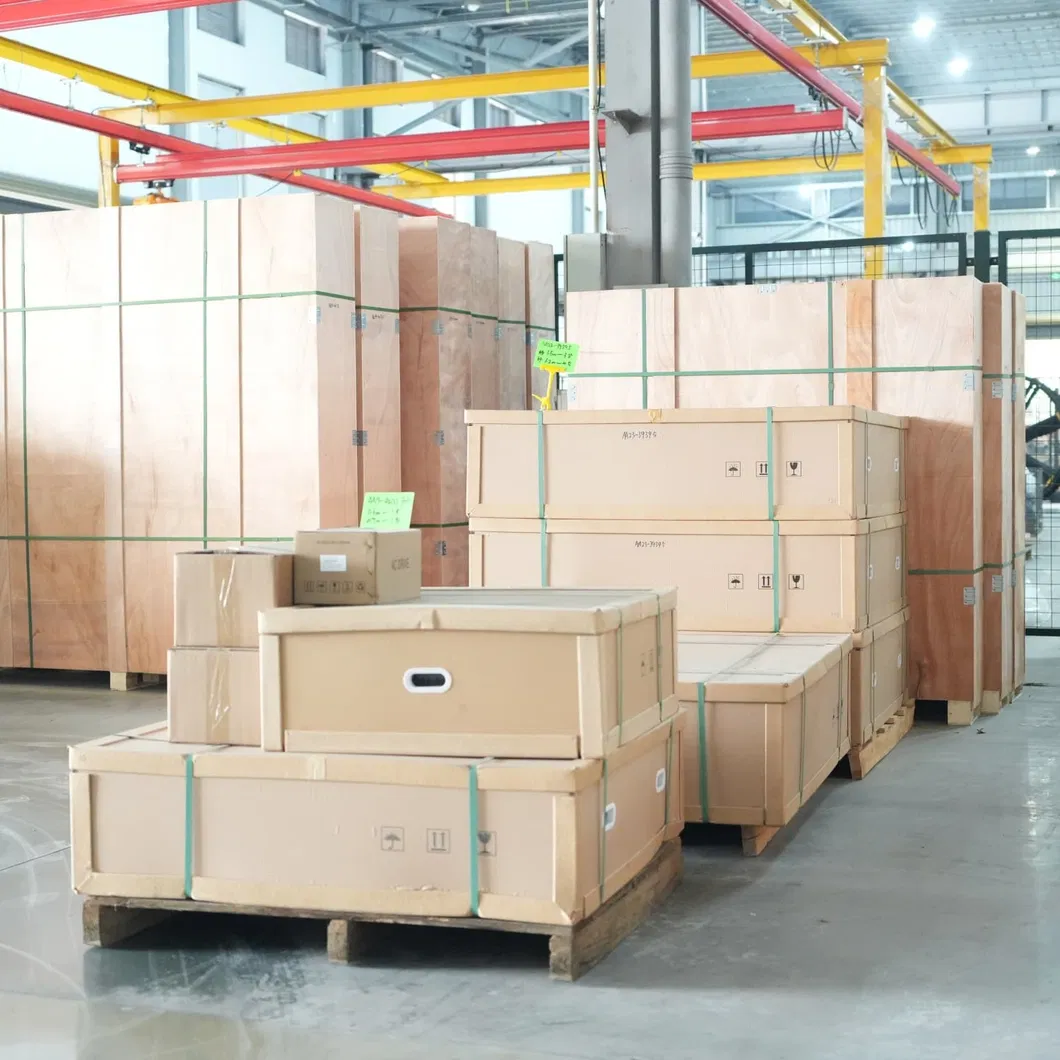

Transport Package

Wooden Case

Specification

2--7.3M

Trademark

HUADA

HS Code

8414591000

Production Capacity

3000PCS/Month

Product Description

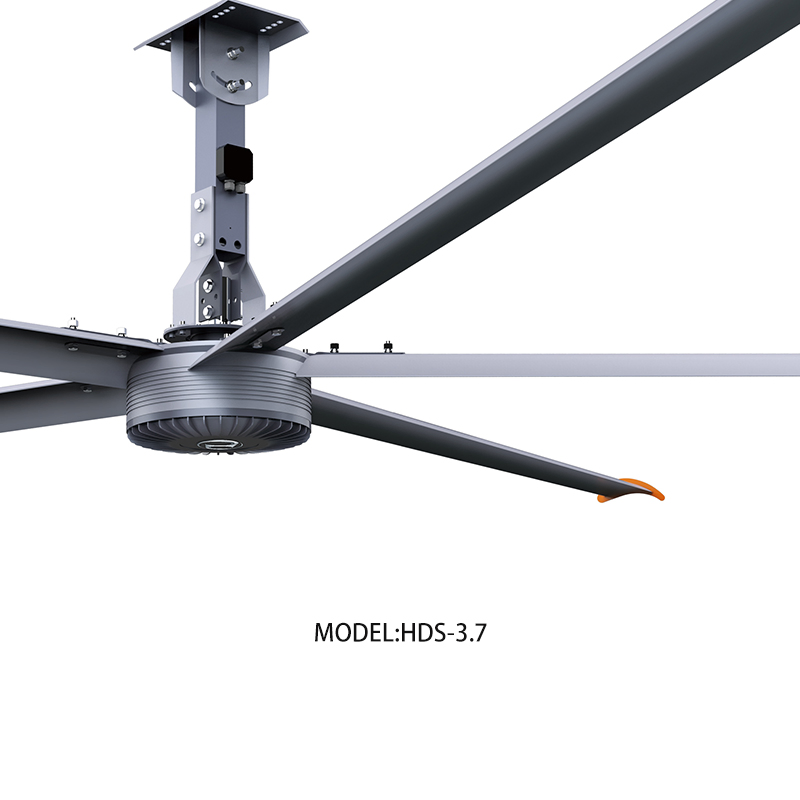

Large 24FT 7.3m Industrial Hvls Ceiling Fan for Worshops and Logistics Warehouses

Model	HDS-3	HDS-3.7	HDS-4.3	HDS-5	HDS-5.5	HDS-6.1	HDS-6.7	HDS-7.3	HDS-6.7	HDS-7.3
Diameter	3m/10ft	3.7m/12ft	4.3m/14ft	5m/16ft	5.5m/18ft	6.1m/20ft	6.7m/22ft	7.3m/24ft	6.7m/22ft	7.3m/24ft
Power	0.37kw	0.37kw	0.75kw	0.75kw	1.1kw	1.1kw	1.1kw	1.1kw	1.5kw	1.5kw
Horsepower	0.5hp	0.5hp	1hp	1hp	1.5hp	1.5hp	1.5hp	1.5hp	2hp	2hp
Voltage	220v-240v/380v-460v
Frequency	50Hz/60Hz
Air volume	4000m³/min	5000m³/min	7000m³/min	10000m³/min	11000m³/min	11500m³/min	12000m³/min	13000m³/min	14000m³/min	15000m³/min
Rotating speed	≤120rpm	≤100rpm	≤90rpm	≤80rpm	≤70rpm	≤60rpm	≤55rpm	≤50rpm	≤55rpm	≤50rpm
Blades	5pcs	5pcs	5pcs	5pcs	5pcs	6pcs	6pcs	6pcs	6pcs	6pcs
Noise	38dB
Motor Weight	18kg	18kg	25kg	25kg	48kg	48kg	48kg	48kg	58kg	58kg
Fan Weight	35kg	38kg	46kg	49kg	99kg	103kg	107kg	111kg	118kg	122kg
Effective area	150m²	230m²	256m²	300m²	500m²	600m²	650m²	700m²	750m²	800m²
Coverage area	250m²	380m²	450m²	500m²	900m²	1000m²	1300m²	1500m²	1600m²	1700m²

Other specifications and models can be customized according to customer needs.

Detailed Photos

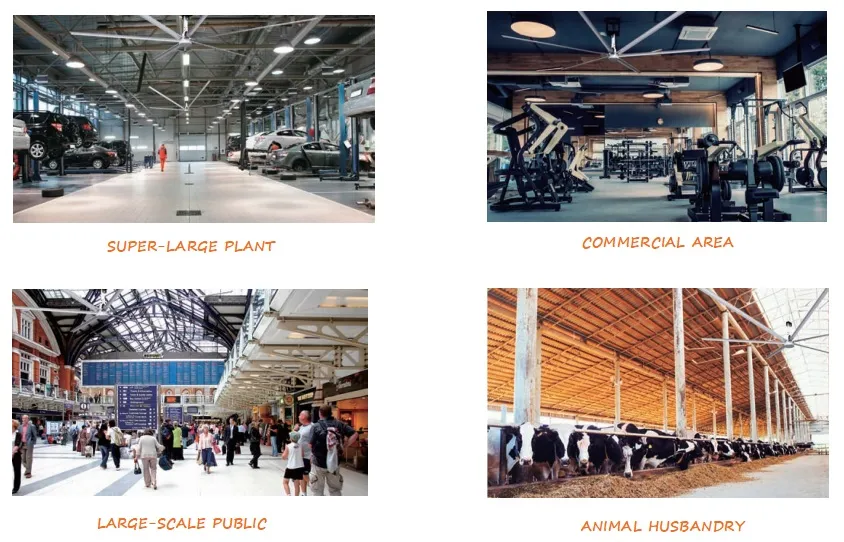

Application Scenarios

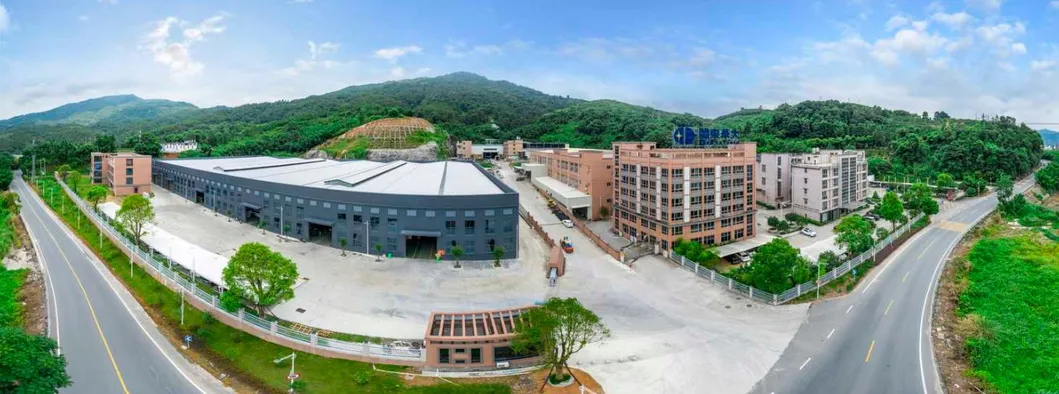

Company Profile

Founded in 2007, the company is an industrial and trade enterprise integrating scientific research, production, sales and service. The company covers an area of 50, 000 square meters and a building area of 50, 000 square meters. It has a complete set of motor and fan production lines and testing equipment, advanced manufacturing technology and modern management level.

Since its establishment, the company has focused on the research and development and production of high-temperature motors, high-temperature fans, permanent magnet variable frequency ceiling fans, and servo motors. Strictly control the production process to create quality. The company has passed the safety standardization acceptance; ISO9001: 2008 quality management system certification, ISO14001: 2015 environmental quality system certification. The products have passed CCC certification, European CE certification, KC certification, RoHS certification, etc., and the products are sold well in the international market. The company has 16 utility model patents and appearance patents, and sincerely welcomes friends at home and abroad to visit.

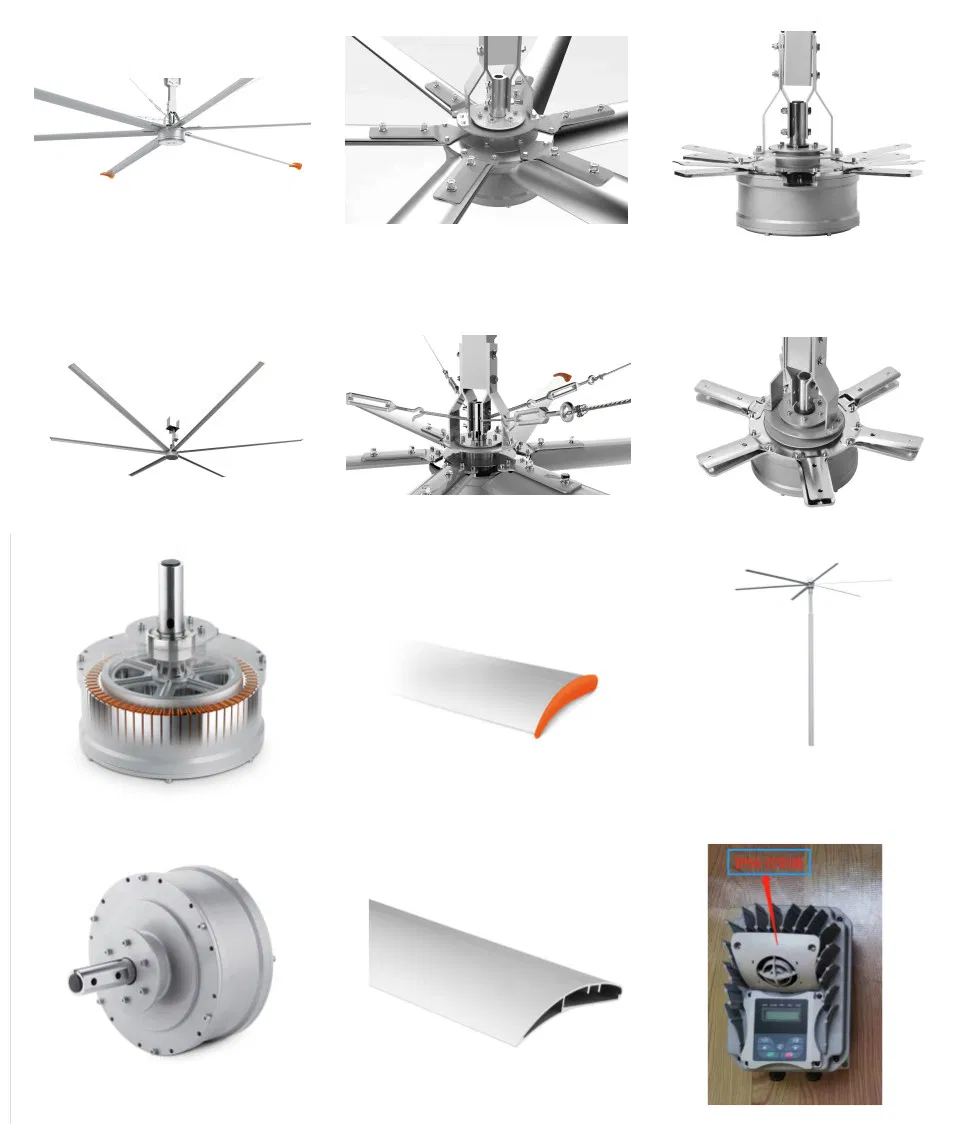

Functional Configuration

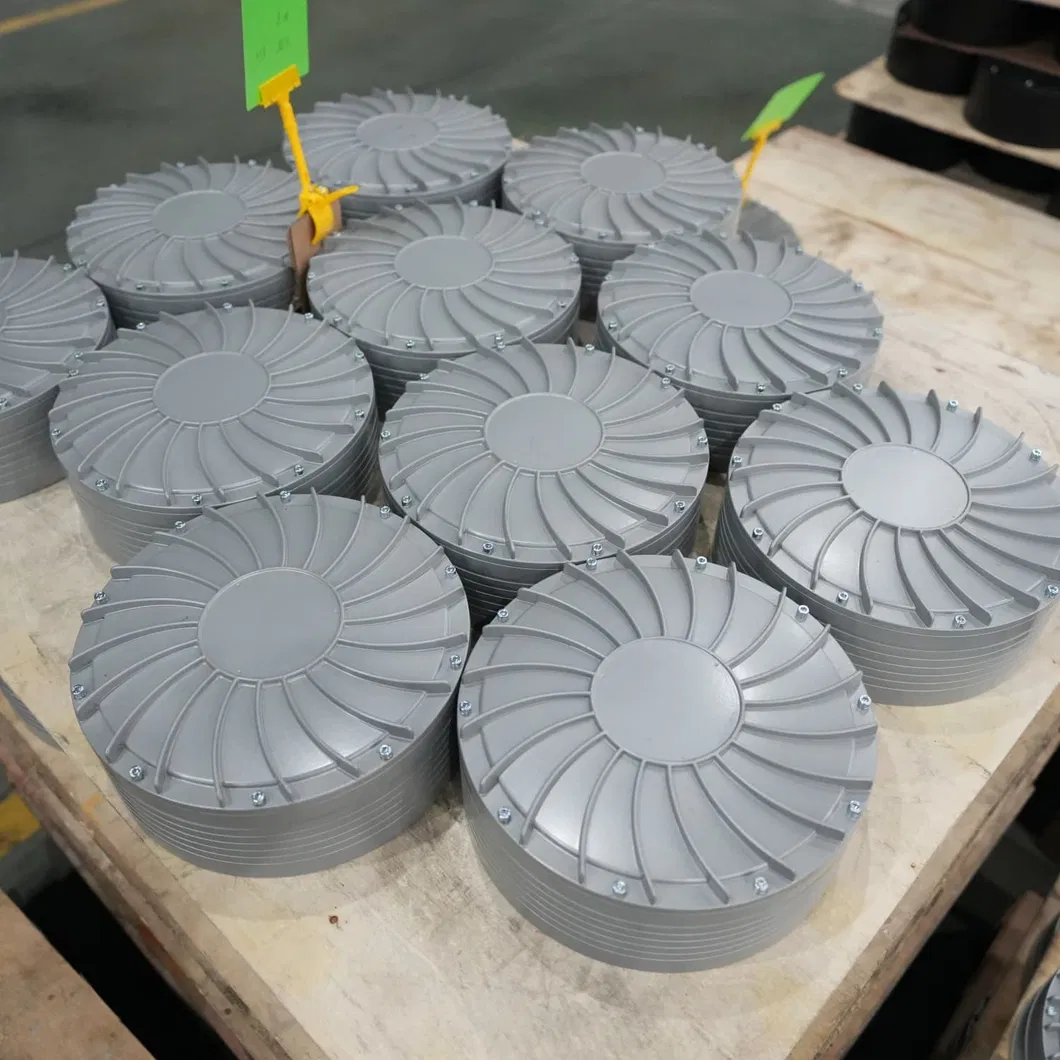

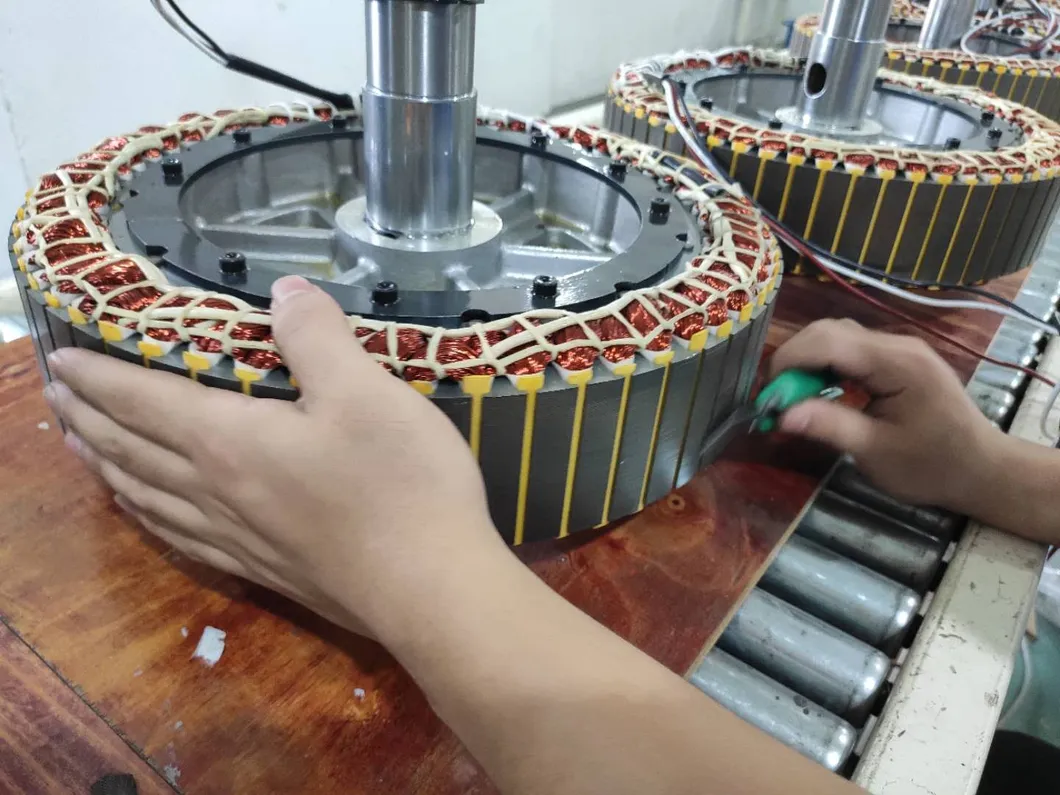

Operation of ceiling fan: Adopt self-developed permanent magnet external motor.
Fan blade safety ring: The latest technology to connect the fan blade into a whole, to avoid fan blade accidental fall.

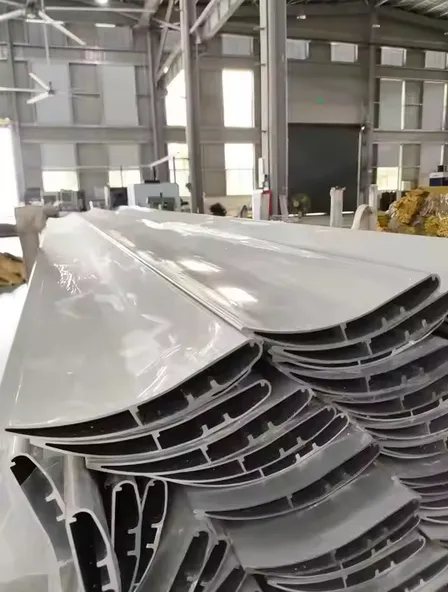

Fan blade: It is extruded by aluminum and magnesium alloy and has the advantages of high strength, good toughness, light weight, long life and safety.
Anti-stripping device: Top safety, the fan blade, chassis and motor are connected as a whole, and anti-stripping plate plays a protective role to prevent any parts from falling off.
Tail fin: High temperature resistant material is adopted to shape the product structure to be more beautiful. When the fan blade is running, air will generate vortex at the end of the airfoil fan blade.

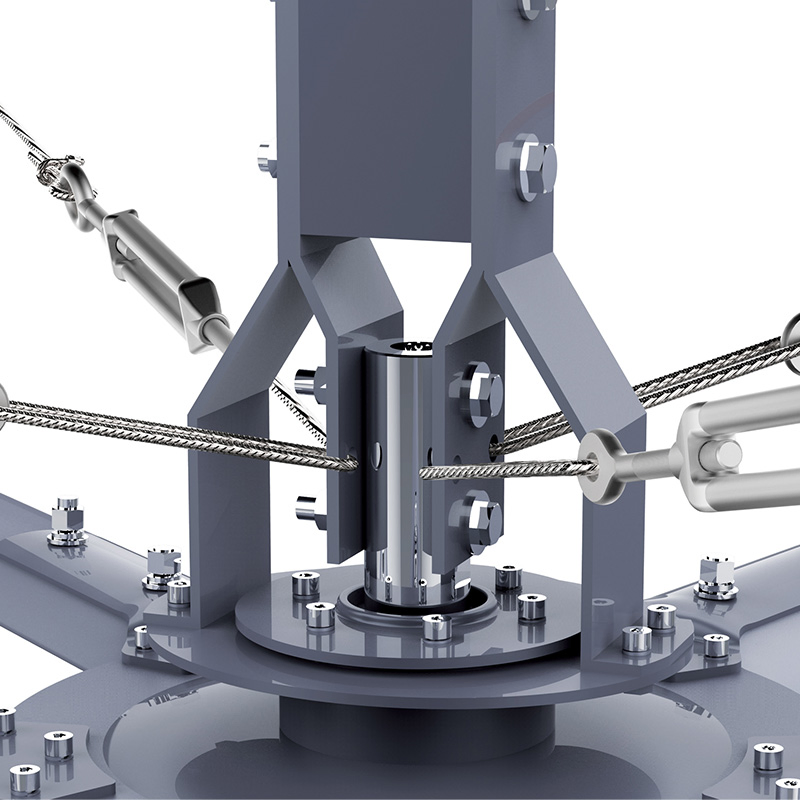

Steel wire pulling and locking device: High-altitude protection, the stress strength of each steel wire cable can reach 1000kg, and the fan can operate stably and reliably under the huge inertia generated by rotation.
