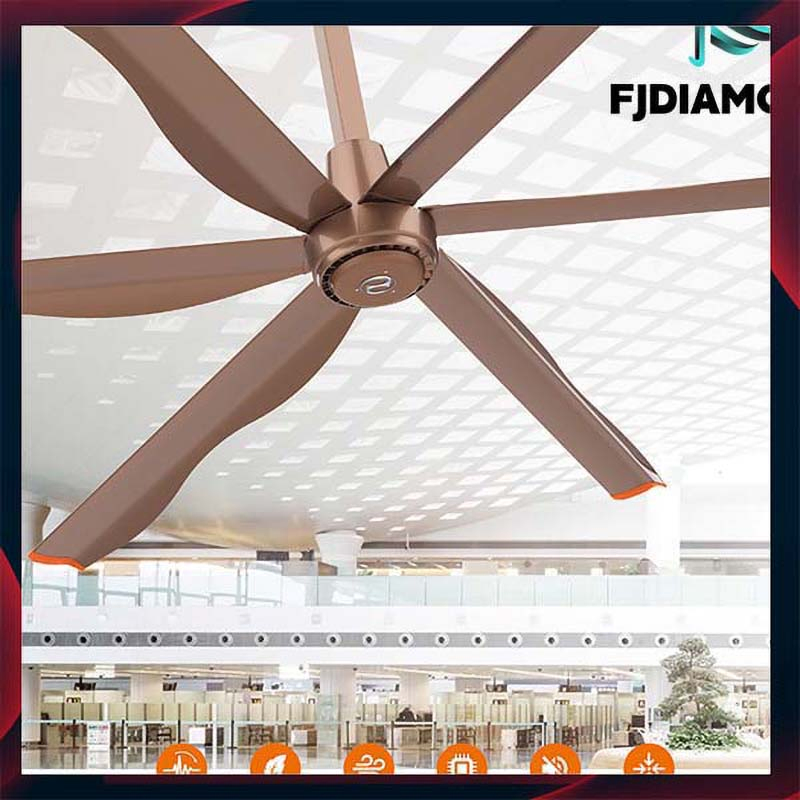

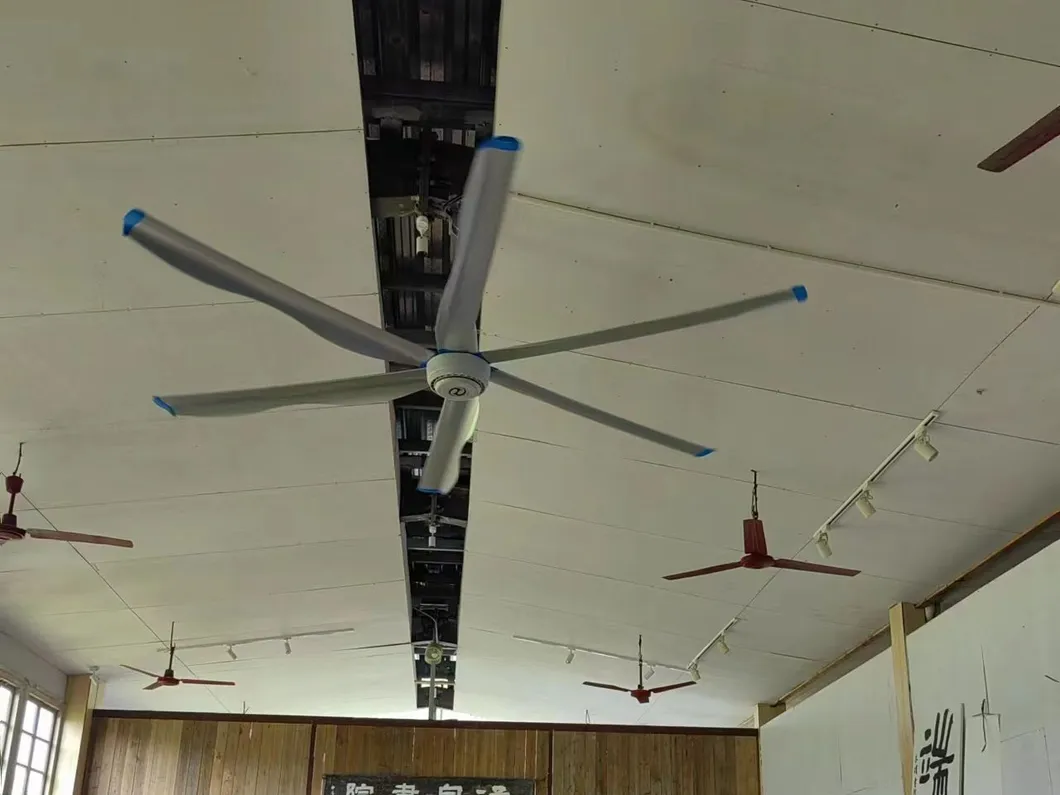

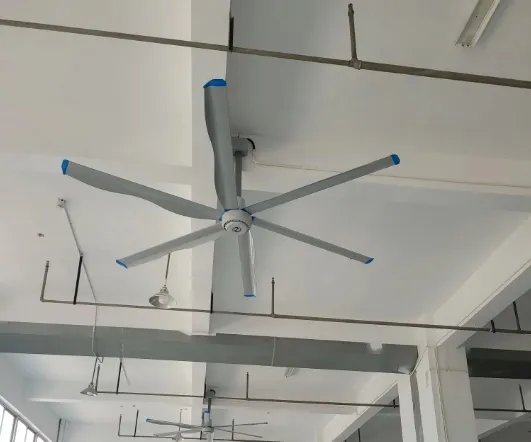

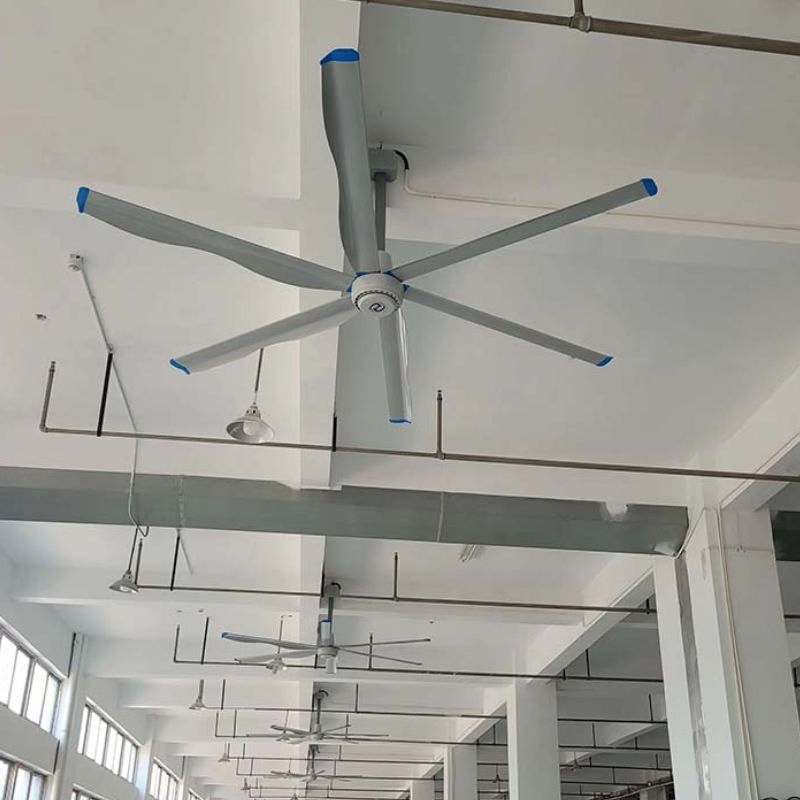

2.4m, 3m, and 3.7m HVLS Type Commercial Ceiling Fan: Perfect for coffee shops seeking an elegant and efficient air circulation solution.

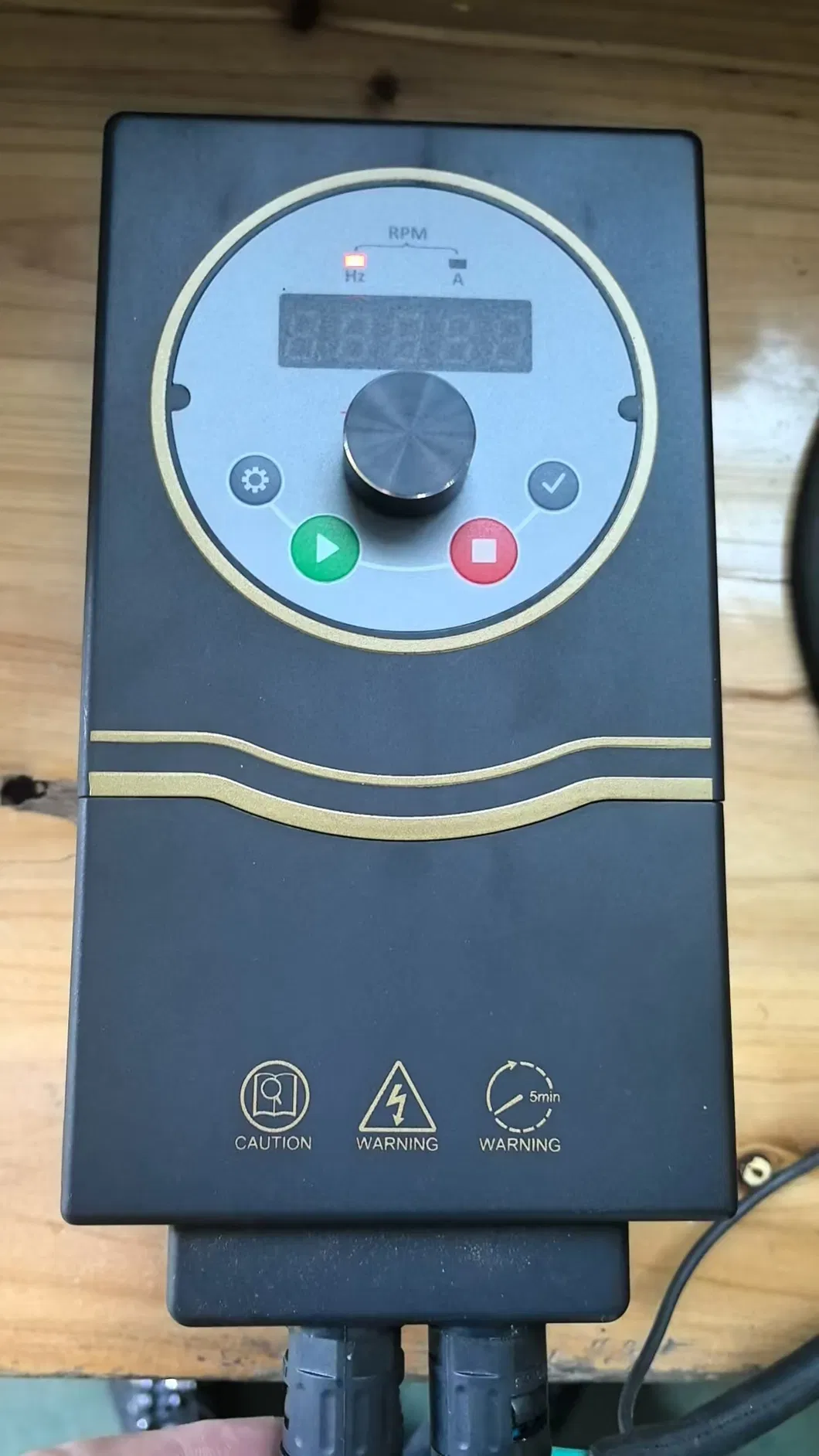

Introducing the HDS series PM VFD commercial ceiling fan, meticulously crafted to enhance the comfort of workspaces. This fan is powered by a self-designed variable frequency speed control system, paired with a high-efficiency, energy-saving permanent magnet external rotor motor drive. Experience its remarkable benefits: minimal noise, compactness, lightweight design, sturdy structure, and an aesthetically pleasing look.

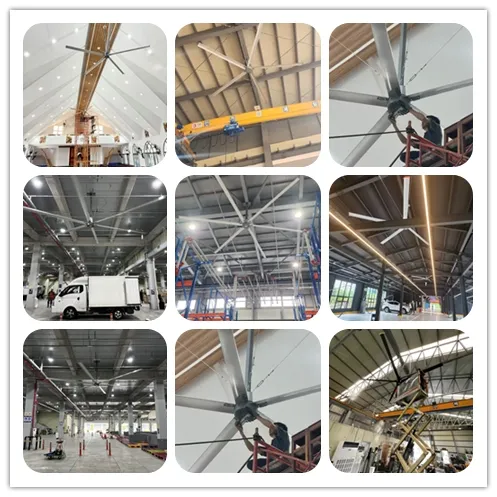

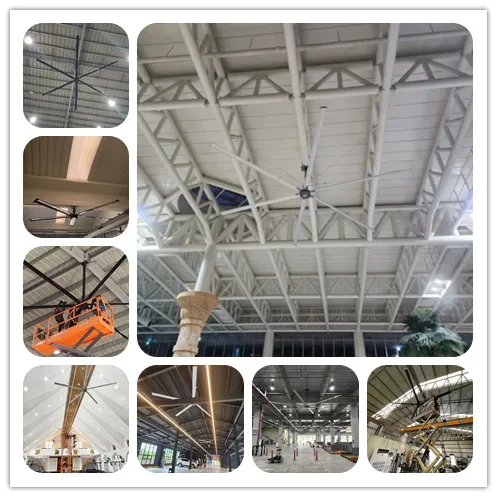

Applications: The fan is widely embraced in expansive venues like shopping malls, restaurants, fitness centers, industrial factories, logistics warehousing, waiting rooms, exhibition halls, and physical education halls. As a revolutionary energy-saving ventilation solution, it ensures personnel cooling by driving massive airflow towards the ground, creating a dynamic moving airflow layer for optimal air circulation. Relish the joy of a natural breeze system, providing an outdoor-like refreshing experience indoors.

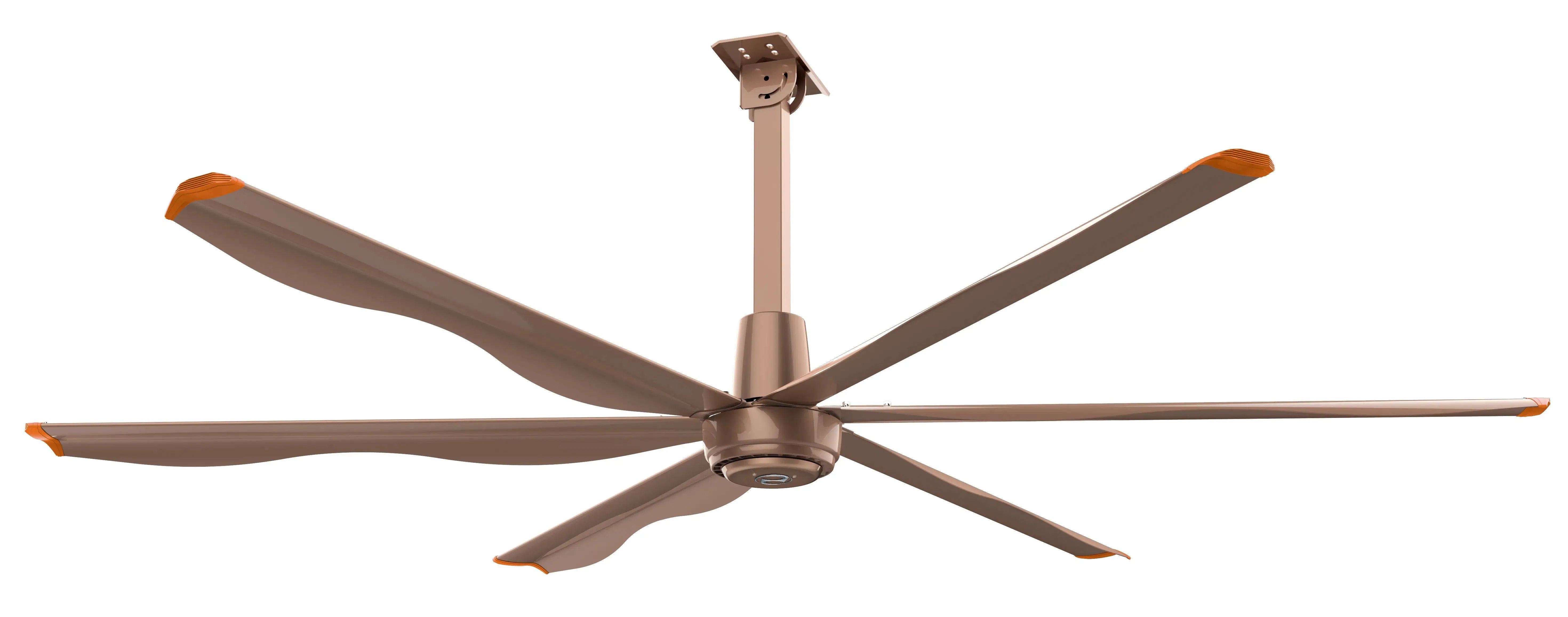

The HDS series fan showcases a distinctive wing design with straight blade diameters ranging from 2.4 to 3.7 meters. Utilizing aerodynamic principles and cutting-edge technology, these blades create a potent circulation flow field, mimicking the gentle caress of a natural breeze. Feel the enveloping three-dimensional wind that enhances sweat evaporation and elevates comfort levels. Traditional high-speed fans often bring about directional wind discomfort and health concerns, but the HDS series fan transforms environments into havens of soothing comfort. Tailor the wind volume to your specific needs, adjusting speeds within 1m to 4.5m/s. In open spaces, a single commercial energy-saving fan can cover a maximum area of up to 330m².
| Commercial HVLS fans Tech Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | HDS-240D-32 | HDS-300D-32 | HDS-370D-32 | ||||||
| Diameter | 2.4m | 3m | 3.7m | ||||||
| Power | 0.3kw | 0.3kw | 0.3kw | ||||||
| Diameter (ft) | 8 | 10 | 12 | ||||||
| Voltage | 220v-240v | ||||||||
| Frequency | 50Hz/60Hz | ||||||||
| Air Volume | 2600m³/min | 3300m³/min | 4000m³/min | ||||||
| Speed | ≤160rpm | ≤105rpm | ≤65rpm | ||||||
| Blades | 6pcs | 6pcs | 6pcs | ||||||
| Noise | 38dB | ||||||||
| Motor Weight | 15kg | 15kg | 15kg | ||||||
| Coverage Area | 140m² | 210m² | 330m² | ||||||
| Speed m/s | 1-4.5 | 1-3.5m | 1-3m | ||||||
| Protection class | IP55 | IP55 | IP55 | ||||||

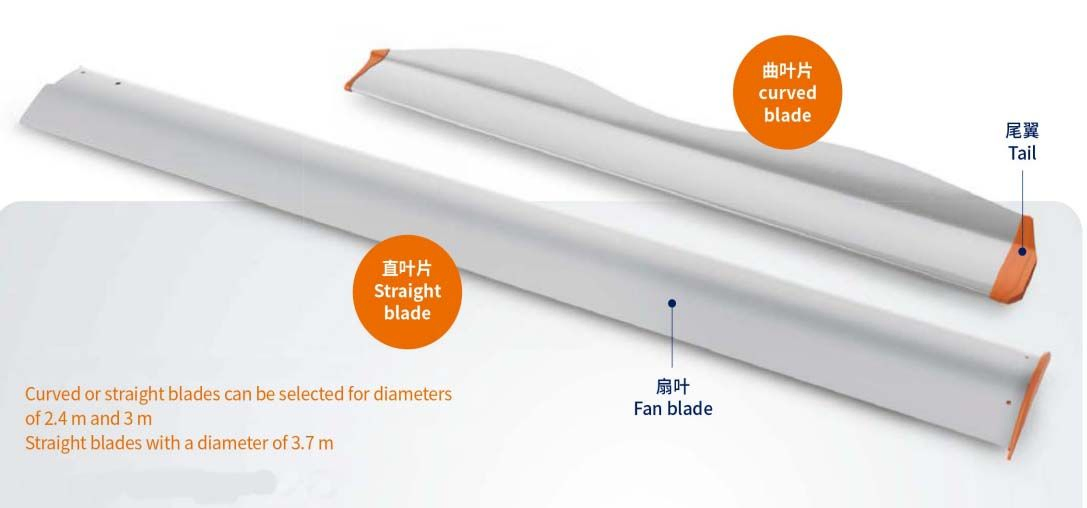

Fan Blade: Constructed from high-strength aluminum-magnesium alloy, this aviation-grade marvel undergoes meticulous extrusion and stretching, resulting in superior durability. Internally reinforced for exceptional strength and toughness, it offers lightweight efficiency, longevity, and enhanced safety. Finished with T5+ surface bright oxidation, it delivers outstanding resistance to corrosion and oxidation, perfect for demanding settings.
Tail: During fan operation, the ingeniously designed tail wing significantly reduces vortex energy loss at the aerofoil's end, ensuring stable performance and aligning airflow harmoniously with aerodynamic principles.

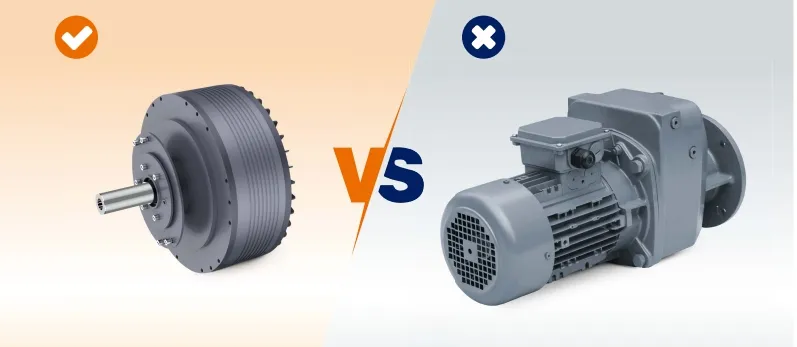

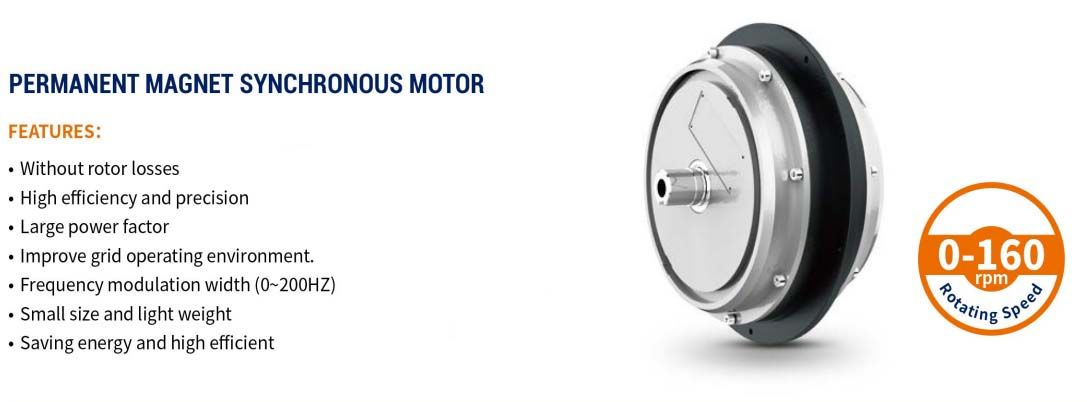

| Advanced Out Rotor Motor System | Traditional Asynchronous Motor System |
|---|---|
|
Advantage Permanent magnet synchronous high temperature resistant out rotor motor, super energy efficient. |
Disadvantage The use of asynchronous ordinary motor + gear box consumes a lot of energy. |
|
Advantage Small size and light weight. |
Disadvantage Large and heavy. |
|
Advantage Low noise: 38dB. |
Disadvantage Loud Noise 60dB. |
|
Advantage Simple structure. |
Disadvantage Complex structure. |
|
Advantage Frequency modulation width (0-50HZ). |
Disadvantage FM narrow (25-50HZ). |
|
Advantage Direct drive motor maintenance free. |
Disadvantage Need frequent daily maintenance (change seals, add gearbox oil). |
|
Advantage No running hazard. |
Disadvantage There are hidden dangers such as gearbox leakage. |

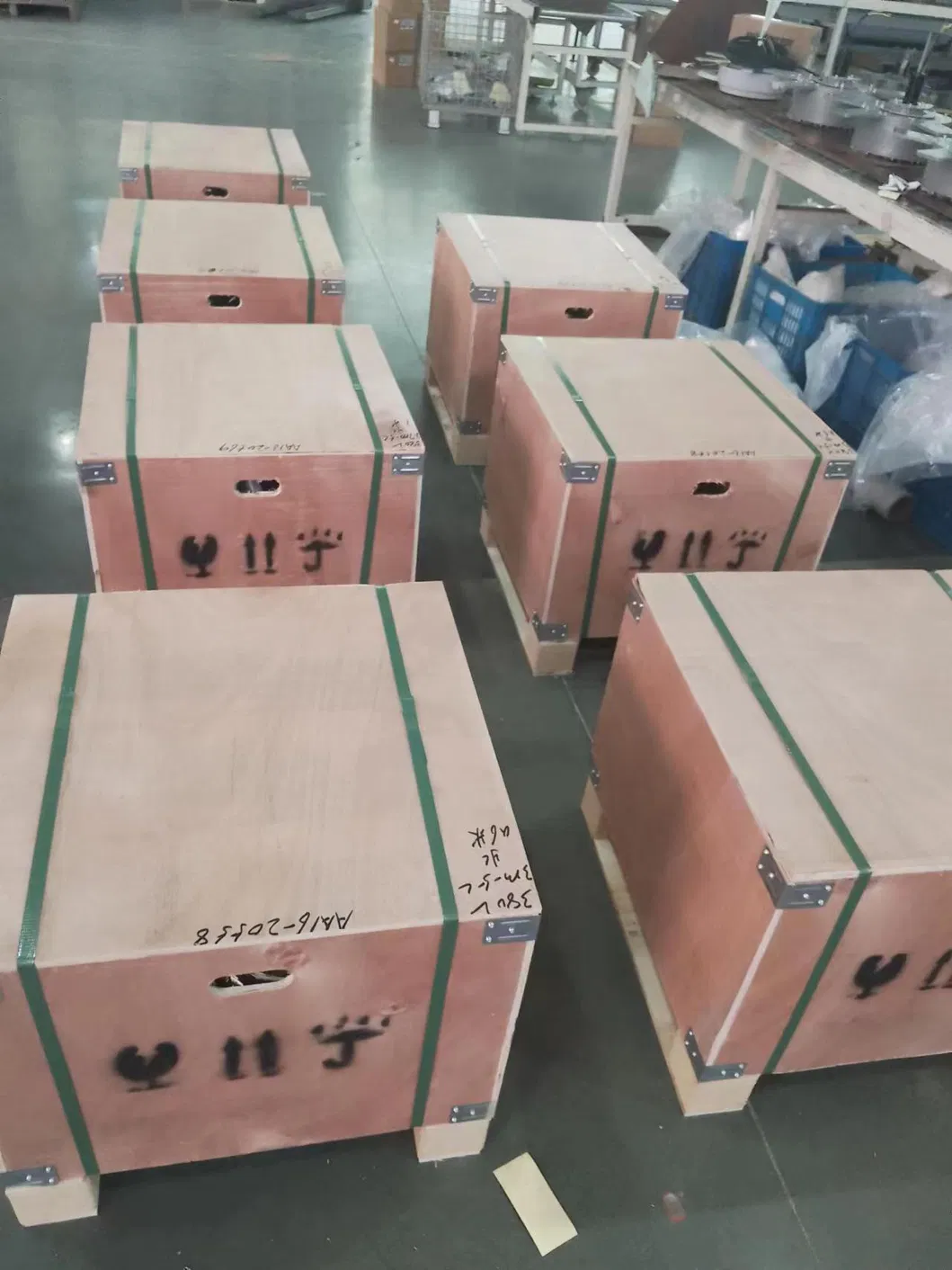

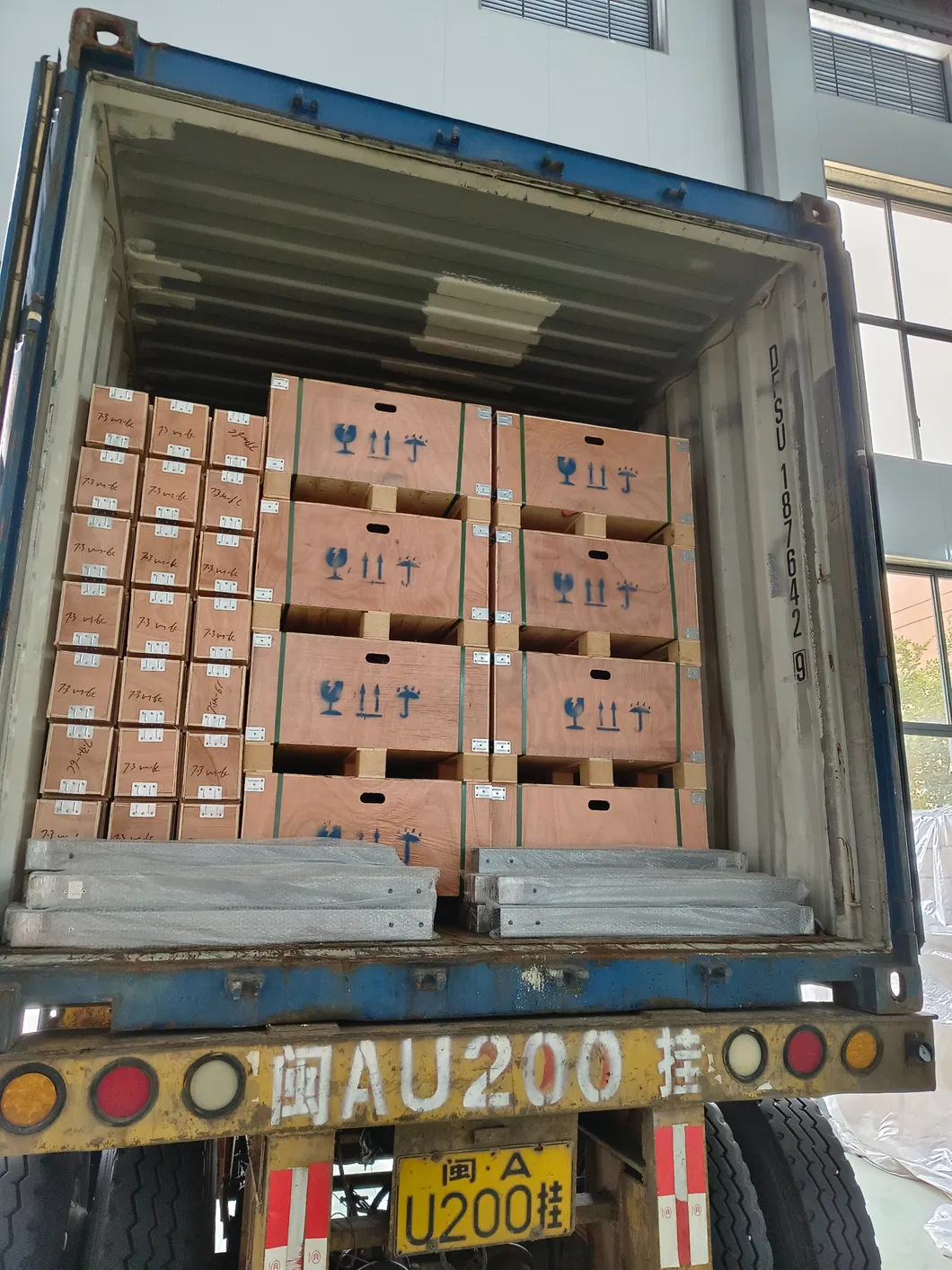

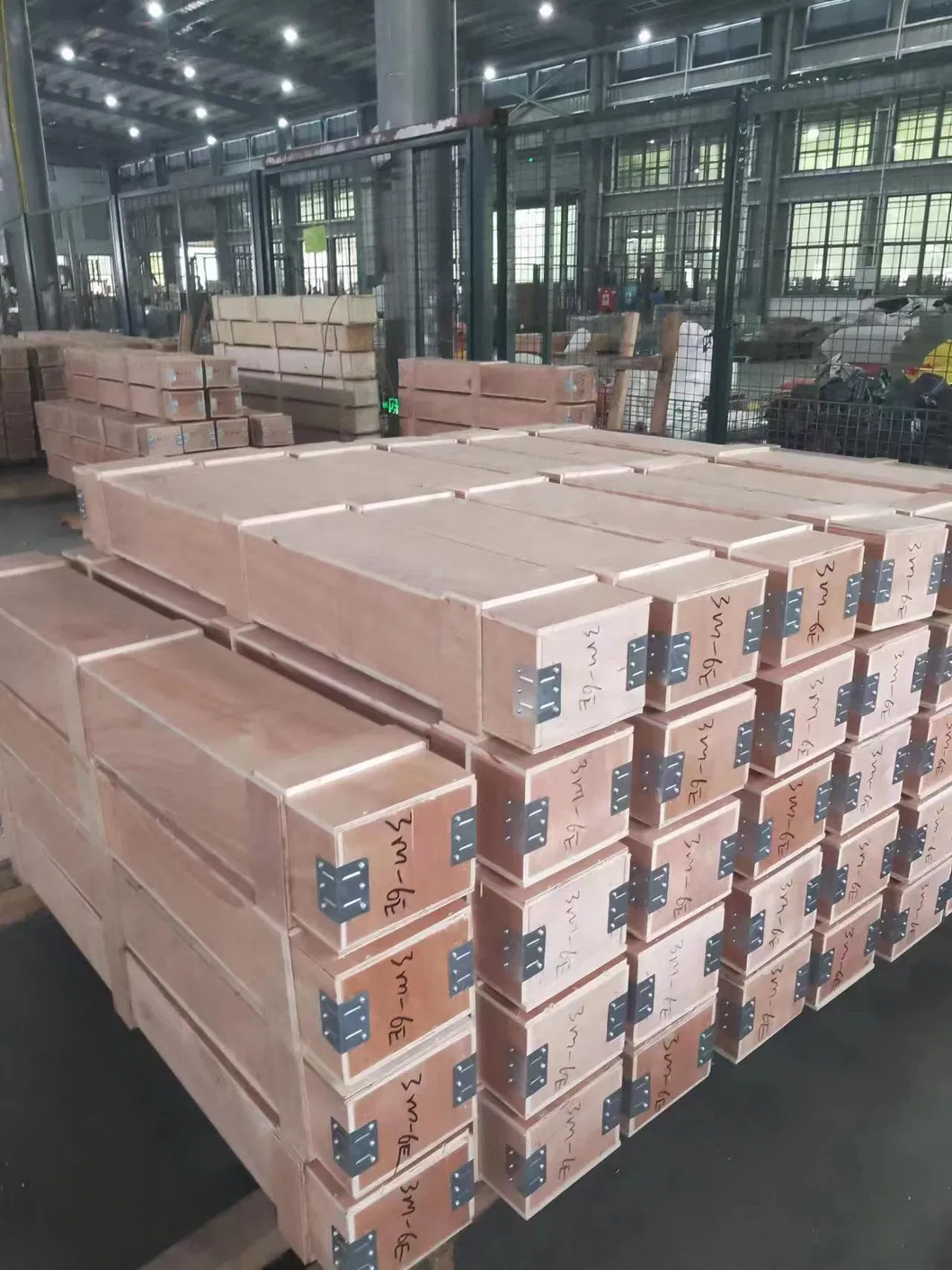

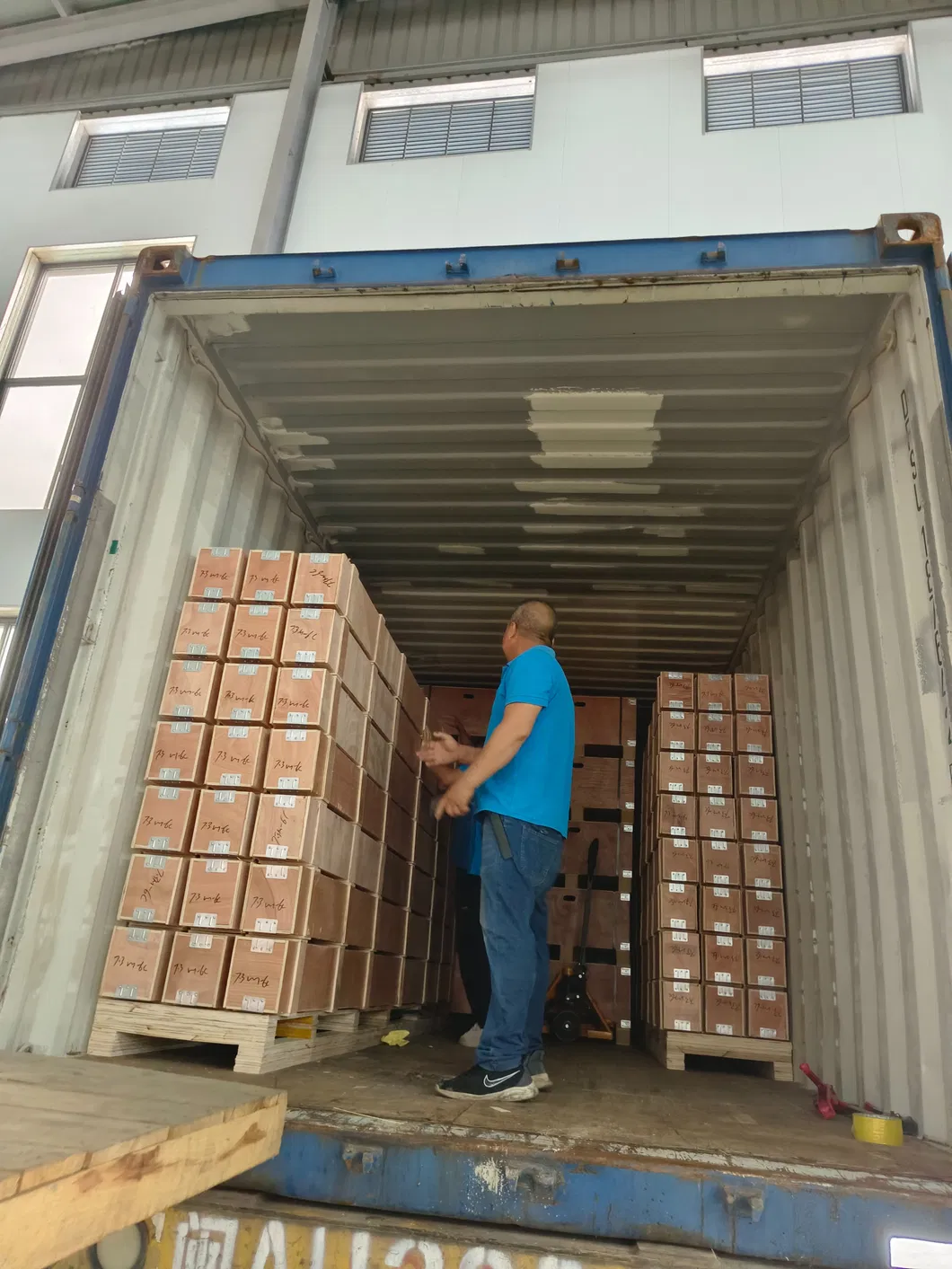

The fan's components are meticulously divided between two sturdy and durable plywood cases. One of these cases is exclusively reserved for the fan blades, providing unparalleled protection and maintaining their pristine condition. The other case encompasses the motor, sophisticated controller, and all important spare parts, ensuring they remain secure and intact during transport. This deliberate and strategic packaging method ensures that each component arrives safely at its destination, facilitating a worry-free transit and an effortless unpacking experience.
Are you the factory?

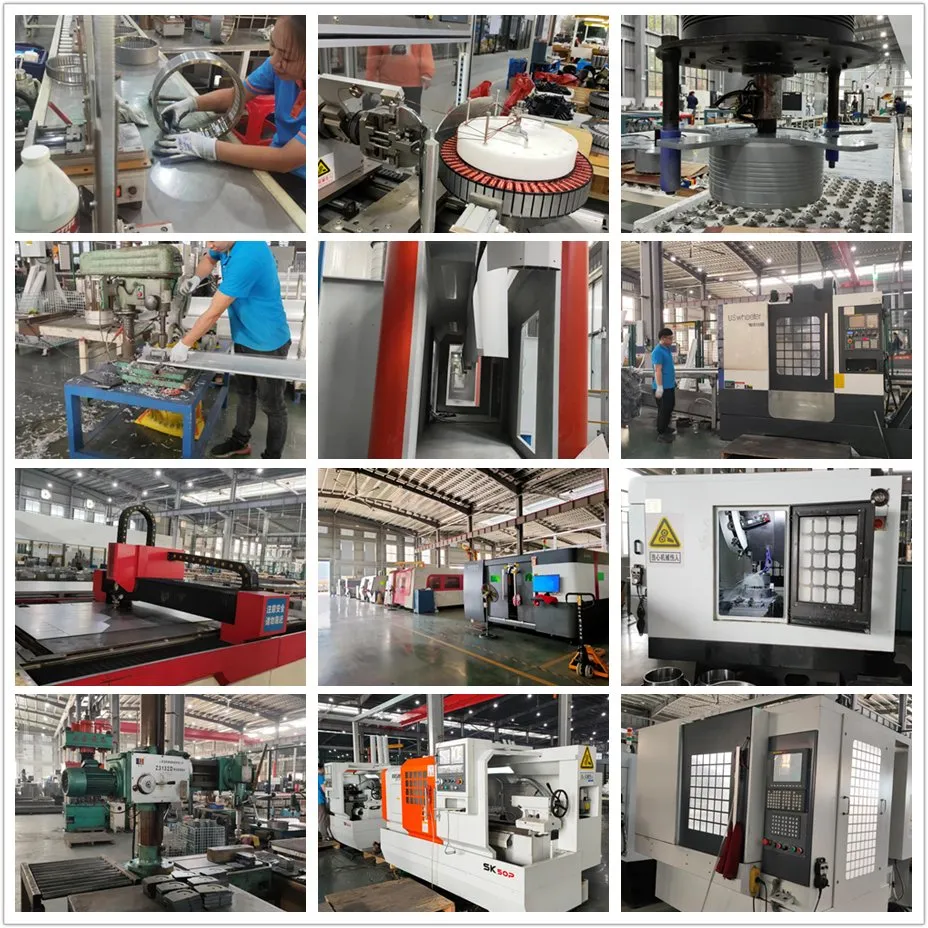

Absolutely, we are elated to affirm that we are indeed a factory, passionately dedicated to manufacturing an extensive range of HVLS large ceiling fans, wall fans, and mobile fans. Our strategic base allows us to offer you direct and economical fan supply, ensuring exceptional value and quality with every partnership.
Where is your fan used?

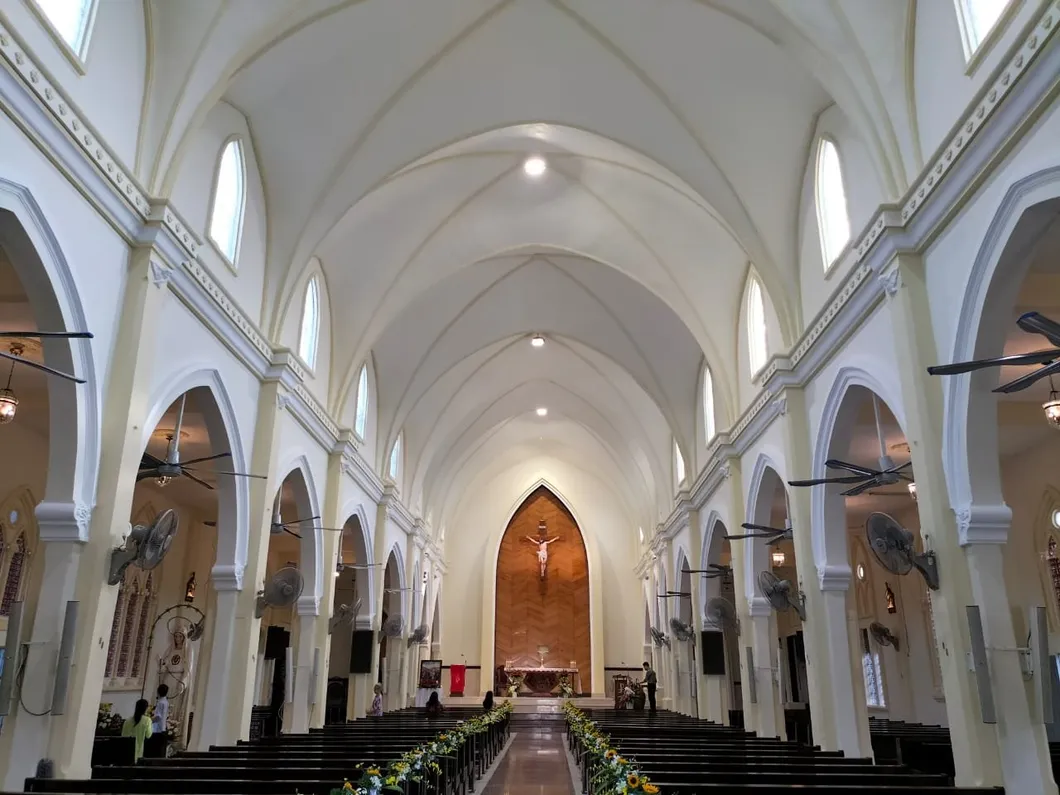

Our highly adaptable fan stands out as a dependable cooling solution, seamlessly enhancing airflow and comfort across diverse environments. Whether it's bustling factories, efficient logistics centers, expansive warehouses, busy supermarkets, churches, coffee shops, gyms, exhibitions, or grand halls, our fan delivers optimal performance, ensuring a refreshing atmosphere everywhere.
Does it use electricity?
Certainly, our fan is designed to operate with electricity, consuming an impressively low 0.37KW or less. This noteworthy energy efficiency leads to significant cost savings, making it an exceptionally economical choice for sustained, high-performance operation.
What is the price per fan?
We are dedicated to delivering the most competitive pricing available, meticulously tailored to match your specific order quantity and model preferences. Connect with us to receive a personalized quote that ensures outstanding value and aligns perfectly with your budgetary expectations.
How long is the delivery time?
Typically, you can anticipate a swift delivery time of 7-10 working days. This ensures your order is processed with the utmost efficiency and speed, providing you with a seamless fulfillment experience that meets your timeline requirements.
How long is the warranty?
We are delighted to offer an extensive 3-year warranty, a testament to our unwavering confidence in the quality of our products. Furthermore, our fans are engineered for longevity, boasting a remarkable service life that exceeds 20 years. This guarantees enduring performance and satisfaction for years to come.
