Vfans Hot Sale Good Performance Commercial Ceiling Fan for Memorial Hall

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

⚙️ Model NO. V150e

🌀 Type DC Fan

🔌 Electric Current Type DC

🏠 Mounting Ceiling Fan

📜 Certification ISO, CE

⚖️ Weight 18kg / 20kg / 22kg / 24kg

🔄 Speed 180rpm / 120rpm / 105rpm / 95rpm

⚡ Power 100W / 110W / 180W / 280W

🔋 Power Supply Single Phase 110V/220V, 50-60Hz

💨 Air Volume 1750m³/Min to 3360m³/Min

🔈 Noise <36db

🛡️ Warranty 2 Years

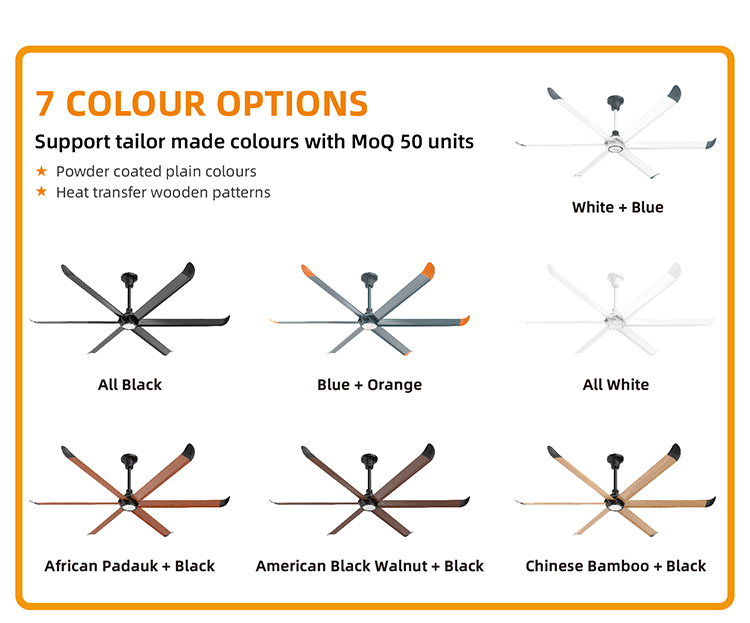

🎨 Color White / Black / Blue / Wooden Pattern

💡 Optional Choice With / Without LED Light

🛠️ Service Online Support / Video Technical Support

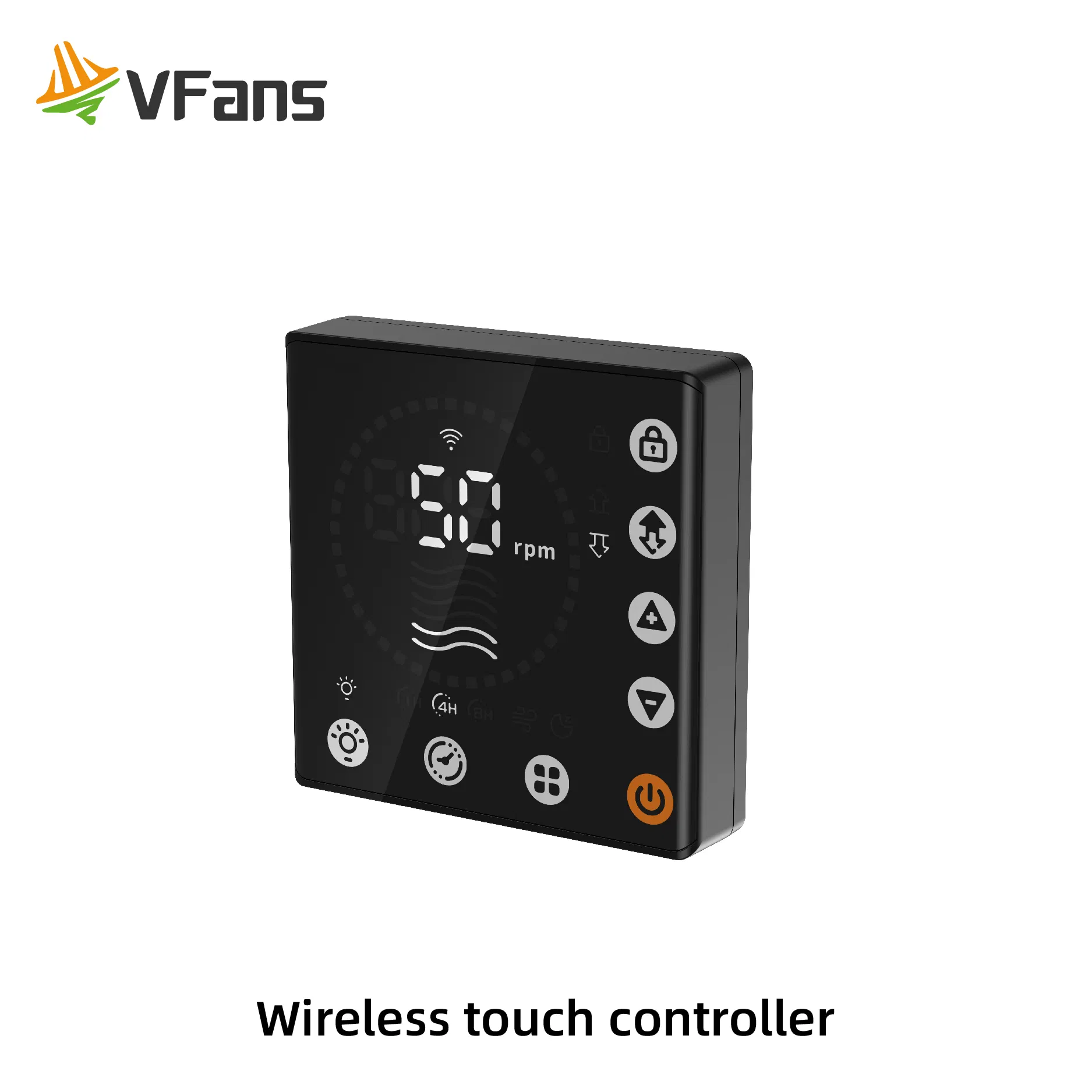

🎮 Controller Remote Control or Wireless Touch Controller

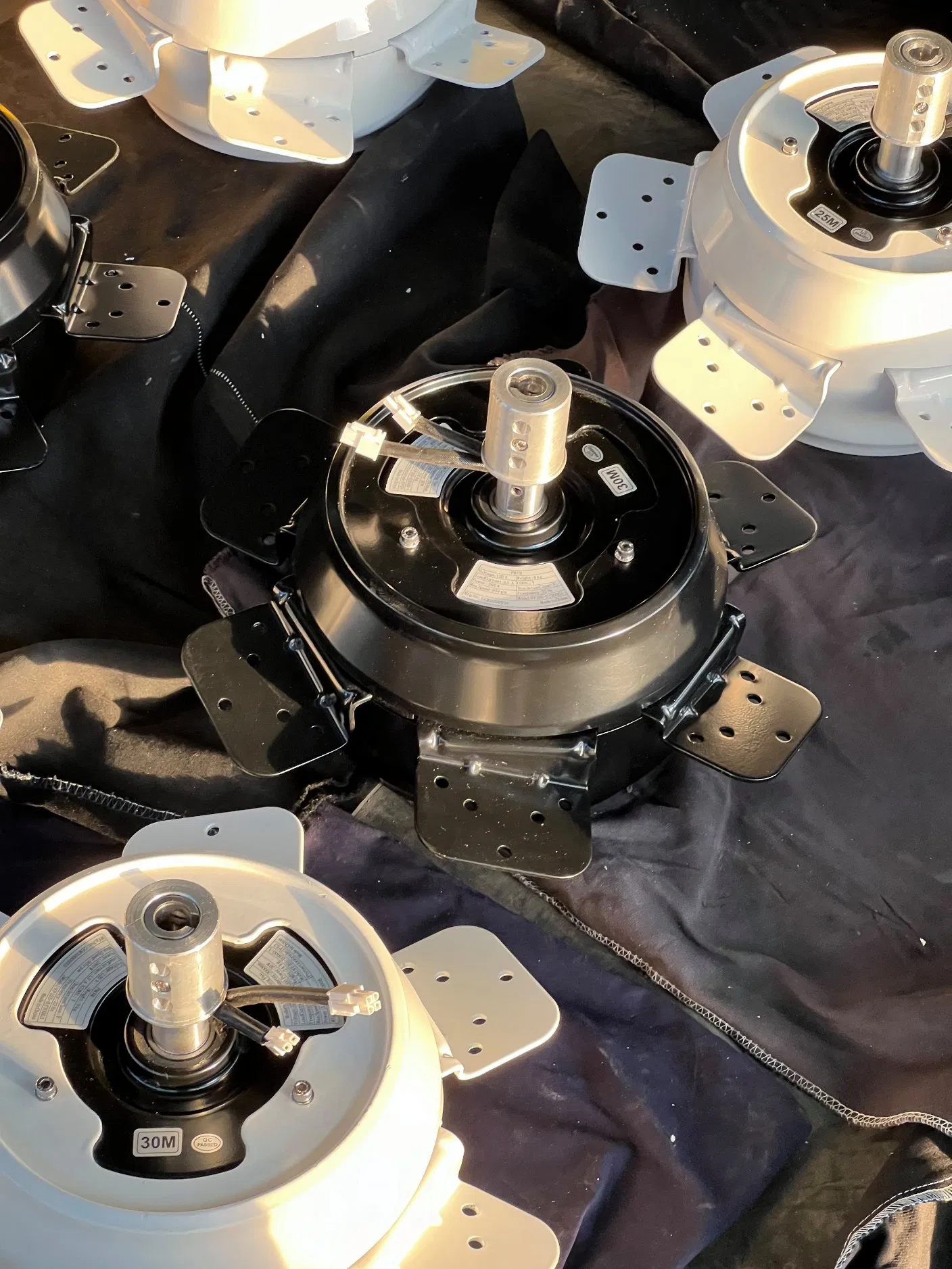

⚙️ Motor PMSM DC External Rotor Motor

🏢 Application Hotel / Mall / Porch / School / Restaurant

📦 Transport Package Carton

📐 Specification 1.5m (60in) / 2m (80in) / 2.5m (100in) / 3m (120in)

🏷️ Trademark VFans

🌍 Origin Guangdong, China

📦 Packaging & Delivery Specs

Package Size: 146.50cm * 17.00cm * 19.00cm

Package Gross Weight: 32.000kg

Product Description

Series	V150e
Model	VF15S-D1500	VF15S-D200	VF15S-D2500	VF15S-D3000
Diameter	1500mm(60in)	2000mm(80in)	2500mm(100in)	3000mm(120in)
Blades Quantity	6
Weight	18kg	20kg	22kg	24kg
Power	100W	110W	180W	280W
Max Speed	180rpm	120rpm	105rpm	95rpm
Max Air Volume	1750m³/min	2130m³/min	2750m³/min	3360m³/min
Power Supply	Single Phase 220V/110V
Rated Input Current	0.5A	0.6A	0.9A	1.2A
Rated Output Current	0.7A	0.9A	1.0A	1.3A
Noise Level	<36dB	<36dB	<36dB	<36dB
Wind Coverage	Φ6-Φ9m	Φ8-Φ11m	Φ10-Φ13m	Φ12-Φ15m

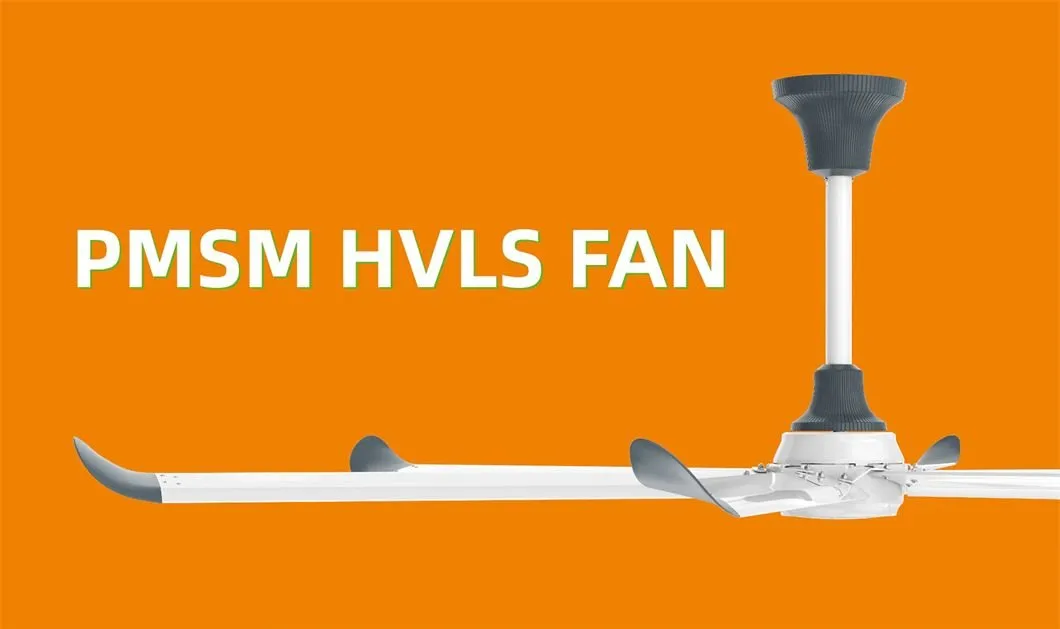

Vfans Technical Specifications Feature 1

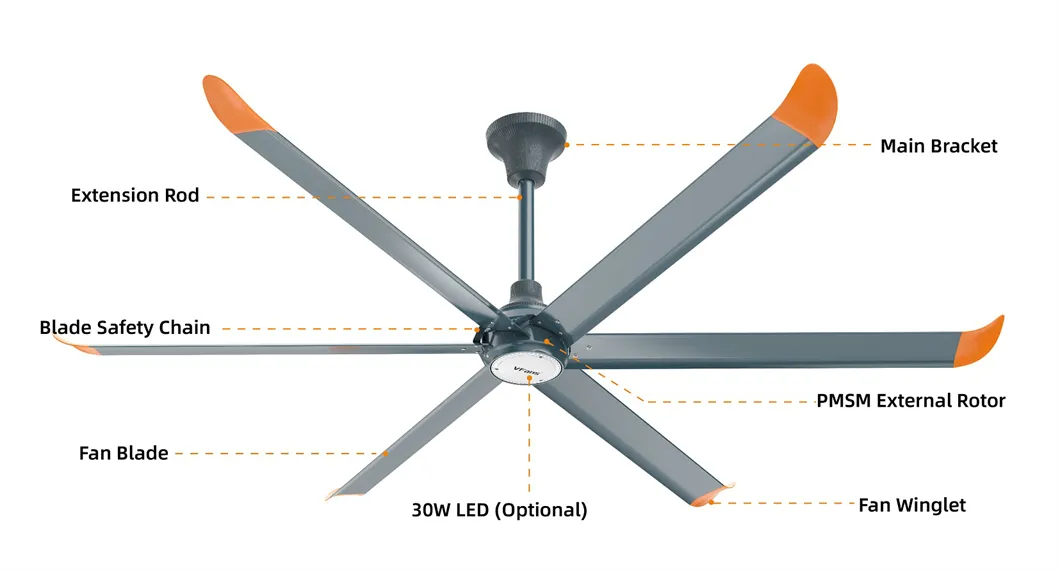

Vfans Technical Specifications Feature 2

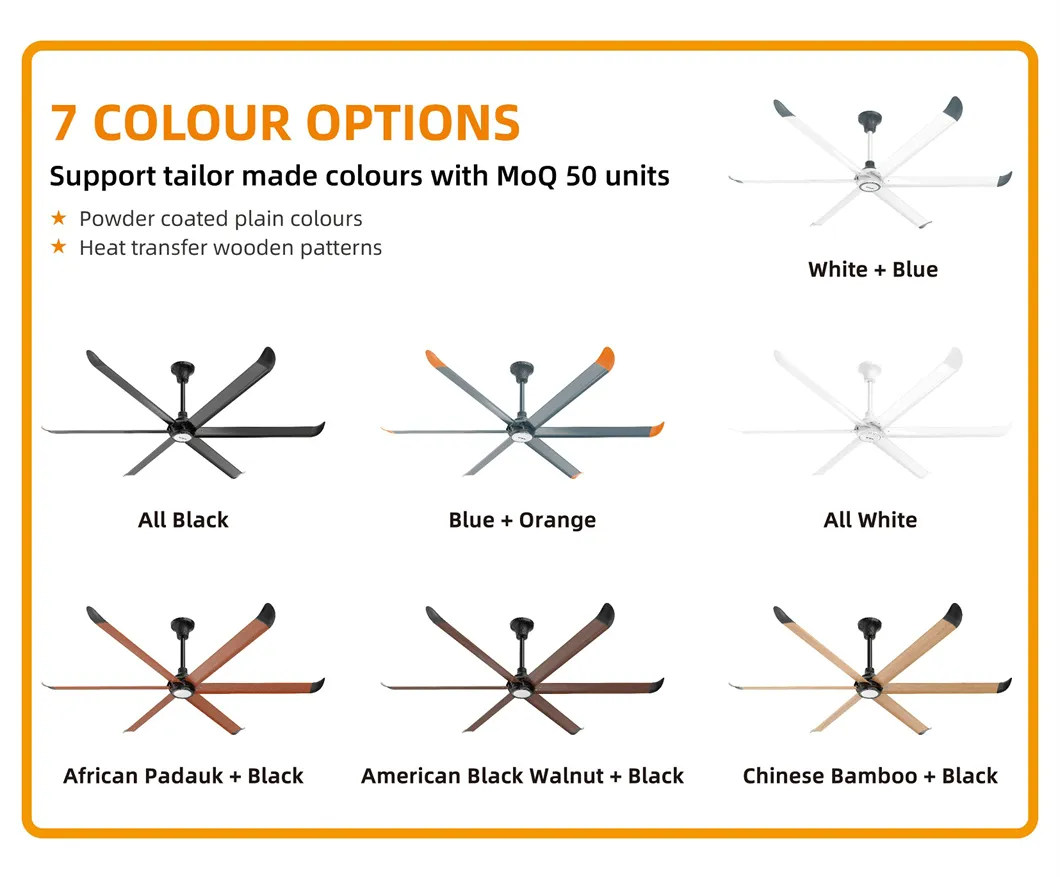

Vfans Technical Specifications Feature 3

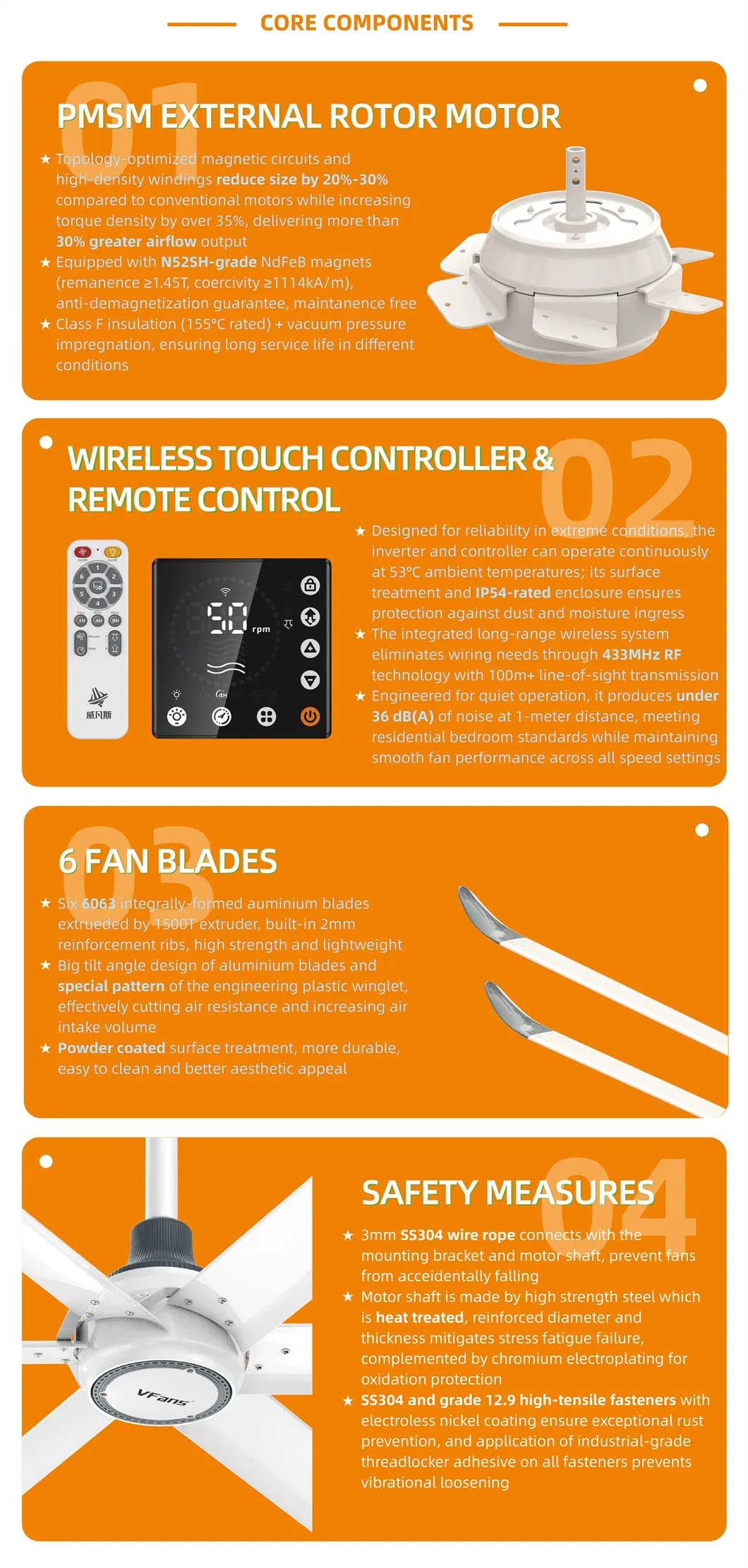

Vfans Technical Specifications Feature 4

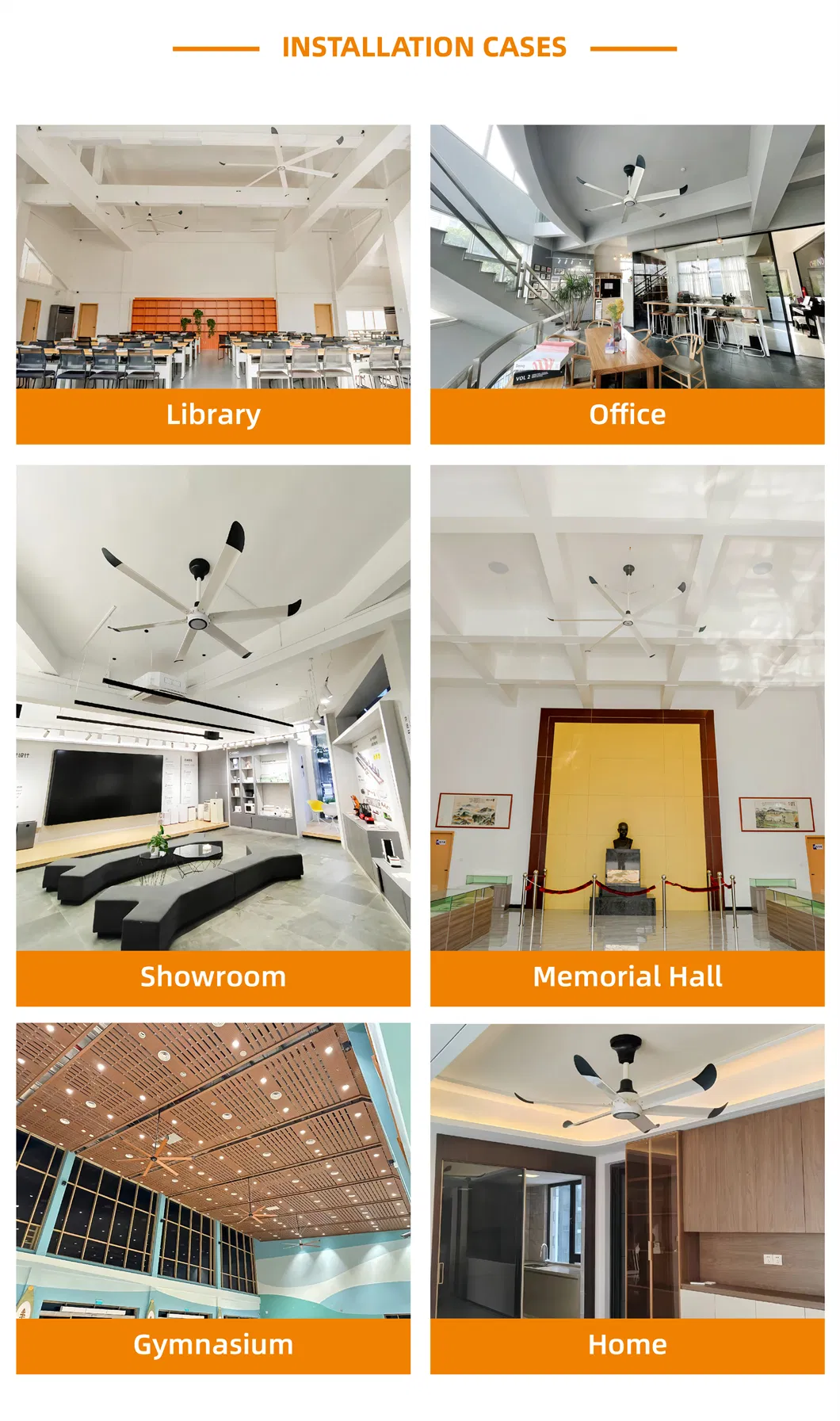

Vfans Technical Specifications Feature 5

Vfans Technical Specifications Feature 6

Vfans Technical Specifications Feature 7

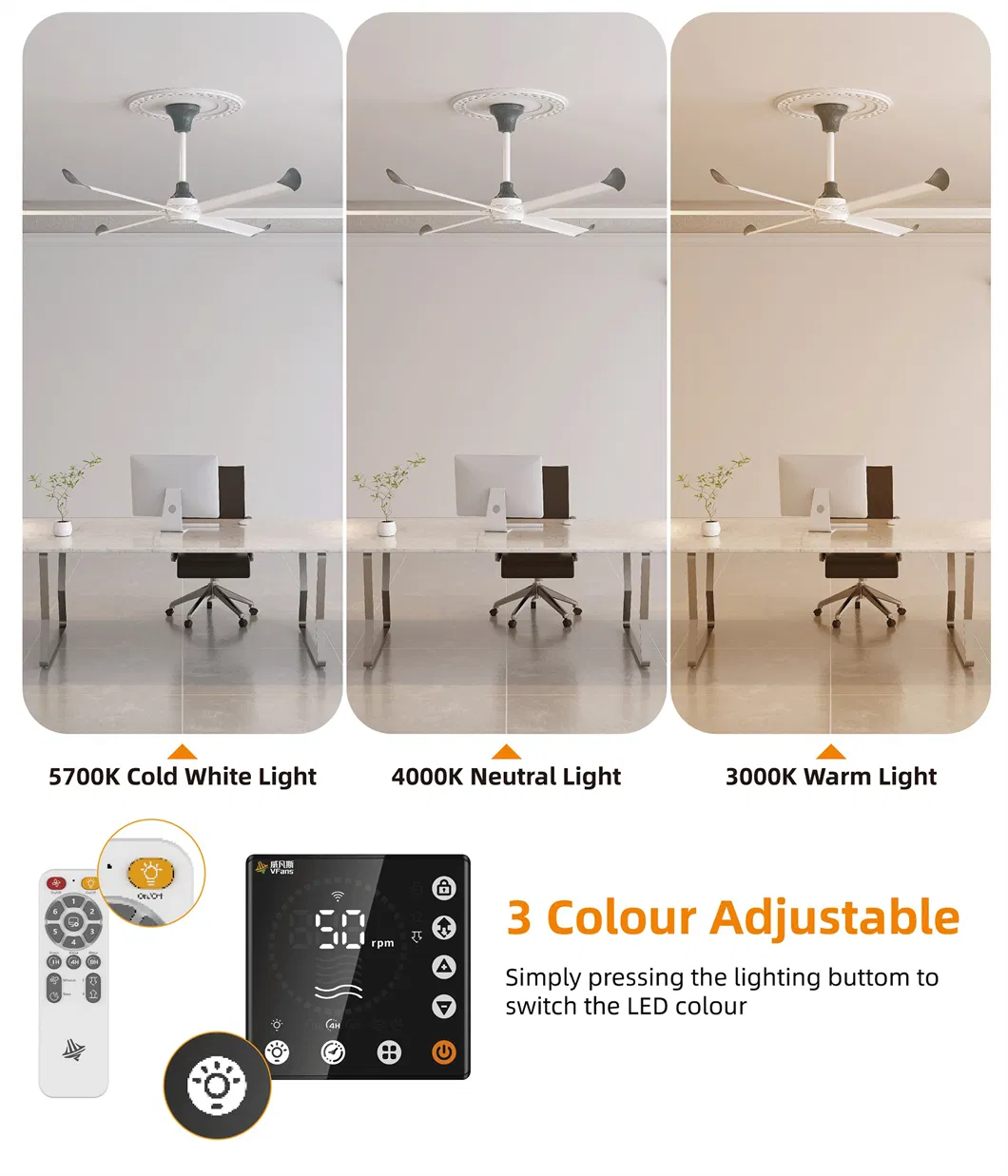

Vfans Technical Specifications Feature 8

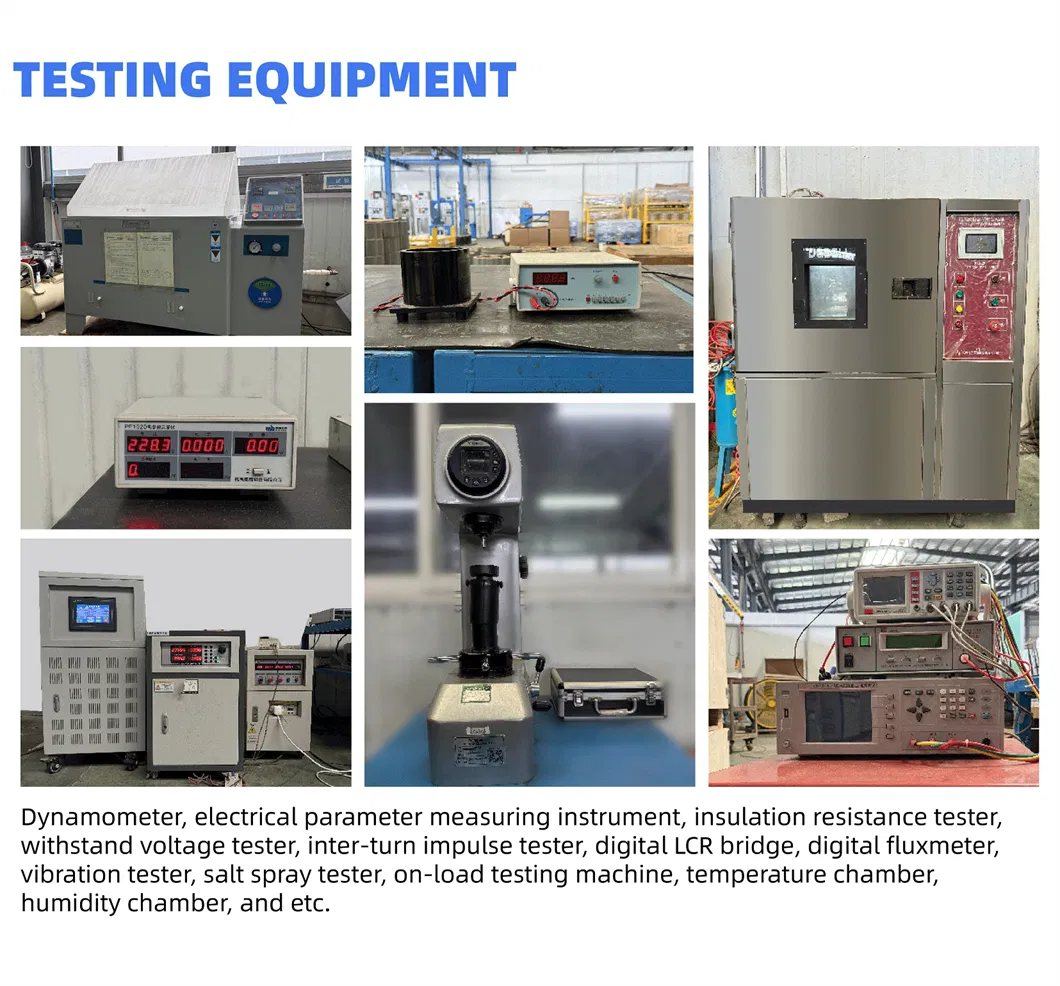

Certifications

Frequently Asked Questions

❓ What are the key features of the V150e series commercial ceiling fan?

The V150e series utilizes a high-efficiency PMSM DC external rotor motor which provides large air volumes while maintaining silent operations under 36dB. It features a modern 6-blade configuration and supports both remote control and wireless touch controls.

❓ What dimensions/sizes are available for this commercial fan?

The V150e fan series is available in four sizes: 1.5 meters (60 inches), 2.0 meters (80 inches), 2.5 meters (100 inches), and 3.0 meters (120 inches) to cover wind diameters ranging from 6 to 15 meters.

❓ What are the installation requirements and applications?

It is designed for ceiling mount installation. The fan is perfect for large spaces such as hotels, shopping malls, porches, school classrooms, restaurants, and other commercial venues requiring high air circulation.

❓ How quiet is the operation during maximum speeds?

Thanks to the PMSM DC External Rotor Motor, noise levels are kept well below 36dB across all sizes and speed ranges, ensuring minimal noise disruption.

❓ What certification does the V150e ceiling fan carry and what is its warranty?

The V150e is certified under ISO and CE international standards. It comes with a 2-year warranty and includes online support along with video technical support for setup and troubleshooting.
