Commercial Ceiling Fan 220V/380V Ceiling Fan for Gym and Business Premises

Customization: Available
Material: Aluminum Fan
Type: Cooling Fan

Product Description

  • Overview
  • Product Description
  • Detailed Photos
  • Application Scenarios
  • Company Profile
  • Functional Configuration
  • Exhibitions
  • Product Packing
  • FAQ
Basic Info
Model NO.
HDS-240D-32, HDS-300D-32, HDS-370D-32
Electric Current Type
AC
Mounting
Ceiling Fan
Certification
ISO, CE, CCC
Motor
Permanent Magnet
Blades
Aluminum 5/6PCS
Coverage Area
up to 1500 Square Meters
Effective Area
up to 850 Square Meters
Power
0.37kw 0.55kw 0.75kw 1.1kw
Voltage
220/380V
Transport Package
Wooden Case
Specification
2--7.3M
HS Code
8414591000
Production Capacity
3000PCS/Month
Product Description
Commercial Ceiling Fan 220V/380V Ceiling Fan for Gym and Business Premises
HDS series intelligent ceiling fans are a series of products specially developed for energy saving and consumption reduction and improvement of working environment comfort. The intelligent ceiling fan is driven by self-designed permanent magnet motor, featuring small volume, light weight, high efficiency, stepless speed regulation, compact structure and beautiful appearance. It is widely used in industrial workshop, logistics warehouse, waiting room, exhibition hall, gymnasium, commercial super and other tall space, as a common and intelligent machine for space ventilation and personnel cooling. It can push a large amount of airflow to the ground, forming a certain height of airflow layer horizontal movement on the ground, thus contributing to the overall air circulation, which is both environmentally friendly and energy-saving, similar to the natural breeze system, enjoy the intimate experience of natural wind.
Model HDS-240D-32 HDS-300D-32 HDS-370D-32
Voltage(V) 220/380 220/380 220/380
Frequency(Hz) 50/60 50/60 50/60
Diameter(m/ft) 2.4/8 3/10 3.7/12
Power (W) 300 300 300
Rotating Speed (rpm) 160 105 450
Air speed (m/s) 1-4.5 1-3.5 1-3
Air flow (m³/min) 2600 3300 4000
Noise (dB) 38 38 38
Coverage area(m²) 140 210 330
Other specifications and models can be customized according to customer needs.
Detailed Photos

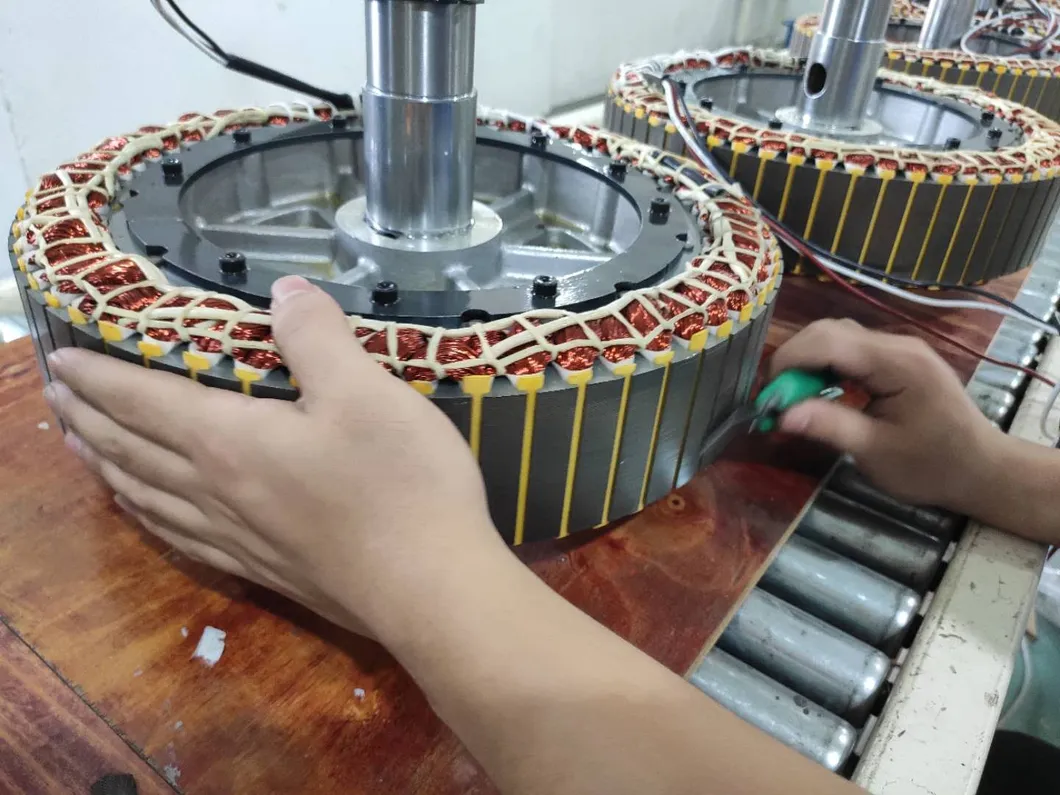

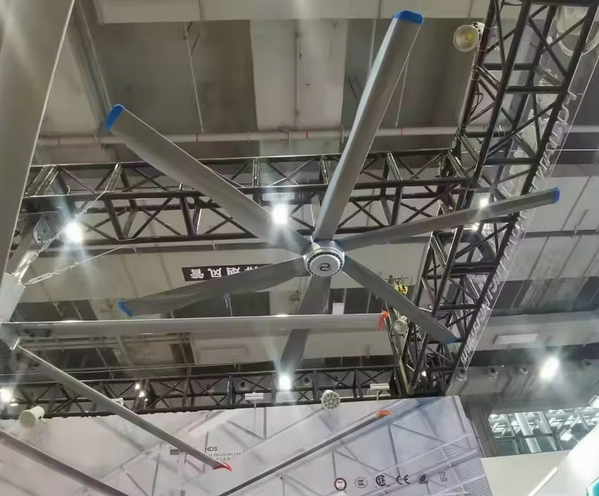

Commercial Ceiling Fan Detailed Photo 1

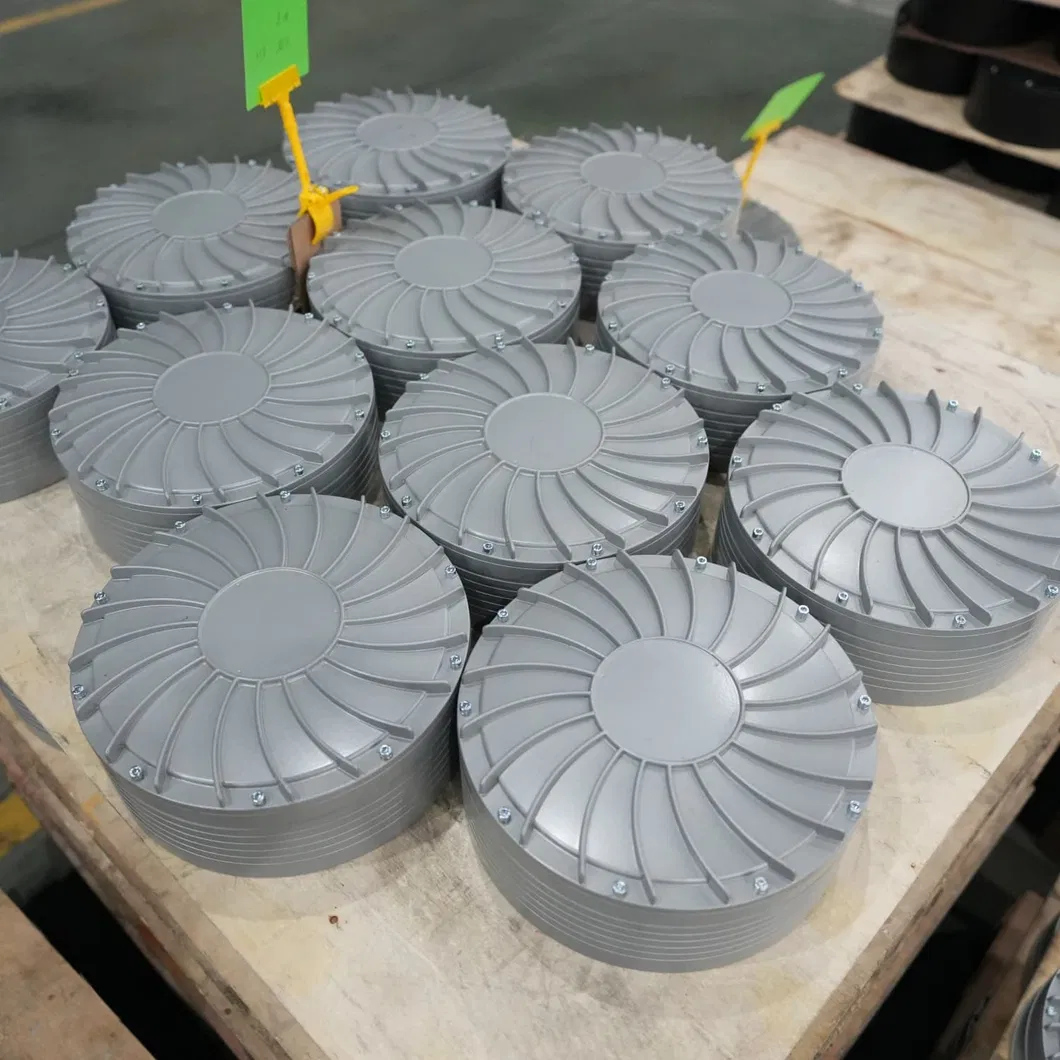

Commercial Ceiling Fan Detailed Photo 2

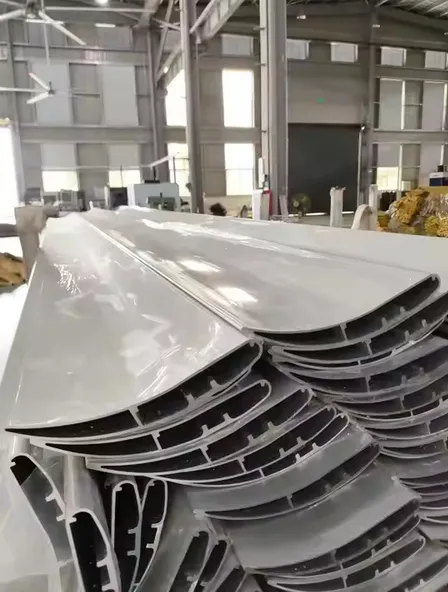

Commercial Ceiling Fan Detailed Photo 3

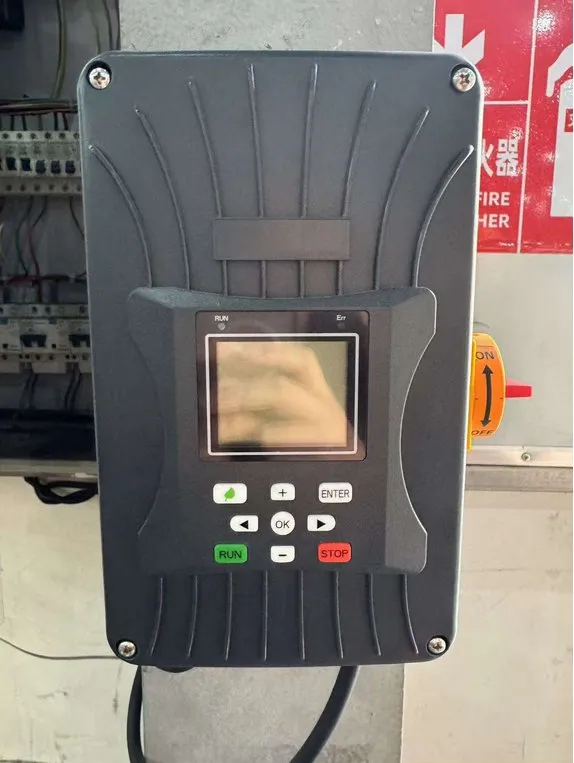

Commercial Ceiling Fan Detailed Photo 4
Application Scenarios

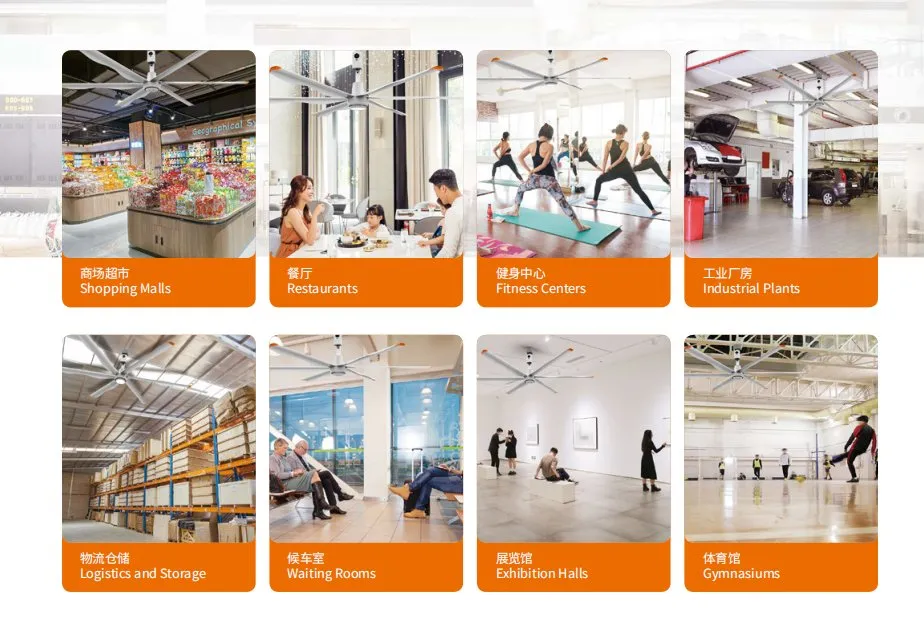

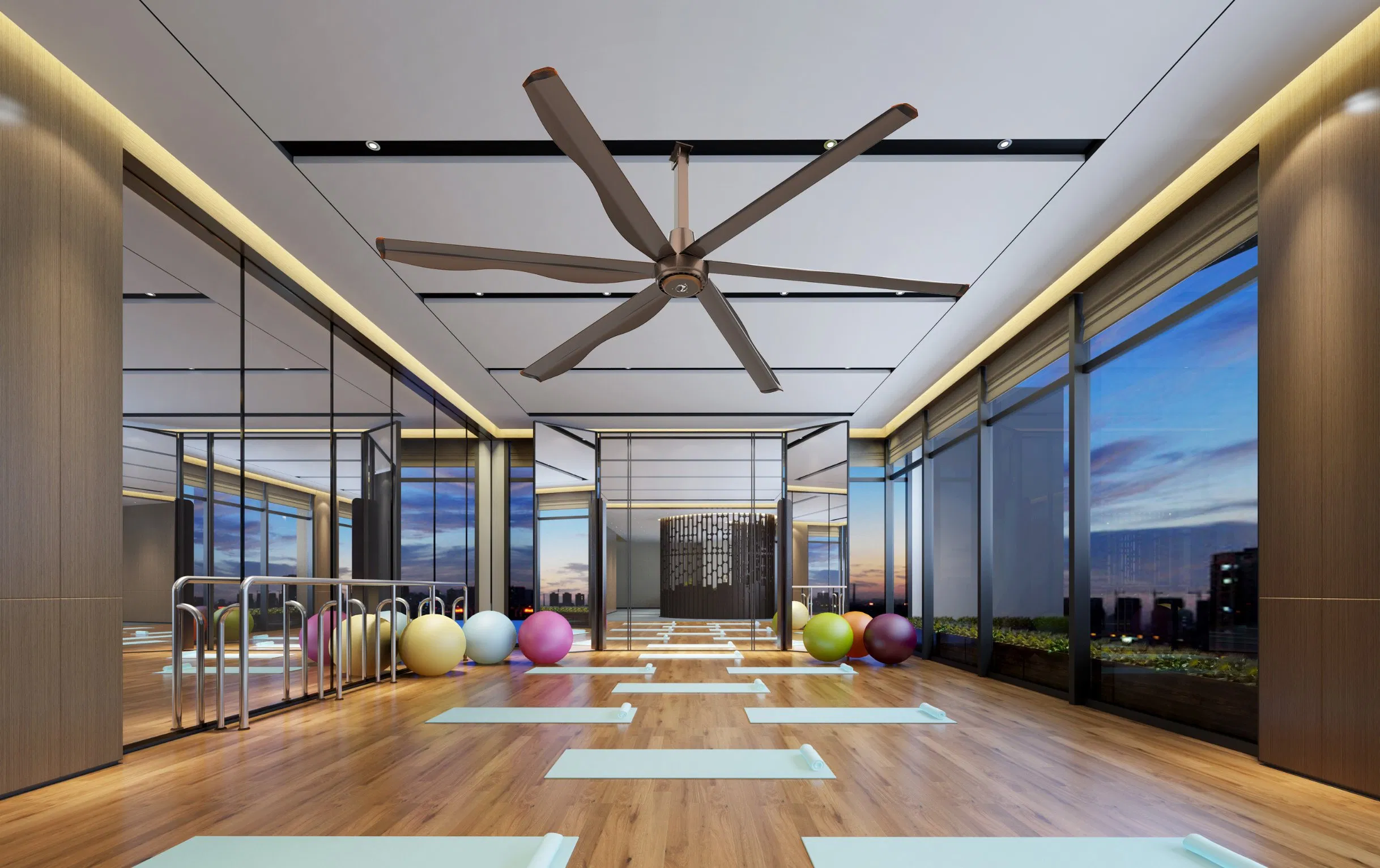

Commercial Ceiling Fan Application Scenarios
Company Profile

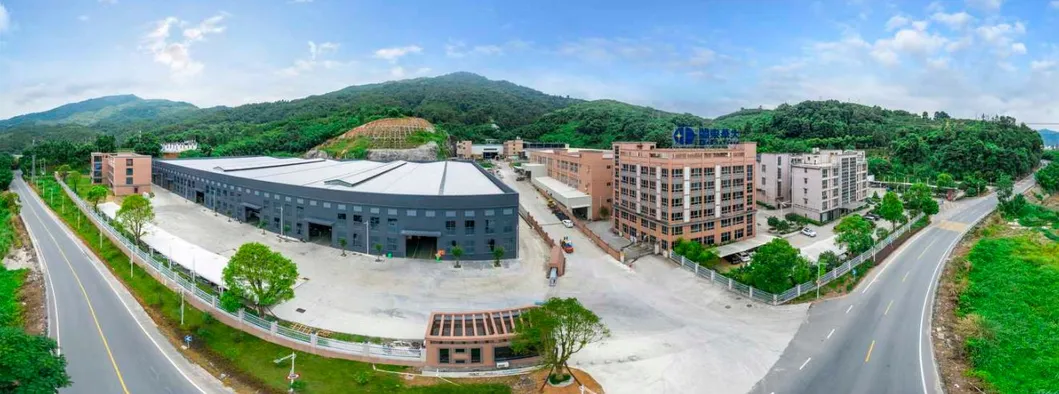

Company Facility
Founded in 2007, the company is an industrial and trade enterprise integrating scientific research, production, sales and service. Covering an area of 50,000 square meters and a building area of 50,000 square meters. It has a complete set of motor and fan production lines and testing equipment, advanced manufacturing technology and modern management level.
Since its establishment, the company has focused on the research and development and production of high-temperature motors, high-temperature fans, permanent magnet variable frequency ceiling fans, and servo motors. Strictly control the production process to create quality. The company has passed the safety standardization acceptance; ISO9001: 2008 quality management system certification, ISO14001: 2015 environmental quality system certification. The products have passed CCC certification, European CE certification, KC certification, RoHS certification, etc., and the products are sold well in the international market. The company has 16 utility model patents and appearance patents, and sincerely welcomes friends at home and abroad to visit.
Functional Configuration

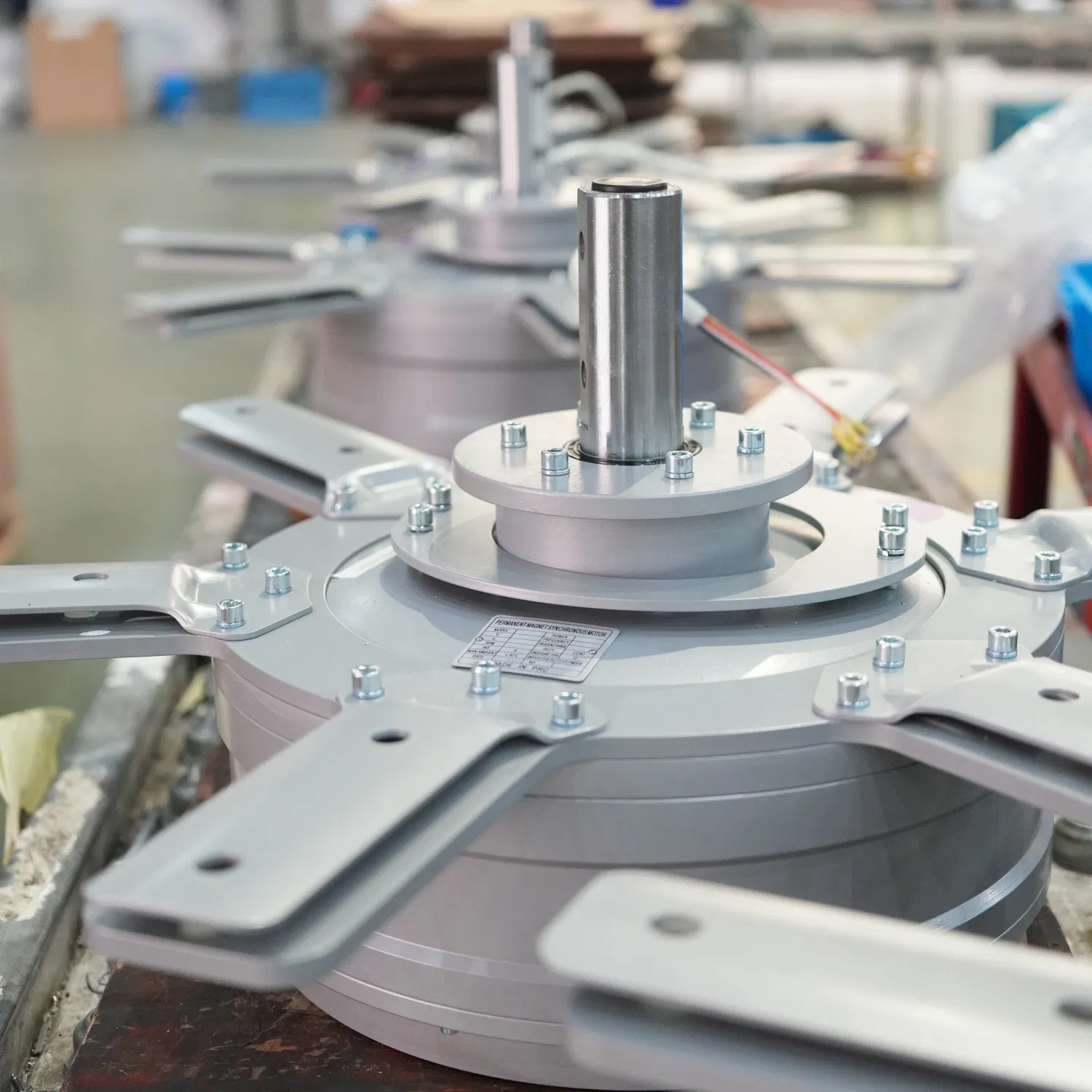

Operation of ceiling fan Adopt self-developed permanent magnet external motor.
Fan blade safety ring The latest technology to connect the fan blade into a whole, to avoid fan blade accidental fall.
Fan blade It is extruded by aluminum and magnesium alloy and has the advantages of high strength, good toughness, light weight, long life and safety.
Anti-stripping device Top safety, the fan blade, chassis and motor are connected as a whole, and anti-stripping plate plays a protective role to prevent any parts from falling off.
Tail fin High temperature resistant material is adopted to shape the product structure to be more beautiful. When the fan blade is running, air will generate vortex at the end of the airfoil fan blade.
Steel wire pulling and locking device High-altitude protection, the stress strength of each steel wire cable can reach 1000kg, and the fan can operate stably and reliably under the huge inertia generated by rotation.

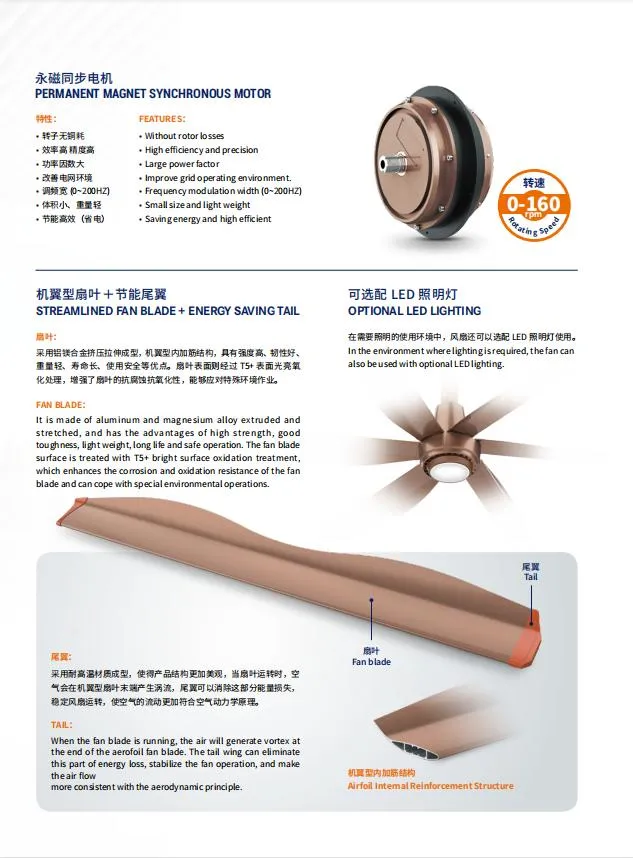

Functional Configuration Diagram
Exhibitions
Exhibition Booth
Exhibition Event 1
Exhibition Event 2
Certificates
Product Certificates
Product Packing

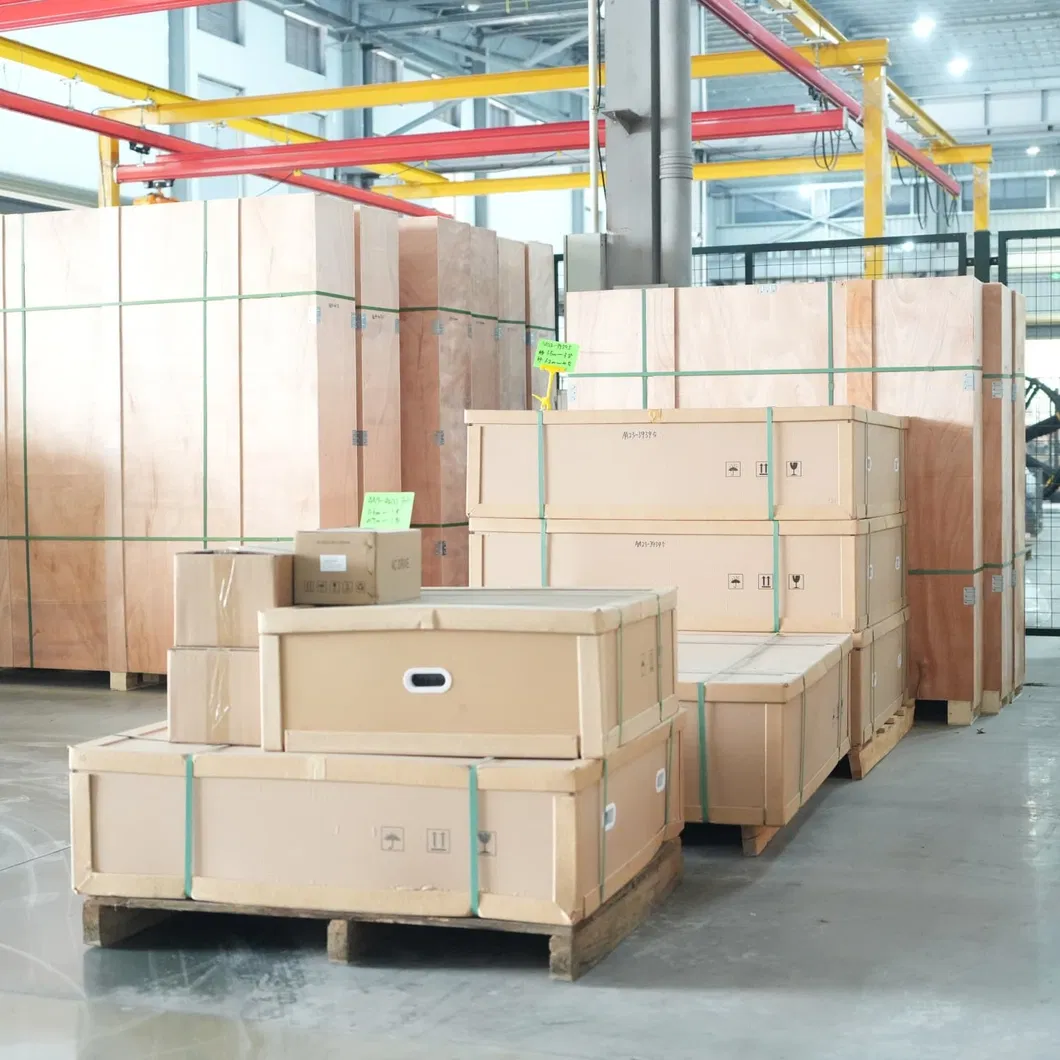

Product Packing Details 1

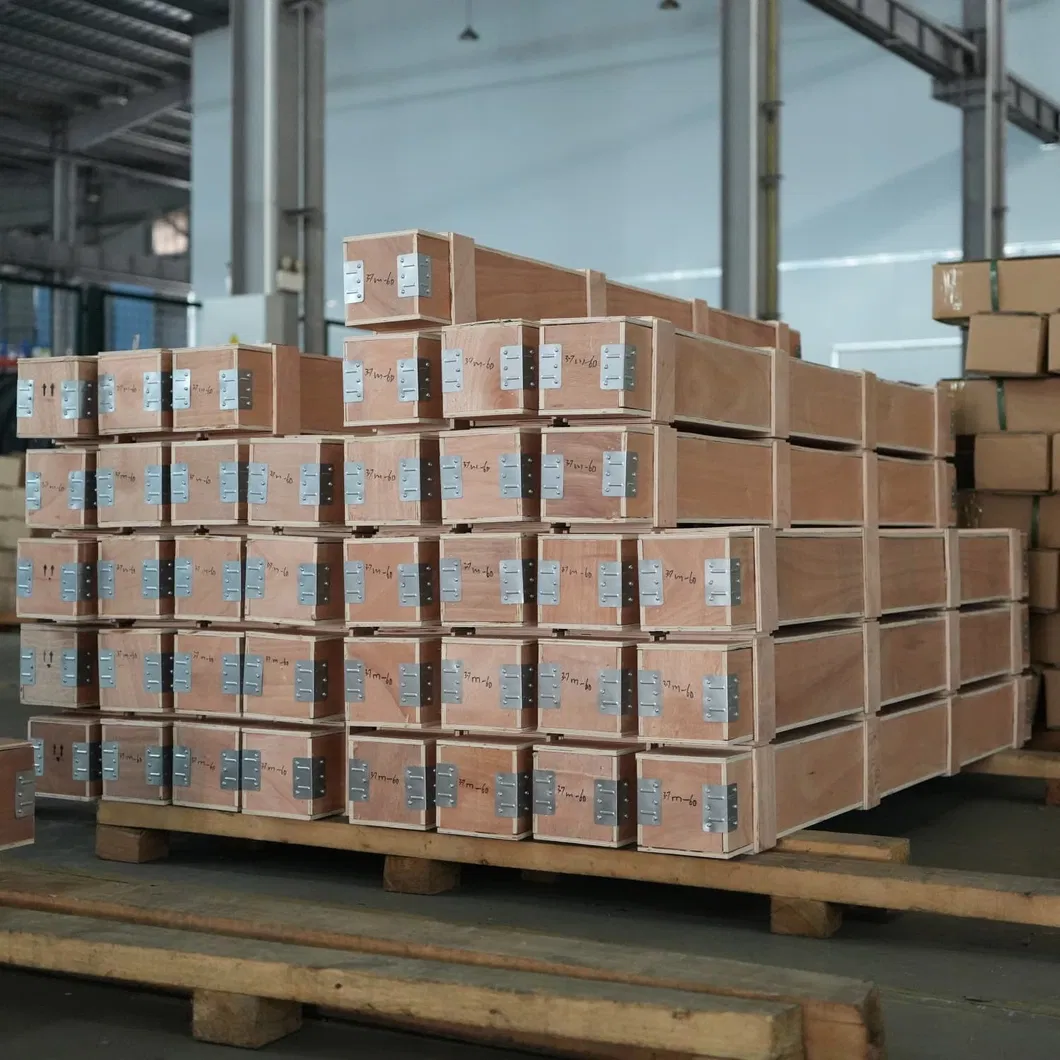

Product Packing Details 2

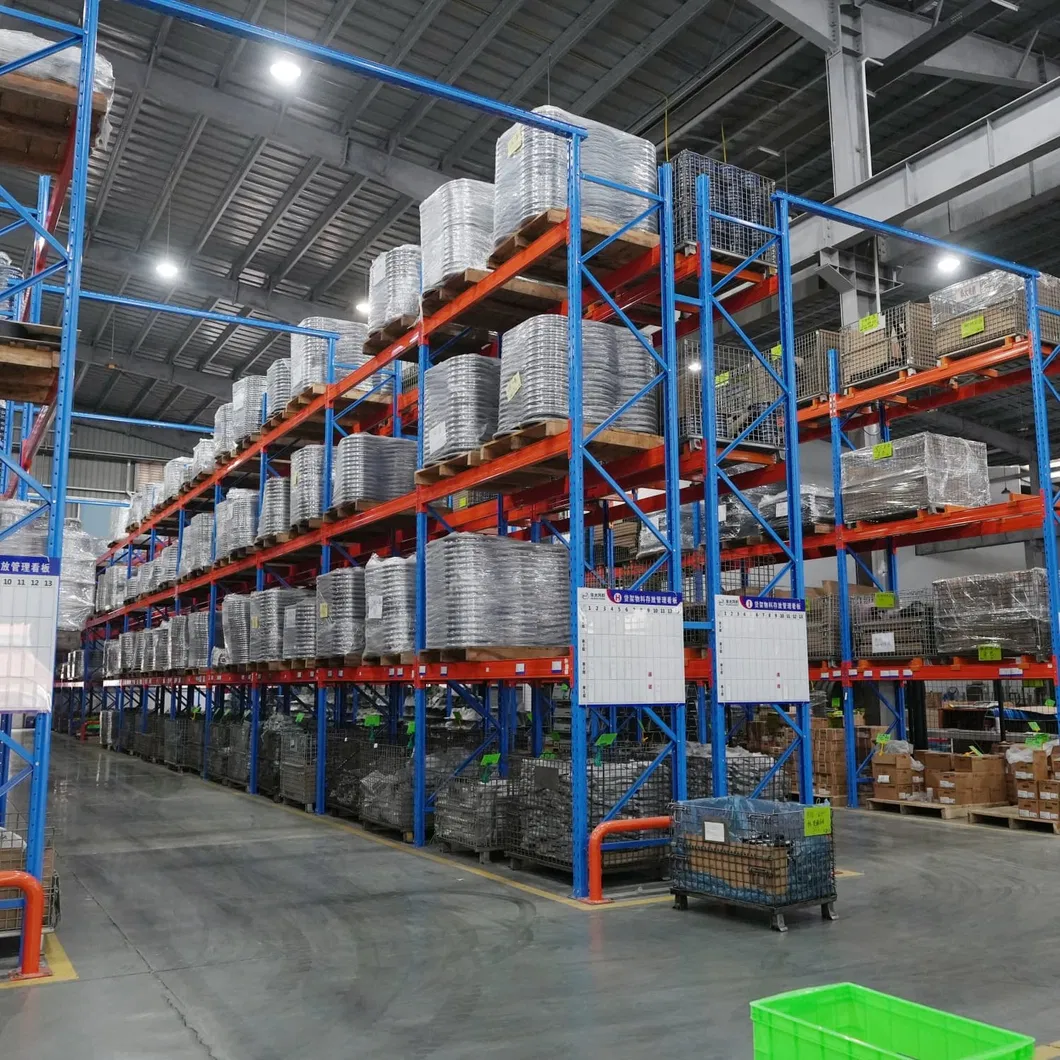

Product Packing Details 3

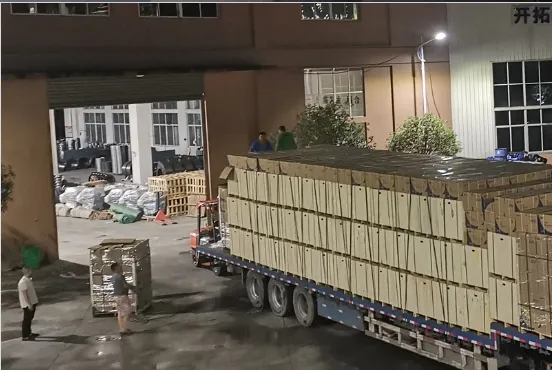

Product Packing Details 4

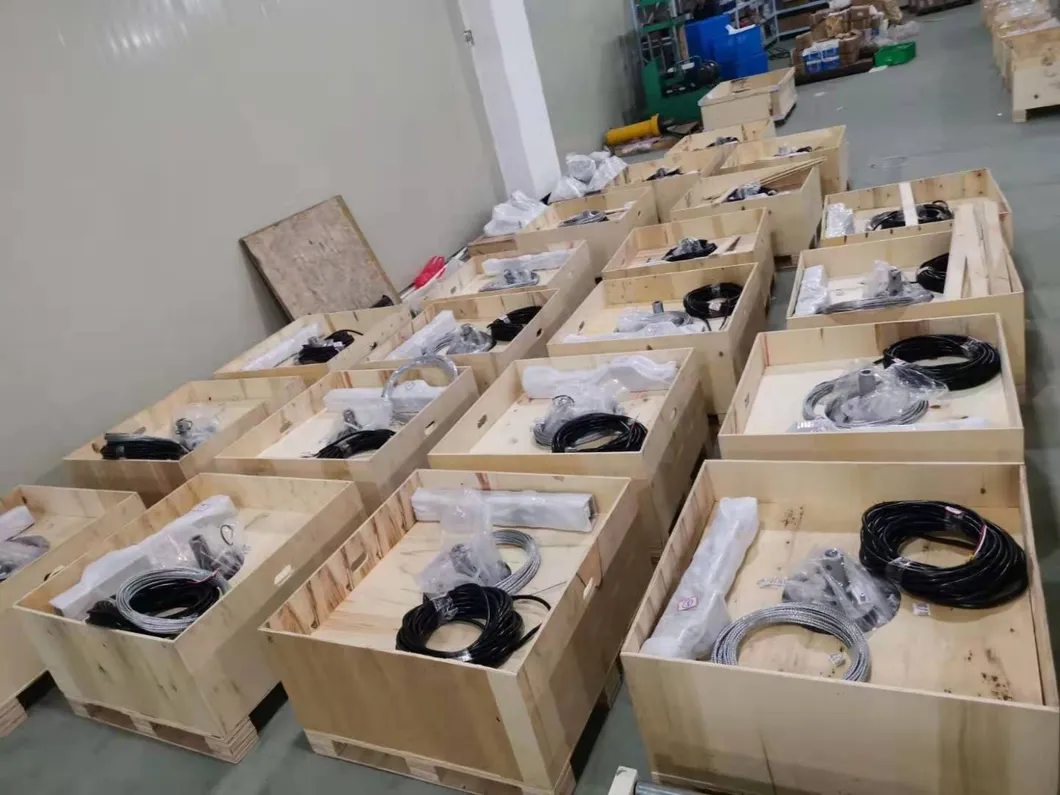

Product Packing Details 5

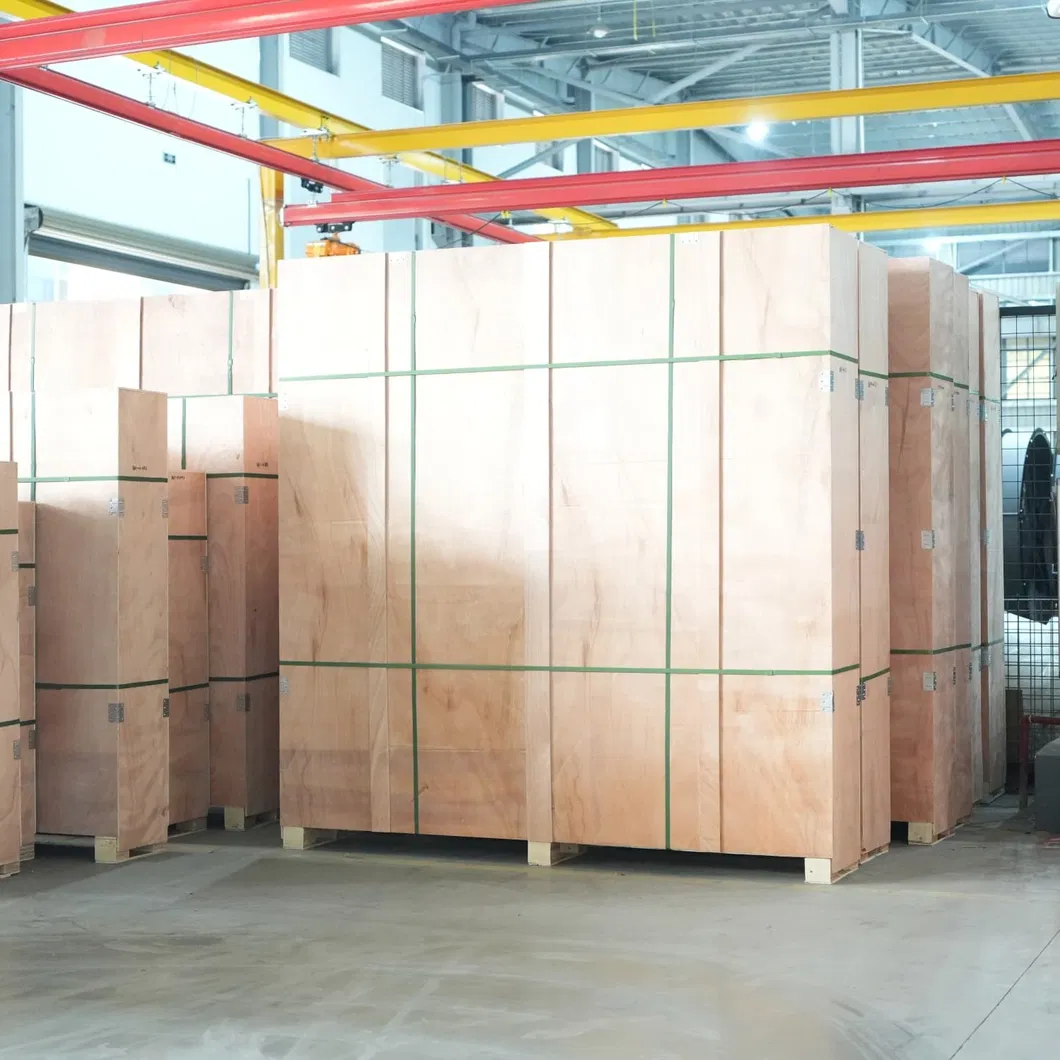

Product Packing Details 6
For easy transportation, the blades are packed separately from the motor and accessories, all are packed in wooden case.
FAQ
Are you a foreign trade company or a manufacturer?
Yes, we are a professional manufacturer. Our factory is specialized in Industrial Ceiling Fans, cooling fan, Exhaust Industrial Fan and so on.
Do you have quality certification for your products?
Our ceiling fans have been certificated to CE, KC, CCC and so on, the fans quality can be guaranteed.
Can you make my brand on products or provide OEM service?
Yes. We can provide OEM service. We are the OEM supplier for some famous companies.
What's your minimum quantity for order (MOQ)?
10PCS.
What's the delivery time?
Delivery time will be within 20 days after receipt payment by 100%TT.
How long is the warranty?
Our motor warranty is 3 years and the controller warranty is 18 months.
Welcome to consultation!
