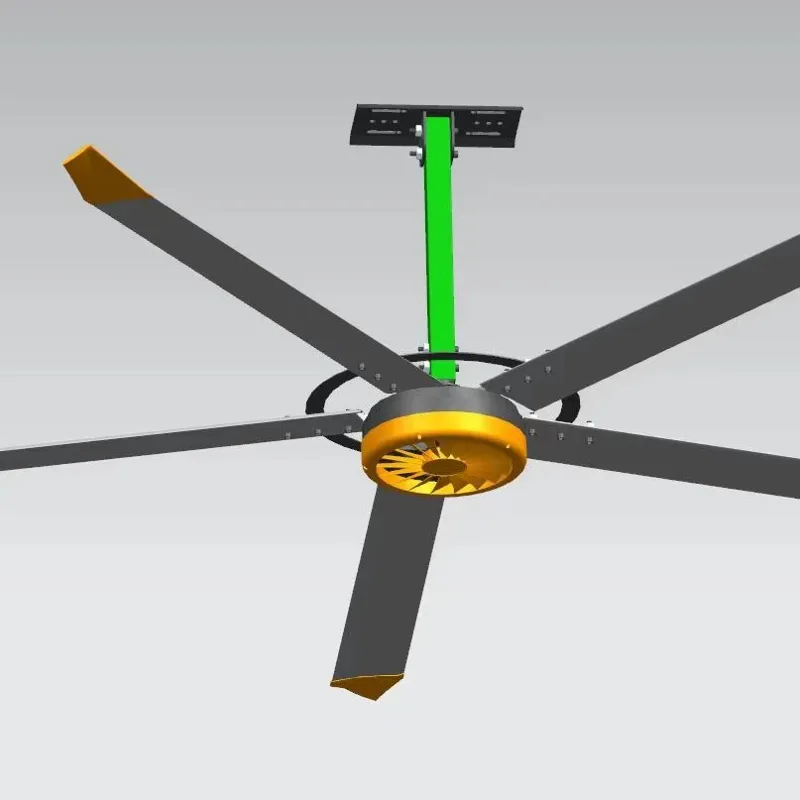

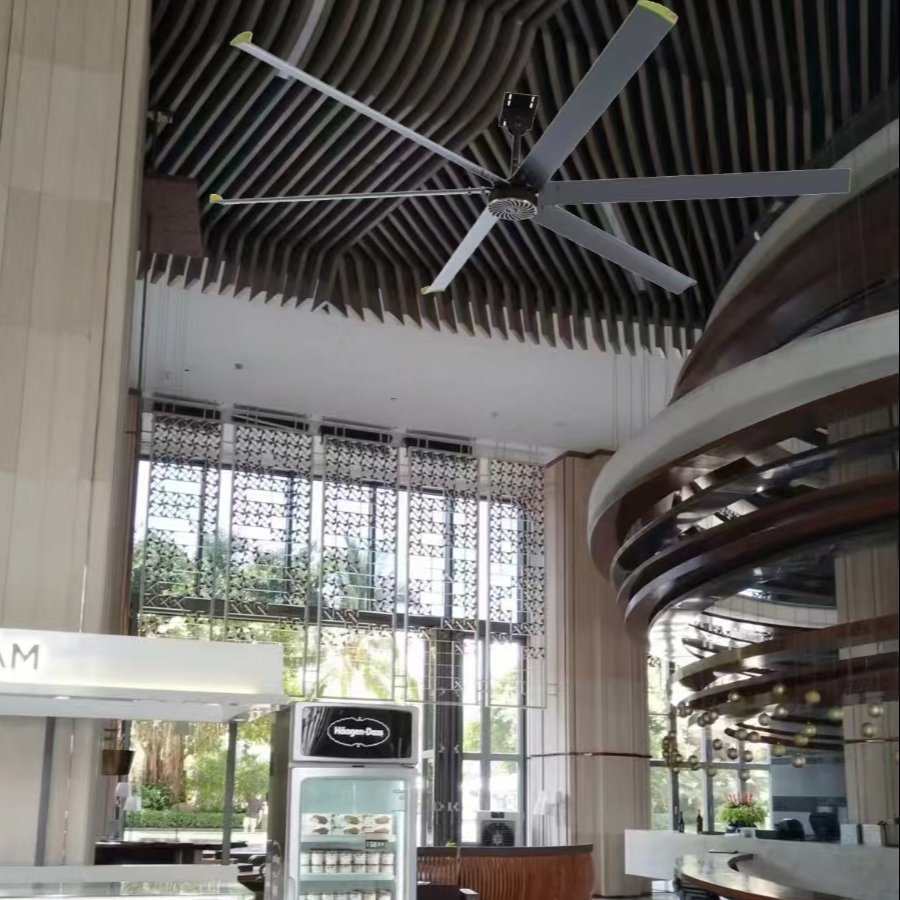

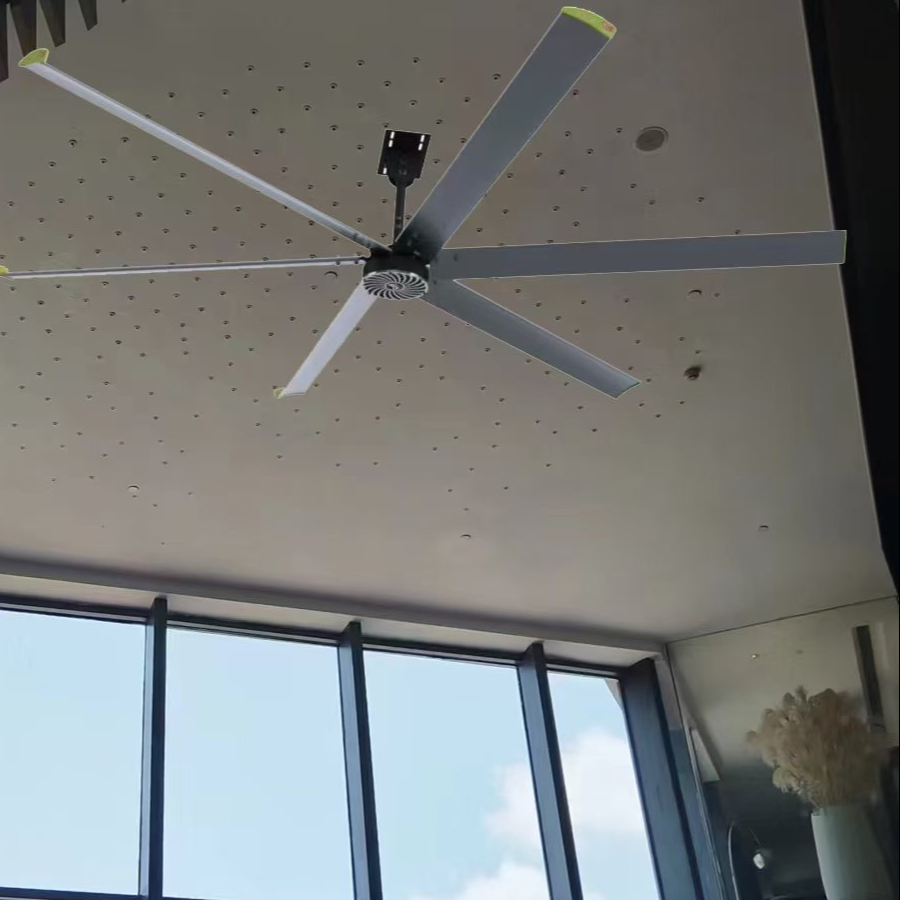

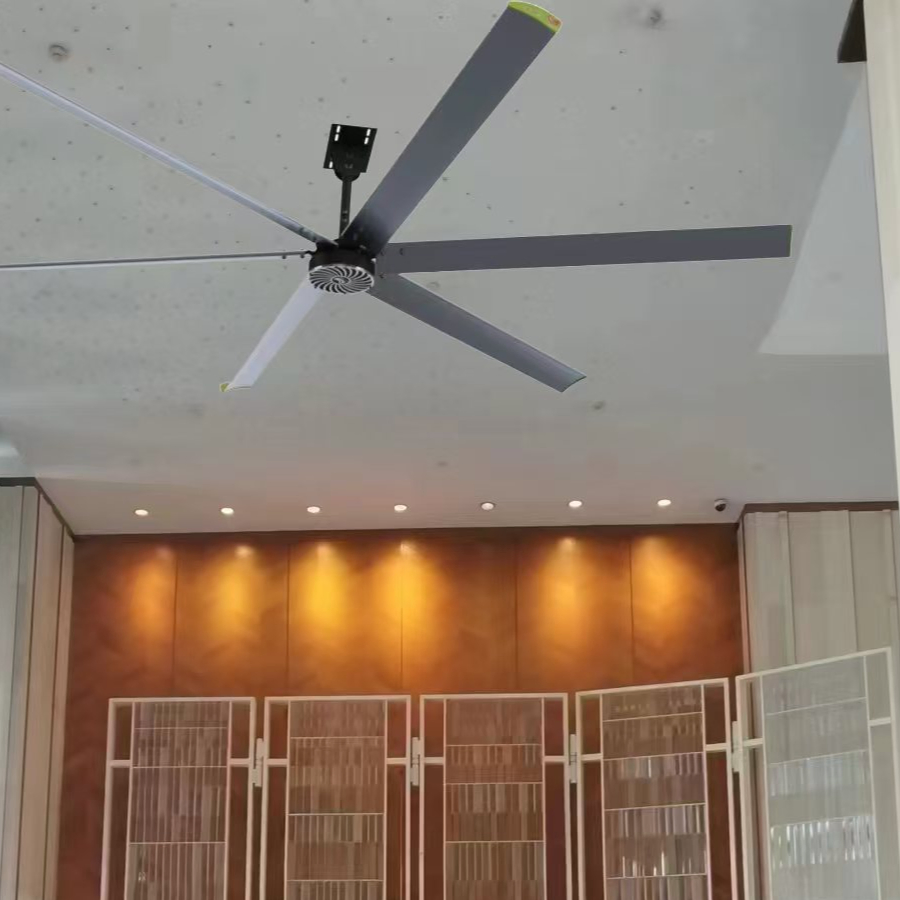

Industrial ceiling fans bring a large area of gentle breeze, achieving a natural three-dimensional airflow.
Achieves environmental dust removal effects when combined with ventilation equipment.
Keeps the indoor environment dry and reduces the growth of bacteria.
Low power consumption, saving about 90% energy compared to common small fans.

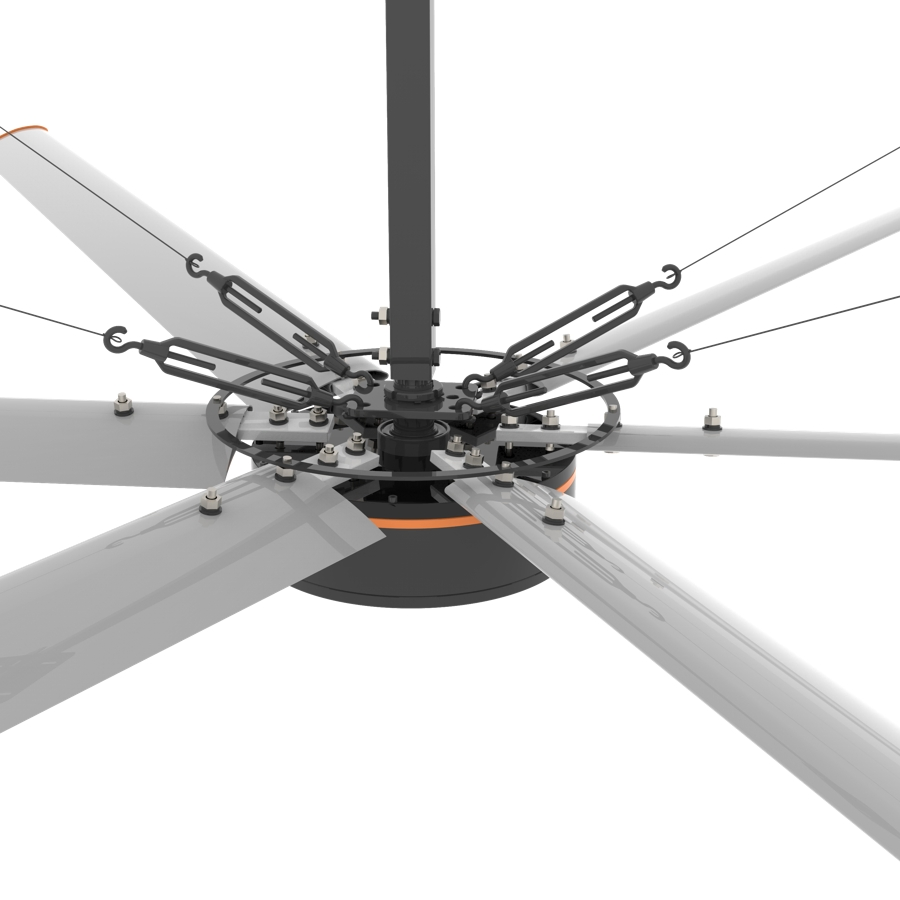

Five layers of safety protection measures ensure that the fan will not fall.
• High quality lightweight build, thickness 2mm
• Exceptional rigidity, strength and toughness
• High resistance to corrosion and fatigue

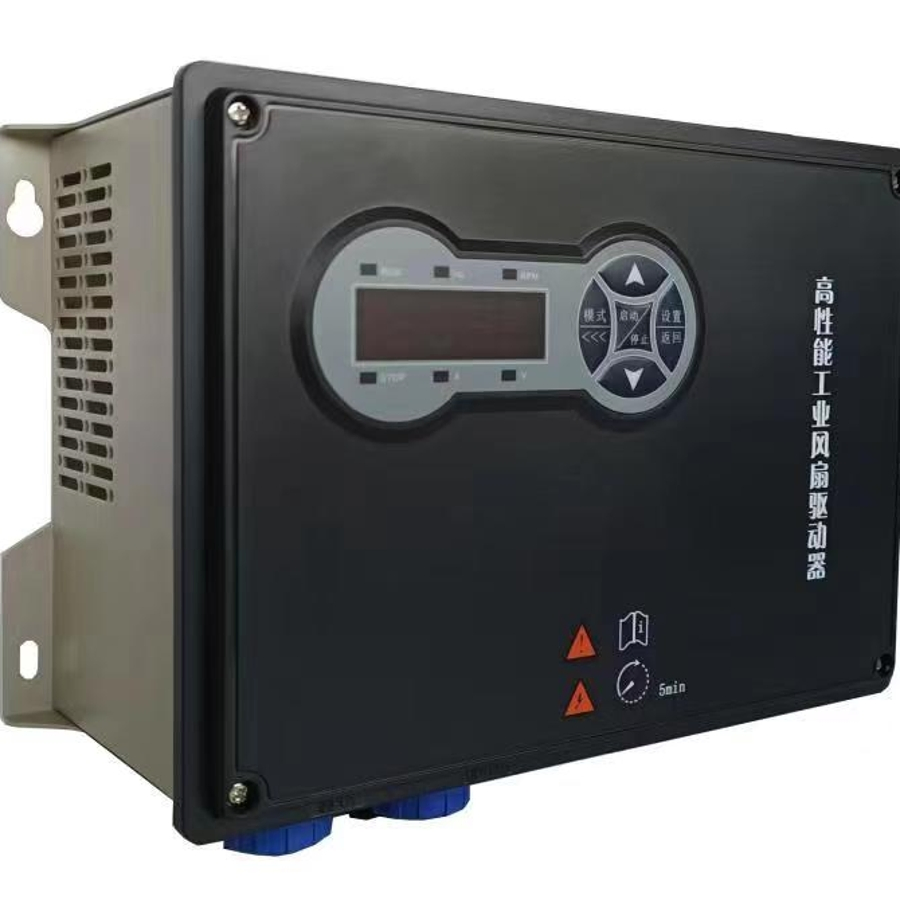

• Overload, voltage surge, and phase loss protection
• High rigidity, low loss, and high efficiency design
• Effectively suppresses operational noise and vibration
• IP54 certified enclosure, highly energy-saving
• Natural cooling system for rapid heat dissipation
• Gearless structure ensures high transmission efficiency
• No lubricating oil required, completely maintenance-free
• IP55 industrial level rating, efficient and energy-saving
| Parameter | Model | ||||
|---|---|---|---|---|---|
| SYP-37 | SYP-48 | SYP-55 | SYP-61 | SYP-73 | |
| Diameter | 3.7m (12FT) | 4.8m (16FT) | 5.5m (18FT) | 6.1m (20FT) | 7.3m (24FT) |
| Power | 0.50KW | 0.75KW | 0.90KW | 1.2KW | 1.5KW |
| Speed | 90RPM | 80RPM | 75RPM | 70RPM | 70RPM |
| Voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Current | 2.3A/1.3A | 3.4A/1.9A | 4.1A/2.4A | 5.5A/3.2A | 6.8A/3.9A |
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Weight | 55KG | 70KG | 80KG | 105KG | 120KG |
| Coverage Area | 400m² | 600m² | 800m² | 1000m² | 1200m² |
| Air Volume | 6800m³/m | 8800m³/m | 10800m³/m | 11800m³/m | 13800m³/m |

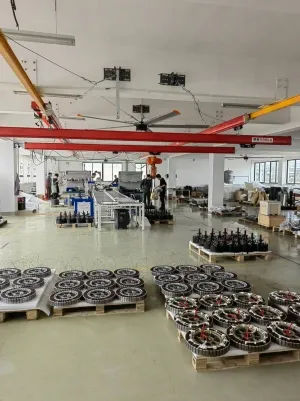

We are a dedicated manufacturer specializing in high-volume, low-speed (HVLS) industrial fans since 2014.
Yes, we provide OEM customization services subject to our minimum order quantity (MOQ) requirements.

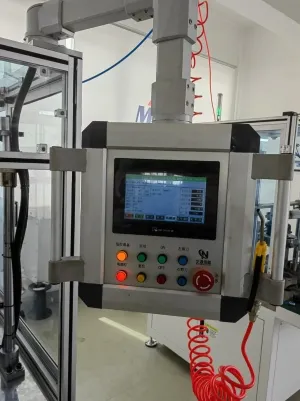

All products undergo rigorous testing before delivery. We offer a comprehensive 3-year warranty for the complete fan unit.
Typically, we require a 50% deposit in advance via T/T, with the remaining balance due before shipment.
Generally, the lead time is within 10 days after order confirmation.
Our minimum order quantity (MOQ) is 1 piece.
