Hvls Big Commercial Aluminum Ceiling Fans for Philippines

Customization:	Available
Material:	Aluminum Fan
Blade Material:	Aluminum

Send Inquiry

Product Description

Basic Info

Model NO. AF-LC-5 AF-LC-7 AF-LC-6

Type Ventilation Fan

Electric Current Type AC

Mounting Ceiling Fan

Certification CE

Transport Package Plywood Case

Origin China

HS Code 8414599099

Product Description

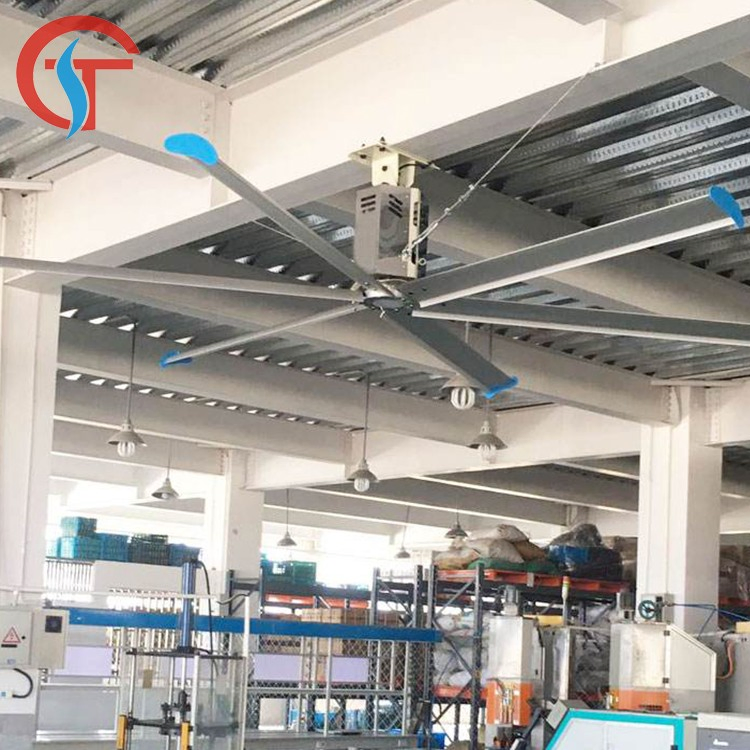

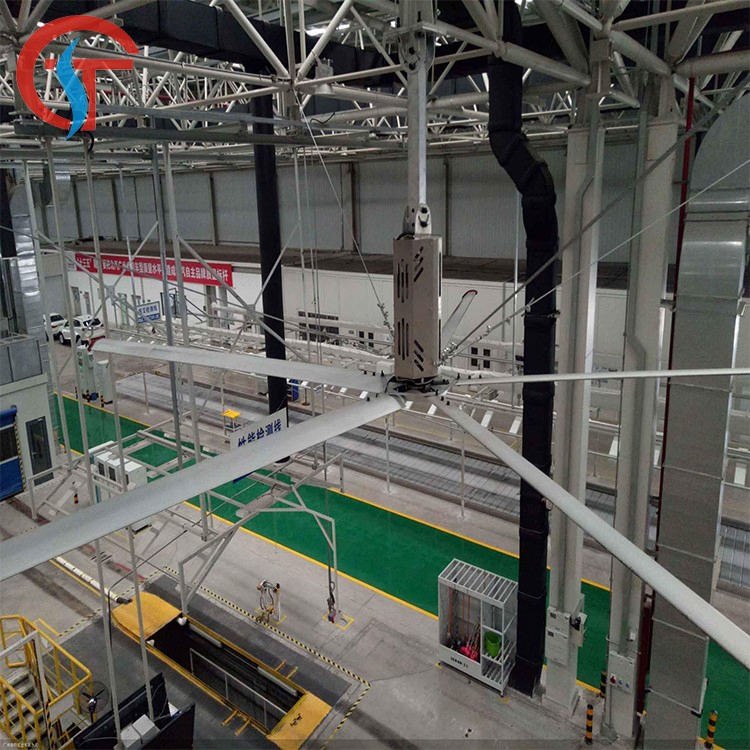

HVLS Commercial Ceiling Fans are designed to be some of the most efficient and durable fans in the industry. High-volume low-speed ceiling fans help reduce energy consumption and are ideal for large commercial buildings, manufacturing facilities, processing and assembly plants, warehouses, or any other large indoor or outdoor facility.

Key Advantages

High efficiency airflow design for optimal ventilation
Low operating cost and free maintenance requirements
Large application area coverage for diverse environments

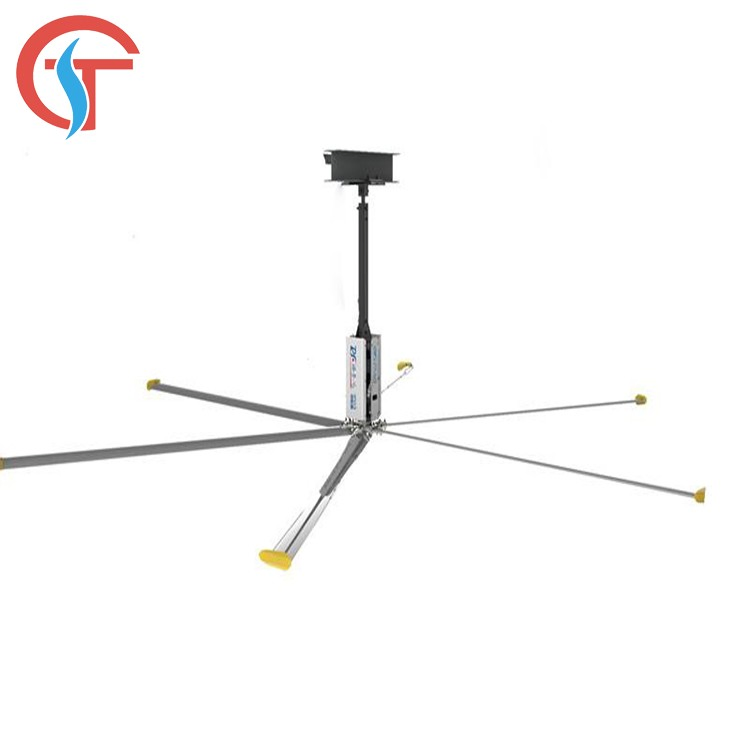

Advanced 5-Blade design that produces more CFM at a lower RPM
Provides a cool breeze in summer and redistributes heat in the winter

Technical Data Sheet

Diameter (m) Ft	Motor Power (KW) Ph	Speed (RPM)	Air Volume (m³/Min)	Current (A) 380V	Weight (Kg)	Noise (dBA)
7.3 (24')	1.5/2.0	20-53	13200	3.23	128	45
6.1 (20')	1.5/2.0	20-53	11200	2.52	125	45
5.5 (18')	1.5/2.0	20-64	9200	2.32	116	45

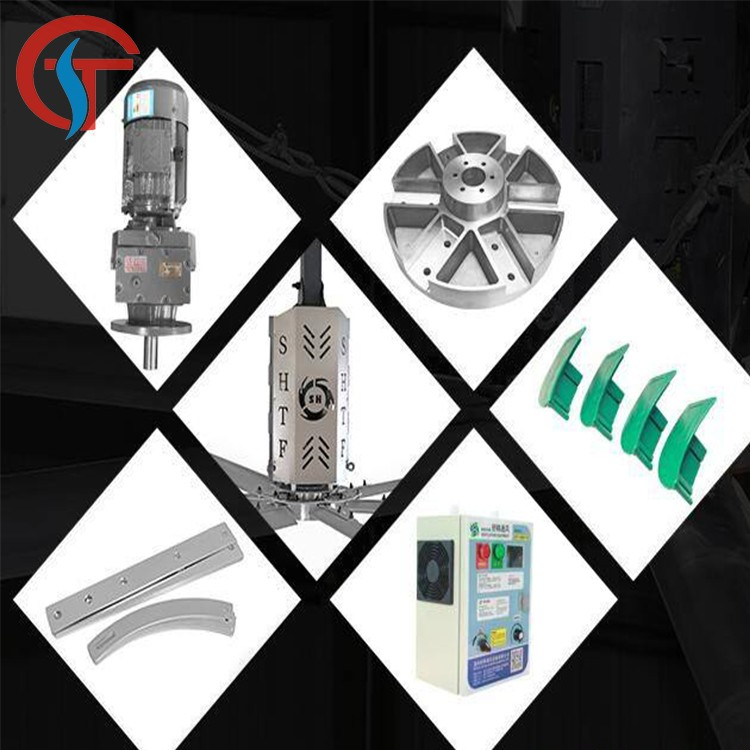

Detail Specifications

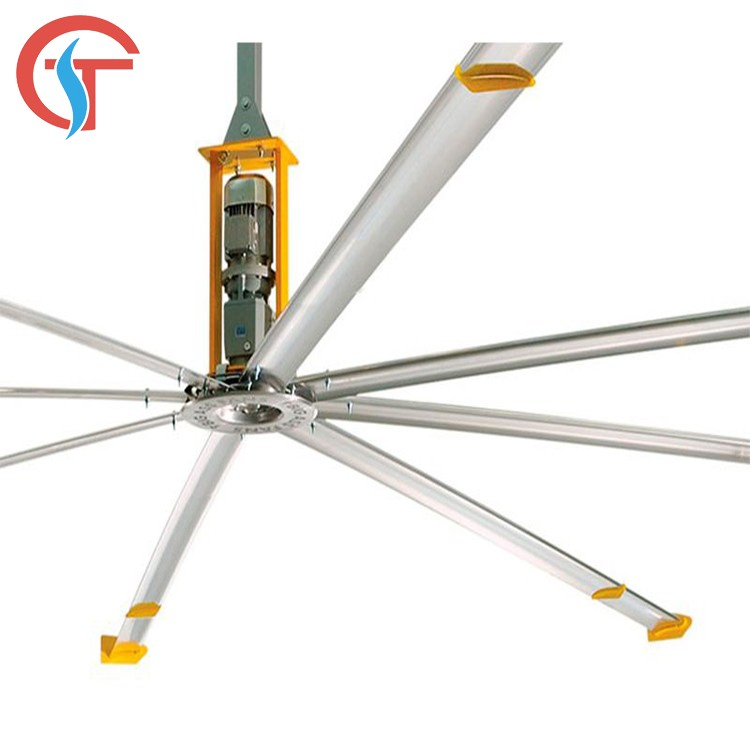

Motor

Special design German NORD motor featuring an original NORD reducer.

Blade

High quality aluminum-magnesium alloy 5-piece blades designed to ensure max airflow, efficiency, and treated with a fluorocarbon coating.

Blade Clips

Constructed from high quality aluminum-magnesium alloy, featuring double length plug-in design to avoid blade detachments.

Chassis

Built with 7075 superhard alloy, processed via 1600T high pressure forging and T6 heat treatment.

Control Box

Equipped with a Danfoss brand control unit bearing high carrier frequency to reduce motor zing and improve control pulse quality. IP55.

Safety Device

Utilizes DIN933 Grade 12.9 standard bolts, DIN125A locknuts, 6mm hot-dip galvanized safety rope, and anti-off shaft & hub locking.

Installation Conditions

Safety Protection Features

1 Safety Ring: Prevents components from falling in the unlikely event of structural damage.
2 Anti-falling Loop-shaped Device: Integrates all fan blades securely into the central fan hub.
3 12.9 Level Fasteners: Assembled strictly using high-strength industrial-grade bolts.
4 Stainless Wire Protection: Includes safety wire protection with a high strength capacity of up to 1000KGS per wire.
5 Emergency Stop System: Automatically triggers alarms and halts operations during emergencies, managed by the Danfoss control unit.

Frequently Asked Questions (FAQ)

What is an HVLS Commercial Ceiling Fan?

HVLS stands for High-Volume Low-Speed. These fans are designed to move a substantial volume of air at slow rotational speeds. They are ideal for circulating air efficiently in large industrial and commercial spaces.

How does the 5-blade design benefit airflow performance?

The advanced 5-blade configuration allows the fan to produce higher CFM (Cubic Feet per Minute) of airflow at a much lower RPM, saving energy while maintaining consistent air movement.

What kind of motor and control systems are equipped?

The system features a premium German NORD motor with an original NORD reducer. It is managed by an IP55-rated Danfoss control box designed to eliminate motor noise and regulate signals.

Can this ceiling fan be used in both summer and winter?

Yes, the fan is designed to operate year-round. It creates a cooling wind-chill effect during the summer and pushes down warm air trapped at the ceiling level during the winter.

What safety measures are integrated into the product?

Safety is managed by multiple levels of protection: safety rings, anti-falling loop-shaped blade locks, grade 12.9 high-strength bolts, and a 6mm hot-dip galvanized wire rope with a 1000KGS strength rating.
