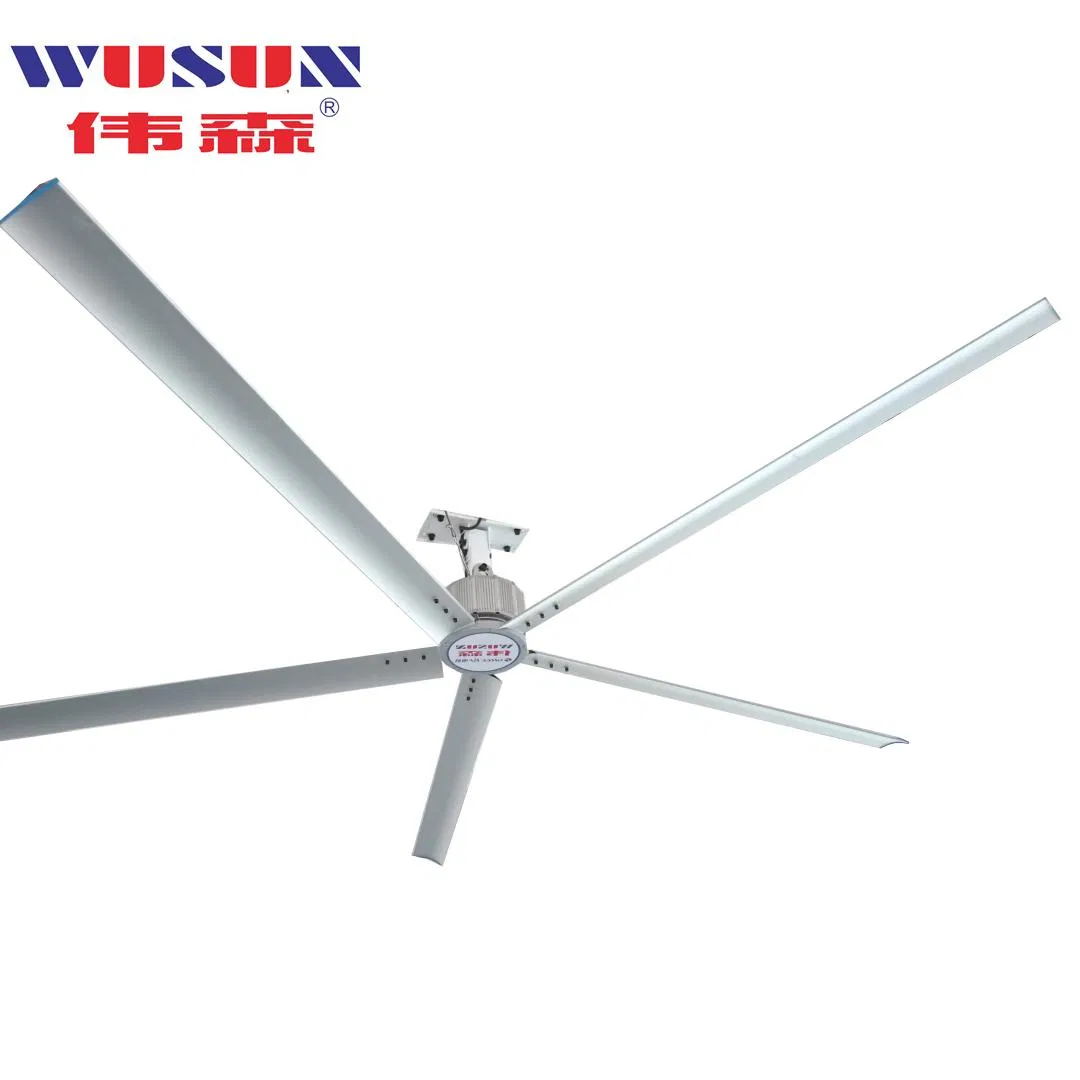

Gree Wusun Big Ass Fan Price - 14FT Heavy Duty Industrial Ceiling Fan for Commercial Warehouse Cooling

1 / 5

Gree Wusun Big Ass Fan Price - 14FT Heavy Duty Industrial Ceiling Fan for Commercial Warehouse Cooling

Send Inquiry

Product Description

Heavy Duty Industrial Ceiling Fan for Commercial Warehouse Cooling

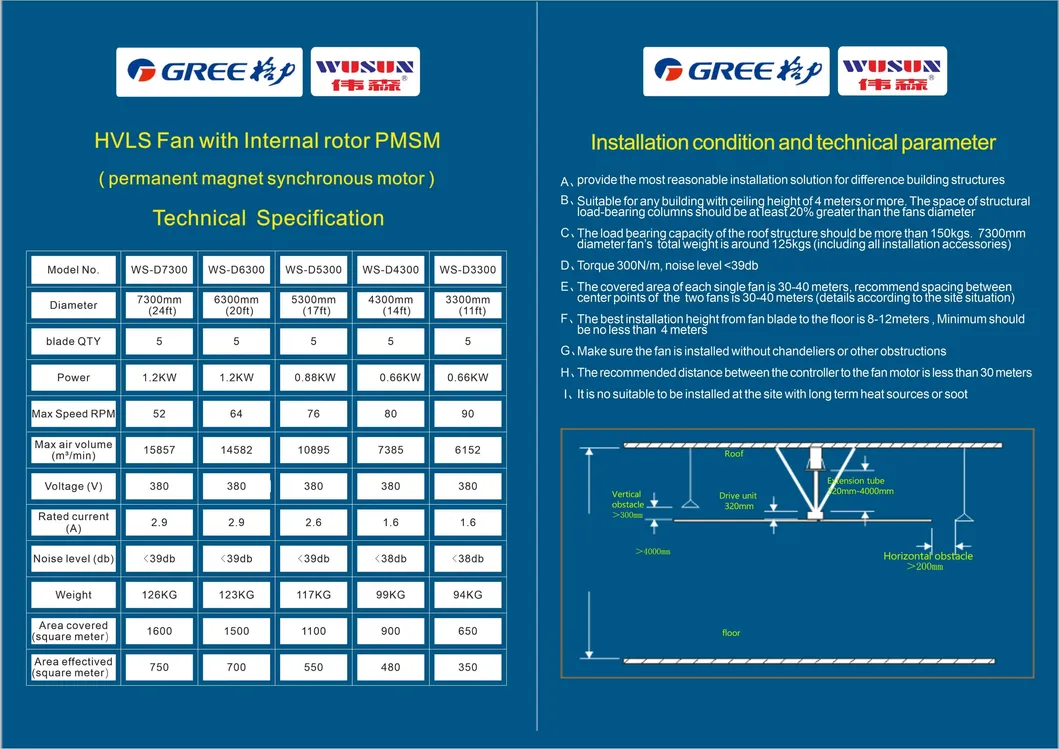

Technical Specifications

Model No.	WS-D7300	WS-D6300A	WS-D6300B	WS-D5300	WS-D4300	WS-D3300
Diameter	7300mm (24ft)	6300mm (20ft)	6300mm (20ft)	5300mm (17ft)	4300mm (14ft)	3300mm (11ft)
Blade QTY	5	5	5	5	5	5
Power (kW)	1.2KW	1.2KW	0.88KW	0.88KW	0.66KW	0.66KW
Max Speed (RPM)	52	64	58	76	80	90
Max Air Volume (m³/min)	15857	14582	11953	10895	7385	6152
Voltage (V)	380	380	380	380	380	380
Rated Current (A)	2.9	2.9	2.6	2.6	1.6	1.6
Noise Level (dB)	<39db	<39db	<39db	<39db	<38db	<38db
Area Covered (㎡)	1600	1500	1300	1100	900	650
Area Effected (㎡)	750	700	650	550	480	350
Weight	105 kgs	99 kgs	92 kgs	86 kgs	66 kgs	60 kgs

Product Performance & Features

Heavy Duty Industrial Ceiling Fan Showcase

Industrial Cooling Ventilation Efficiency

Frequently Asked Questions

Q1: Are you a professional manufacturer or a trading company?

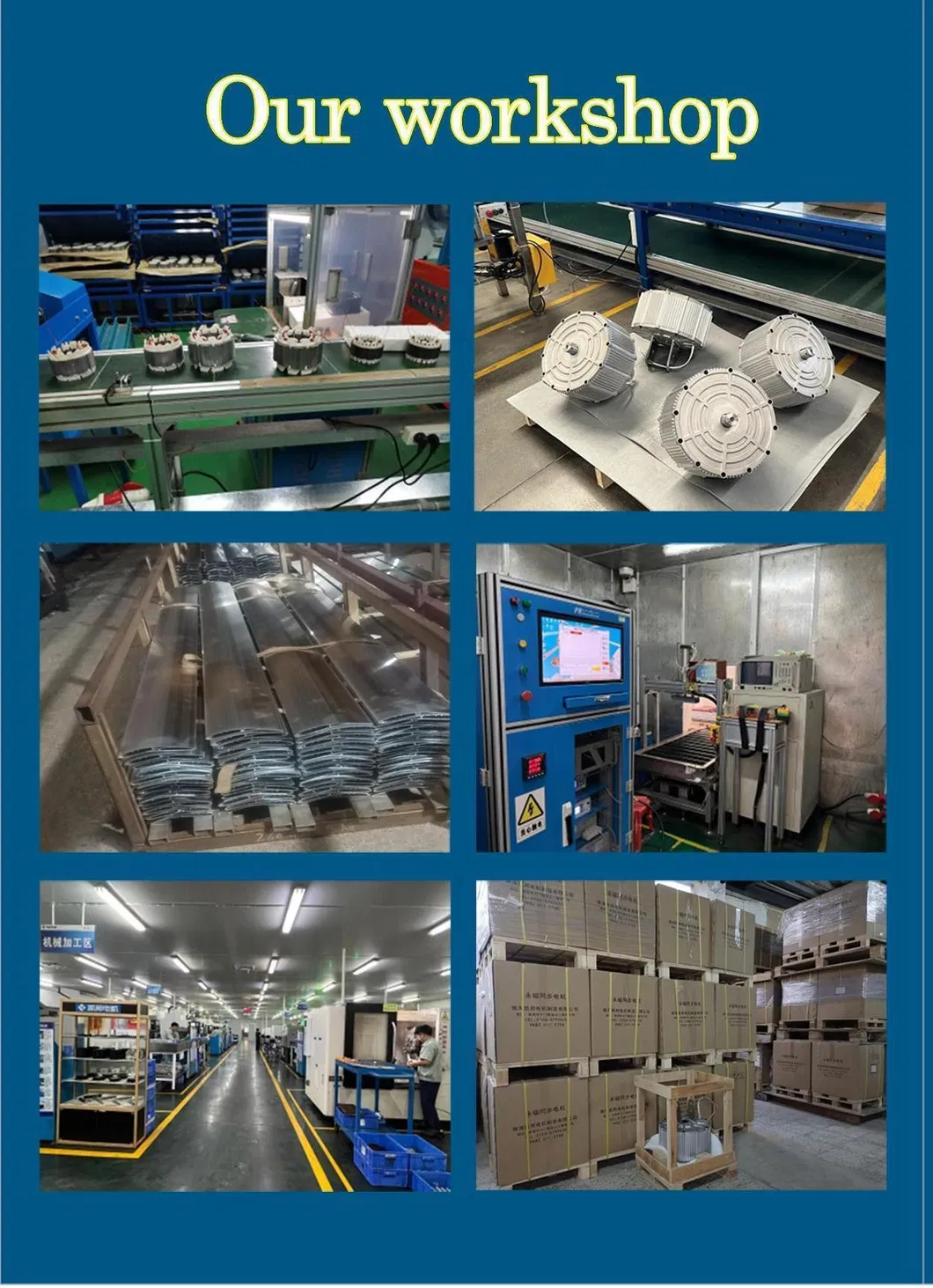

We are a dedicated manufacturer specialized in HVLS Industrial Ceiling Fans, cooling fans, and exhaust industrial fans, with production capabilities established since 2003.

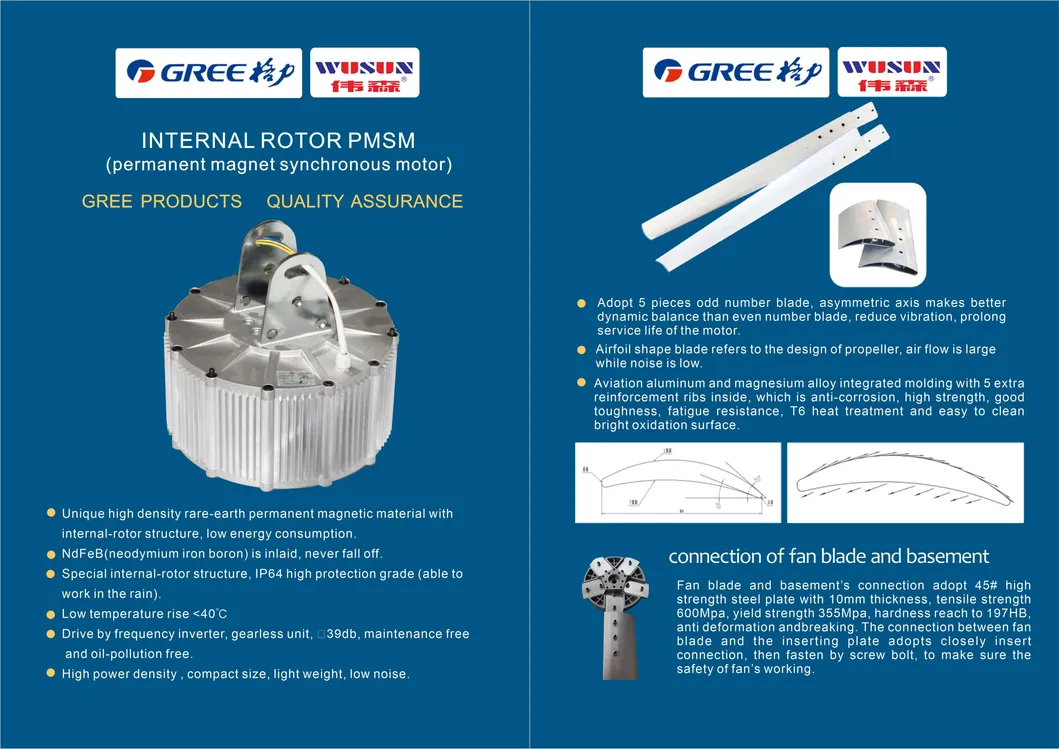

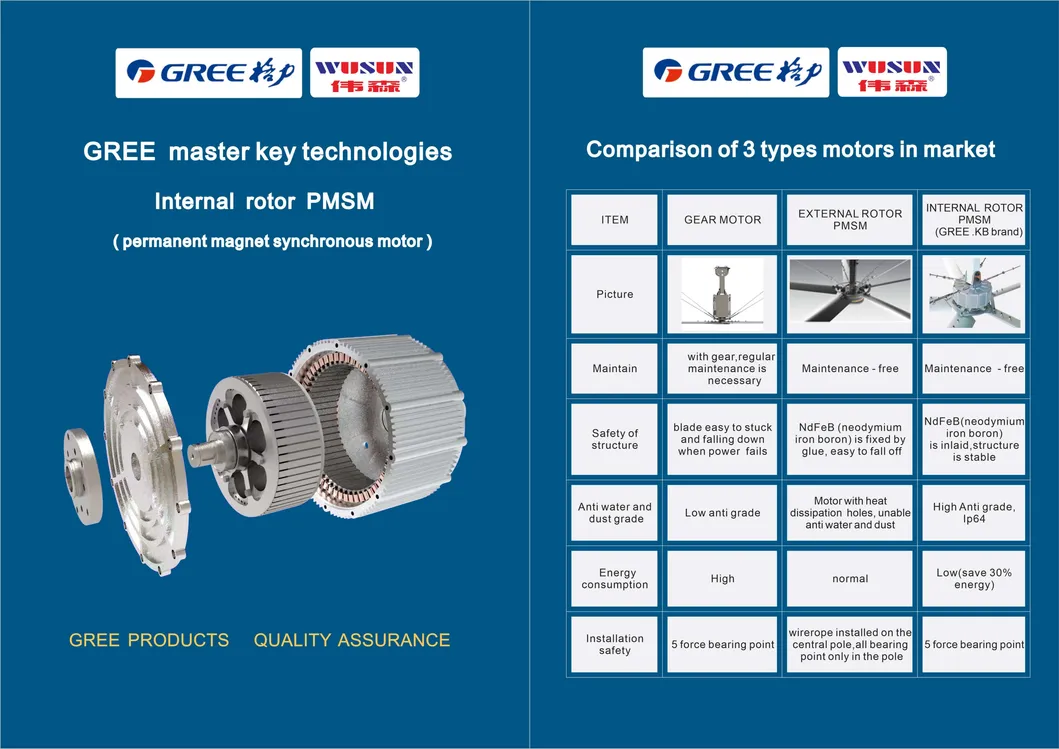

Q2: What is the primary difference between internal rotor and external rotor PMSM motors?

Internal PMSM: Offers a highly secure structure where NdFeB (neodymium iron boron) magnets are structurally inlaid to prevent detachment, features a high IP64 protection rating, and uses 5 force-bearing points for superior stability.
External PMSM: Features a less secure structure where magnets are fixed with glue, has exposed heat dissipation holes that are vulnerable to dust and water, and centers all force bearings on a single central pole.

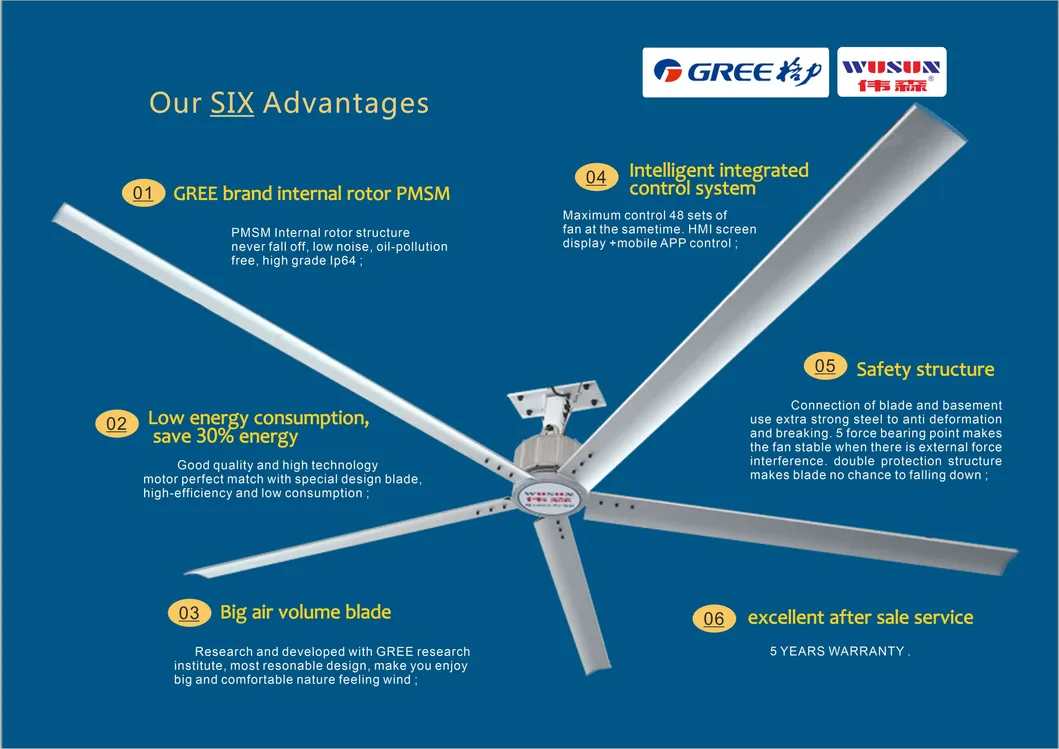

Q3: What are the main design advantages of these HVLS industrial ceiling fans?

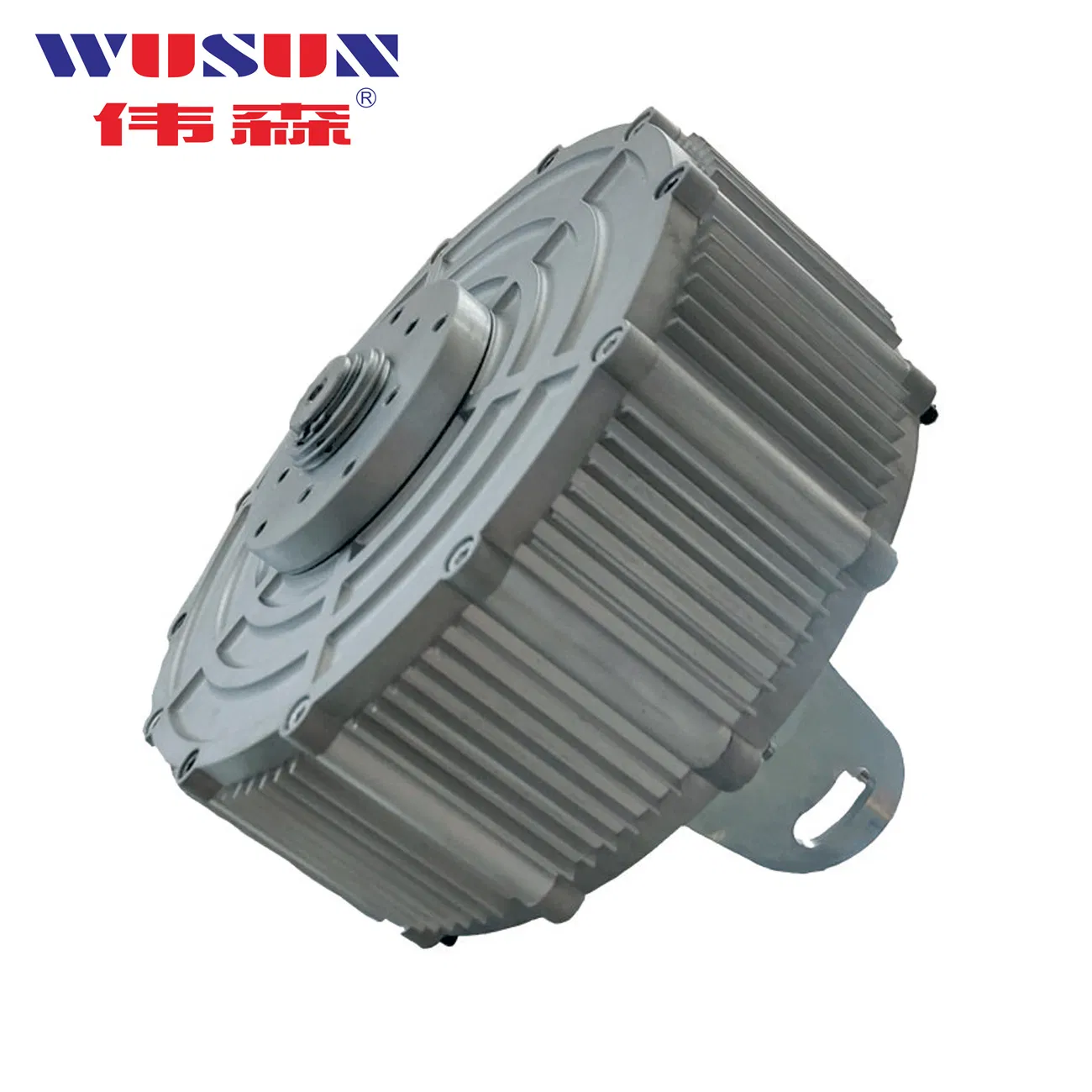

1. Equipped with top-tier internal rotor PMSM motors for maximum durability and efficiency.

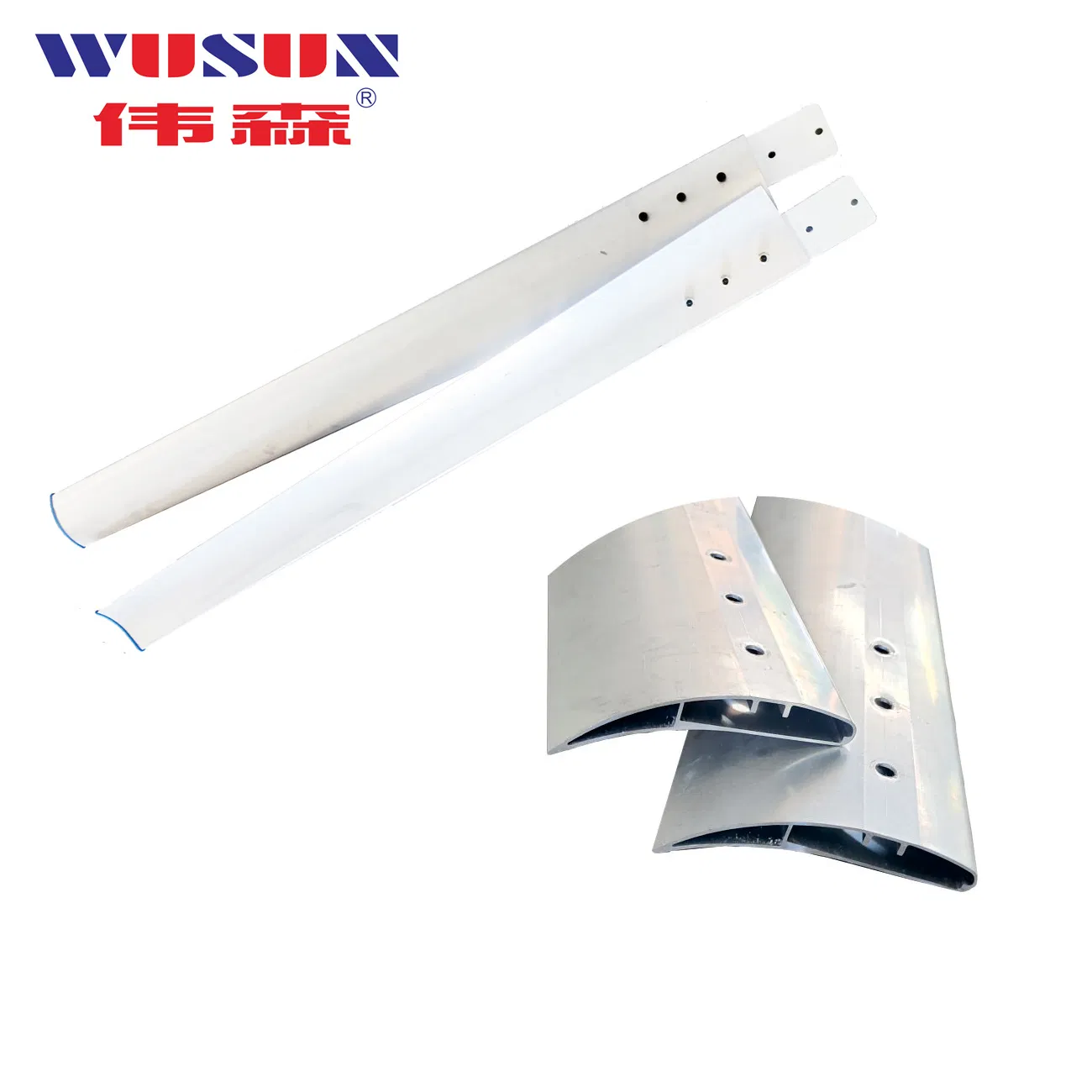

2. Specialized aerodynamic blades designed in cooperation with top research institutions to mimic comfortable natural wind.

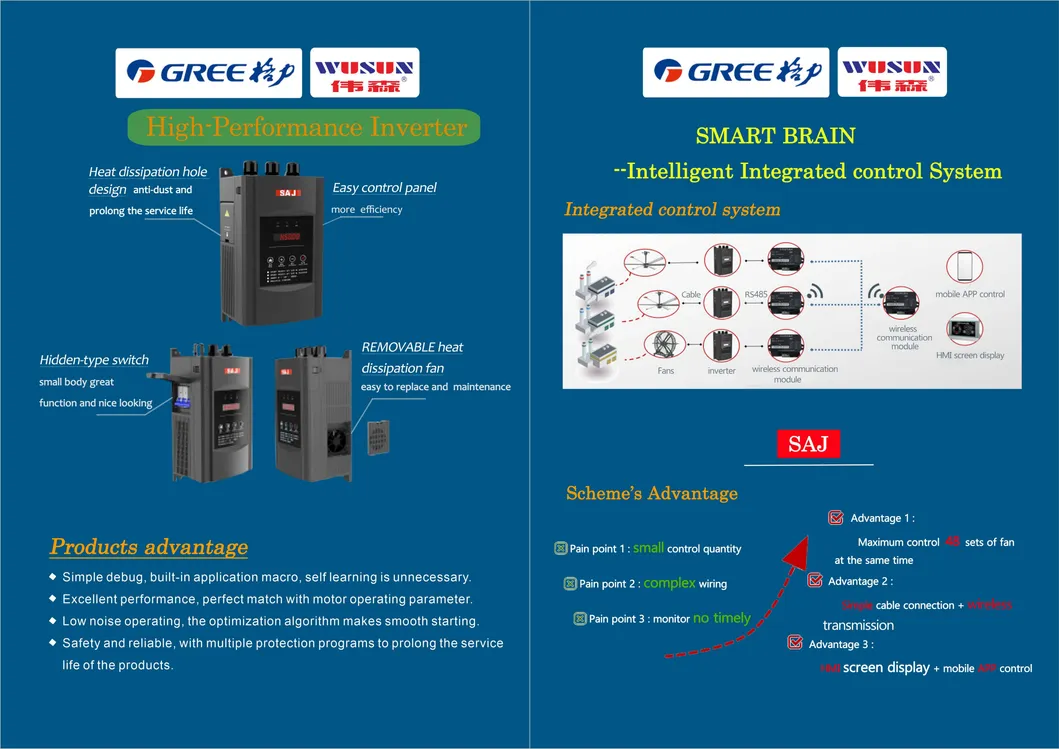

3. Smart integrated control systems capable of managing up to 48 fan units simultaneously.

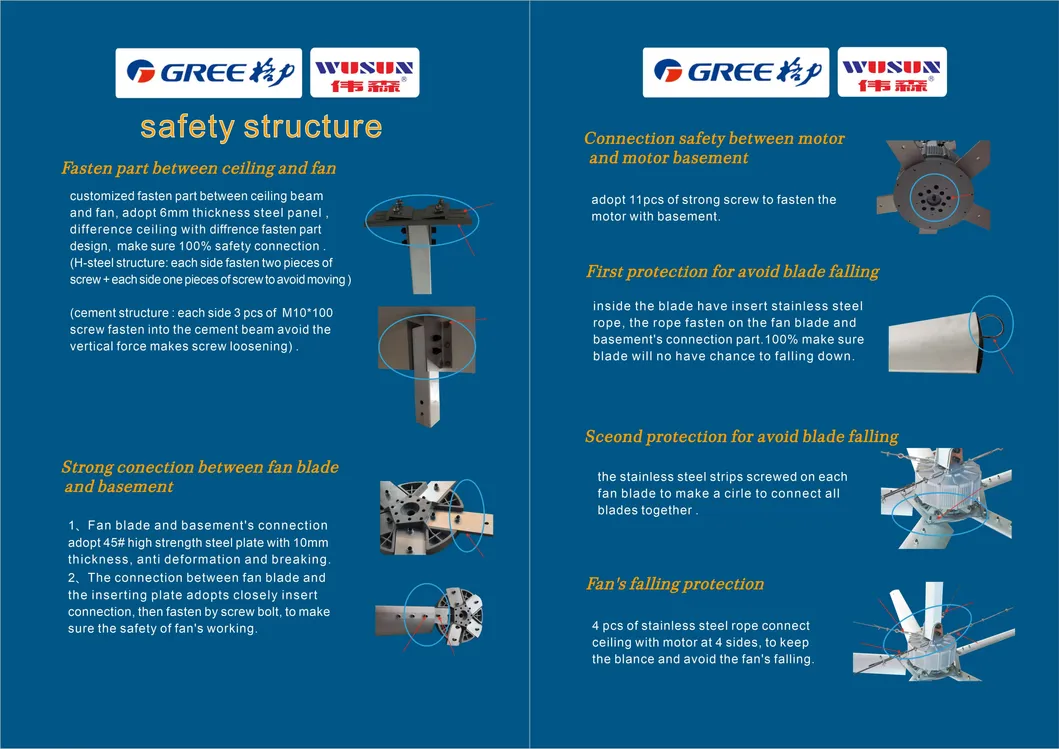

4. Reinforced safety structures and 5-year warranty protection.

Q4: How is after-sales and warranty service handled?

We provide a comprehensive 5-year warranty. During the warranty period, we will send free replacement parts for any component replacements needed.

Q5: What are the delivery lead times and payment terms?

Delivery: Standard delivery takes within 7 days from payment confirmation by T/T, depending on order size.
Payment Terms: 100% advance payment for orders under 5,000 USD. For orders of 5,000 USD and above, we accept 30% T/T in advance, with the remaining balance cleared before shipment.
